GW-50

POWER WINDOW SYSTEM

TIWM1570E

FRONT DOOR GLASS AND REGULATOR

GW-51

C

D

E

F

G

H

J

K

L

M

A

B

GW

FRONT DOOR GLASS AND REGULATOR

PFP:80300

Removal and Installation

NIS000Z7

DOOR GLASS
Removal

1.

Remove the front door finisher and the front door sash cover. Refer to

EI-35, "DOOR FINISHER"

 .

2.

Pull the inside seal out of the inner panel.

3.

Remove the door speaker. Refer to

AV-53, "Removal and Installation of Door Speaker"

 .

4.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

5.

Remove the glass mounting bolts.

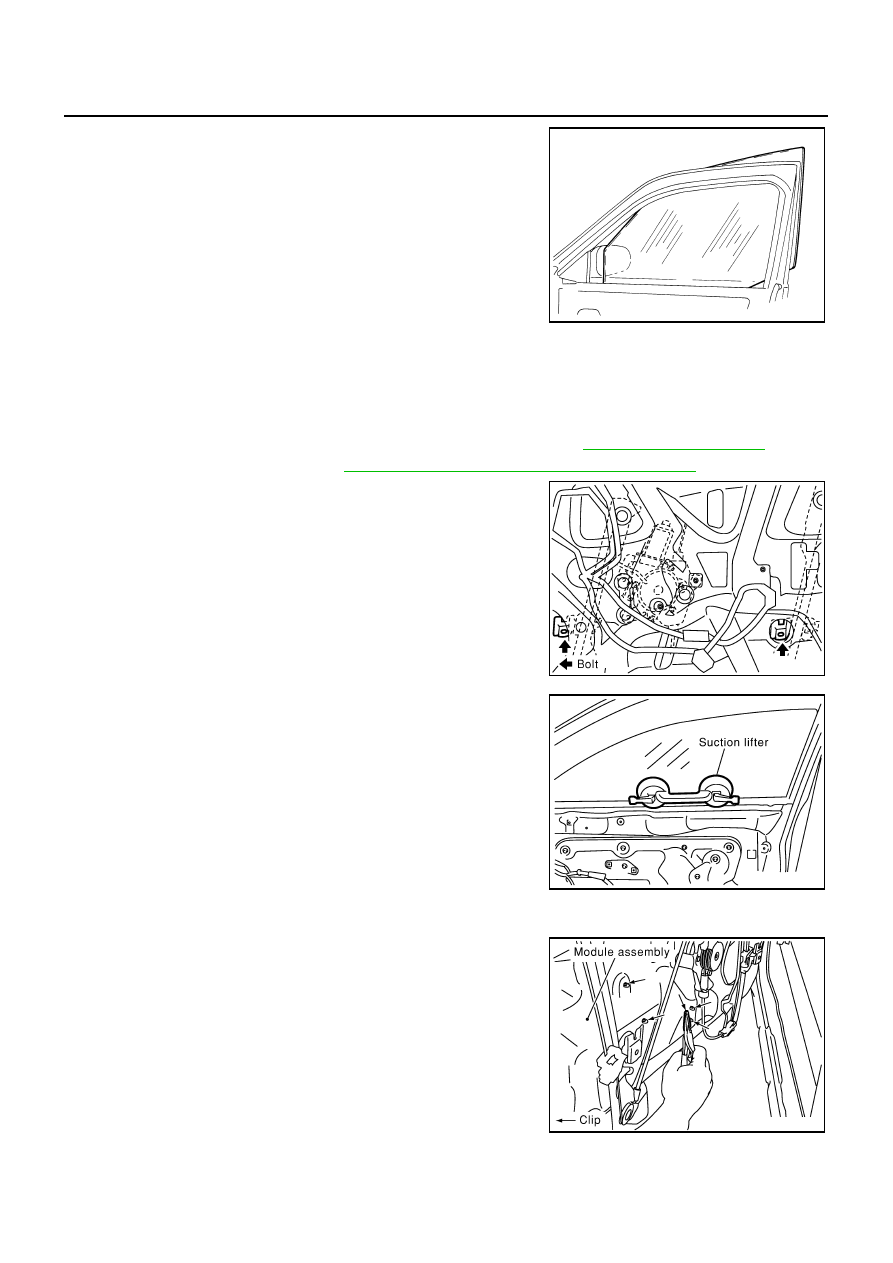

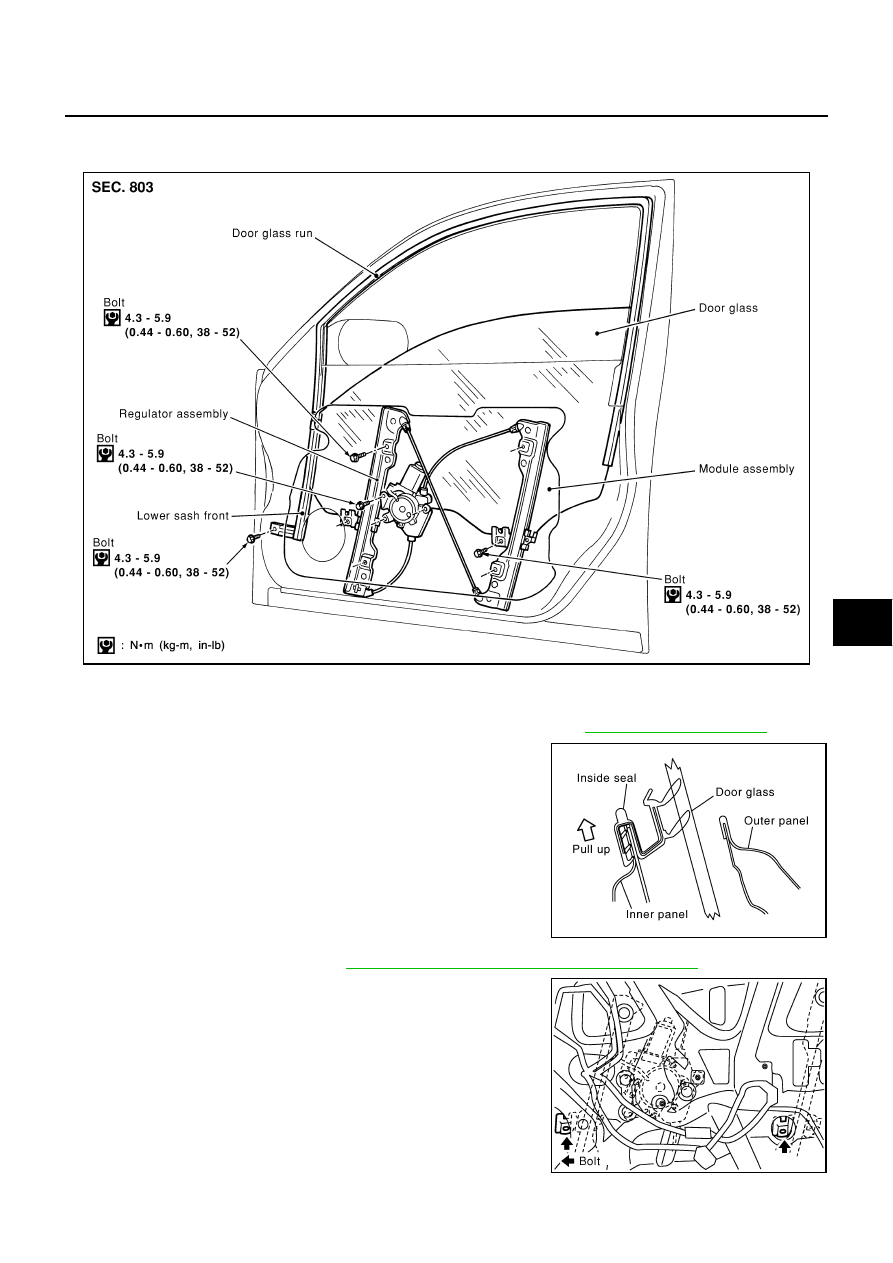

SIIA0285E

PIIA9439E

SIIA0264E

GW-52

FRONT DOOR GLASS AND REGULATOR

6.

While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.

Installation

Install in the reverse order of removal.

REGULATOR ASSEMBLY
Removal

1.

Remove the front door finisher and the front door sash cover. Refer to

EI-35, "DOOR FINISHER"

 .

2.

Remove the door speaker. Refer to

AV-53, "Removal and Installation of Door Speaker"

 .

3.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

4.

Remove the glass mounting bolts.

5.

Raise up the door glass and hold with a suction lifter.

6.

Remove the mounting bolts, and remove the module assembly.

7.

Disconnect the harness connector for the module assembly, and
remove the harness clip from the back.

Installation

Install in the reverse order of removal.

SIIA0286J

SIIA0264E

PIIB1811E

SIIA0287E
