Infiniti Q45. Manual - part 541





BODY SIDE TRIM

EI-43

C

D

E

F

G

H

J

K

L

M

A

B

EI

BODY SIDE TRIM

PFP:76913

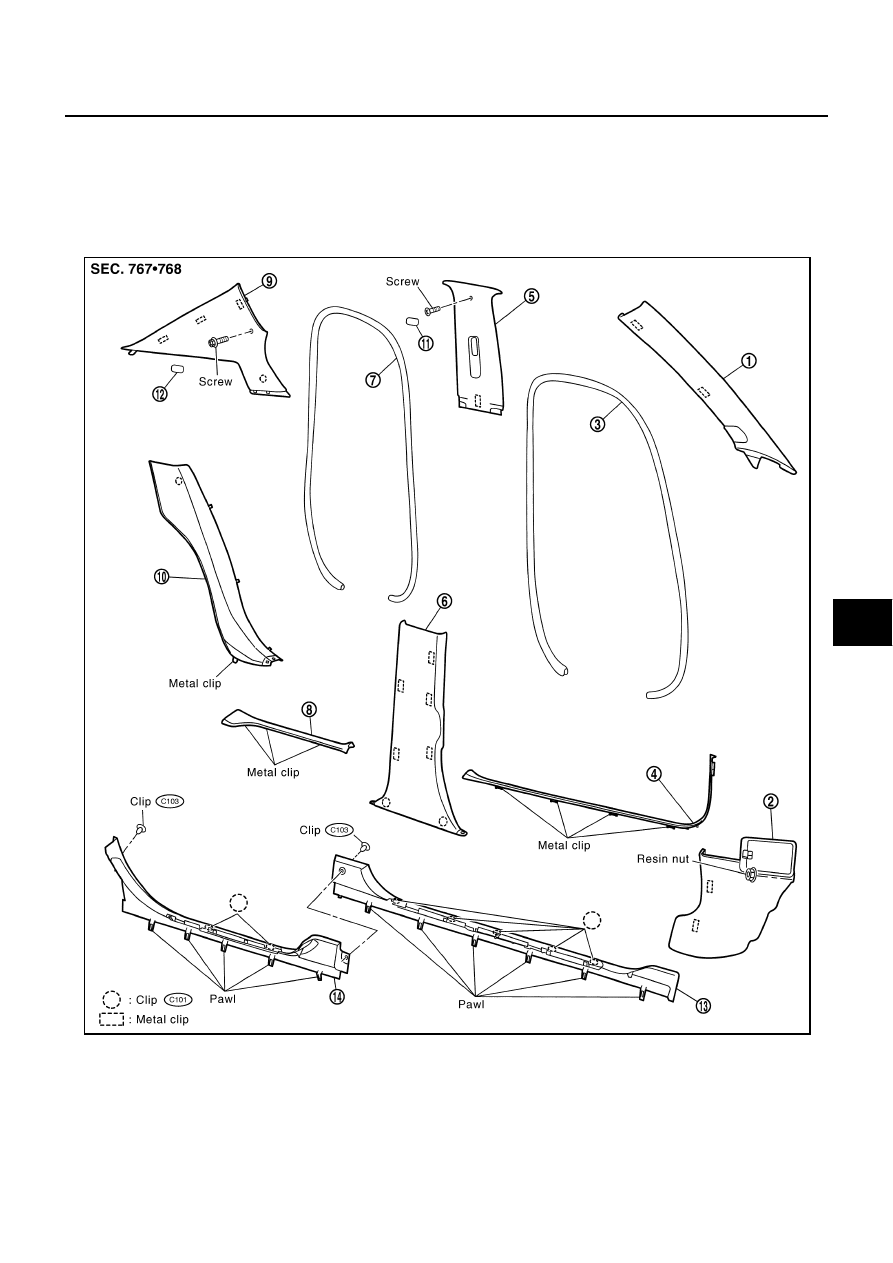

Removal and Installation

NIS0011O

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

When removing or installing body side welts, do not allow butyl seal to come in contact with pillar
garnish.

1.

Front pillar garnish

2.

Dash side finisher

3.

Front body side welt

4.

Front kicking plate

5.

Center pillar garnish

6.

Center pillar lower garnish

7.

Rear body side welt

8.

Rear kicking plate

9.

Rear pillar finisher

10.

Rear wheelhouse garnish

11.

Center pillar upper cap

12.

Rear pillar upper cap

13.

Mudguard finisher (front)

14.

Mudguard finisher (rear)

PIIB1699E

EI-44

BODY SIDE TRIM

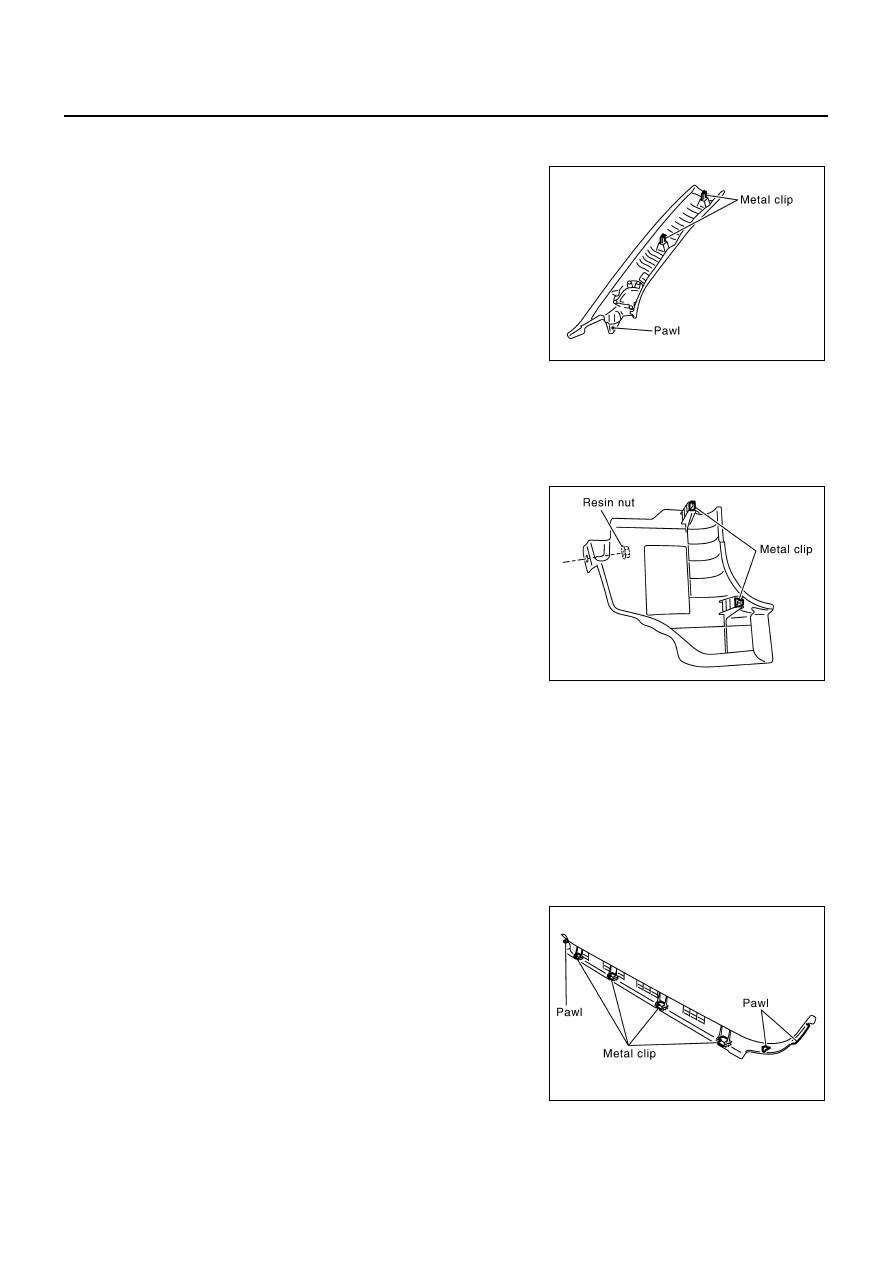

FRONT PILLAR GARNISH
Removal

1.

Remove front body side welt.

2.

Remove clips, and remove front pillar garnish.

Installation

Install in the reverse order of removal.

DASH SIDE FINISHER
Removal

1.

Remove front kicking plate.

2.

Remove clips and resin nut of dash side finisher.

3.

Remove dash side finisher.

Installation

Install in the reverse order of removal.

FRONT BODY SIDE WELT
Removal

Remove front body side welt.

Installation

Install in the reverse order of removal.

FRONT KICKING PLATE
Removal

Remove clips, and remove front kicking plate.

Installation

Install in the reverse order of removal.

PIIA9272E

PIIA9273E

PIIA9274E

BODY SIDE TRIM

EI-45

C

D

E

F

G

H

J

K

L

M

A

B

EI

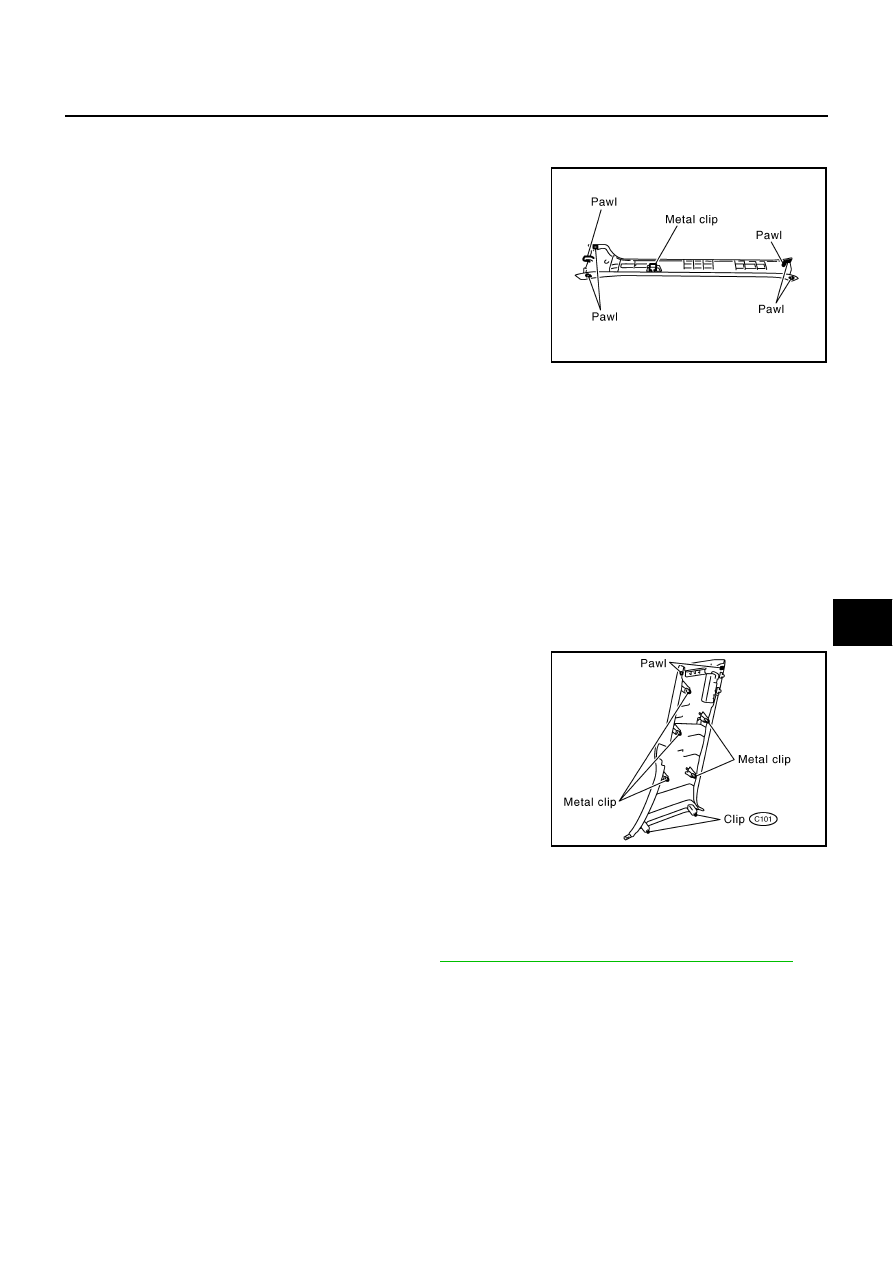

REAR KICKING PLATE
Removal

Remove clips, and remove rear kicking plate.

Installation

Install in the reverse order of removal.

REAR BODY SIDE WELT
Removal

Remove rear body side welt.

Installation

Install in the reverse order of removal.

CENTER PILLAR LOWER GARNISH
Removal

1.

Remove front and rear kicking plate.

2.

Remove front and rear body side welt.

3.

Remove screw, and remove rear cooler inlet grille.

4.

Remove clips, and remove center pillar lower garnish.

Installation

Install in the reverse order of removal.

CENTER PILLAR UPPER GARNISH
Removal

1.

Remove front seat belt shoulder anchor. Refer to

SB-3, "Removal and Installation of Front Seat Belt"

 .

2.

Remove front and rear body side welt.

3.

Remove front and rear kicking plate.

4.

Remove center pillar lower garnish.

PIIA9275E

PIIA9276E

EI-46

BODY SIDE TRIM

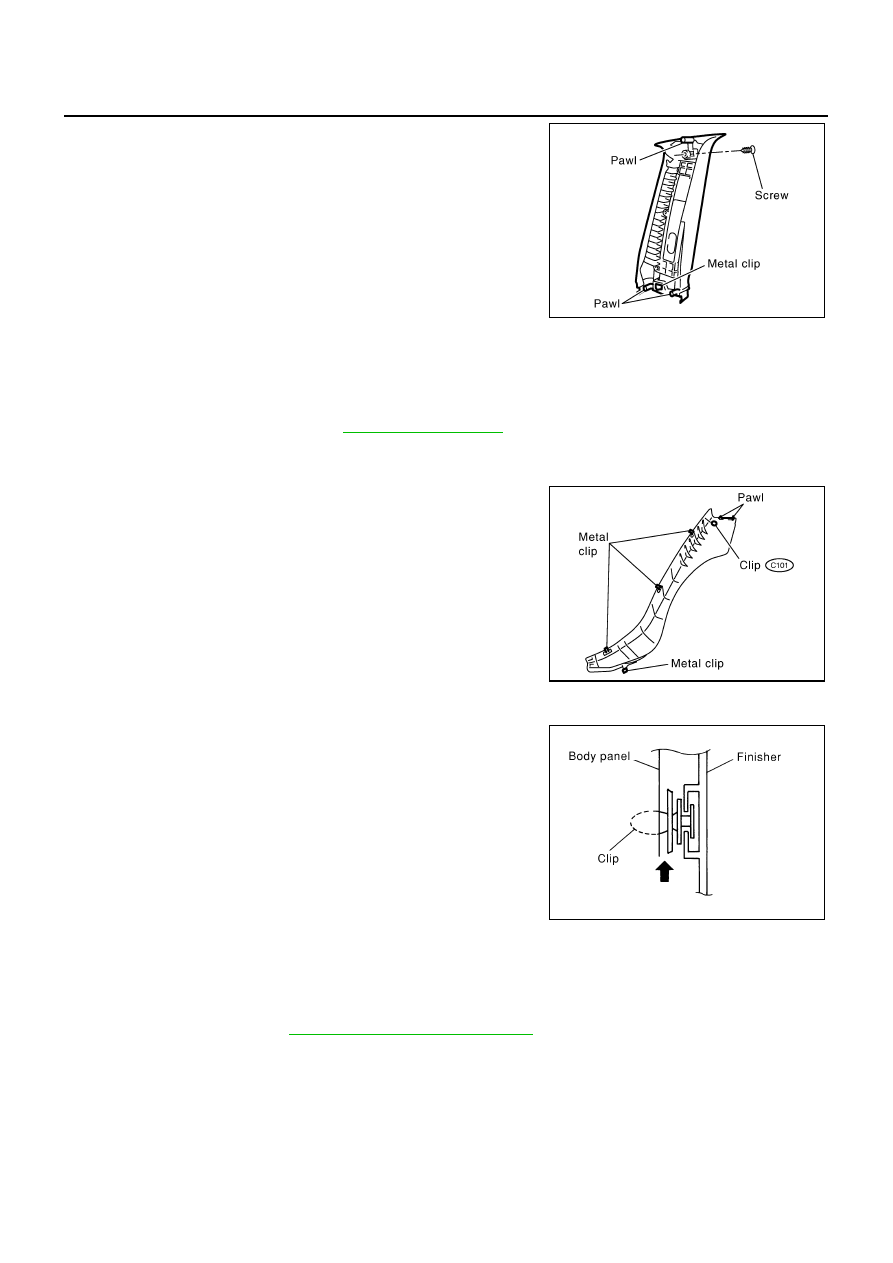

5.

Remove cap and screw of center pillar upper garnish.

6.

Remove center pillar upper garnish.

Installation

Install in the reverse order of removal.

REAR WHEELHOUSE GARNISH
Removal

1.

Remove rear seat cushion.Refer to

SE-191, "REAR SEAT"

 .

2.

Remove rear kicking plate.

3.

Remove rear body side welt.

4.

Remove clips, and remove rear wheelhouse garnish.

NOTE:
Insert screwdriver rolled with cloth between panel on vehicle and
clips (as indicated with arrow).

Installation

Install in the reverse order of removal.

REAR PILLAR FINISHER
Removal

1.

Remove rear seat. Refer to

SE-191, "Removal and Installation"

 .

2.

Remove rear kicking plate.

3.

Remove rear wheelhouse garnish.

4.

Remove rear body side welt.

PIIA9277E

PIIA9278E

SIIA0810E
