WINDSHIELD MOLDING

EI-27

C

D

E

F

G

H

J

K

L

M

A

B

EI

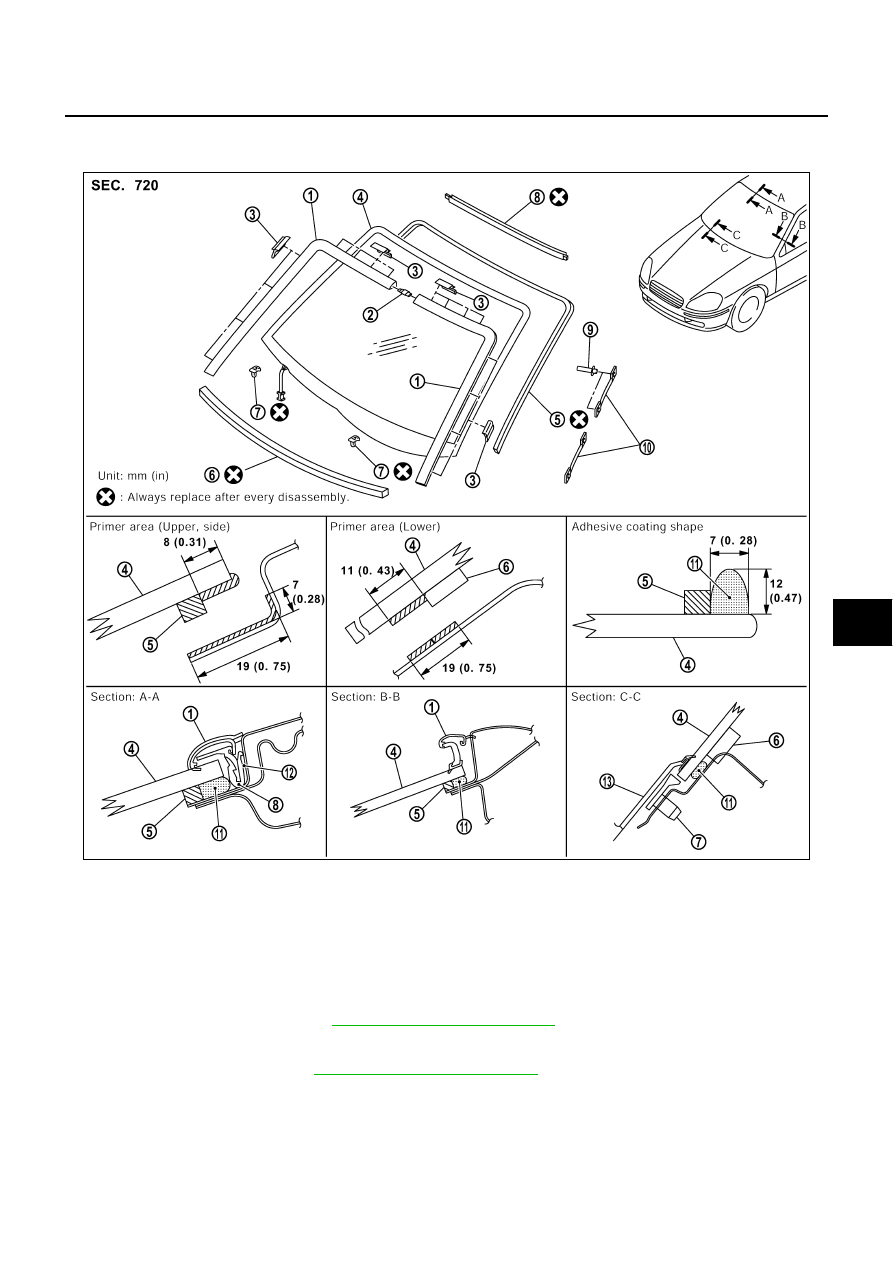

WINDSHIELD MOLDING

PFP:72700

Removal and Installation

NIS0011F

REMOVAL

Remove windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

INSTALLATION

Install windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

PIIA9989E

1.

Windshield molding

2.

Joint

3.

Clip

4.

Windshield glass

5.

Open cell foam dam

6.

Insulator

7.

Spacer

8.

Fastener (upper)

9.

Rivet

10. Fastener (lower)

11. Adhesive

12. Double-faced adhesive tape

13. Cowl top cover

EI-28

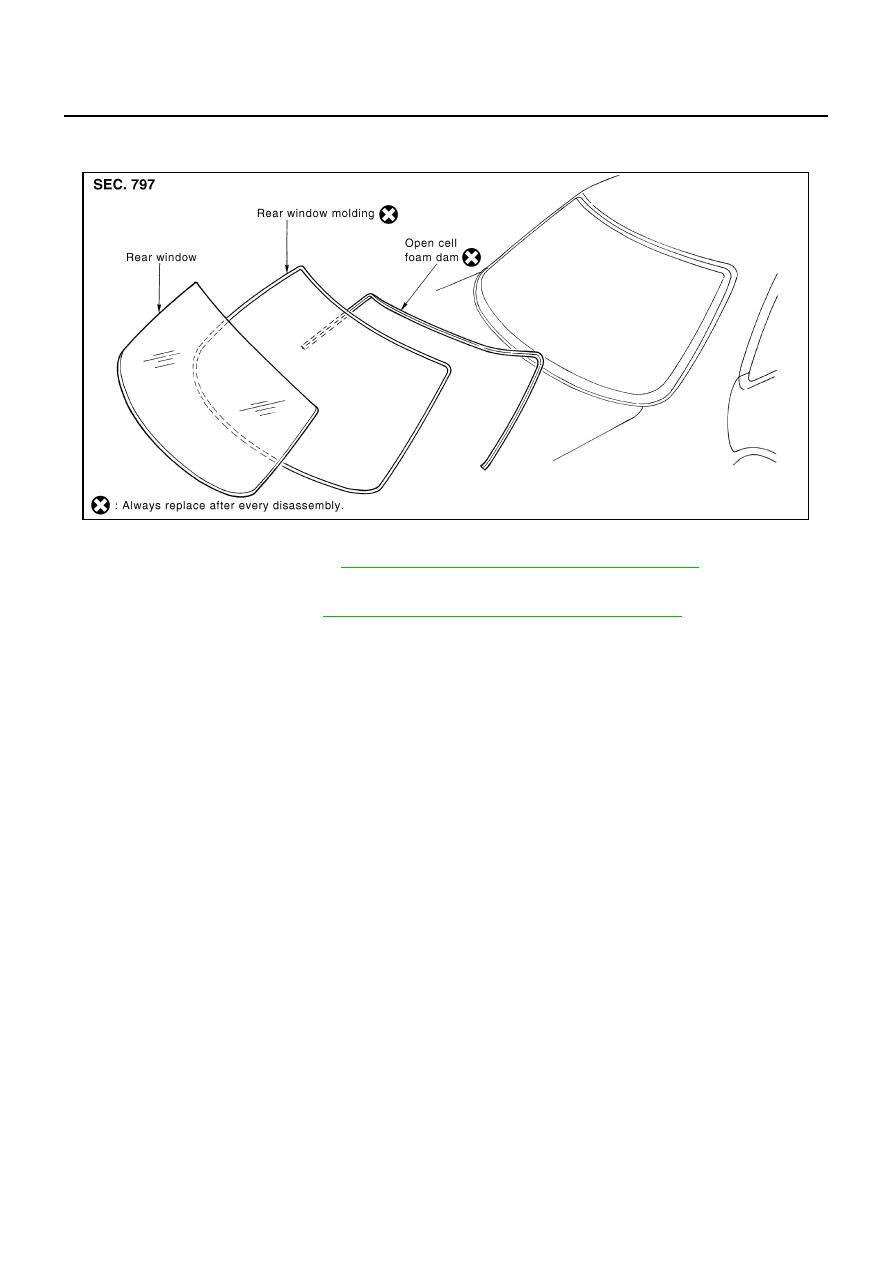

REAR WINDOW MOLDING

REAR WINDOW MOLDING

PFP:79762

Removal and Installation

NIS0011G

REMOVAL

Remove rear window molding. Refer to

GW-14, "REAR WINDOW GLASS AND MOLDING"

  .

INSTALLATION

Install rear window molding. Refer to

GW-14, "REAR WINDOW GLASS AND MOLDING"

  .

PIIA0052E

DRIP MOLDING

EI-29

C

D

E

F

G

H

J

K

L

M

A

B

EI

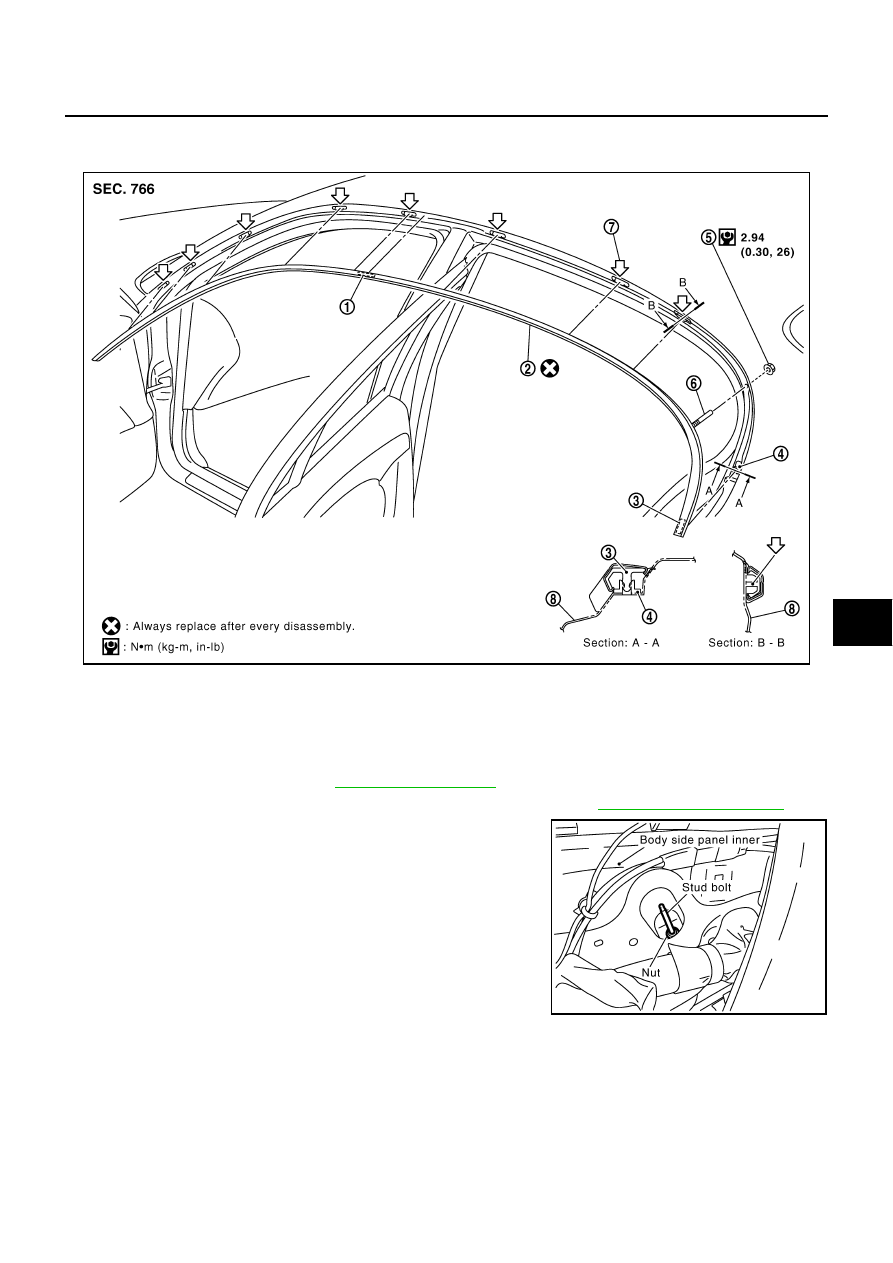

DRIP MOLDING

PFP:76810

Removal and Installation

NIS0011H

REMOVAL

1.

Remove rear seat cushion. Ref to

SE-191, "REAR SEAT"

 .

2.

Remove rear wheelhouse garnish and remove rear pillar finisher. Ref to

EI-43, "BODY SIDE TRIM"

 .

3.

Remove nut of drip molding from body side panel inner.

4.

Disconnect clip A-A of drip molding from body side grommet.

5.

Disconnect drip molding from body side clips B-B.

6.

Pull out clip (with stud bolt) and remove drip molding.

INSTALLATION

Install in the reverse order of removal.

PIIB2115E

1.

Stopper

2.

Drip molding

3.

Clip A-A (molding side)

4.

Grommet (body side)

5.

Nut

6.

Clip (with stud bolt)

7.

Clip B-B (body side)

8.

Body side panel outer

PIIB0113E

EI-30

DRIP MOLDING

CAUTION:

●

Insert clip (with stud bolt). Hold stopper part to avoid coming over clip B-B, and connect clip A-A.

●

Connect clip B-B in order from rear side.
