ASCD BRAKE SWITCH

EC-687

C

D

E

F

G

H

I

J

K

L

M

A

EC

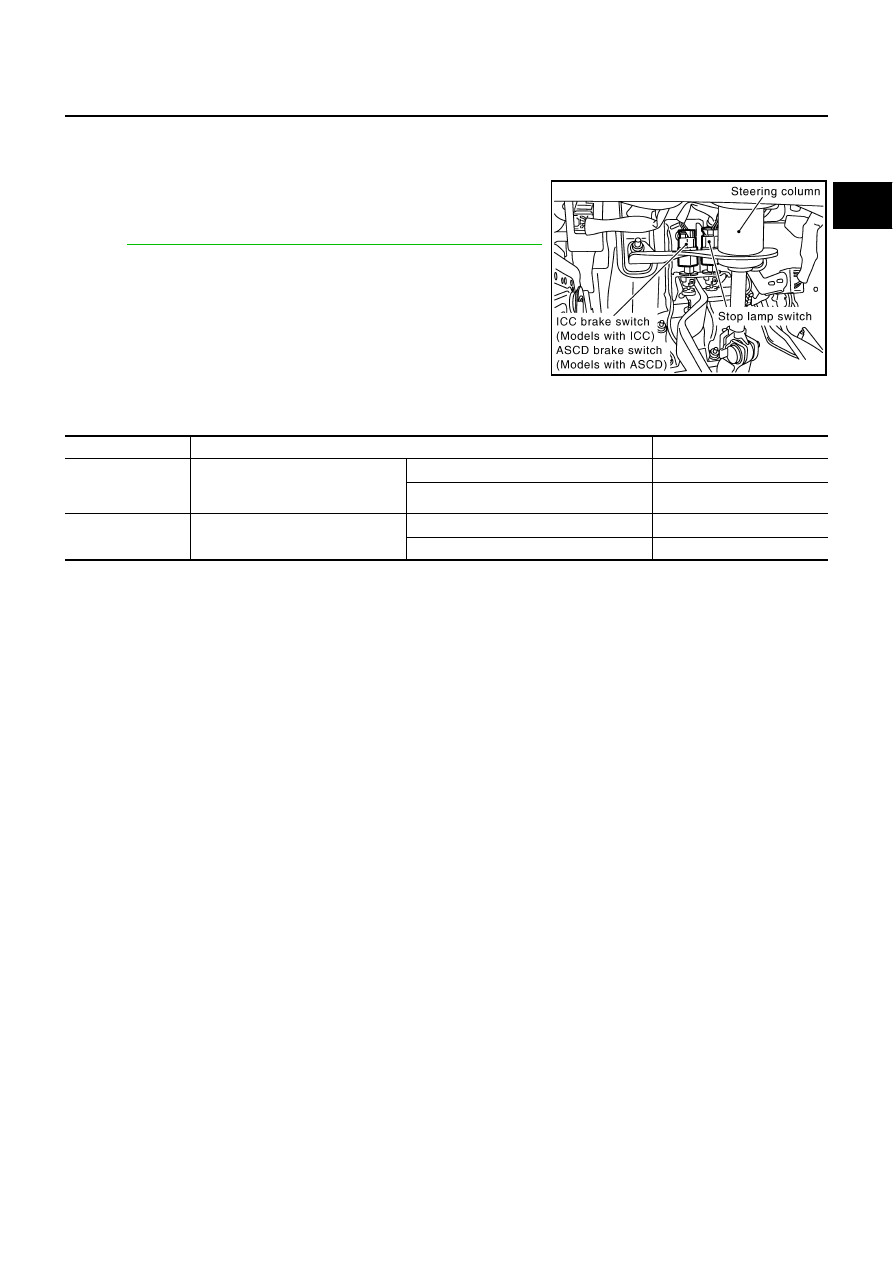

ASCD BRAKE SWITCH

PFP:25320

Component Description

NBS0027S

When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to

EC-29, "AUTOMATIC SPEED CONTROL DEVICE (ASCD)"

for the ASCD function.

CONSULT-II Reference Value in Data Monitor Mode

NBS0027T

Specification data are reference values.

PBIB2433E

MONITOR ITEM

CONDITION

SPECIFICATION

BRAKE SW1
(ASCD brake
switch)

●

Ignition switch: ON

Brake pedal: Fully released

ON

Brake pedal: Slightly depressed

OFF

BRAKE SW2
(stop lamp switch)

●

Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

EC-688

ASCD BRAKE SWITCH

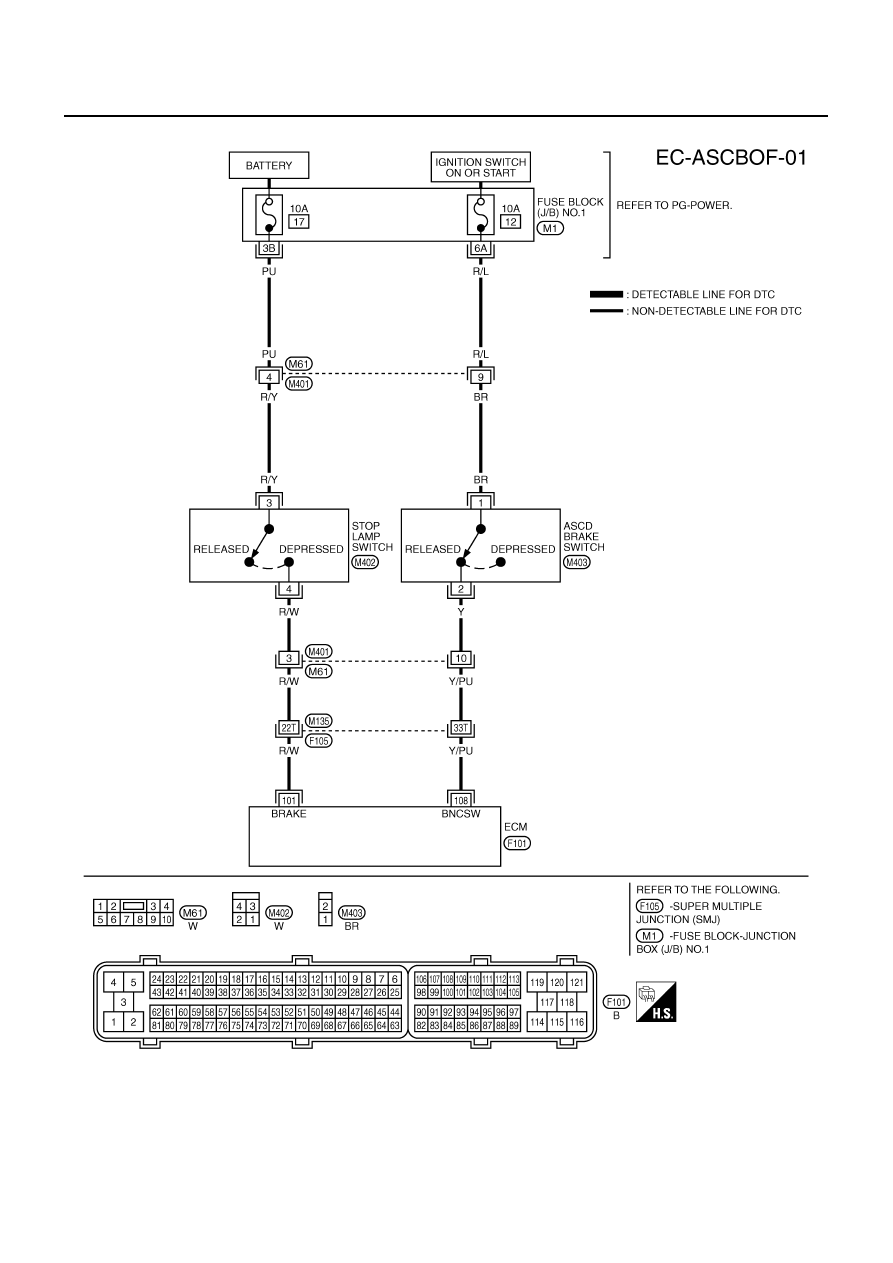

Wiring Diagram

NBS0027U

TBWM1260E

ASCD BRAKE SWITCH

EC-689

C

D

E

F

G

H

I

J

K

L

M

A

EC

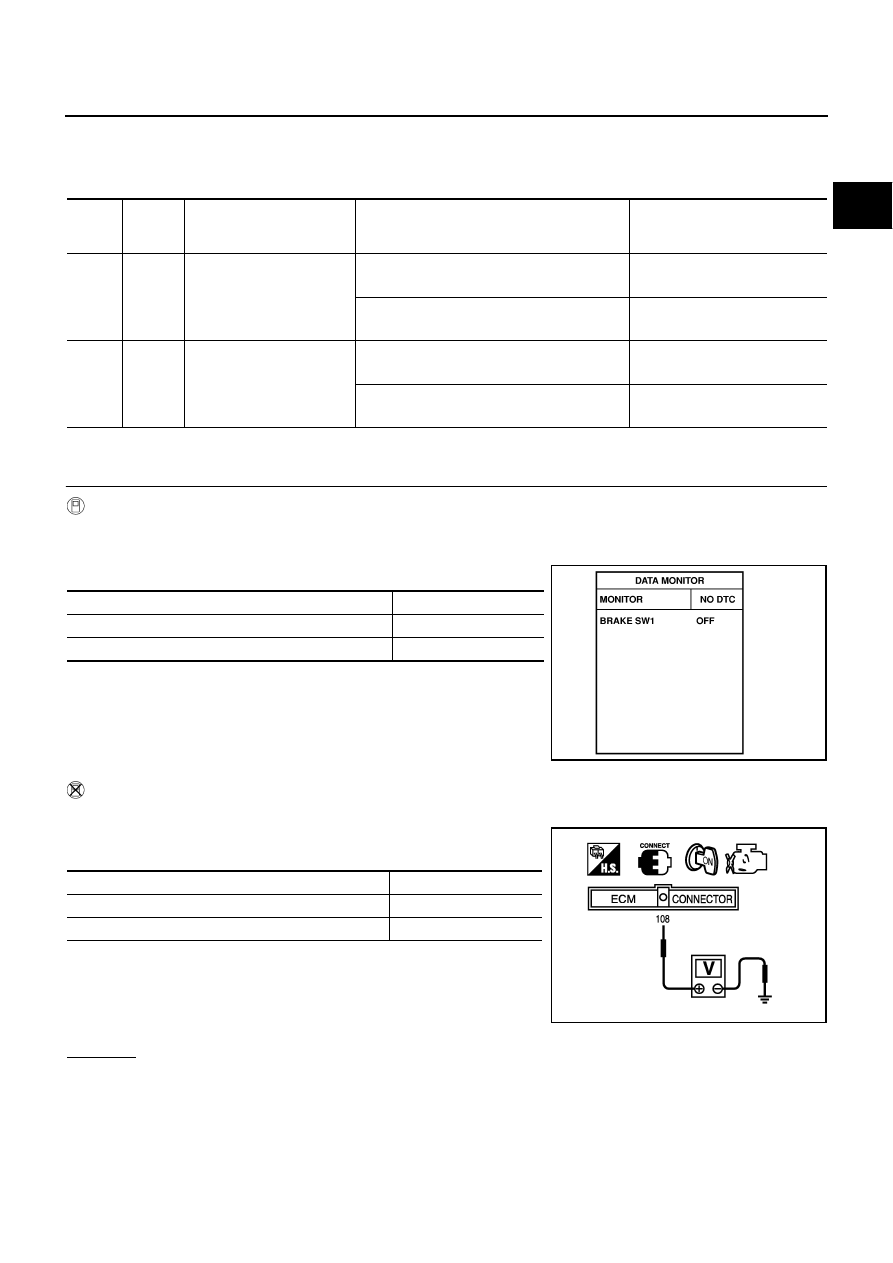

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS0027V

1.

CHECK OVERALL FUNCTION-I

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.

3.

Check “BRAKE SW1” indication under the following conditions.

 Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 108 and ground under the
following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

101

R/W

Stop lamp switch

[Ignition switch: OFF]

●

Brake pedal: Fully released

Approximately 0V

[Ignition switch: OFF]

●

Brake pedal: Slightly depressed

BATTERY VOLTAGE
(11 - 14V)

108

Y/PU

ASCD brake switch

[Ignition switch: ON]

●

Brake pedal: Slightly depressed

Approximately 0V

[Ignition switch: ON]

●

Brake pedal: Fully released

BATTERY VOLTAGE
(11 - 14V)

CONDITION

INDICATION

When brake pedal: Slightly depressed

OFF

When brake pedal: Fully released

ON

SEC011D

CONDITION

VOLTAGE

When brake pedal: Slightly depressed

Approximately 0V

When brake pedal: Fully released

Battery voltage

MBIB0061E

EC-690

ASCD BRAKE SWITCH

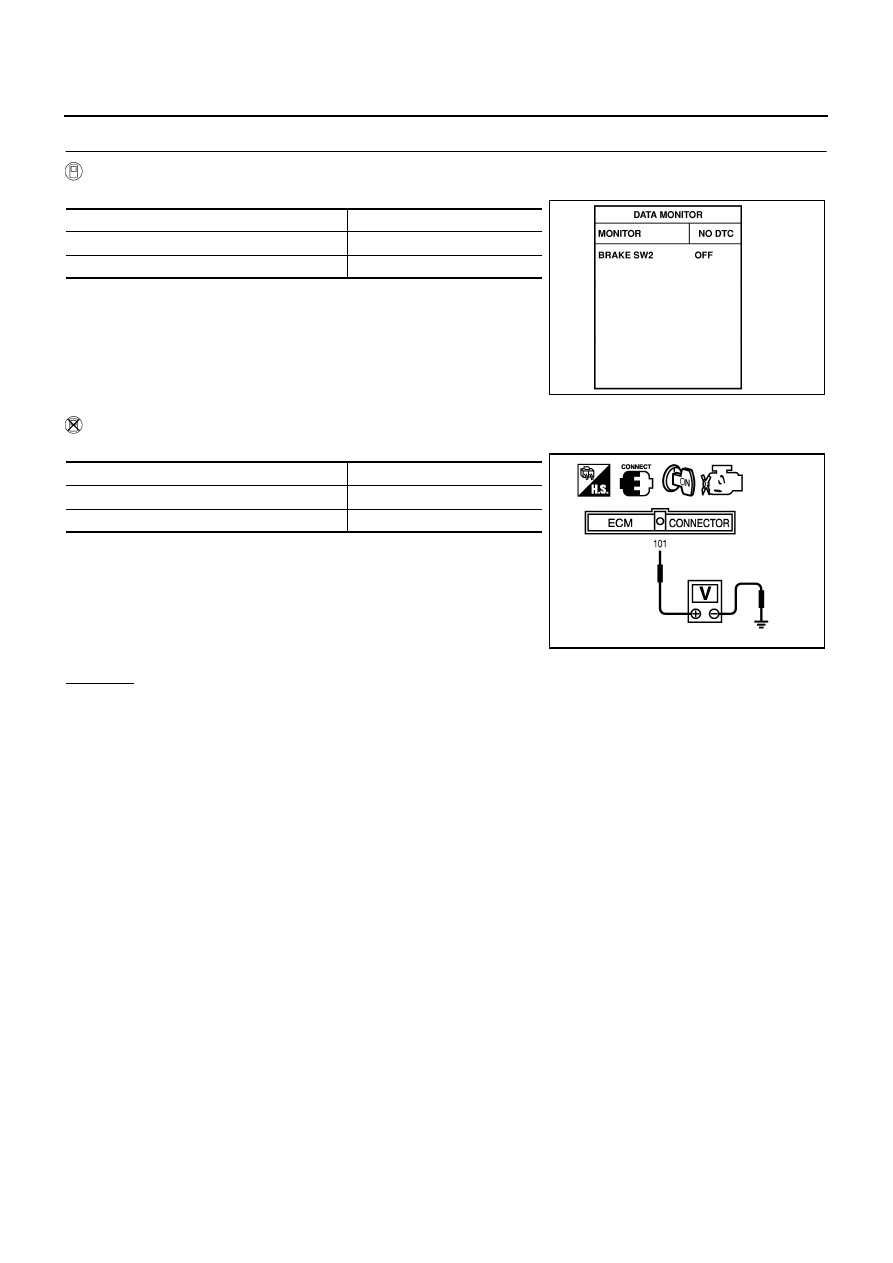

2.

CHECK OVERALL FUNCTION-II

 With CONSULT-II

Check “BRAKE SW2” indication in “DATA MONITOR” mode.

 Without CONSULT-II

Check voltage between ECM terminal 101 and ground under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

CONDITION

INDICATION

When brake pedal: Fully released

OFF

When brake pedal: Slightly depressed

ON

SEC013D

CONDITION

VOLTAGE

When brake pedal: Fully released

Approximately 0V

When brake pedal: Slightly depressed

Battery voltage

PBIB1537E
