Infiniti Q45. Manual - part 433





DTC P0335 CKP SENSOR (POS)

EC-371

C

D

E

F

G

H

I

J

K

L

M

A

EC

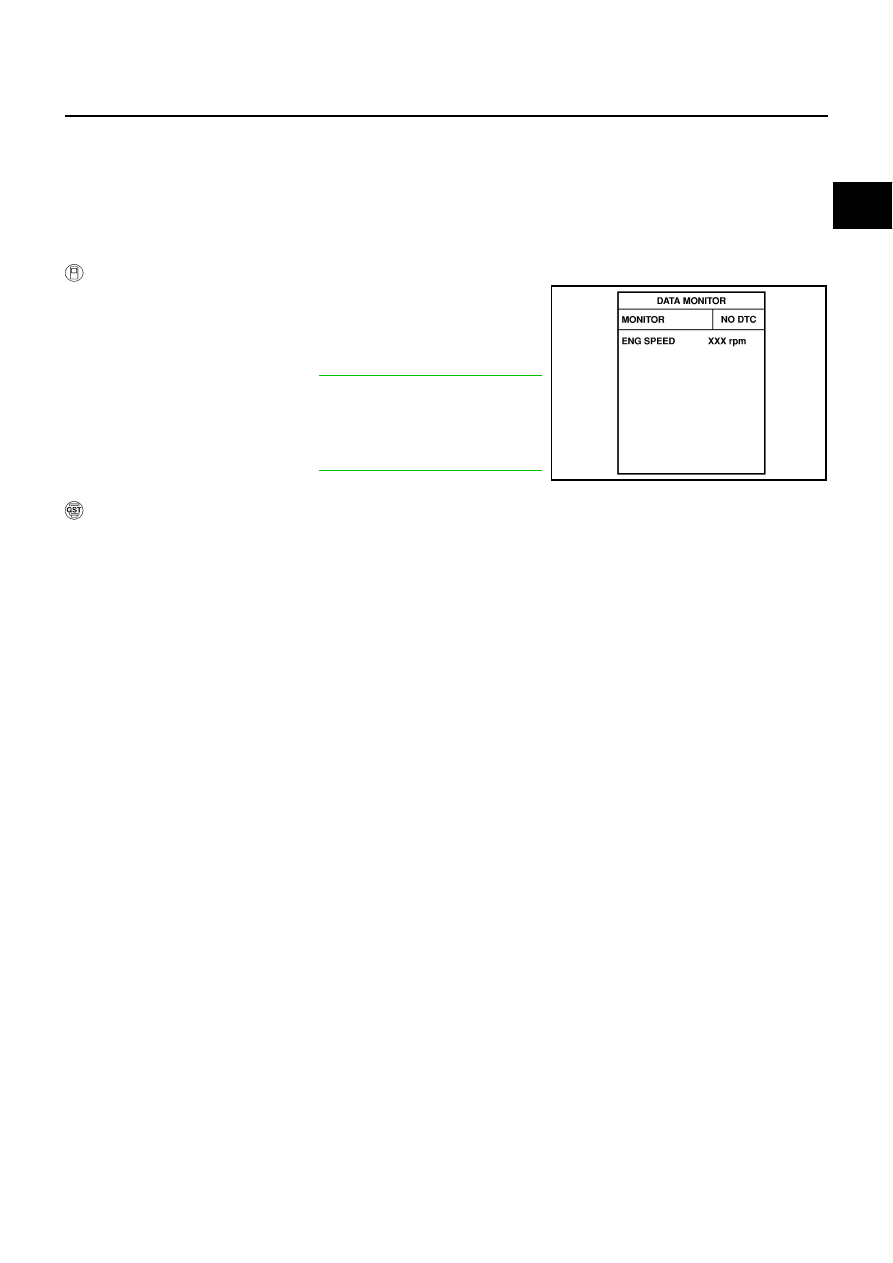

DTC Confirmation Procedure

NBS001WD

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.

 WITH CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.

2.

Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.

3.

If 1st trip DTC is detected, go to

EC-375, "Diagnostic Procedure"

.
If 1st trip DTC is not detected, go to next step.

4.

Maintaining engine speed at more than 800 rpm for at least 5
seconds.

5.

If 1st trip DTC is detected, go to

EC-375, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure WITH CONSULT-II above.

SEF058Y

EC-372

DTC P0335 CKP SENSOR (POS)

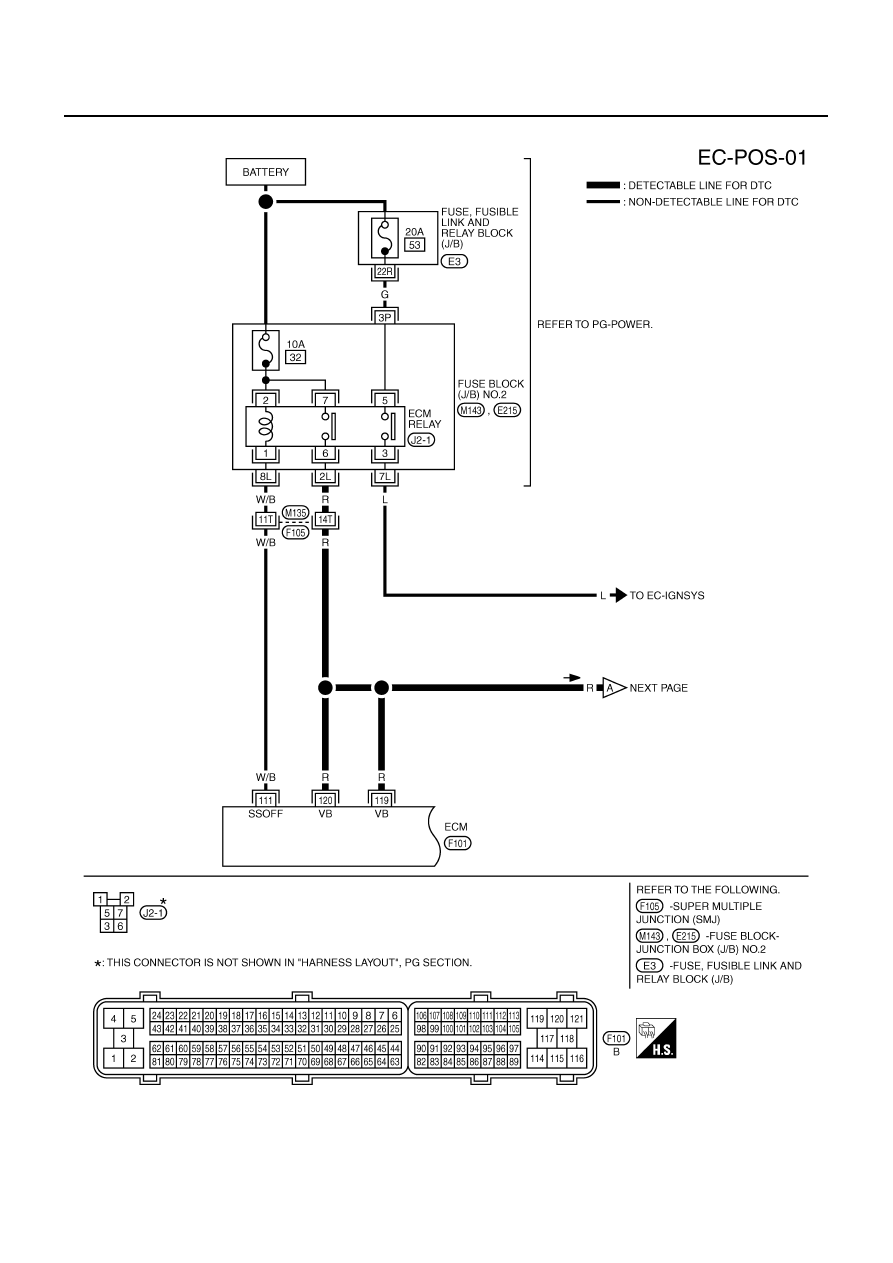

Wiring Diagram

NBS001WE

TBWM1230E

DTC P0335 CKP SENSOR (POS)

EC-373

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

111

W/B

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

EC-374

DTC P0335 CKP SENSOR (POS)

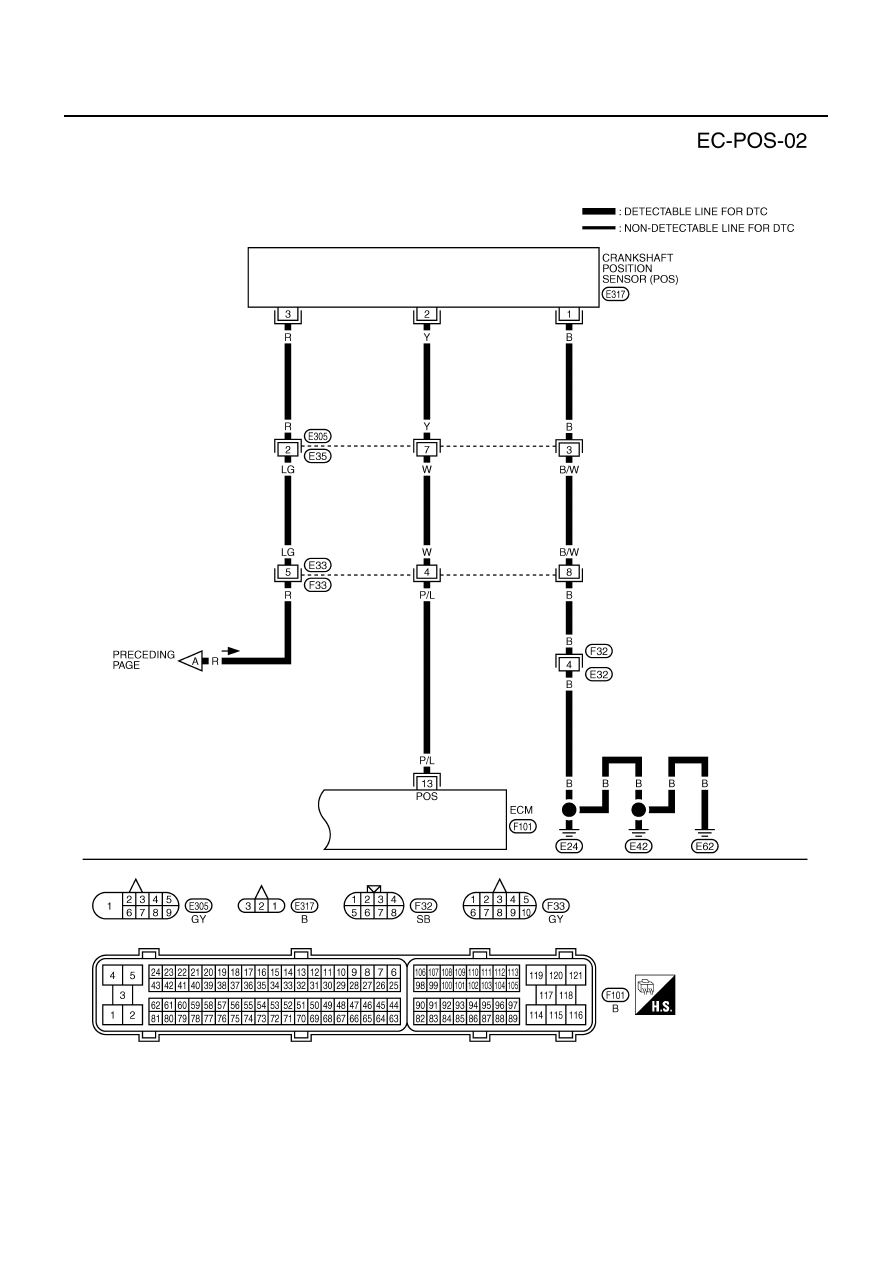

TBWM0551E
