ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-55

C

D

E

F

G

H

I

J

K

L

M

A

EC

When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate
“CMPLT” at the time the respective self-diagnoses have at least one OK result.

 Case 2 above

If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”.

 Case 3 above

The table above shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-diagnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-diagnosis to be executed twice (Case 3) for the following
reasons:

The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.

The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.

When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagno-
sis memory must be erased from ECM after repair.

If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.

NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.

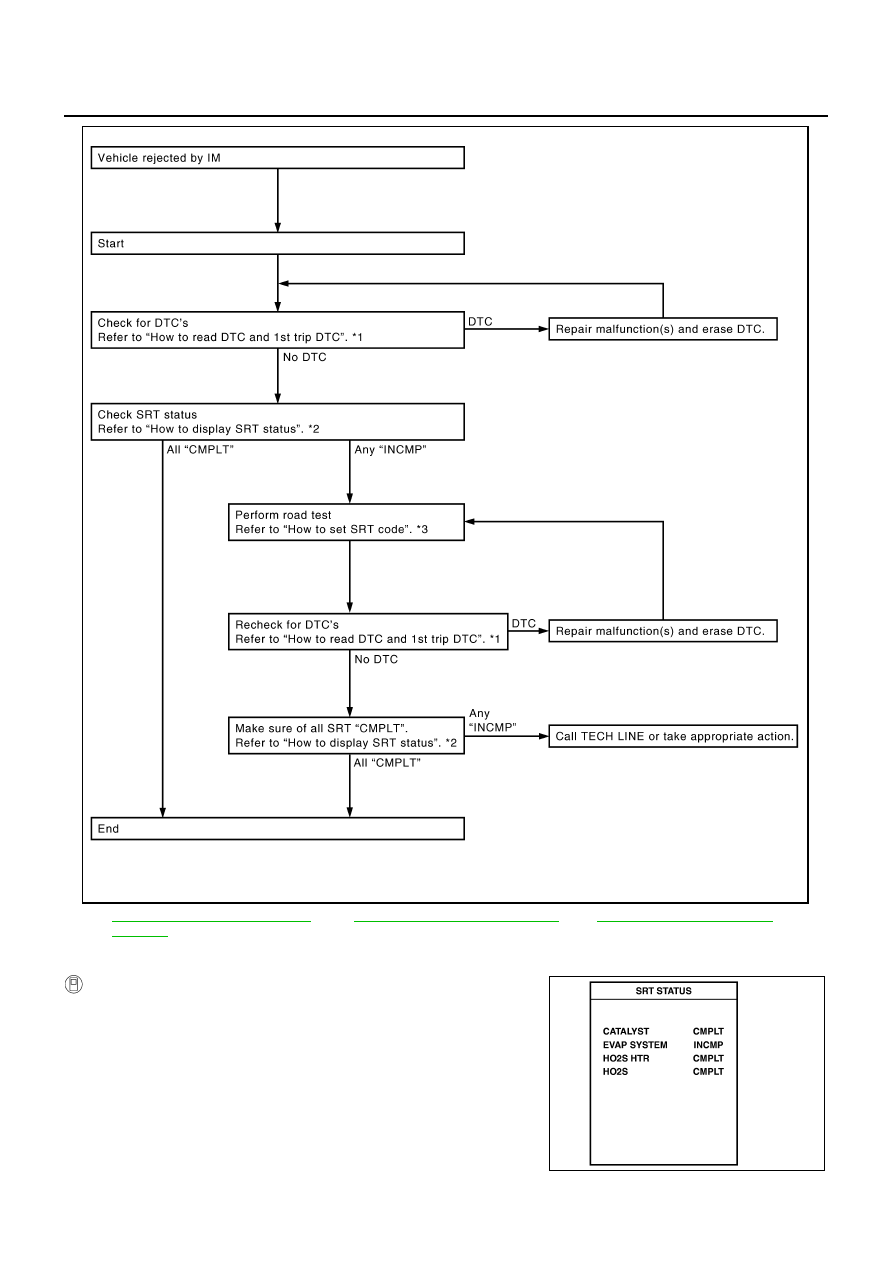

SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence on the next page.

EC-56

ON BOARD DIAGNOSTIC (OBD) SYSTEM

How to Display SRT Status

 WITH CONSULT-II

Selecting “SRT STATUS” in “DTC CONFIRMATION” mode with
CONSULT-II.
For items whose SRT codes are set, a “CMPLT” is displayed on the
CONSULT-II screen; for items whose SRT codes are not set,
“INCMP” is displayed.
A sample of CONSULT-II display for SRT code is shown in the fig-
ure.
“INCMP” means the self-diagnosis is incomplete and SRT is not set.
“CMPLT” means the self-diagnosis is complete and SRT is set.

*1

EC-52, "How to Read DTC and 1st
Trip DTC"

*2

EC-56, "How to Display SRT Status"

*3

EC-57, "How to Set SRT Code"

PBIB2320E

SEF935Z

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-57

C

D

E

F

G

H

I

J

K

L

M

A

EC

NOTE:
Though displayed on the CONSULT-II screen, “HO2S HTR” is not SRT item.

 WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

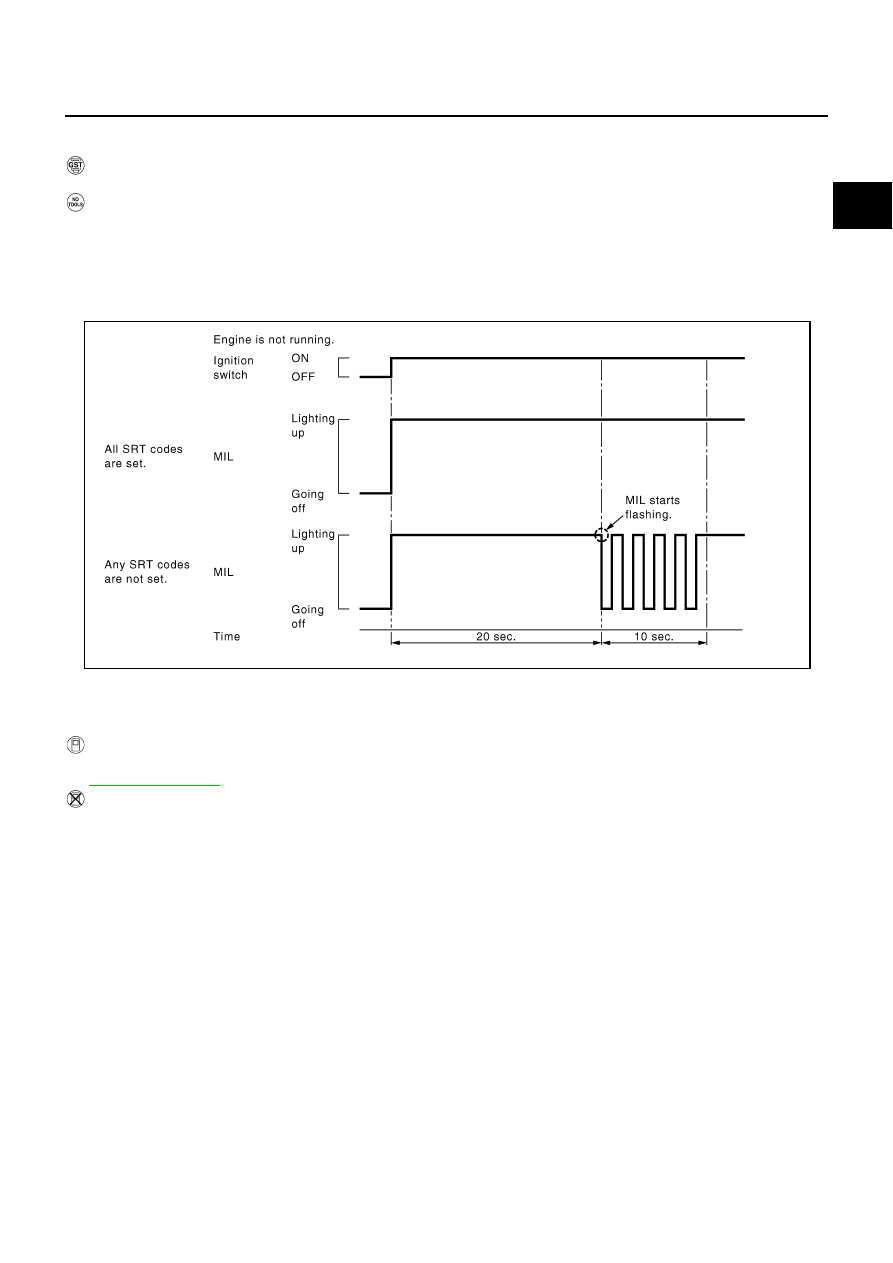

 NO TOOLS

A SRT code itself can not be displayed while only SRT status can be.
1.

Turn ignition switch ON and wait 20 seconds.

2.

SRT status is indicated as shown below.

When all SRT codes are set, MIL lights up continuously.

When any SRT codes are not set, MIL will flash periodically for 10 seconds.

How to Set SRT Code

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each
diagnosis may require a long period of actual driving under various conditions.

 WITH CONSULT-II

Perform corresponding DTC Confirmation Procedure one by one based on Performance Priority in the table
on

EC-54, "SRT Item"

 .

 WITHOUT CONSULT-II

The most efficient driving pattern in which SRT codes can be properly set is explained on the next page. The
driving pattern should be performed one or more times to set all SRT codes.

PBIB2317E

EC-58

ON BOARD DIAGNOSTIC (OBD) SYSTEM

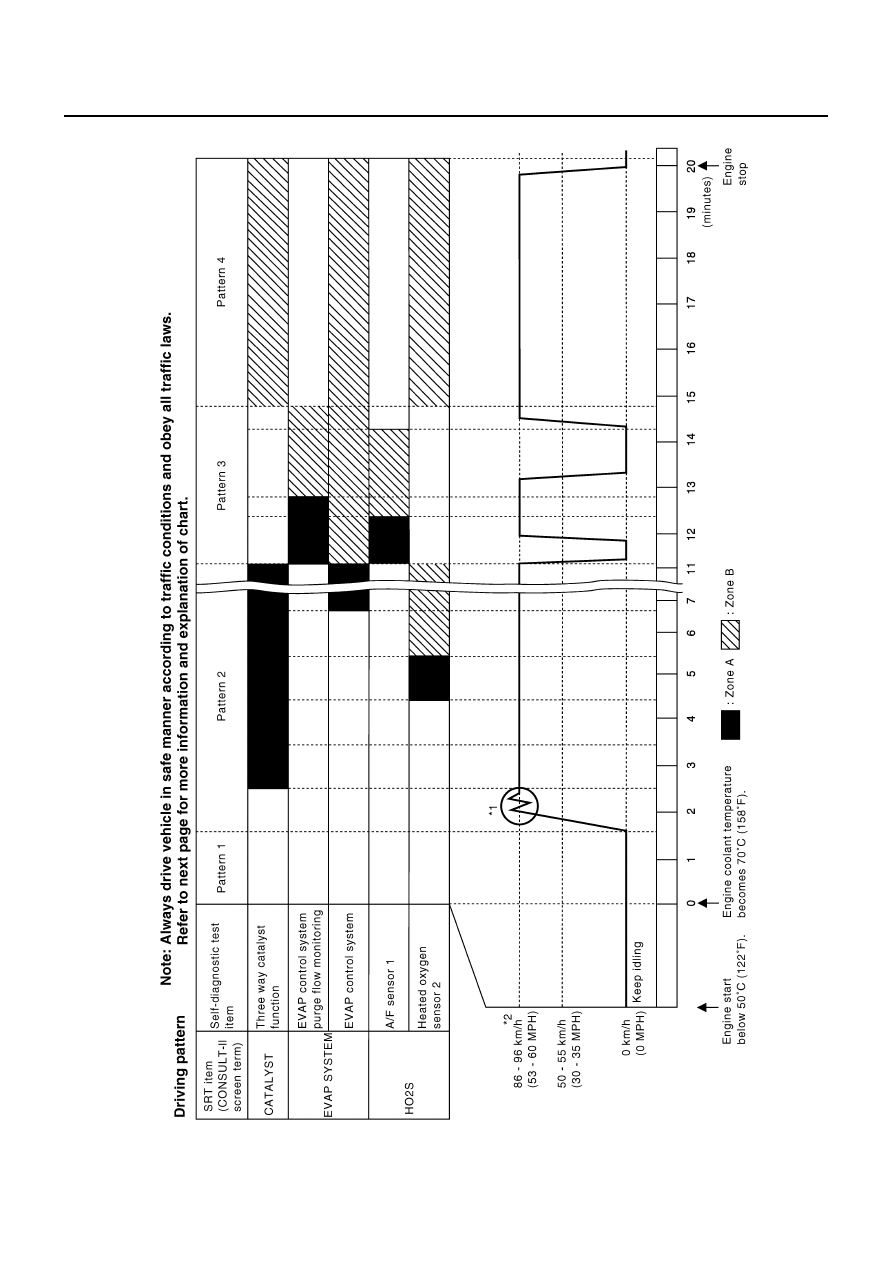

Driving Pattern

PBIB2906E
