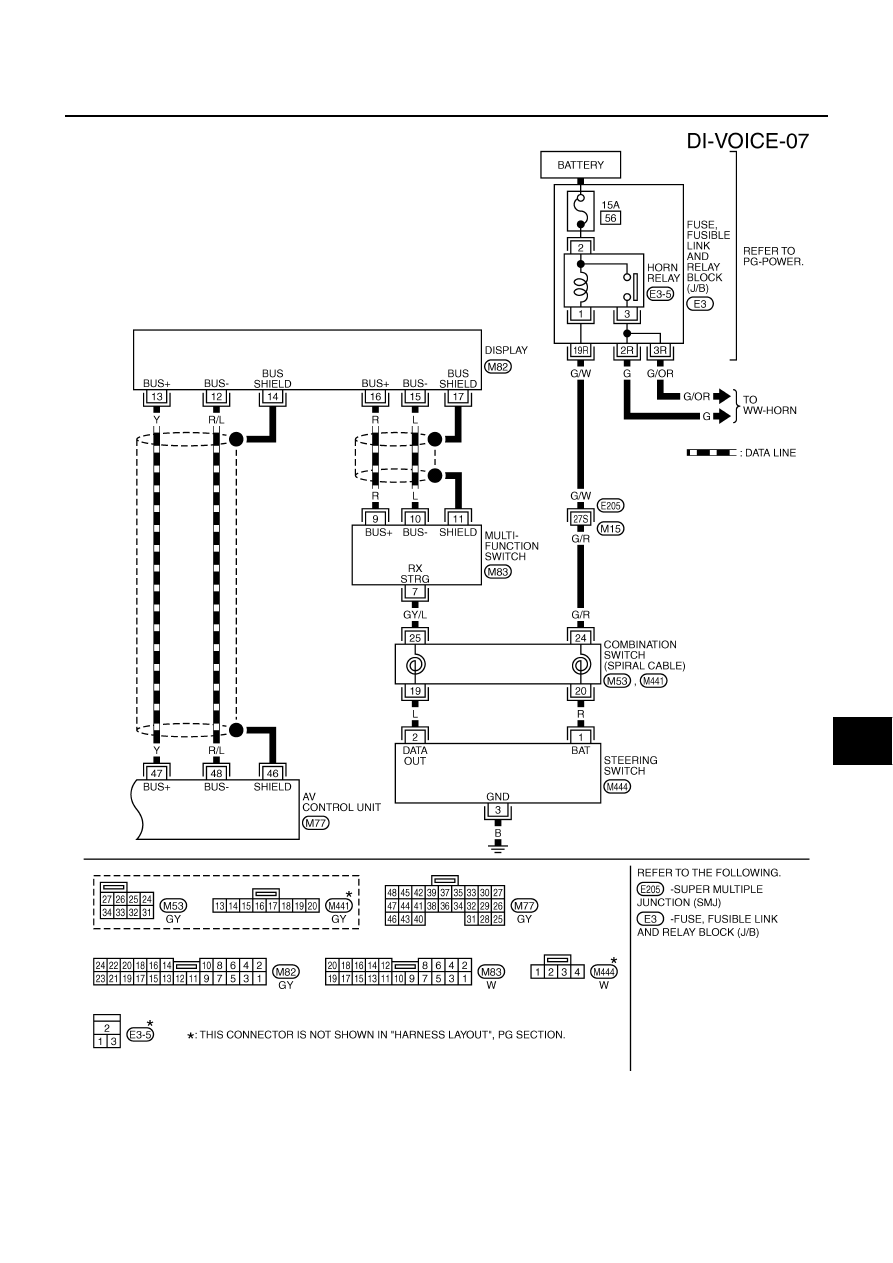

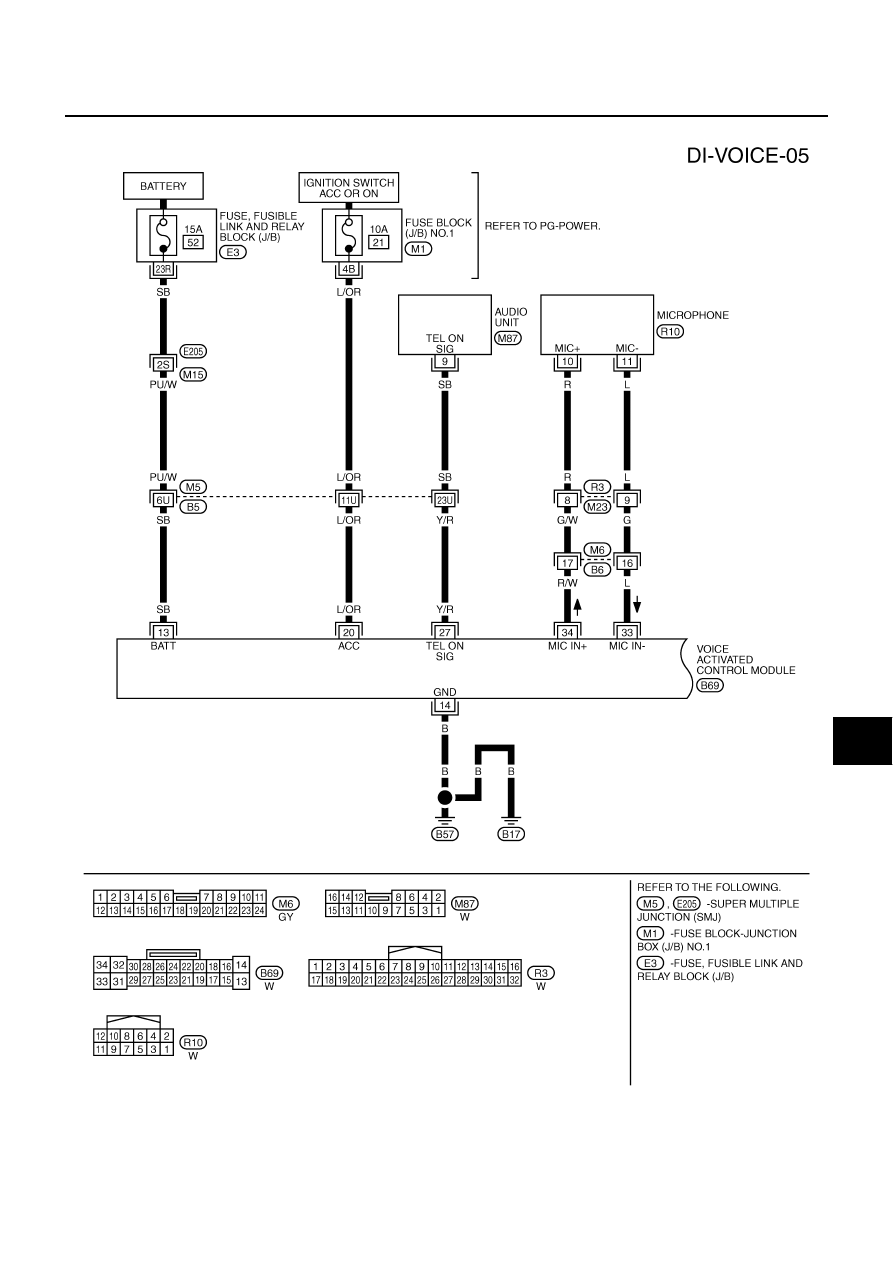

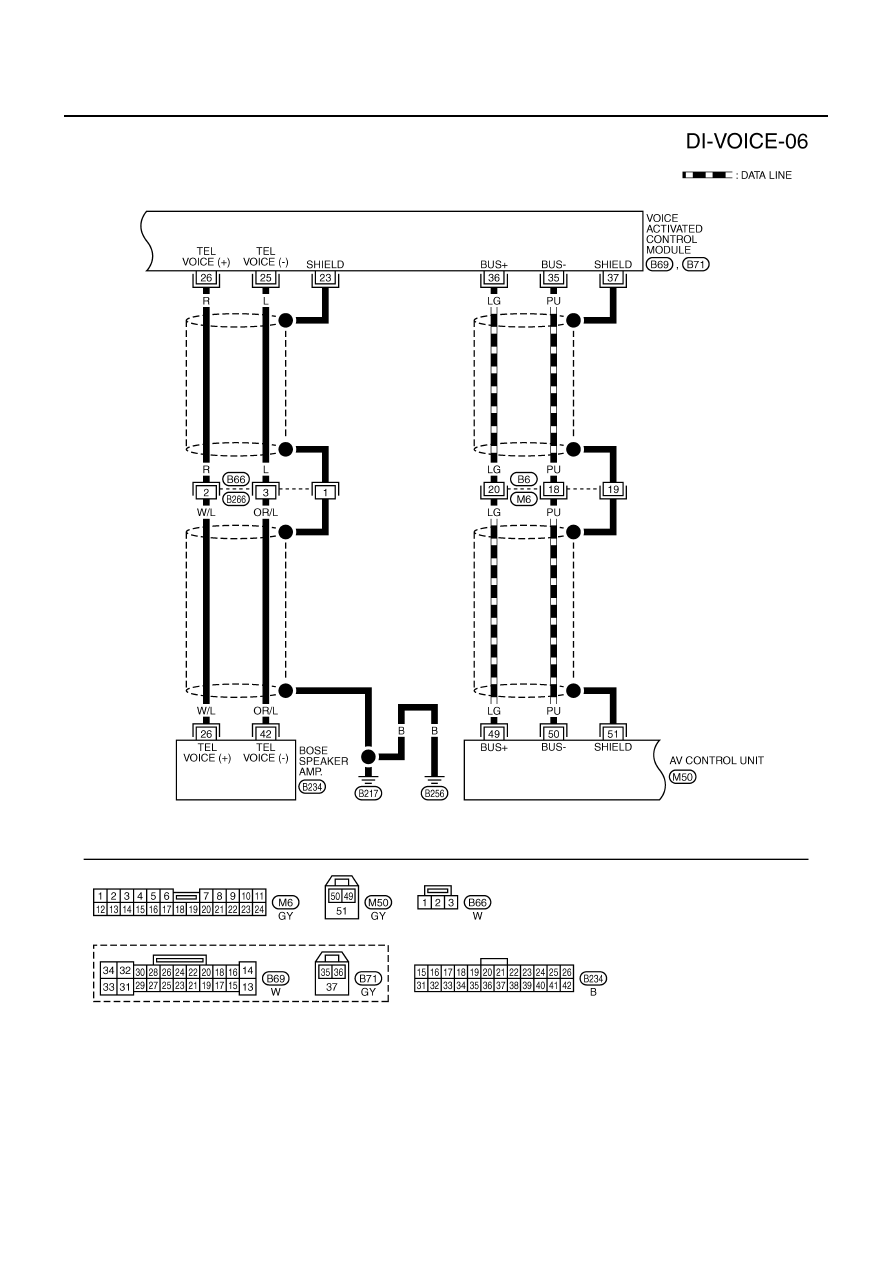

VOICE ACTIVATED CONTROL SYSTEM

DI-207

C

D

E

F

G

H

I

J

L

M

A

B

DI

WITHOUT NAVI

TKWM3911E

DI-208

VOICE ACTIVATED CONTROL SYSTEM

TKWM3912E

VOICE ACTIVATED CONTROL SYSTEM

DI-209

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3913E

DI-210

VOICE ACTIVATED CONTROL SYSTEM

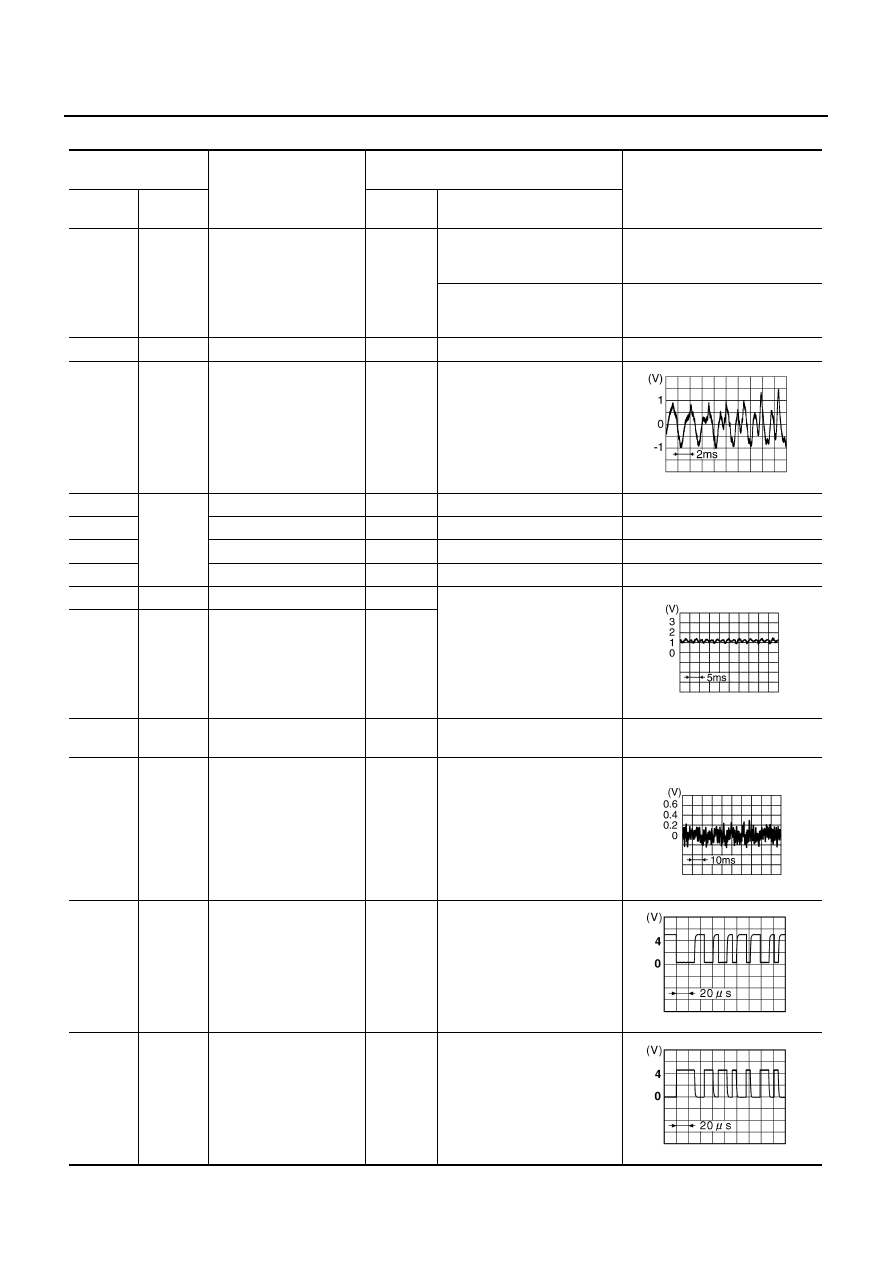

Terminals and Reference Values for Voice Activated Control Module

NKS001EO

Terminal No.

(Wire color)

Item

Condition

Reference value (V)

(+)

(–)

Ignition

switch

Operation

8 (L/W)*

Ground

TEL ON signal

ON

While using hands-free phone
system or voice activated con-
trol system

Approx. 0 V

Except while using hands-free
phone system and voice acti-
vated control system

Approx. 12 V

10*

—

Shield

—

—

—

12 (P)*

11 (L)*

TEL voice signal

ON

Receiving the party's voice
while using the hands-free
phone system.

13 (SB)

Ground

Battery power source

OFF

–

Battery voltage

14 (B)

Ground

ON

–

Approx. 0

20 (L/OR)

Ignition switch ACC

ACC

–

Battery voltage

23

Audio shield ground

ON

–

Approx. 0

25 (L)

23

Audio output (–)

ON

Voice guide operates.

26 (R)

23

Audio output (+)

ON

27 (Y/R)

Ground

Mute

ON

PTT switch
(not operate

→

 operate)

Approx. 5

→

 Approx. 0

34 (R/W)

33 (L)

Mic input

ON

Voice mic test operates.

35 (PU)

Ground

Communication
signal (–)

ON

—

36 (LG)

Ground

Communication
signal (+)

ON

—

SKIB3609E

PKIA0355E

PKIA0356E

SKIB7379E

SKIB7378E
