REAR VIEW MONITOR

DI-175

C

D

E

F

G

H

I

J

L

M

A

B

DI

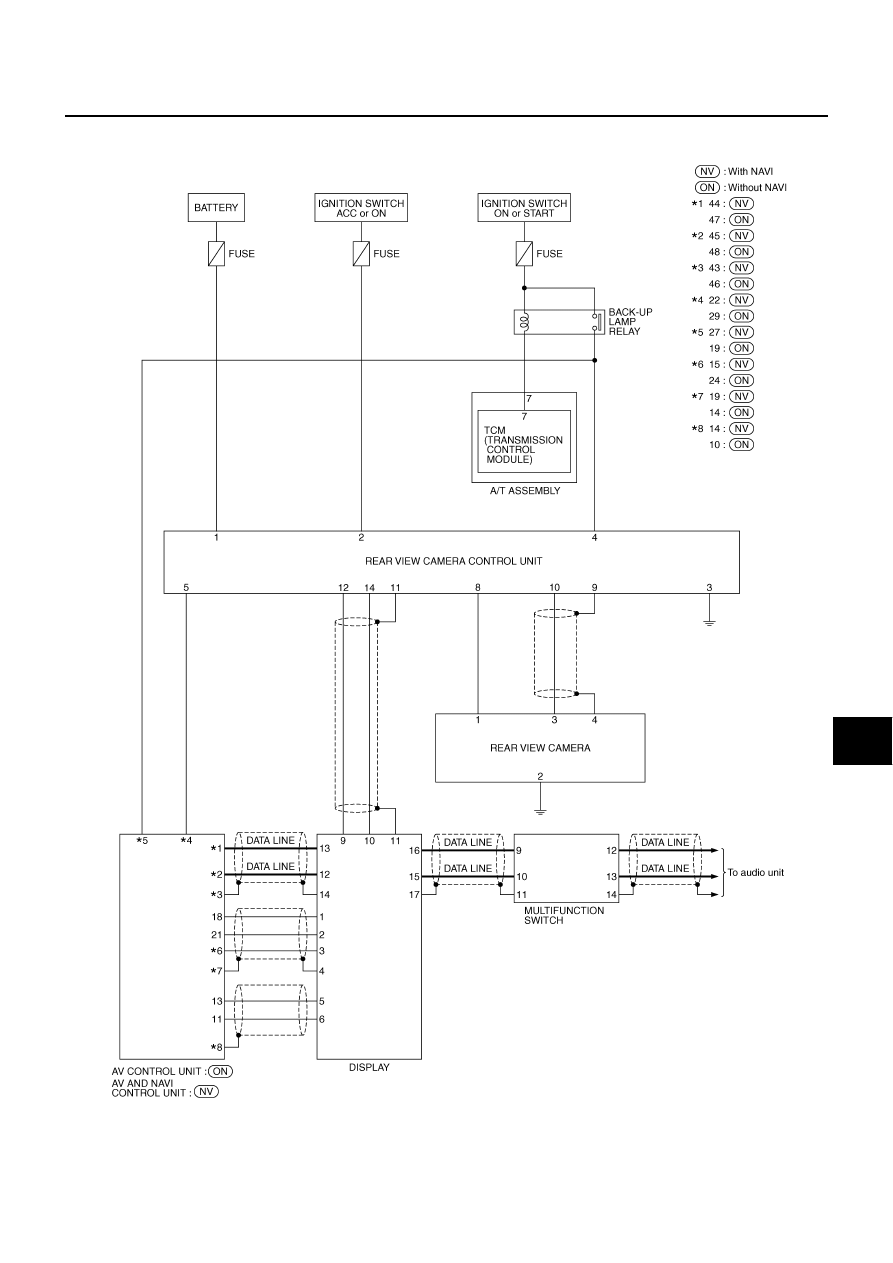

Schematic

NKS001E3

TKWM1581E

DI-176

REAR VIEW MONITOR

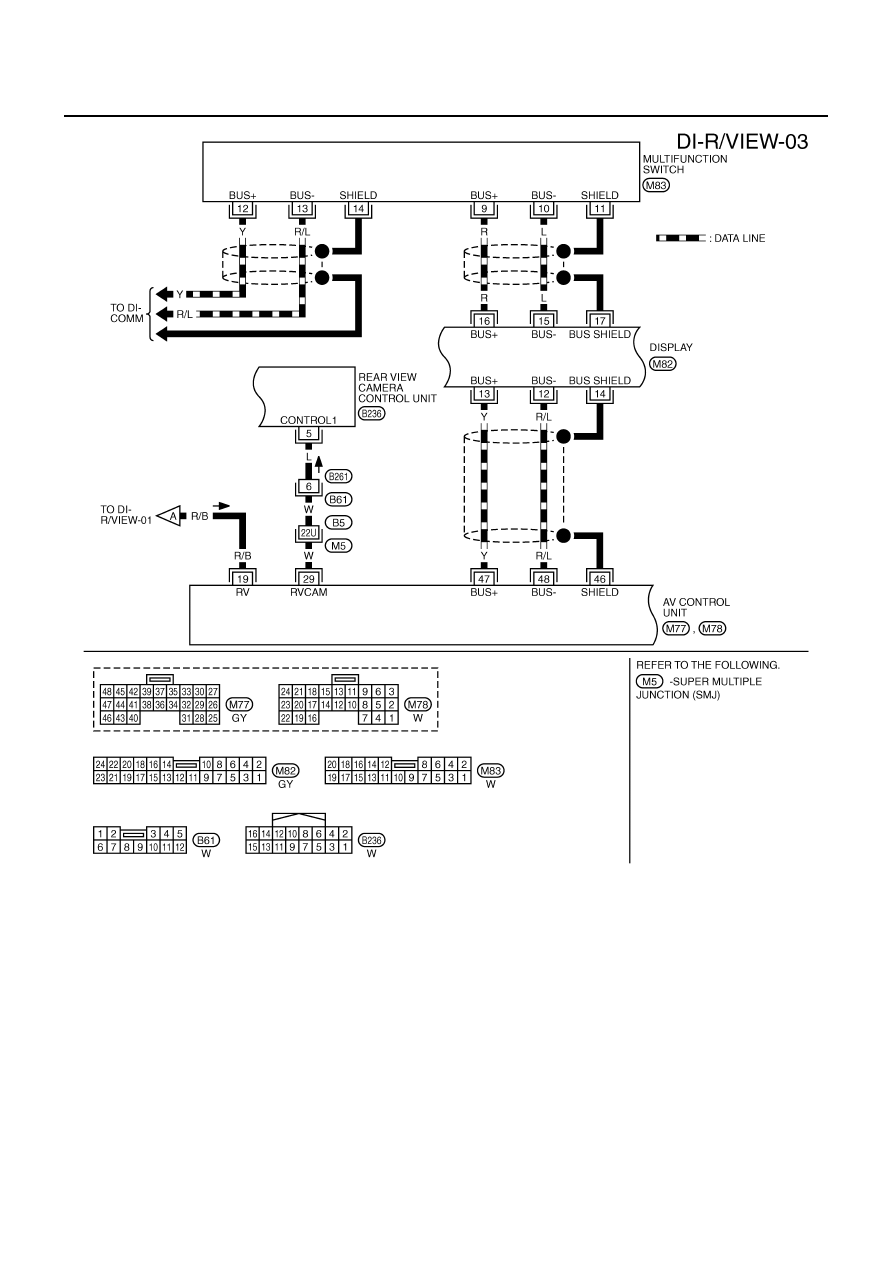

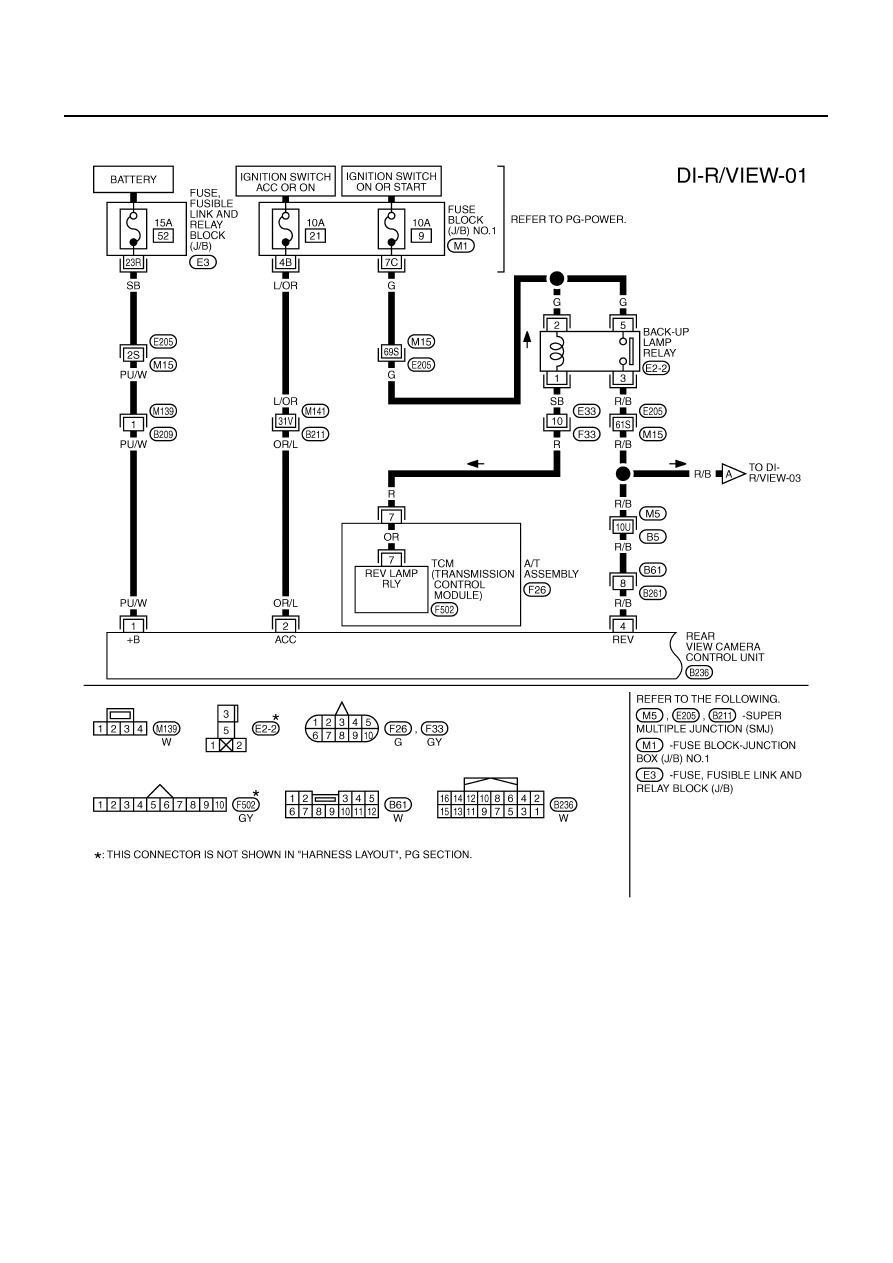

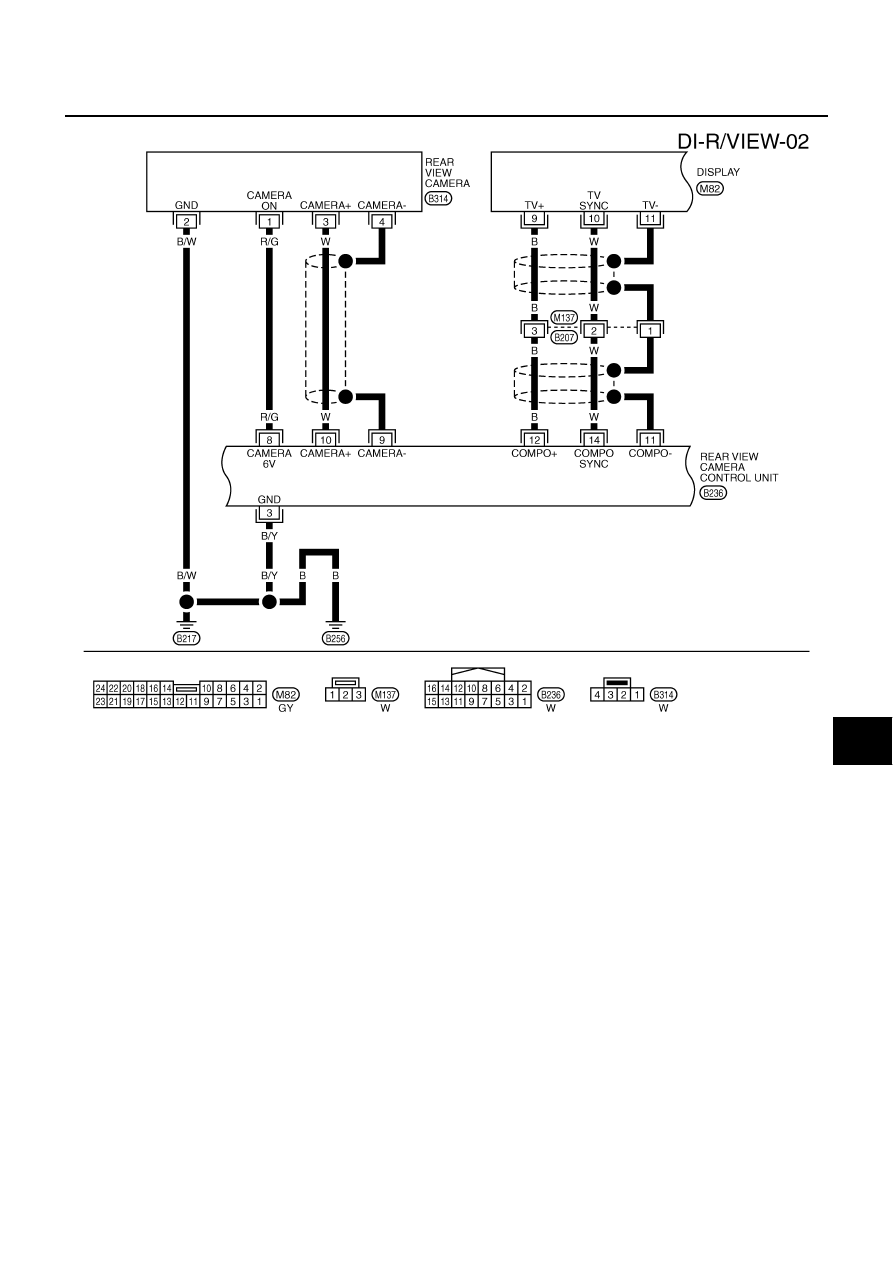

Wiring Diagram — R/VIEW —

NKS001E4

WITHOUT NAVI

TKWM3758E

REAR VIEW MONITOR

DI-177

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3759E

DI-178

REAR VIEW MONITOR

TKWM3221E
