VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-123

C

D

E

F

G

H

I

J

L

M

A

B

DI

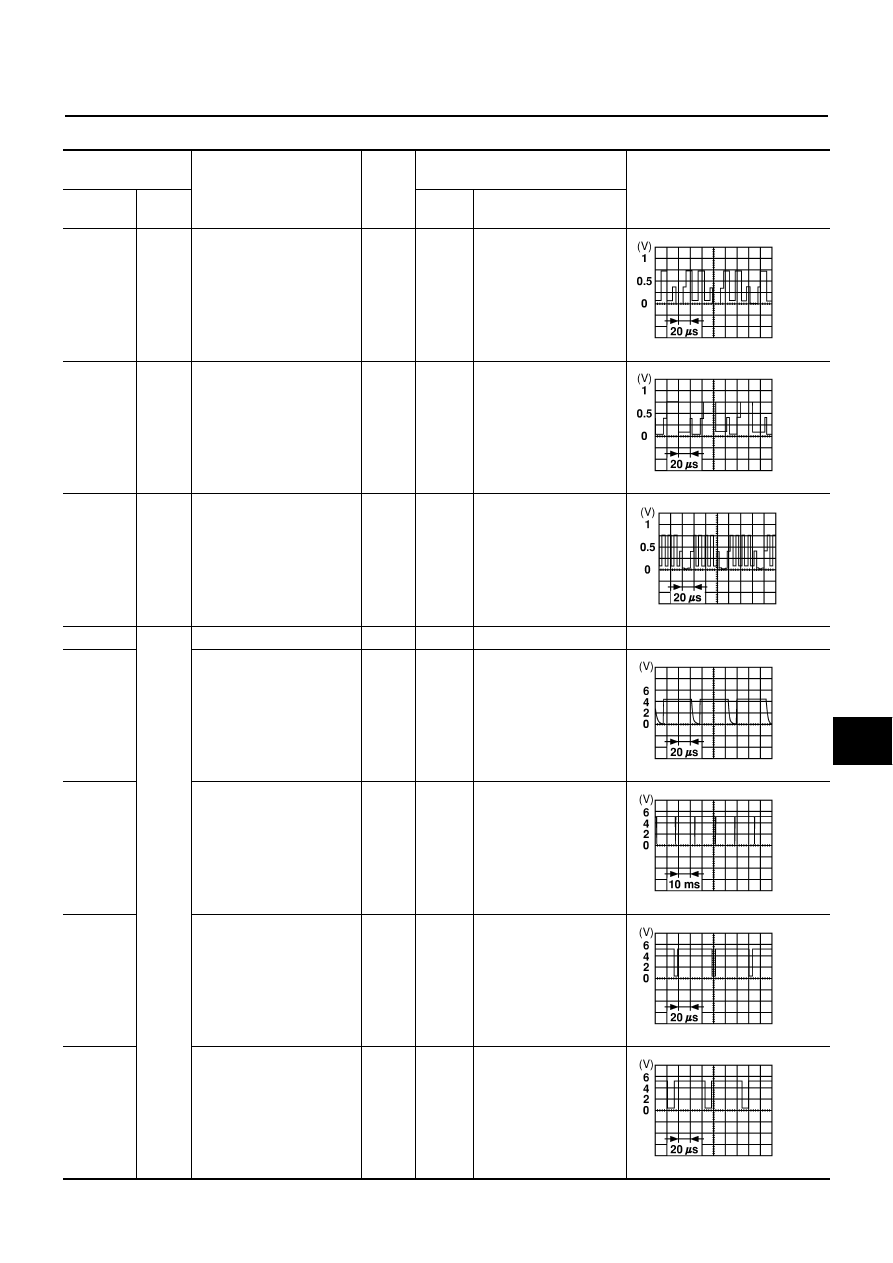

Terminals and Reference Value for Display

NKS001CN

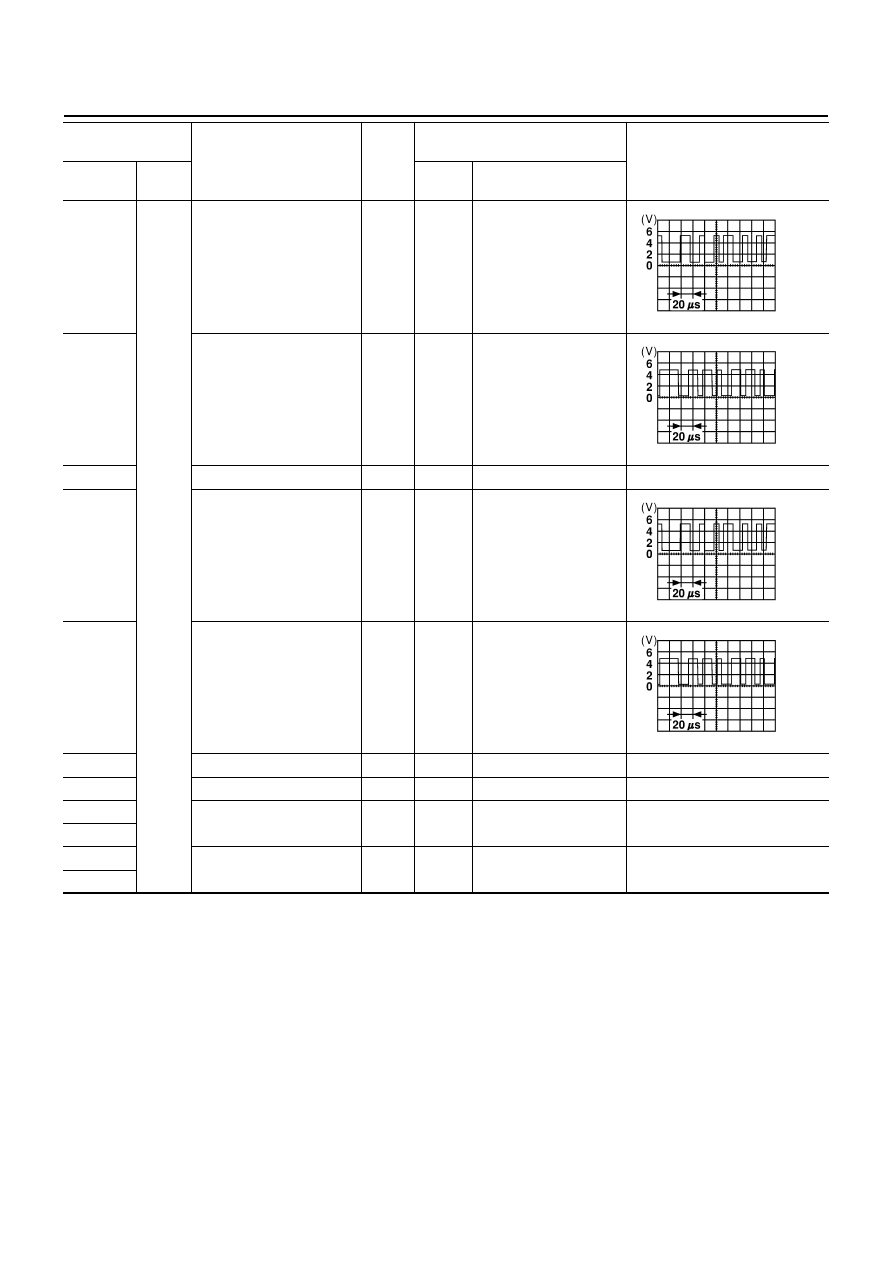

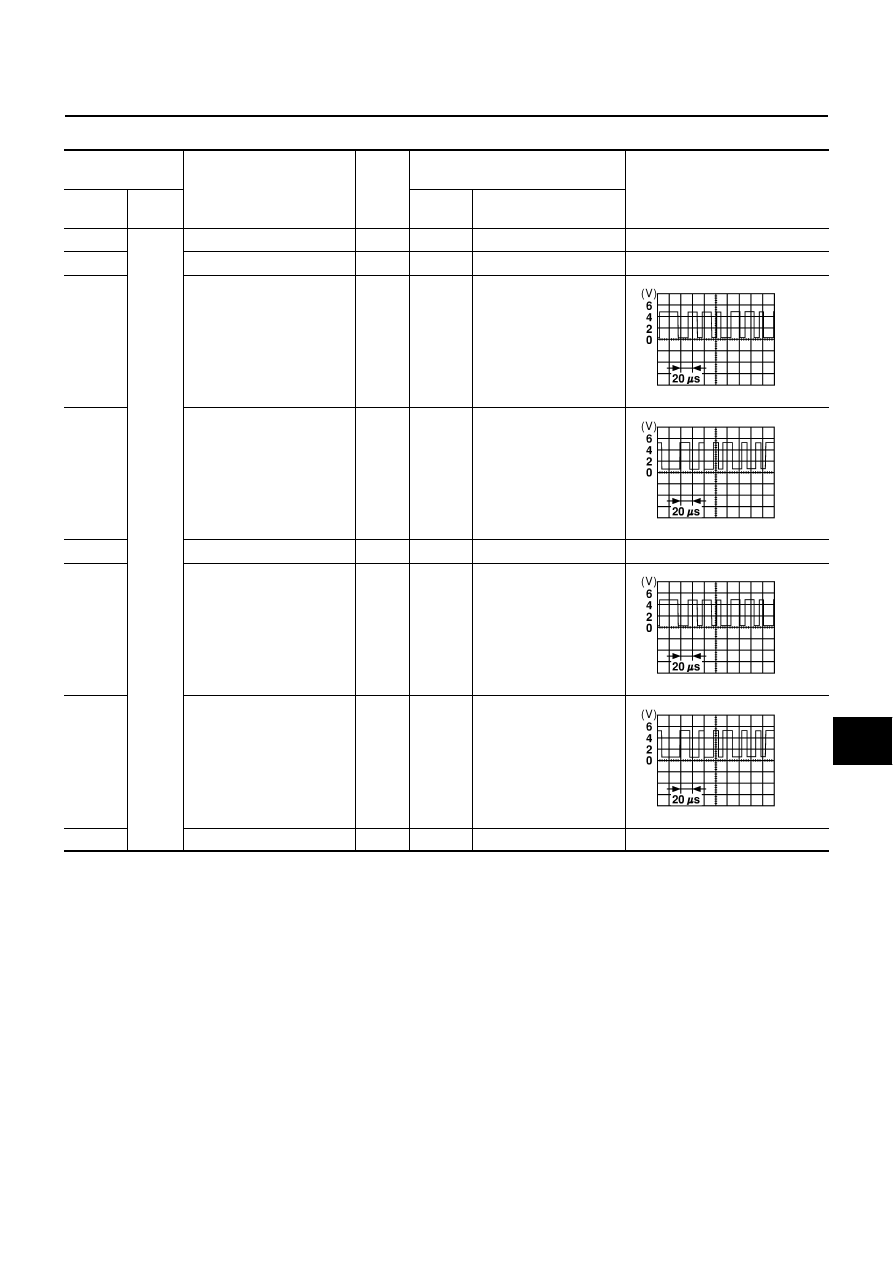

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(

)

Ignition

switch

Operation

1 (W/G)

4

RGB signal (R: Red)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

2 (W/L)

4

RGB signal (G: Green)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

3 (G)

4

RGB signal (B: Blue)

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

4

Ground

RGB ground

ON

0 V

5 (L/Y)

Horizontal synchronizing
signal

Output

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rearview image on
the screen.

6 (OR)

Vertical synchronizing sig-
nal

Output

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rearview image on
the screen.

7 (L/R)

RGB synchronizing signal

Input

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Confir-
mation/Adjustment mode
function.

8 (LG)

RGB area signal

Input

ON

Press the “INFO” switch.

SKIA0165E

SKIA0166E

SKIA0167E

SKIA0163E

SKIA0161E

SKIA0164E

SKIA0162E

DI-124

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

12 (R/L)

Ground

Communication signal (

)

Input/

output

ON

13 (Y)

Communication signal (+)

Input/

output

ON

14

Shield

ON

0 V

15 (L)

Communication signal (

)

Input/

output

ON

16 (R)

Communication signal (+)

Input/

output

ON

17

Shield

ON

0 V

19 (L/OR)

ACC power supply

Input

ACC

Battery voltage

21 (PU/W)

Battery power supply

Input

OFF

Battery voltage

23 (PU/W)

22 (B)

Ground

ON

0 V

24 (B)

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(

)

Ignition

switch

Operation

SKIA0176E

SKIA0175E

SKIA0176E

SKIA0175E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-125

C

D

E

F

G

H

I

J

L

M

A

B

DI

Terminals and Reference Value for Multifunction Switch

NKS001CO

Terminal No.

(Wire color)

Signal

Signal

input/

output

Condition

Reference value [V]

(+)

(

)

Ignition

switch

Operation

1 (L/OR)

Ground

Ignition switch (ACC)

Input

ACC

Battery voltage

2 (B)

Ground

ON

Approx. 0

9 (R)

Communication signal (+)

Input/

output

ON

10 (L)

Communication signal (

)

Input/

output

ON

11

Shield

ON

Approx. 0

15 (OR)

Communication signal (+)

Input/

output

ON

16 (W)

Communication signal (

)

Input/

output

ON

17

Shield

ON

Approx. 0

SKIA0175E

SKIA0176E

SKIA0175E

SKIA0176E

DI-126

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

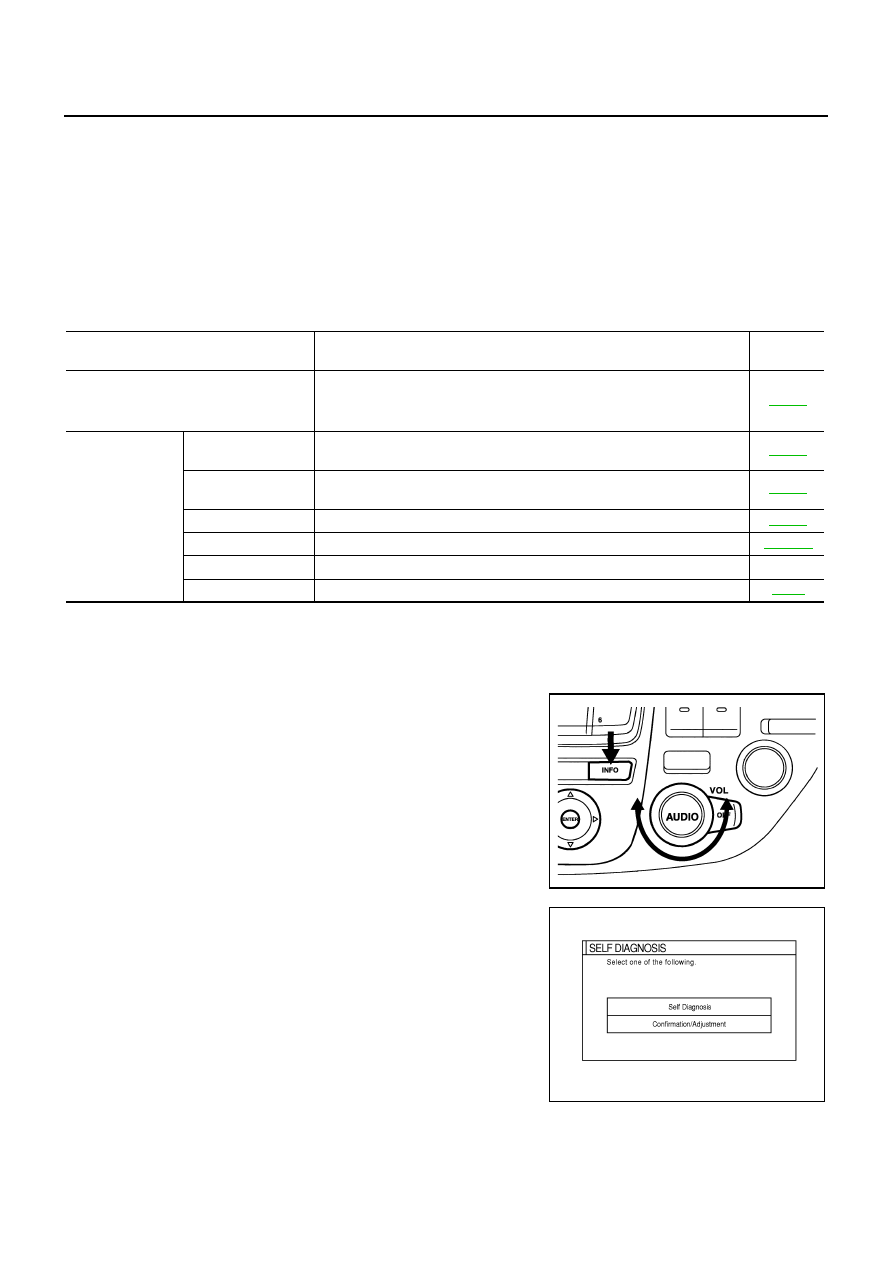

On Board Self-Diagnosis Function (Without CONSULT-II)

NKS001CQ

DESCRIPTION

Diagnosis function consists of the self-diagnosis mode performed automatically and the CONFIRMATION/
ADJUSTMENT mode operated manually.

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

CONFIRMATION/ADJUSTMENT mode is used to perform trouble diagnosis that require operation and
judgment by an operator (malfunction that cannot be automatically judged by the system), to check/
change the set value.

DIAGNOSIS ITEM

NOTE:
*: Although this item is shown on the screen, impracticable. Because, this item is not applied.

SELF-DIAGNOSIS MODE
Operation Procedure

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “PREV” switch.

4.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

Mode

Description

Reference

page

SELF-DIAGNOSIS

AV control unit diagnosis.

Analyzes connection between the AV control unit and each unit, and
operation of each unit.

DI-126

CONFIRMATION/
ADJUSTMENT

Display Diagnosis

Color tone and shading of the screen can be checked by the display of a
color bar and a gray scale.

DI-131

Vehicle Signals

Analyzes the following vehicle signals: Vehicle speed signal, parking brake
signal, light signal, ignition switch signal, and reverse signal.

DI-132

Rearview

Changes position of the aiming line overlapped on the rear view image.

DI-185

Auto Climate Control

Turns all A/C screens on display and A/C switch indicator lamp on.

ATC-104

History of errors *

Malfunctioning component and number of errors occurred

Speaker Test

Checks the connection of each speaker using a test tone.

AV-40

PKIB0256E

SKIA0381E
