LANE DEPARTURE WARNING SYSTEM

DI-83

C

D

E

F

G

H

I

J

L

M

A

B

DI

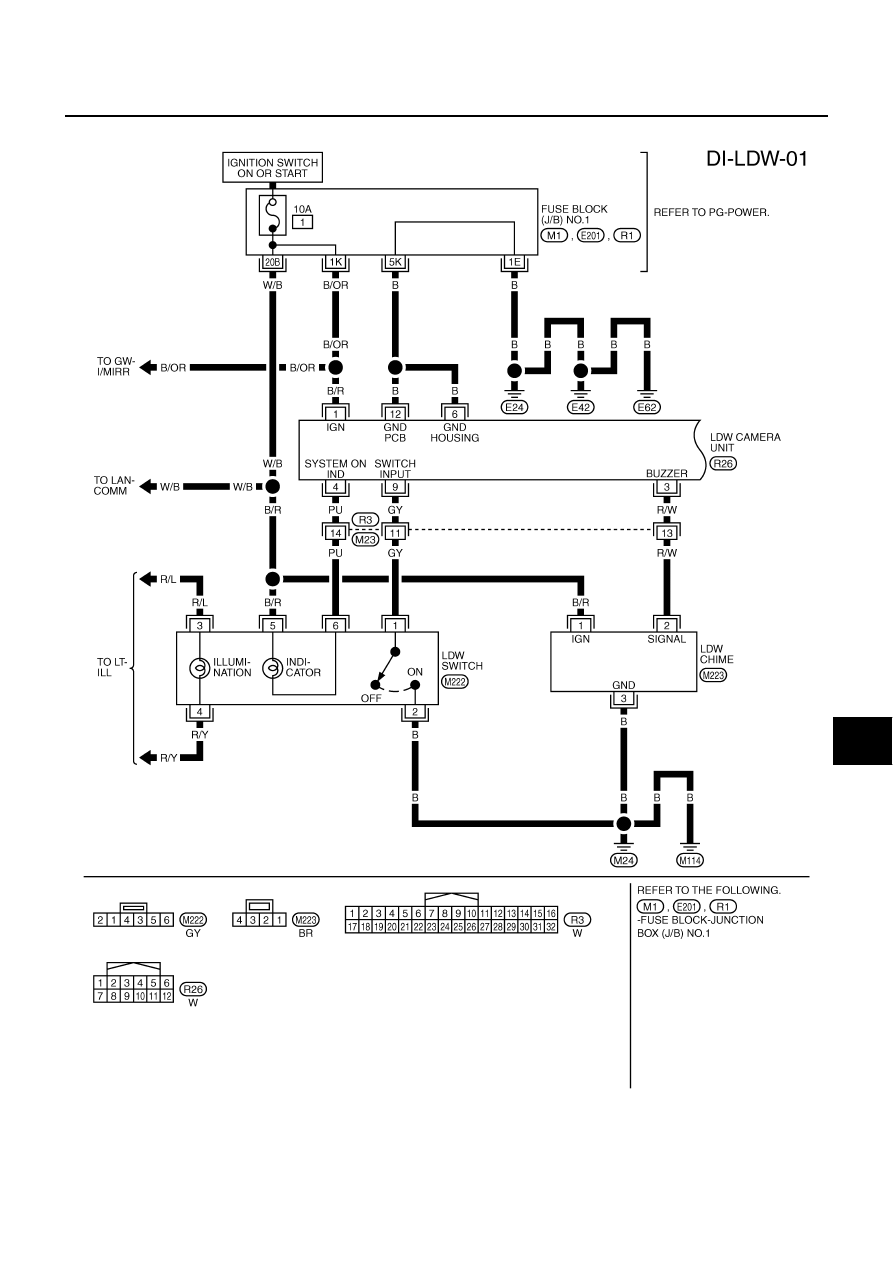

Wiring Diagram — LDW —

NKS002BY

TKWM3770E

DI-84

LANE DEPARTURE WARNING SYSTEM

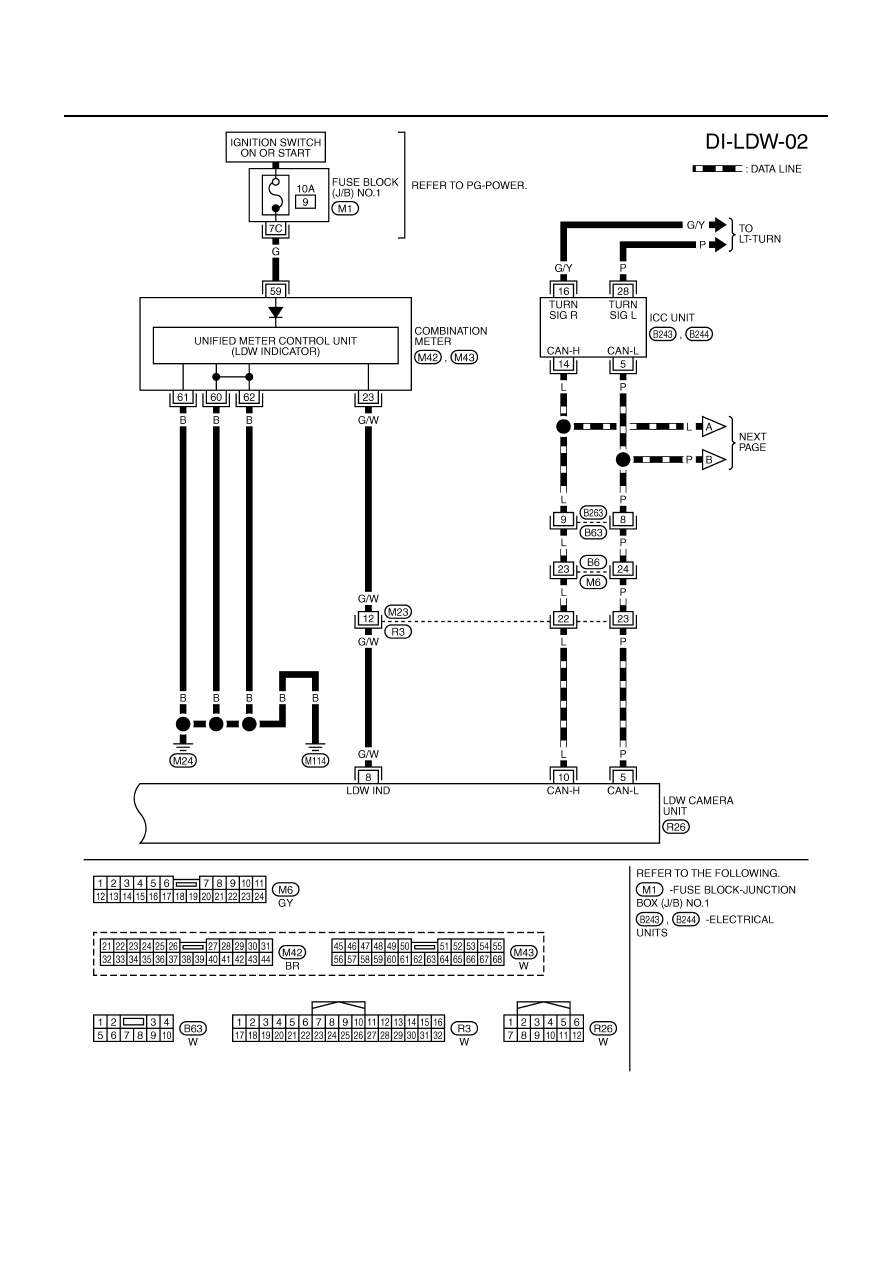

TKWM3771E

LANE DEPARTURE WARNING SYSTEM

DI-85

C

D

E

F

G

H

I

J

L

M

A

B

DI

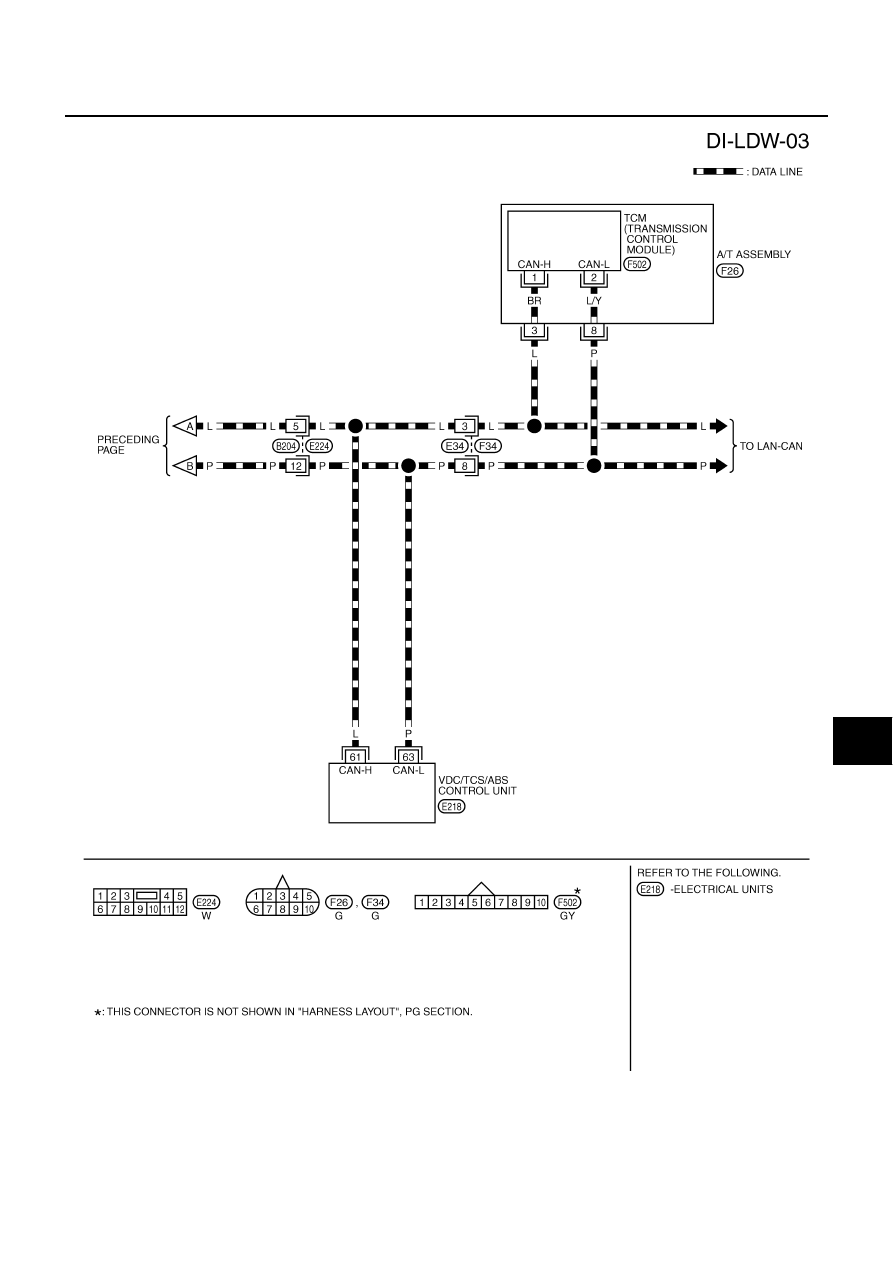

TKWM3772E

DI-86

LANE DEPARTURE WARNING SYSTEM

Terminals and Reference Value for LDW Camera Unit

NKS002BZ

NOTE:
*: Perform “ACTIVE TEST” with CONSULT-II. Refer to

DI-89, "ACTIVE TEST"

 .

Terminals and Reference Value for ICC Unit

NKS002JG

Terminal

No.

Wire

color

Item

Condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

1

B/R

Ignition power supply

ON

—

Battery voltage

3

R/W

LDW chime

ON

LDW chime

Activated

*

0 V

Not activated

12 V

4

PU

System ON indicator

ON

LDW system

ON

0 V

OFF

12 V

5

P

CAN-L

—

—

—

6

B

Ground

ON

—

0 V

8

G/W

LDW indicator lamp

ON

LDW indicator lamp

Illuminated

*

0 V

Turned OFF

12 V

9

GY

LDW switch

ON

LDW switch

Pushed

0 V

Released

5 V

10

L

CAN-H

—

—

—

12

B

Ground

ON

—

0 V

Terminal

No.

Wire

color

Item

Condition

Reference value

(Approx.)

Ignition

switch

Operation or condition

5

P

CAN-L

—

—

—

14

L

CAN-H

—

—

—

16

G/Y

Turn signal (RH)

ON

Turn signal lamp (RH)

Illuminated

12 V

Not illuminated

0 V

28

P

Turn signal (LH)

ON

Turn signal lamp (LH)

Illuminated

12 V

Not illuminated

0 V
