Infiniti Q45. Manual - part 302





LANE DEPARTURE WARNING SYSTEM

DI-75

C

D

E

F

G

H

I

J

L

M

A

B

DI

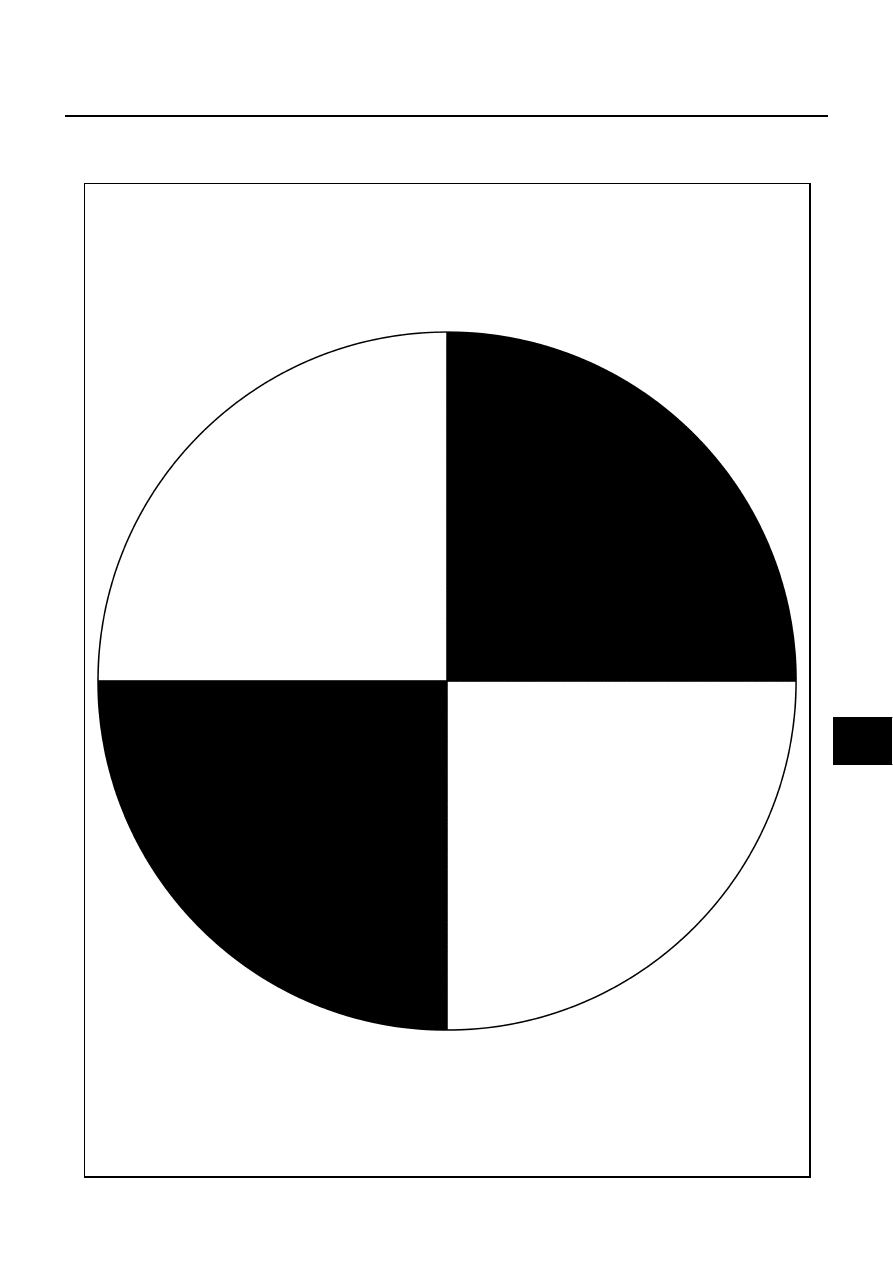

Target

NOTE:
Enlarge this page to 122% size and print it out.

PGIA0105J

DI-76

LANE DEPARTURE WARNING SYSTEM

Target Setting

CAUTION:

Perform this operation in a horizontal position where there is a clear view for 5 m (16.4 ft) forward
and 3 m (9.84 ft) wide.

Place the target at a well-lighted location. (Poor lighting may make it hard to adjust.)

The target may not be detected when there is a light source within 1.5 m (4.92 ft) from either side
and within 1 m (3.28 ft) upward/downward from the target.

Make sure location of the sun. (Sunlight should not shine directly on front of the vehicle.)

The target may not be detected when there is the same pattern of black and white as the target
when the pattern is within 1 m (3.28 ft) from either side and upward/downward position from the
target. (It is desirable that the vehicle is positioned on the opposite side of a single-color wall.)

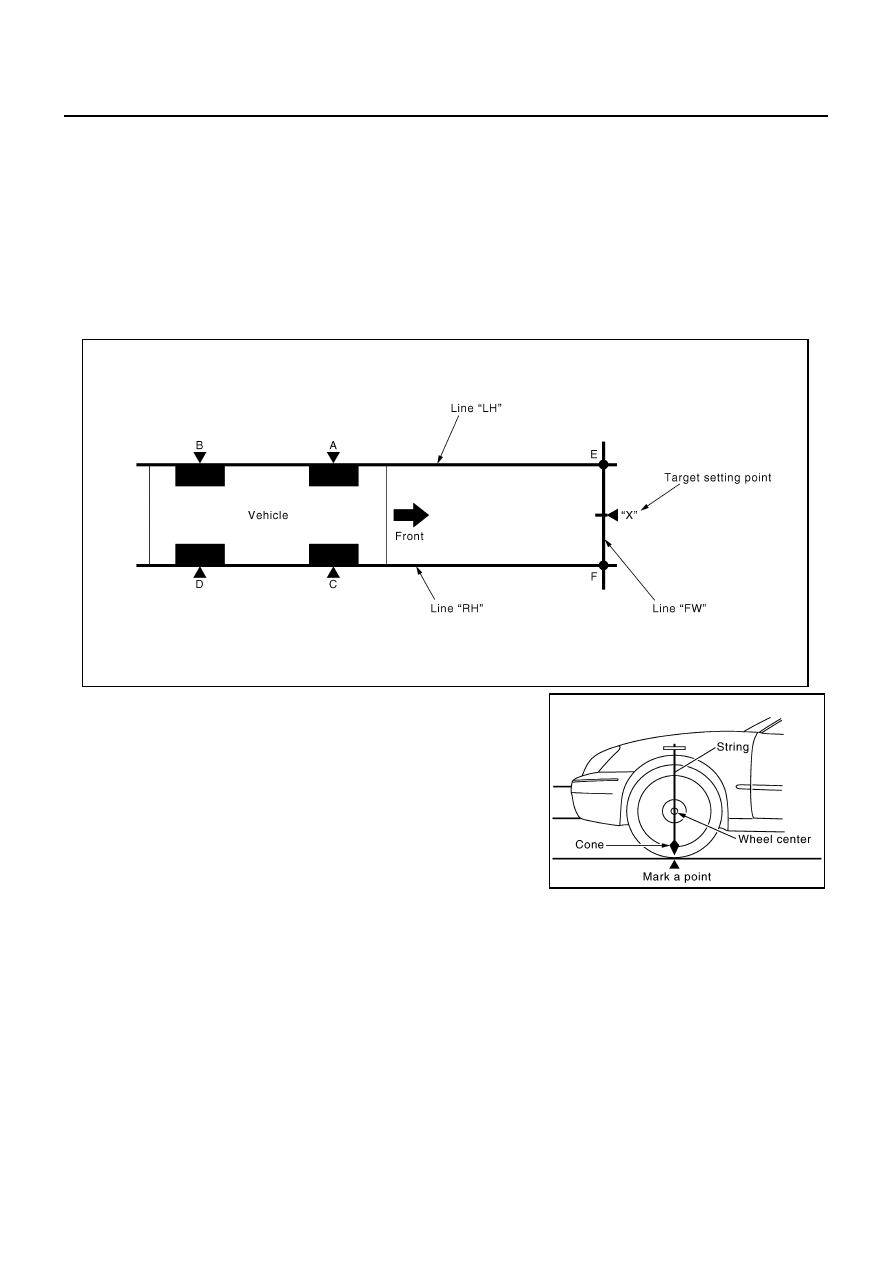

1.

Mark a point at the center of lateral surface of each wheels (“A”,
“B”, “C” and “D”).

NOTE:
Dangle a string with a cone from the fender so as to pass
through the center of wheel, and then mark a point at the center
of lateral surface of wheels.

2.

Draw a line passing through points “A” and “B” on the left side of
vehicle (line “LH”).

NOTE:
Approximately 4 m (13.12 ft) or more from the forward end of
vehicle.

3.

Mark points on the line “LH”, at the positions 3850 mm (151.57 in) from the point “A” (“E”).

4.

Draw a line passing through the points “C” and “D” on the right side of vehicle as with the step 2 (line
“RH”).

NOTE:
Approximately 4 m (13.12 ft) or more from the forward end of vehicle.

5.

Mark points on the line “RH”, at the positions 3850 mm (151.57 in) from the point “C” (“F”).

6.

Draw a line passing through the points “E” and “F” (line “FW”).

PKIB4694E

PKIC4882E

LANE DEPARTURE WARNING SYSTEM

DI-77

C

D

E

F

G

H

I

J

L

M

A

B

DI

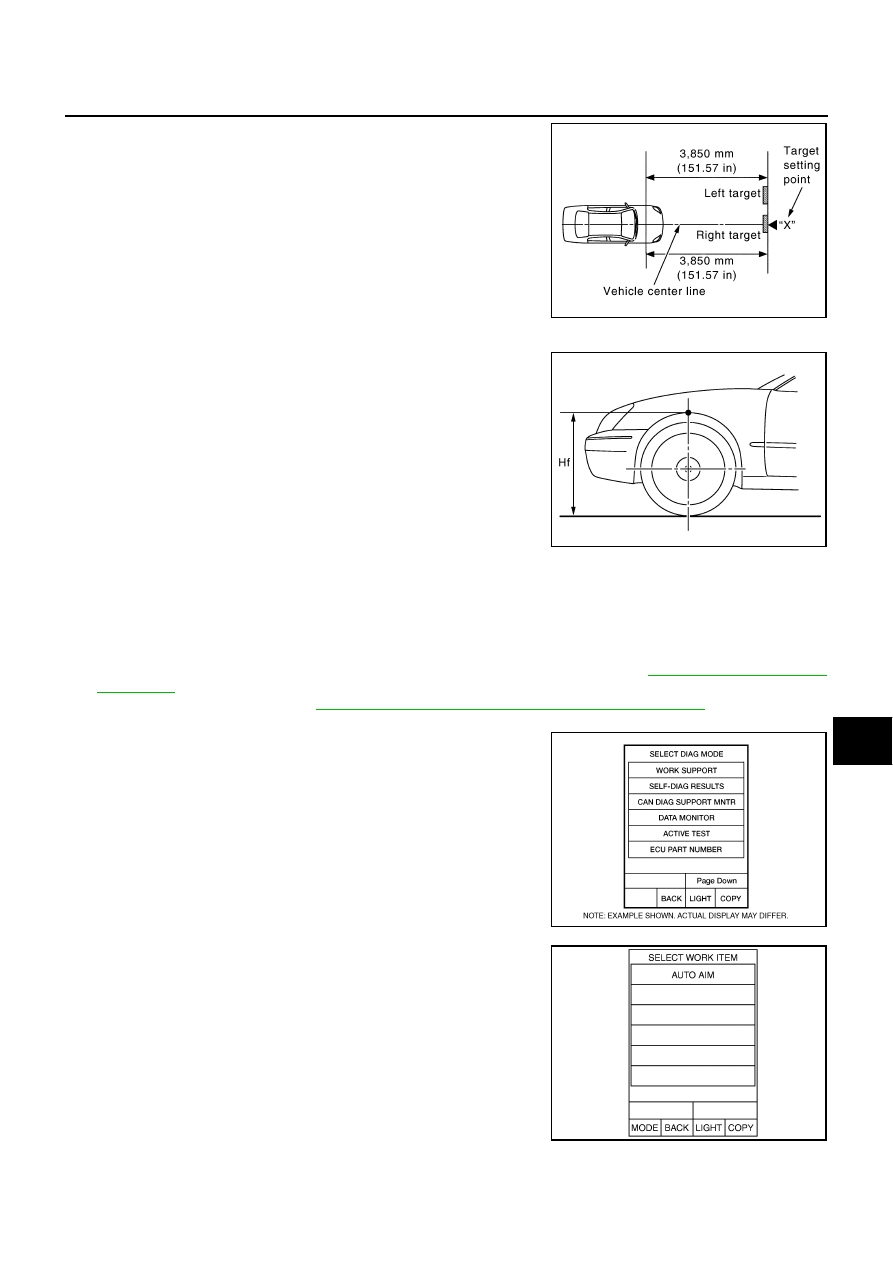

7.

Mark point at the center of the point “E” and “F”, on the line
“FW”.

CAUTION:

Make sure that “E” through “X” is equal to “F” through “X”.

8.

Position the center of the right target to the point of “X”.

VEHICLE HEIGHT CHECK

Measure the wheel arch height. And calculate “Dh”.

NOTE:
“Dh” may be calculated as a minus value.

AIMING ADJUSTMENT
Operation Procedure

CAUTION:

Perform the adjustment under unloaded vehicle condition.

LDW indicator is turned off after the removal/installation, and blinks after replacement.

1.

Start CONSULT-II, and touch “LDW” on “SELECT SYSTEM” screen. Refer to

GI-36, "CONSULT-II Start

Procedure"

 .

If “LDW” is not displayed, go to

GI-37, "CONSULT-II Data Link Connector (DLC) Circuit"

 .

2.

Touch “WORK SUPPORT”.

3.

Touch “AUTO AIM”.

PKIC4883E

Dh [mm] = (Hfl + Hfr)

÷

 2

 739

where,

Hfl: Front left wheel arch height [mm]

Hfr: Front right wheel arch height [mm]

PKIC4884E

BCIA0031E

PKIB4696E

DI-78

LANE DEPARTURE WARNING SYSTEM

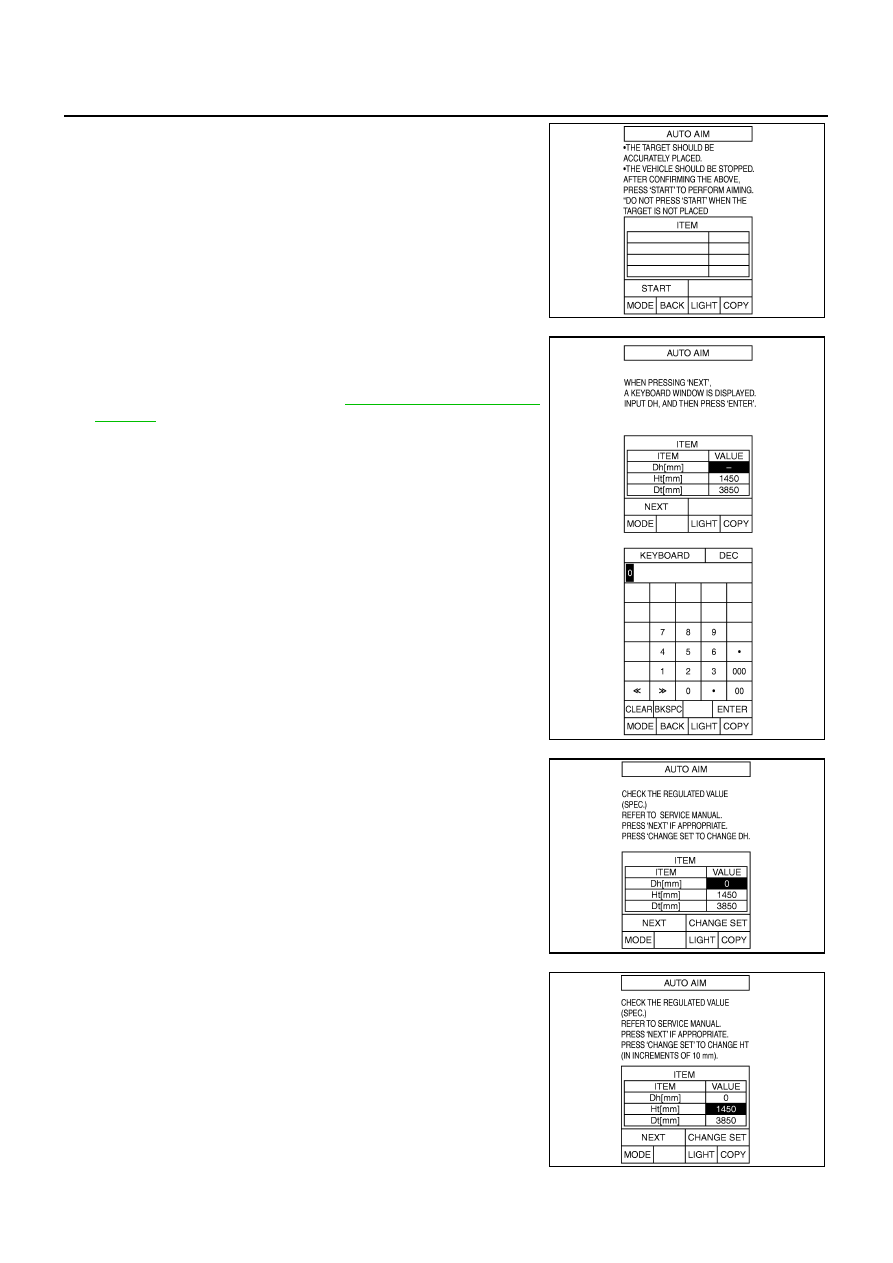

4.

The target should be accurately placed.
The vehicle should be stopped.
After confirming the above, touch “START” to perform aiming.

CAUTION:

Never touch “START” when the target is not placed.

5.

Touch “NEXT”, then a keyboard window is displayed. Input “Dh”,
and then touch “ENTER”.

NOTE:
Check the value “Dh”. Refer to

DI-77, "VEHICLE HEIGHT

CHECK"

 .

6.

Check the regulated value. (Spec.)

NOTE:
Check the value input at step 8.

a.

Touch “NEXT” if appropriate.

b.

Touch “CHANGE SET” to change “Dh”.

7.

Touch “NEXT”.

CAUTION:

Never change “Ht”.

SKIB3146E

SKIB3147E

SKIB3148E

SKIB3149E
