Infiniti Q45. Manual - part 300





WARNING CHIME

DI-67

C

D

E

F

G

H

I

J

L

M

A

B

DI

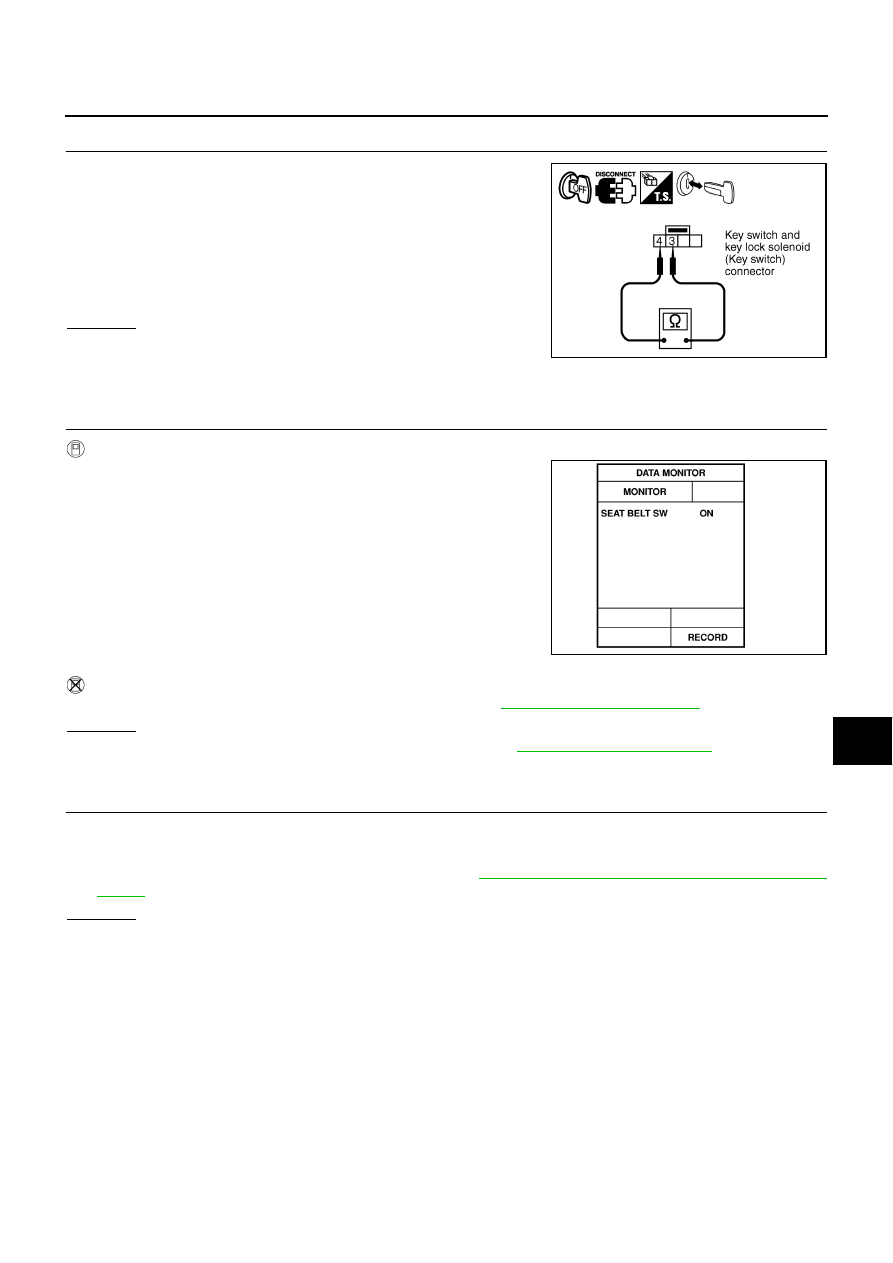

3.

CHECK KEY SWITCH (INSERT)

Check continuity between key switch and key lock solenoid (key
switch) connector M64 terminals 3 and 4.

OK or NG

OK

>> Check harness between fuse and key switch.

NG

>> Replace key switch and key lock solenoid (key switch).

Seat Belt Buckle Switch Input Signal Inspection

NKS001CD

1.

CHECK SEAT BELT BUCKLE SWITCH INPUT SIGNAL

With CONSULT-II

Check seat belt buckle switch “SEAT BELT SW” in “DATA MONI-
TOR” mode with CONSULT-II.

Without CONSULT-II

Check seat belt buckle switch in switch monitor mode, refer to

DI-60, "On Board Diagnosis"

 .

OK or NG

OK

>> Seat belt buckle switch Input signal is OK. Return to

DI-62, "SYMPTOM CHART"

 .

NG

>> GO TO 2.

2.

CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)

1.

Turn ignition switch OFF.

2.

Disconnect seat belt buckle switch connector.

3.

Check seat belt buckle switch (driver side). Refer to

DI-68, "SEAT BELT BUCKLE SWITCH (DRIVER

SIDE)"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Replace seat belt buckle switch.

3 – 4

When key is inserted to
ignition key cylinder

: Continuity should exist.

When key is removed
to ignition key cylinder

: Continuity should not exist.

SKIB0694E

“SEAT BELT SW”

When seat belt is fastened

: ON

When seat belt is unfastened

: OFF

SEL501W

DI-68

WARNING CHIME

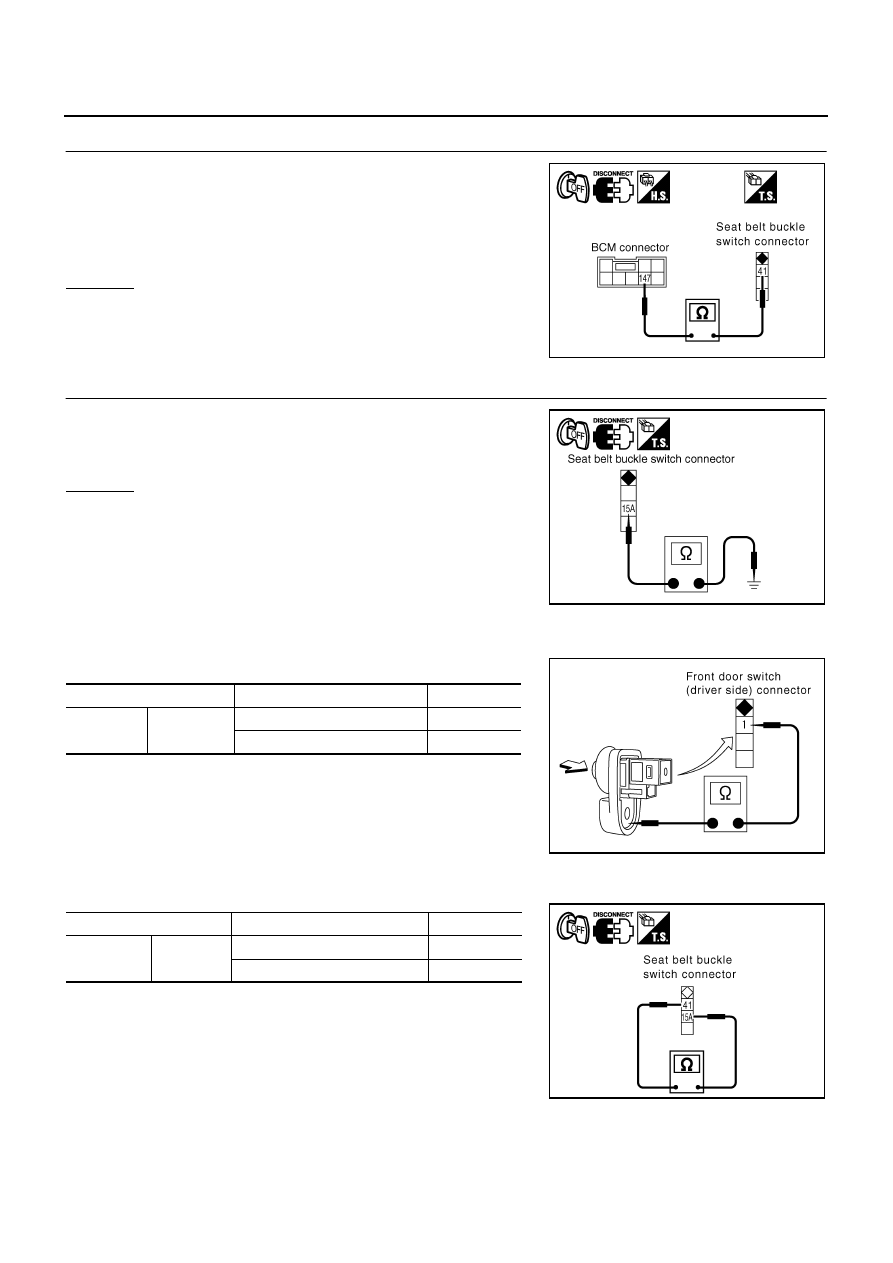

3.

CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector B4 terminal
147 and seat belt buckle switch harness connector B150 termi-
nal 41.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK SEAT BELT BUCKLE SWITCH GROUND CIRCUIT

Check continuity between seat belt buckle switch harness connector
B150 terminal 15A and ground.

OK or NG

OK

>> Replace BCM.

NG

>> Repair harness or connector.

Electrical Component Inspection

NKS002JF

FRONT DOOR SWITCH (DRIVER SIDE)

Check continuity between terminal 1 and door switch case ground.

SEAT BELT BUCKLE SWITCH (DRIVER SIDE)

Check continuity between terminals 41 and 15A.

147 – 41

: Continuity should exist.

SKIB0697E

15A – Ground

: Continuity should exist.

SKIB0698E

terminal

Condition

Continuity

1

Door switch
case ground

When door switch is released

Yes

When door switch is pressed

No

SKIB0444E

terminal

Condition

Continuity

41

15A

When seat belt is fastened

No

When seat belt is unfastened

Yes

SKIB0696E

WARNING CHIME

DI-69

C

D

E

F

G

H

I

J

L

M

A

B

DI

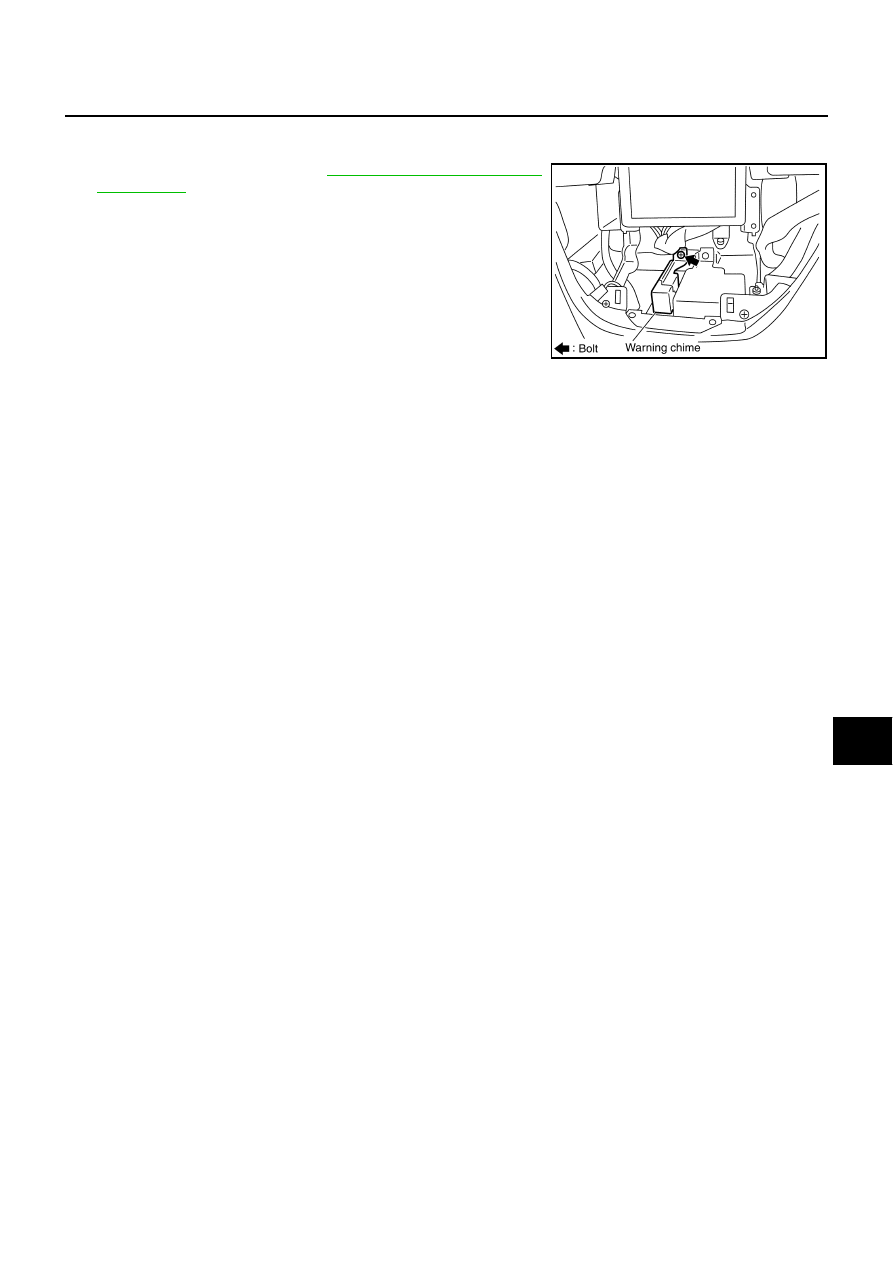

Removal and Installation of Warning Chime

NKS001CE

REMOVAL

1.

Remove cluster lid C. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove bolt (1), and remove warning chime.

INSTALLATION

Installation is the reverse order of removal.

SKIA0582E

DI-70

CAN COMMUNICATION

CAN COMMUNICATION

PFP:23710

System Description

NKS002BR

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

NKS002BS

Refer to

LAN-40, "CAN Communication Unit"

  in “LAN SYSTEM”.
