Infiniti Q45. Manual - part 293

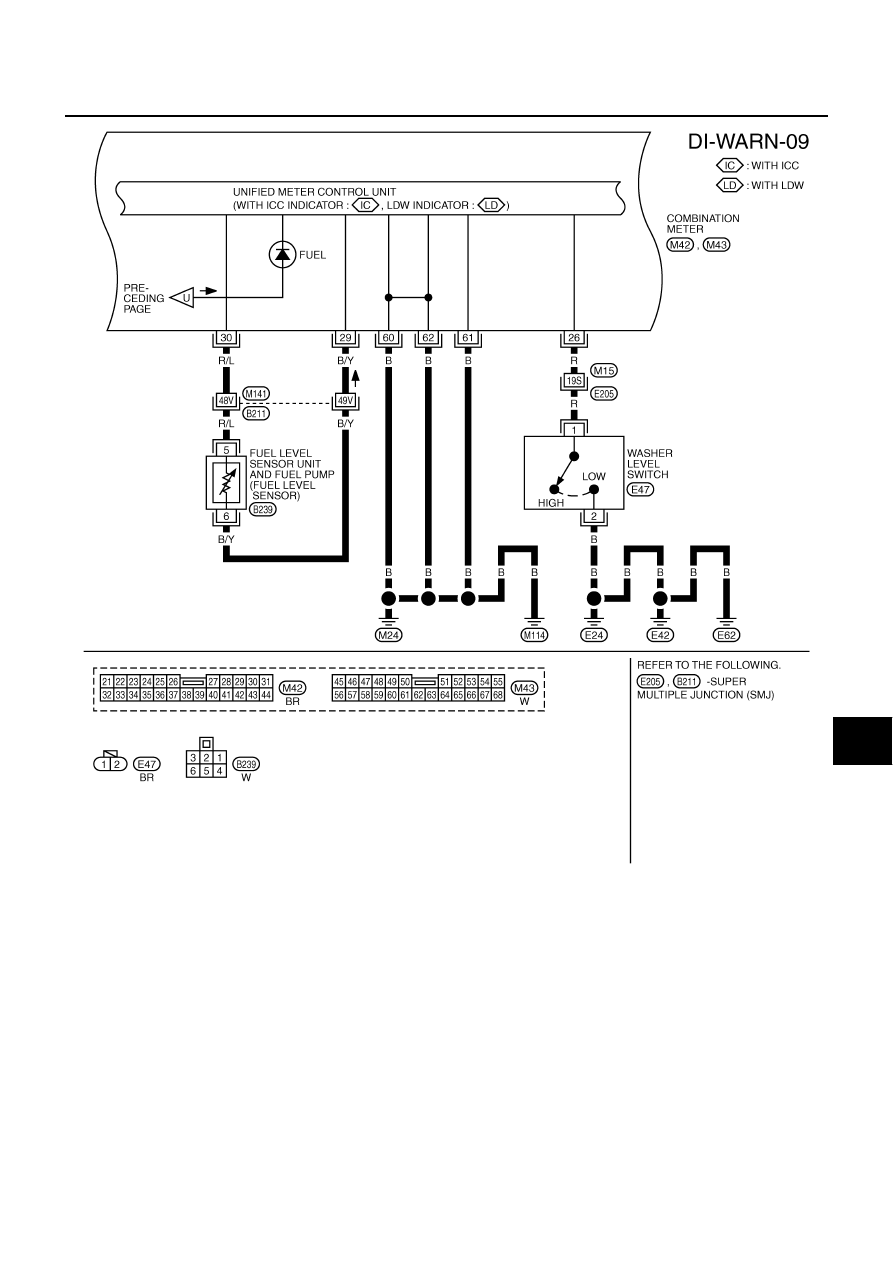

WARNING LAMPS

DI-39

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3735E

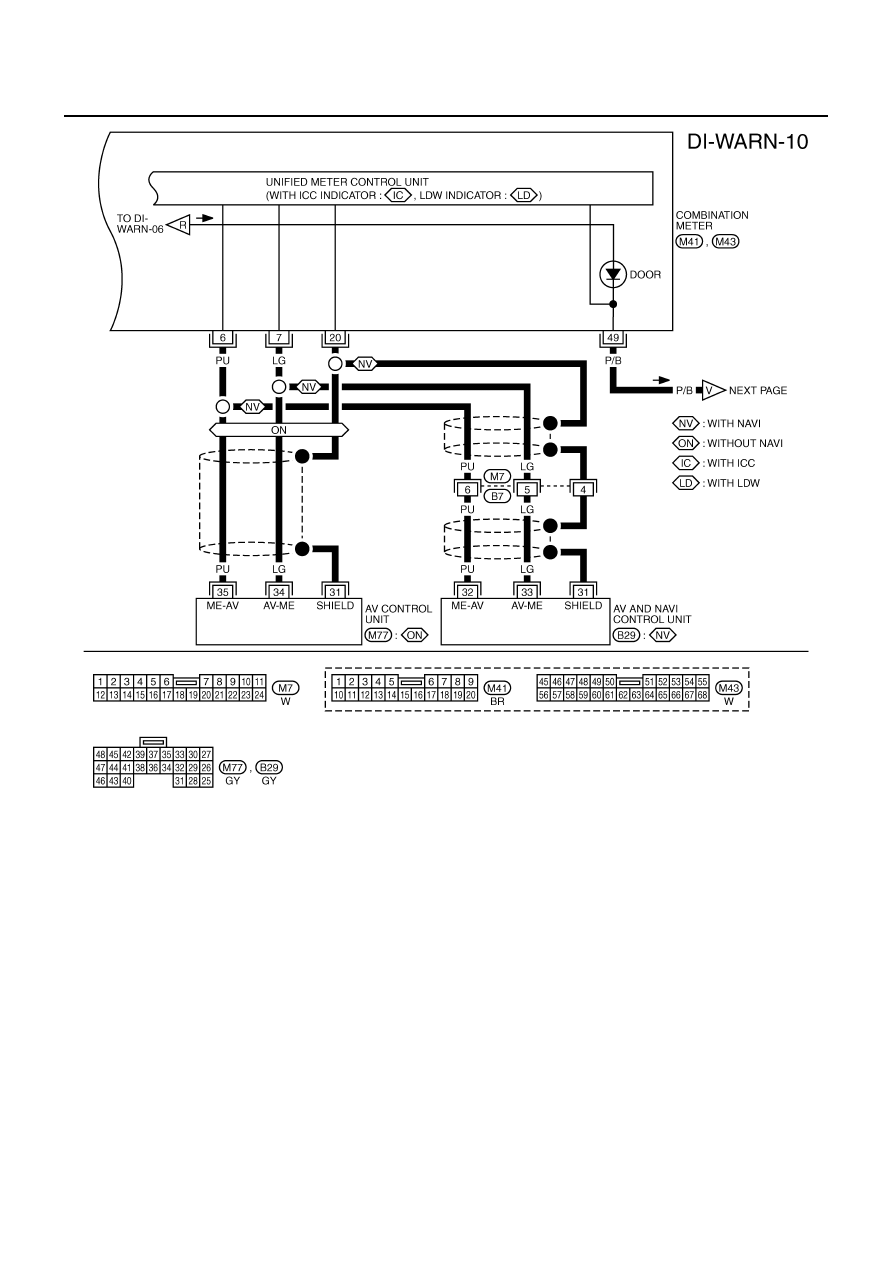

DI-40

WARNING LAMPS

TKWM3736E

WARNING LAMPS

DI-41

C

D

E

F

G

H

I

J

L

M

A

B

DI

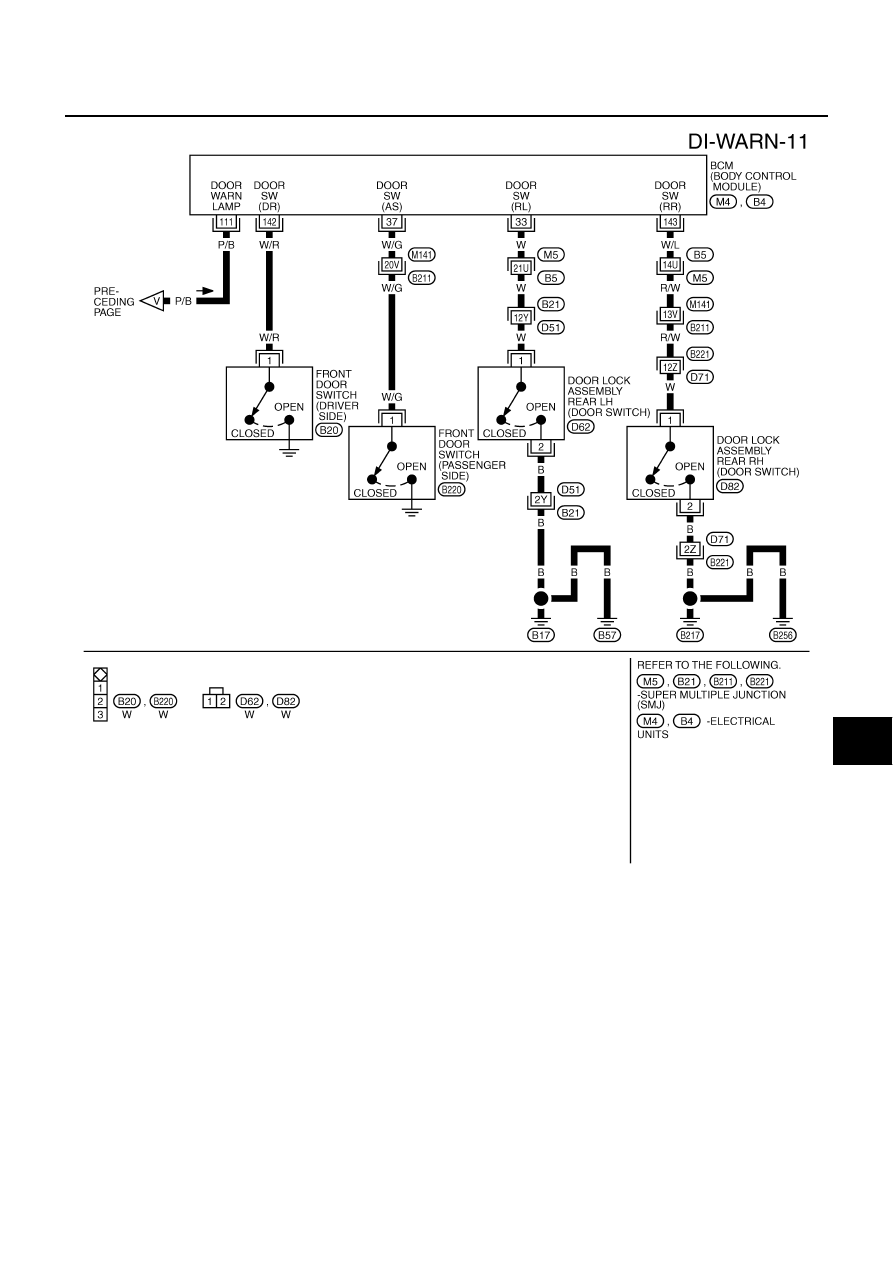

TKWM3737E

DI-42

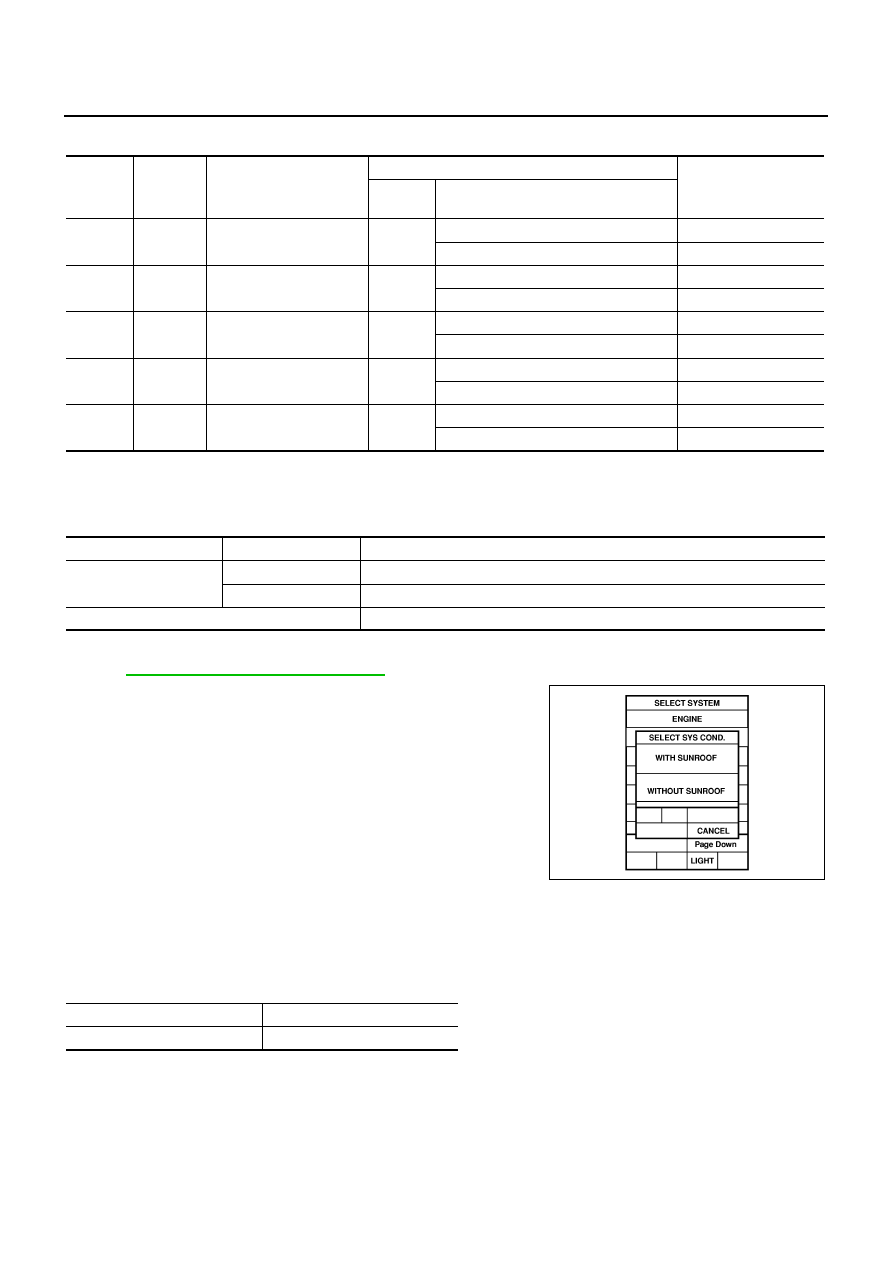

WARNING LAMPS

Terminals and Reference Value for BCM

NKS001BQ

CONSULT-II Function (IVMS)

NKS001BR

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

DIAGNOSTIC ITEMS DESCRIPTION

CONSULT-II OPERATION

Refer to

GI-36, "CONSULT-II Start Procedure"

 .

1.

Check the model specification, touch either “WITH SUNROOF”
or “WITHOUT SUNROOF”.

2.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

3.

Select the desired part to be diagnosed on the “SELECT TEST
ITEM” screen.

DATA MONITOR
Operation Procedure

1.

Touch “DOOR OPEN WARNING” on “SELECT TEST ITEM” screen.

2.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Touch “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.

4.

If “SELECTION FROM MENU” is selected, touch the desired monitor item. If “ALL SIGNALS” is selected,
the main item required to control is monitored.

5.

Touch “START”.

6.

During monitoring, touching “COPY” can start recording the monitor item status.

Terminal

No.

Wire color

Item

Condition

Reference value

(Approx.)

Ignition

switch

Operation

33

W

Rear door switch (LH)

OFF

Rear door LH is open.

0 V

Rear door LH is closed.

12 V

37

W/G

Passenger door switch

OFF

Passenger door is open.

0 V

Passenger door is closed.

12 V

111

P/B

Door warning lamp

OFF

Any door is open.

0 V

Any door is closed.

12 V

142

W/R

Driver door switch

OFF

Driver door is open.

0 V

Driver door is closed.

12 V

143

W/L

Rear door switch (RH)

OFF

Rear door RH is open.

0 V

Rear door RH is closed.

12 V

IVMS diagnosis position

Diagnosis mode

Description

DOOR OPEN WARNING

DATA MONITOR

The input data to the BCM control unit is displayed in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending driving signal to them.

BCM PART NUMBER

Displays BCM part number.

PIIA0184E

ALL SIGNALS

Monitors the all items.

SELECTION FROM MENU

Selects and monitors the items.
