CO-1

ENGINE COOLING SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

ENGINE COOLING SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 3

OVERHEATING CAUSE ANALYSIS .......................... 4

Troubleshooting Chart .............................................. 4

COOLING SYSTEM .................................................... 6

Cooling Circuit .......................................................... 6
System Chart  ........................................................... 7

ENGINE COOLANT .................................................... 8

Inspection ................................................................. 8

CHECKING ENGINE COOLANT LEVEL .............. 8
CHECKING COOLING SYSTEM FOR LEAKS ..... 8

Changing Engine Coolant  ........................................ 8

DRAINING ENGINE COOLANT  ........................... 8
REFILLING ENGINE COOLANT  .......................... 9
FLUSHING COOLING SYSTEM ......................... 10

RADIATOR .................................................................11

Removal and Installation  .........................................11

REMOVAL ............................................................11
INSTALLATION ................................................... 12
CHECKING RADIATOR CAP .............................. 12
CHECKING RADIATOR  ...................................... 13

RADIATOR (ALUMINUM TYPE)  .............................. 14

Disassembly and Assembly  ................................... 14

PREPARATION ................................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 15
INSPECTION ...................................................... 17

COOLING FAN .......................................................... 18

Removal and Installation  ........................................ 18

REMOVAL ........................................................... 18
INSTALLATION ................................................... 18

Disassembly and Assembly .................................... 19

DISASSEMBLY ................................................... 19
INSPECTION AFTER DISASSEMBLY ................ 19
ASSEMBLY ......................................................... 19

WATER PUMP  .......................................................... 20

Removal and Installation  ........................................ 20

REMOVAL ........................................................... 20
INSPECTION AFTER REMOVAL  ....................... 20
INSTALLATION ................................................... 20
INSPECTION AFTER INSTALLATION ................ 21

THERMOSTAT AND WATER CONTROL VALVE  .... 22

Removal and Installation  ........................................ 22

REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL  ....................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 24

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 25

Standard and Limit .................................................. 25

CAPACITY ........................................................... 25
RADIATOR .......................................................... 25
THERMOSTAT .................................................... 25
WATER CONTROL VALVE  ................................. 25

CO-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NBS001PH

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PREPARATION

CO-3

C

D

E

F

G

H

I

J

K

L

M

A

CO

PREPARATION

PFP:00002

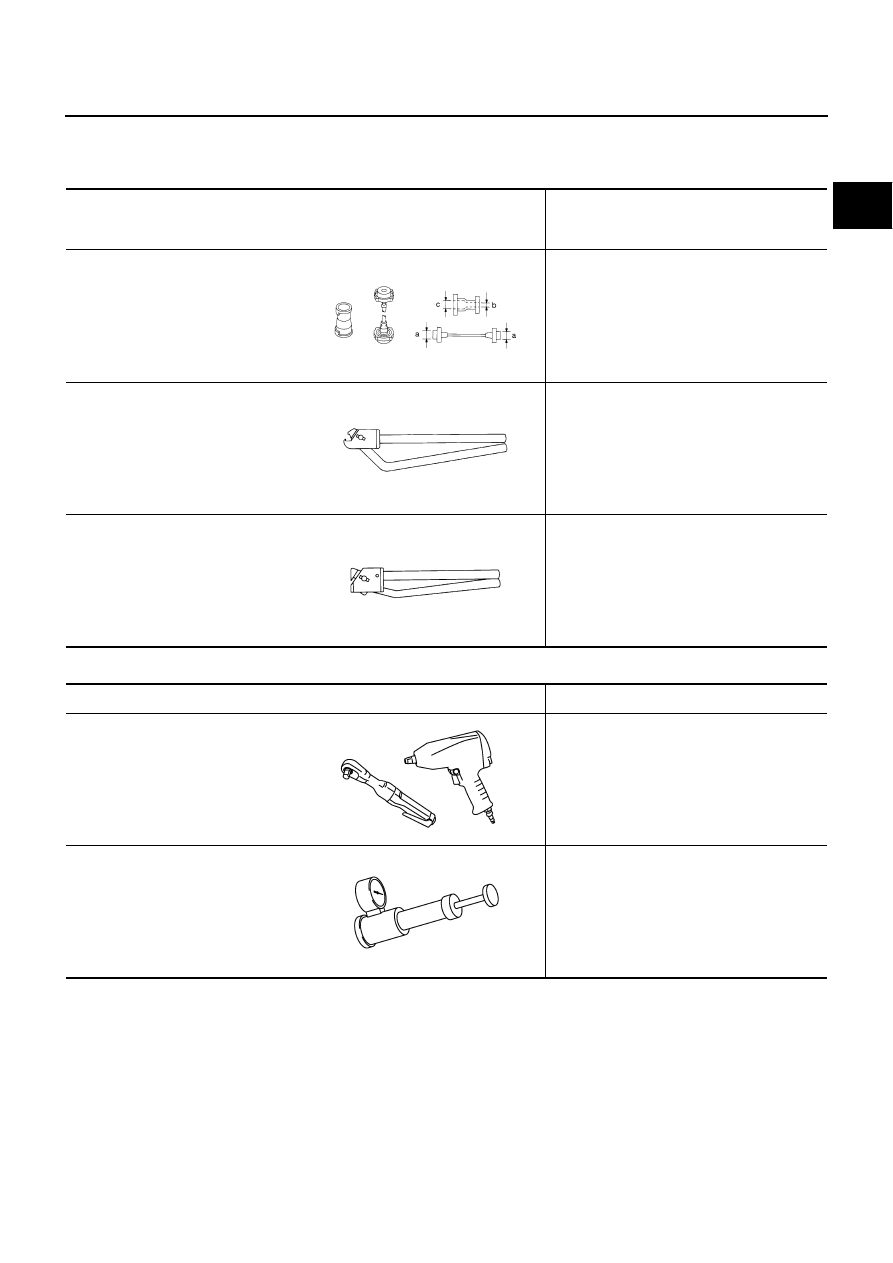

Special Service Tools

NBS001PI

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NBS001PJ

Tool number
(Kent-Moore No.)
Tool name

Description

EG17650301
(J33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and thermostat housing neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV99103510
(          –         )
Radiator plate pliers A

Installing radiator upper and lower tanks

KV99103520
(          –         )
Radiator plate pliers B

Removing radiator upper and lower tanks

S-NT564

S-NT224

S-NT225

Tool name

Description

Power tool

Loosening bolts and nuts

Radiator cap tester

Checking radiator and radiator cap

PBIC0190E

PBIC1982E

CO-4

OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSIS

PFP:00012

Troubleshooting Chart

NBS001PK

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

Thermostat and water con-
trol valve stuck closed

Damaged fins

Dust contamination or
paper clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

Improper engine coolant
mixture ratio

Poor engine coolant quality

Engine coolant density

Insufficient engine coolant

Engine coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration
