G SENSOR

BRC-69

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

G SENSOR

PFP:47930

Removal and Installation

NFS000DQ

CAUTION:

Do not drop or strike the yaw rate/side G sensor, because it has little endurance to impact.

REMOVAL

1.

Remove center console. Refer to

IP-14, "(M) Console Box

Assembly"

 .

2.

Remove harness connector.

3.

Remove rear ventilator duct No. 2. Refer to

ATC-145, "Removal

of Rear Ventilator Ducts"

 .

4.

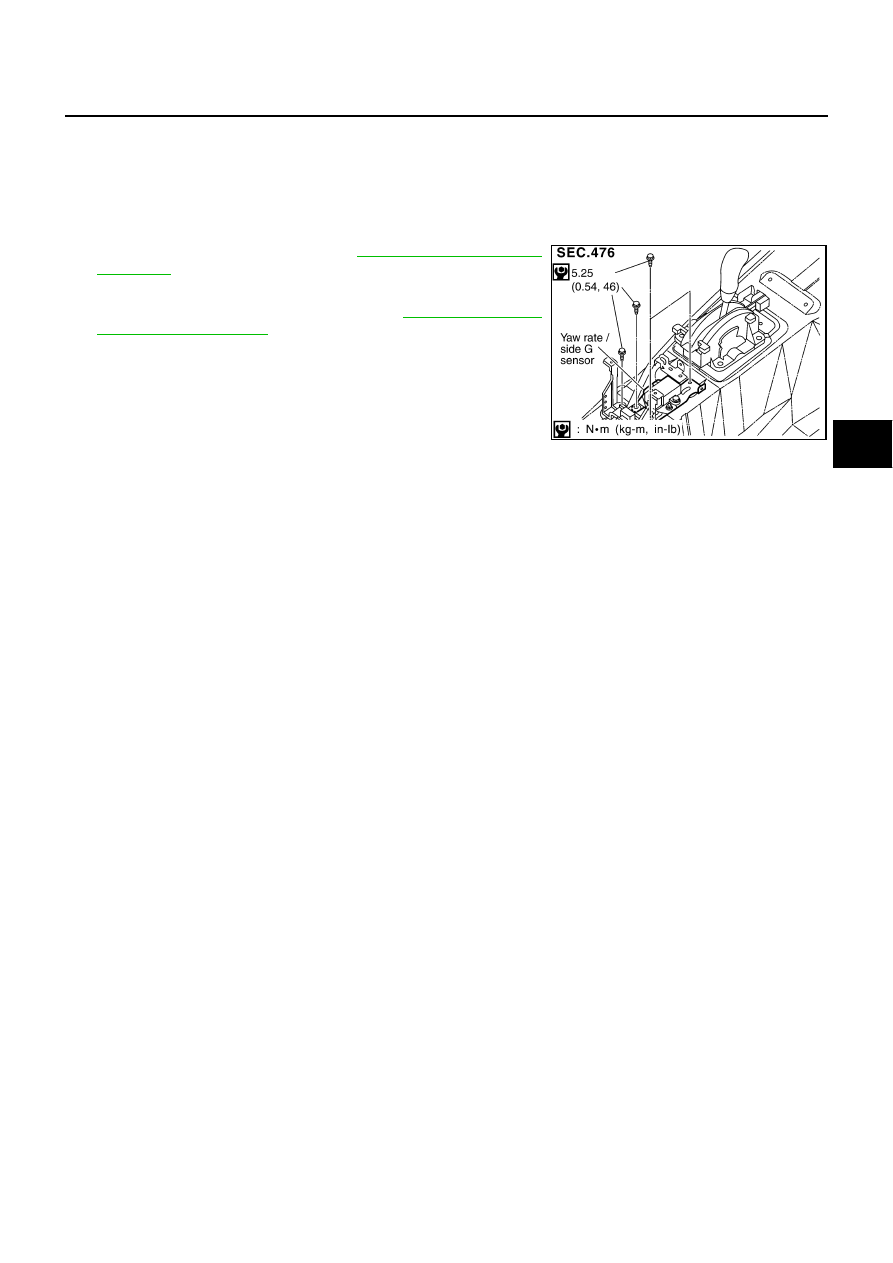

Remove mounting bolts. Remove yaw rate/side G sensor.

INSTALLATION

Installation is the reverse order of removal.

SFIA2617E

BRC-70

[VDC/TCS/ABS]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

PFP:25554

Removal and Installation

NFS000DR

REMOVAL

1.

Remove spiral cable assembly. Refer to

SRS-43, "SPIRAL CABLE"

 .

2.

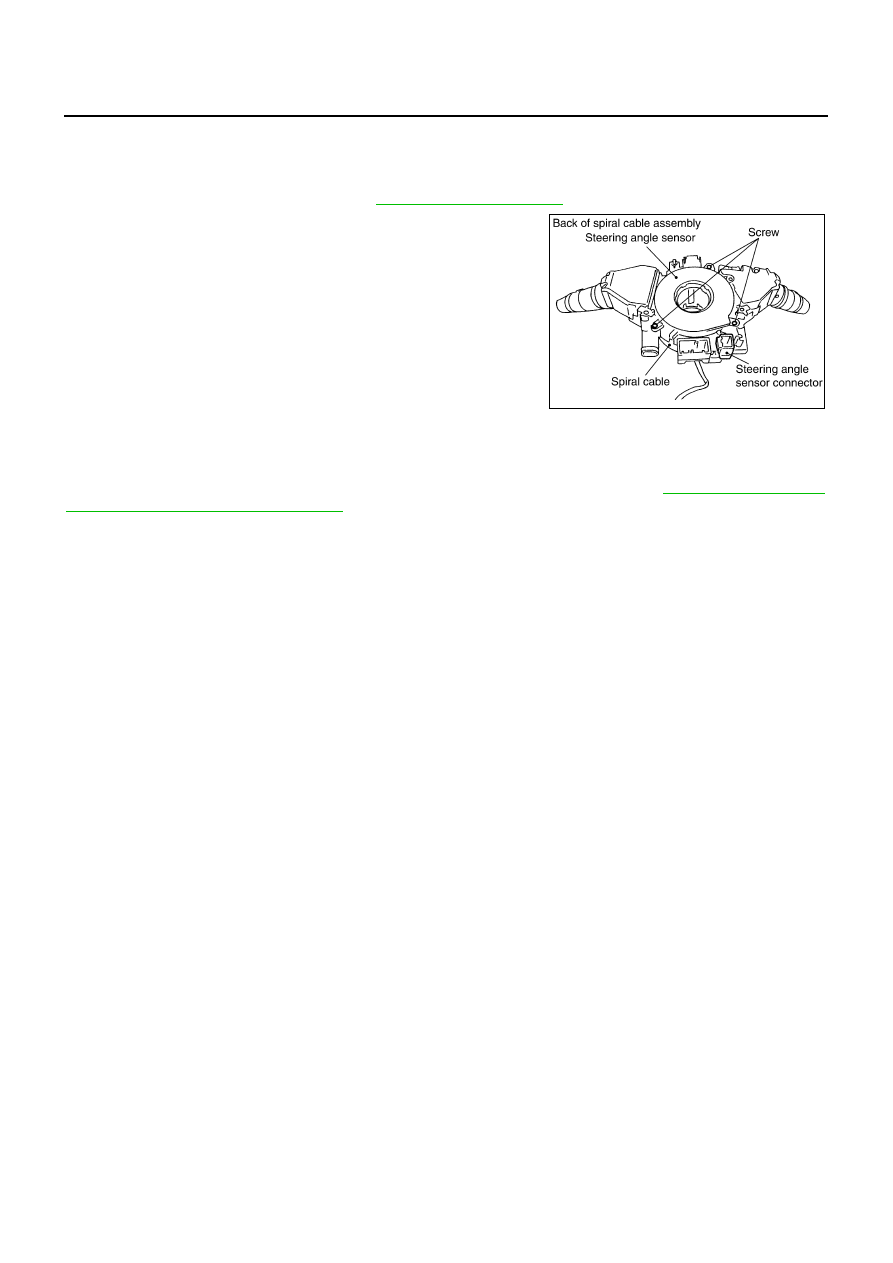

Remove steering angle sensor from spiral cable assembly.

INSTALLATION

Installation is the reverse order of removal.

NOTE:
After work, make sure to adjust neutral position of steering angle sensor. Refer to

BRC-6, "Adjustment of

Steering Angle Sensor Neutral Position"

 .

SFIA1404E

RELAY BOX

BRC-71

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

RELAY BOX

PFP:47605

Removal and Installation

NFS000HN

REMOVAL

1.

Remove front air guide. Refer to

EM-13, "ENGINE ROOM

COVER"

 .

2.

Remove harness connector.

3.

Remove VDC relay box bracket mounting bolt.

4.

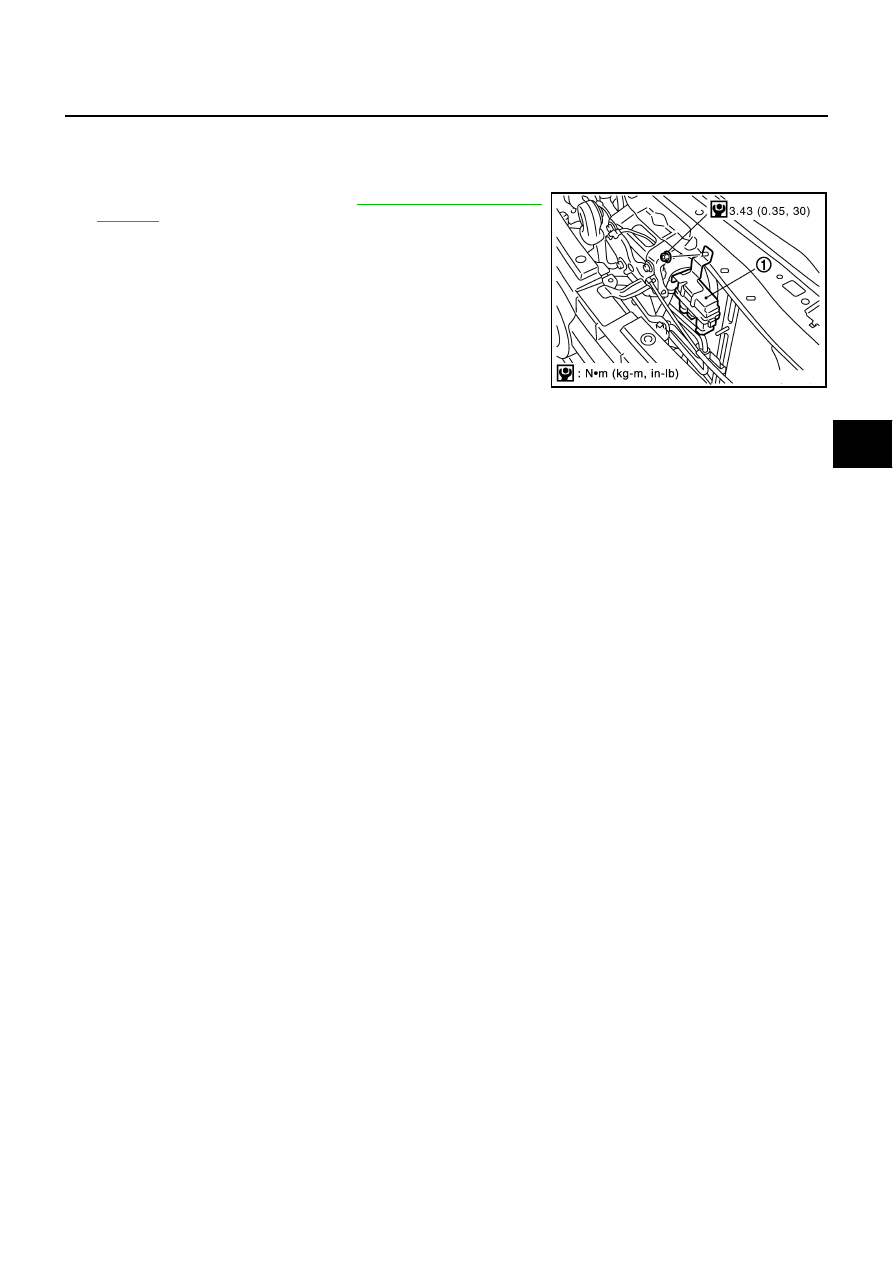

Remove VDC relay box (1) from vehicle.

INSTALLATION

Installation is the reverse order to removal.

SFIA3314E

BRC-72

[VDC/TCS/ABS]

RELAY BOX
