Infiniti Q45. Manual - part 221





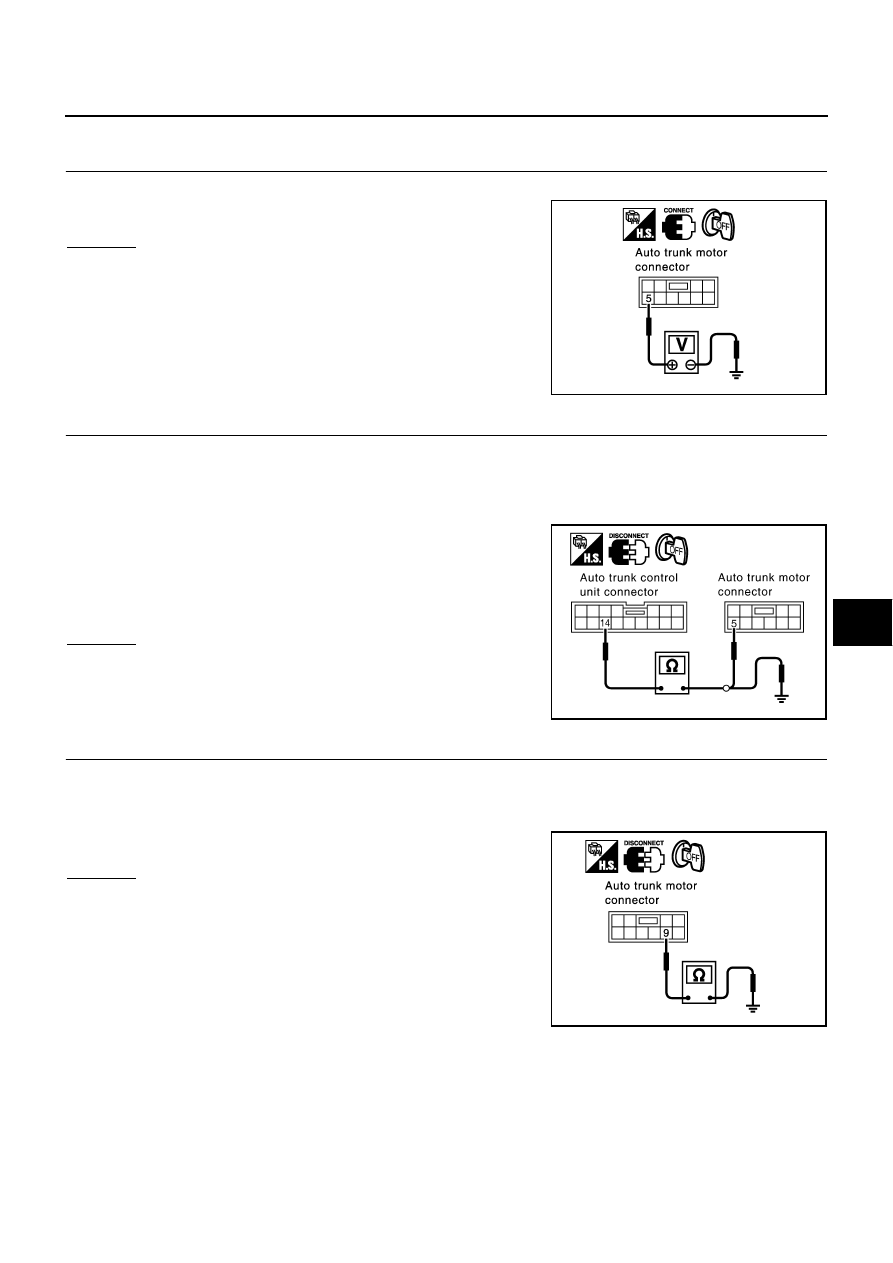

AUTO TRUNK SYSTEM

BL-153

C

D

E

F

G

H

J

K

L

M

A

B

BL

Encoder Circuit Check

NIS000WM

1.

CHECK ENCODER POWER SUPPLY

Check voltage between auto trunk motor connector B109 terminal 5 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect auto trunk control unit and auto trunk motor connector.

3.

Check continuity between auto trunk control unit connector B110 terminal 14 and auto trunk motor con-
nector B109 terminal 5.

4.

Check continuity between auto trunk control unit connector B110
terminal 14 and ground.

OK or NG

OK

>> Replace auto trunk control unit.

NG

>> Repair or replace harness.

3.

CHECK ENCODER GROUND

1.

Turn ignition switch OFF.

2.

Disconnect auto trunk motor connector.

3.

Check continuity between auto trunk motor connector B109 terminal 9 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

5 (L/R) – Ground

: Battery voltage

PIIA2967E

14 (L/R) – 5 (L/R)

: Continuity should exist.

14 (L/R) – Ground

: Continuity should not exist.

PIIB0250E

9 (R/W) – Ground

: Continuity should exist.

PIIA2969E

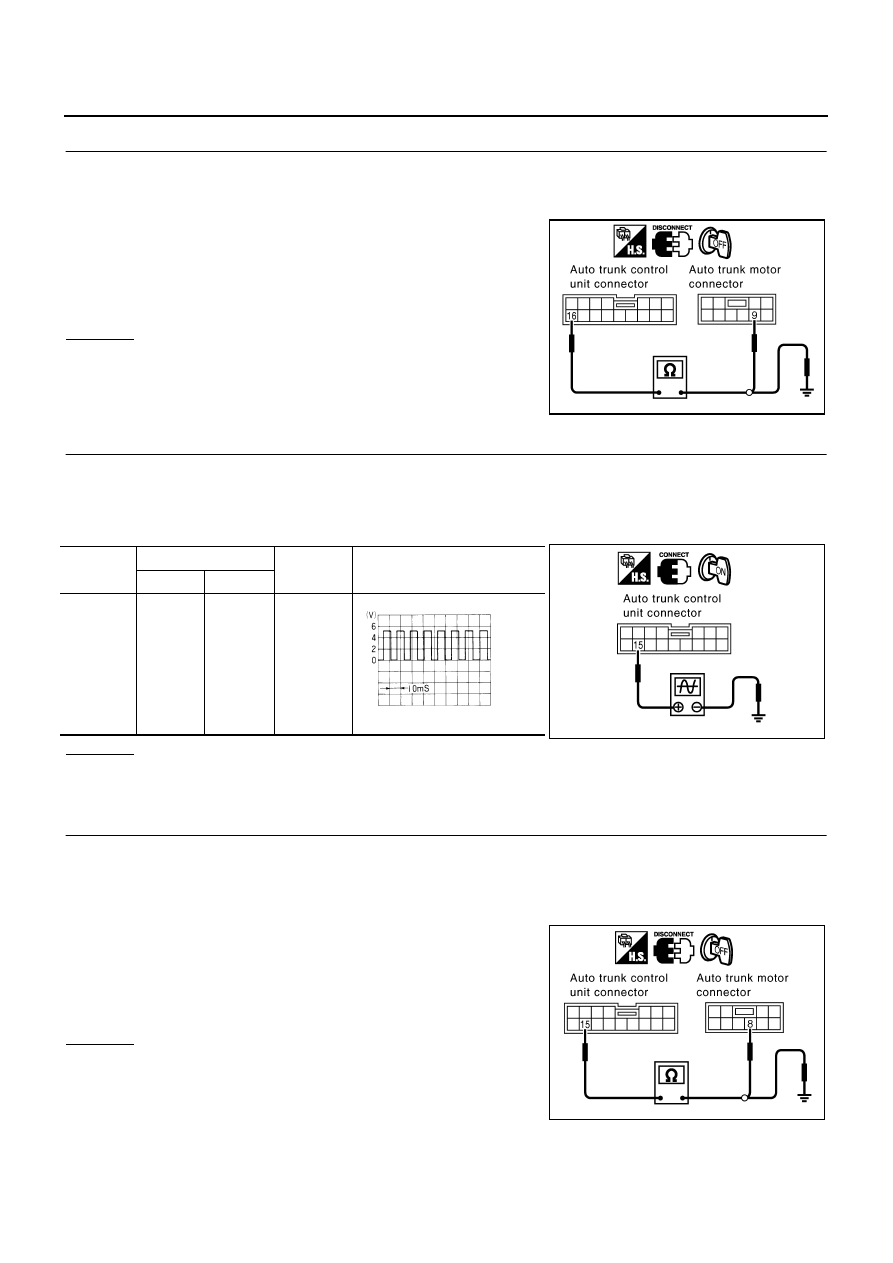

BL-154

AUTO TRUNK SYSTEM

4.

CHECK ENCODER GROUND CIRCUIT

1.

Disconnect auto trunk control unit.

2.

Check continuity between auto trunk control unit connector B110 terminal 16 and auto trunk motor con-
nector B109 terminal 9.

3.

Check continuity between auto trunk control unit connector B110
terminal 16 and ground.

OK or NG

OK

>> Replace auto trunk control unit.

NG

>> Repair or replace harness.

5.

CHECK ENCODER SIGNAL

1.

Connect auto trunk motor connector.

2.

Turn ignition switch ON.

3.

Check the signal between auto trunk control unit connector B110 terminal 15 and ground with oscillo-
scope.

OK or NG

OK

>> Encoder function is OK.

NG

>> GO TO 6.

6.

CHECK ENCODER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect auto trunk control unit and auto trunk motor connector.

3.

Check continuity between auto trunk control unit connector B110 terminal 15 and auto trunk motor con-
nector B109 terminal 8.

4.

Check continuity between auto trunk control unit connector B110
terminal 15 and ground.

OK or NG

OK

>> Replace auto trunk motor.

NG

>> Repair or replace harness.

16 (R/W) – 9 (R/W)

: Continuity should exist.

16 (R/W) – Ground

: Continuity should not exist.

PIIB0196E

Connector

Terminals (Wire color)

Condition

Signal

(Reference value)

(+)

(-)

B110 15

(Y)

Ground

trunk motor
operation

PIIB0197E

OCC3383D

15 (Y) – 8 (Y)

:Continuity should exist.

15 (Y) – Ground

: Continuity should not exist.

PIIB0198E

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-155

C

D

E

F

G

H

J

K

L

M

A

B

BL

VEHICLE SECURITY (THEFT WARNING) SYSTEM

PFP:28491

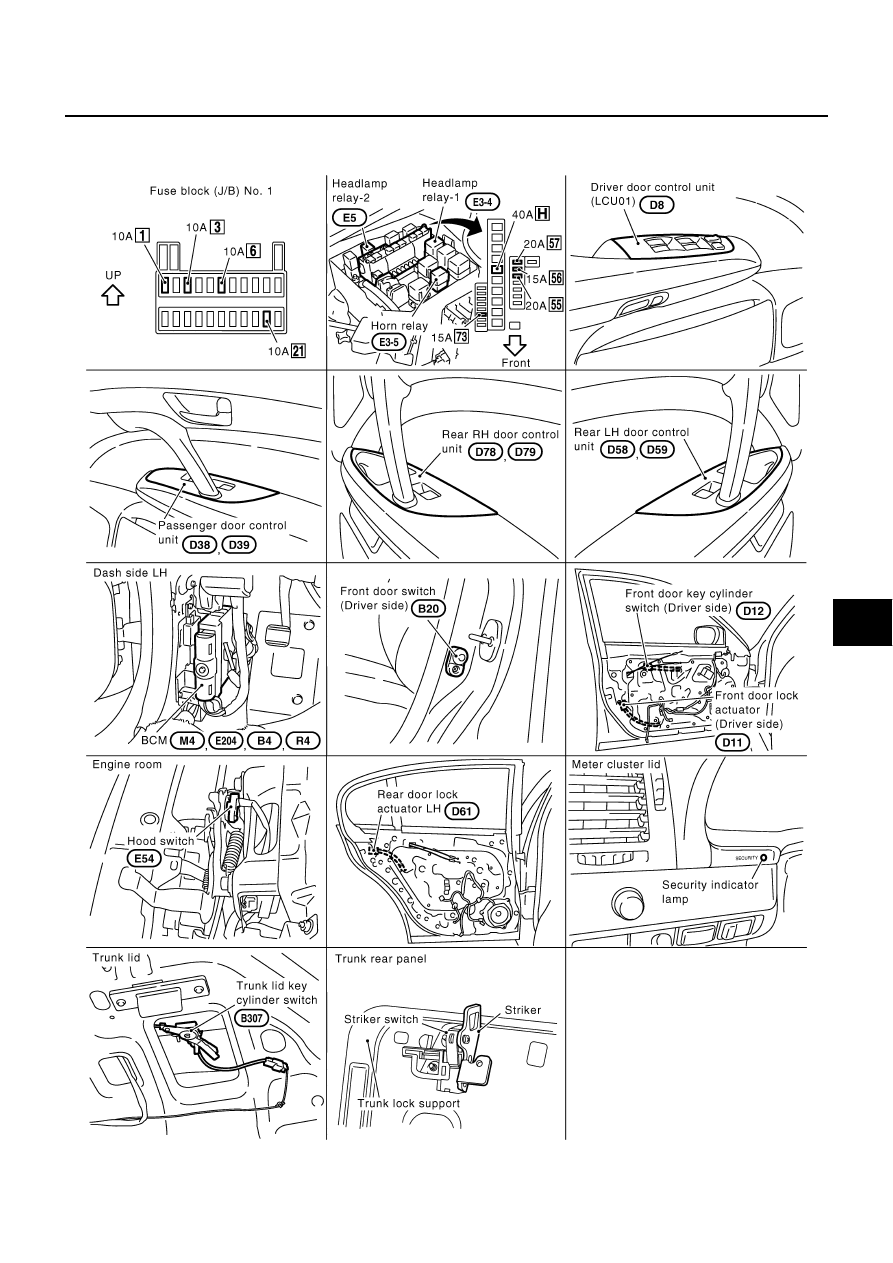

Component Parts Harness Connector Location

NIS000WN

PIIB1977E

BL-156

VEHICLE SECURITY (THEFT WARNING) SYSTEM

System Description

NIS000WO

DESCRIPTION
Setting the Vehicle Security System

Disarmed phase

When the vehicle is being driven or when doors or trunk lid is open, the vehicle security system is set in
the disarmed phase on the assumption that the owner is inside or near the vehicle.

Pre-armed phase and armed phase

The vehicle security system turns into the “pre-armed” phase when hood, trunk lid and all doors are
closed and locked by electronic key. The security indicator lamp illuminates for 30 seconds. Then, the sys-
tem automatically shifts into the “armed” phase.

Canceling the Set Vehicle Security System

When the following 1 or 2 operation is performed, the armed phase is canceled.

1.

Unlock the doors with the electronic key or emergency key.

2.

Open the trunk lid with the electronic key or emergency key. When the trunk lid is closed after opening the
trunk lid with the electronic key, the system returns to the armed phase.

Activating the Alarm Operation of the Vehicle Security System

Make sure the system is in the armed phase.
When the following operation 1, 2 or 3 is performed, the system sounds the horn and flashes the head-lamps
for about 50 seconds.

1.

Engine hood, trunk lid or any door is opened before unlocking door with electronic key or emergency key.

2.

Door is unlocked without using electronic key or emergency key.

3.

Trunk lid is opened without using electronic key or emergency key.

POWER SUPPLY

Power is supplied at all times

through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]

to security indicator lamp terminal 20.

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1]

to BCM terminal 105.

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B) No. 1]

to BCM terminal 68.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 21, located in the fuse block (J/B) No. 1]

to BCM terminal 60.

BCM is connected to LCU01 via DATA LINE A -3.

INITIAL CONDITION TO ACTIVATE THE SYSTEM

The operation of the vehicle security system is controlled by the doors, hood and trunk lid.
To activate the vehicle security system, BCM must receive signals indicating the doors, hood and trunk lid are
closed and the doors are locked.
When a door is open, BCM terminal 33 (rear LH door), 37 (passenger door), 142 (driver door) or 143 (rear RH
door) receives a ground signal from each door switch.
When the driver door is unlocked, driver door control unit (LCU01) terminal 6 receives a ground signal from
terminal 2 of driver side door unlock sensor.
When the passenger, rear LH or RH door is unlocked, passenger, rear LH or RH door control unit terminal 13
receives a ground signal from terminal 2 of each door unlock sensor.
When the hood is open, BCM terminal 122 receives a ground signal

to terminals 1 and 2 of the hood switch

through body grounds E24, E42 and E62.

When the trunk lid is open, BCM terminal 146 receives a ground signal

to terminal 1 and 2 of trunk lid lock switch

through body grounds B217, B256.
