TRUNK LID

BL-117

C

D

E

F

G

H

J

K

L

M

A

B

BL

INSTALLTION

Install in the reverse order of removal.

BL-118

TRUNK LID

Removal and Installation of Trunk lid Emergency Opener Cable

NIS000VN

REMOVAL

1.

Remove trunk lid finisher. Refer to

EI-60, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

 .

2.

Disconnect each clamp of trunk lid emergency opener cable.

3.

Disconnect the trunk lid emergency opener cable and from the trunk lid lock assembly.

4.

Disconnect the trunk lid emergency opener cable from the trunk lid emergency opener lever holder.

5.

Remove trunk lid emergency opener cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, check the operation.

1.

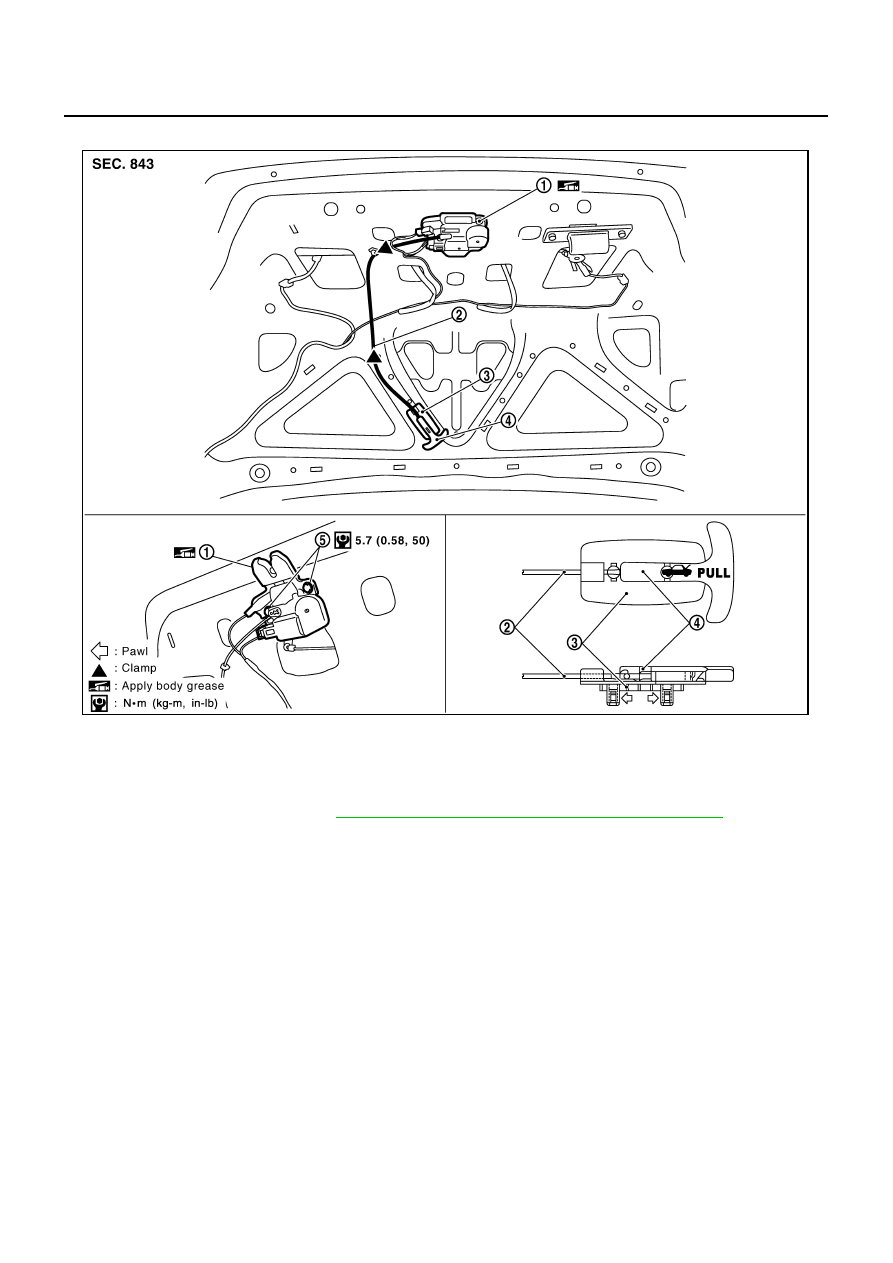

Trunk rid lock assembly

2.

Trunk rid emergency opener cable

3.

Trunk rid emergency opener lever
holder

4.

Trunk rid emergency opener lever

5.

Bolt

PIIB1495E

TRUNK LID

BL-119

C

D

E

F

G

H

J

K

L

M

A

B

BL

Removal and Installation of Trunk Closure Control Unit

NIS000VO

REMOVAL

1.

Remove trunk rear finisher. Refer to.

EI-60, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

2.

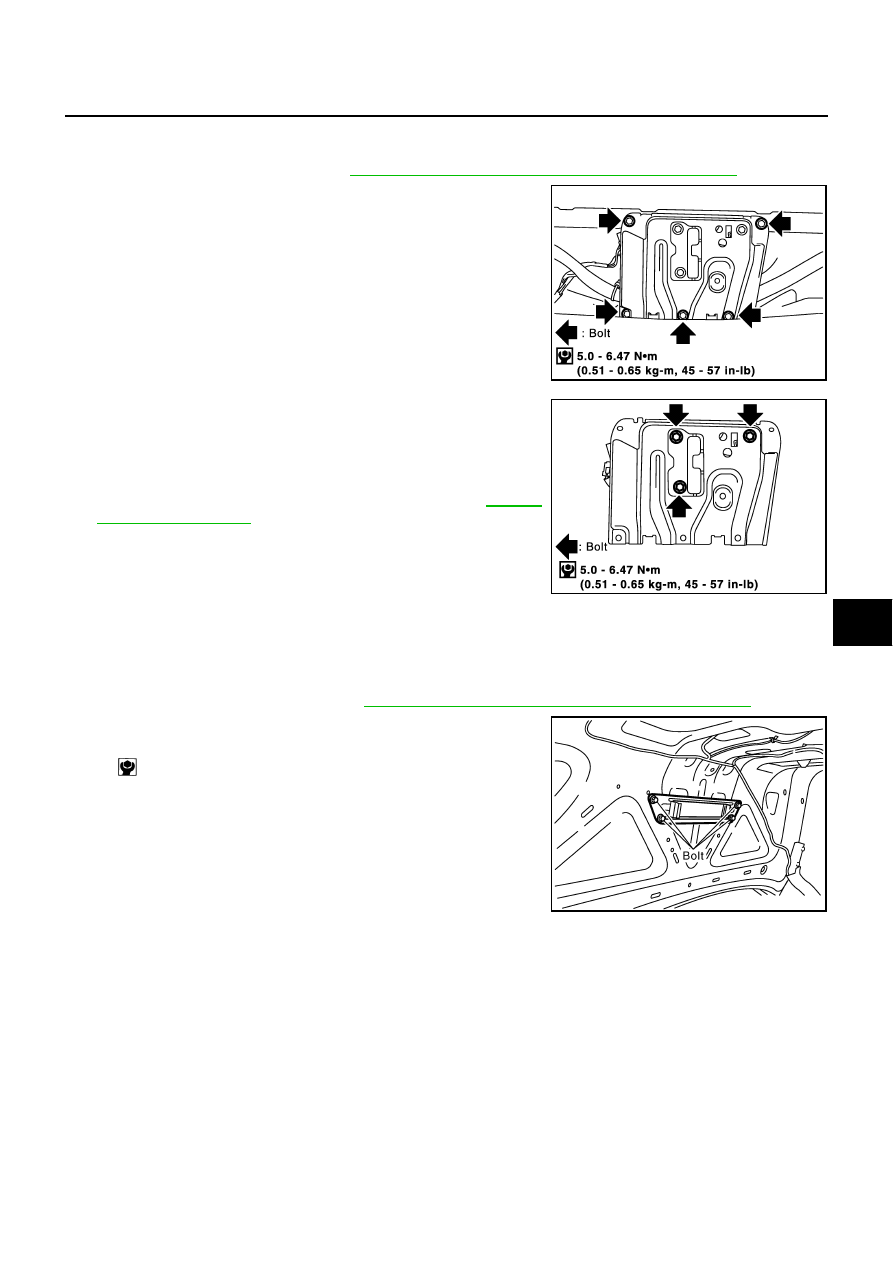

Remove the mounting bolts, and trunk closure control unit
bracket.

3.

After removing trunk closure control unit bracket together,
remove the harness connector, remove the mounting bolts, and
remove the trunk closure control unit.

CAUTION:

After installing, check operation.

After installing, perform fitting adjustment. Refer to

BL-114,

"Fitting Adjustment"

 .

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Dynamic Damper

NIS000VP

REMOVAL

1.

Remove the trunk lid finisher. Refer to

EI-60, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

2.

Remove dynamic damper mounting bolt, and then remove
dynamic damper.

INSTALLATION

Install in the reverse order of removal.
If trunk lid panel is replaced with new parts, install following the steps below.

1.

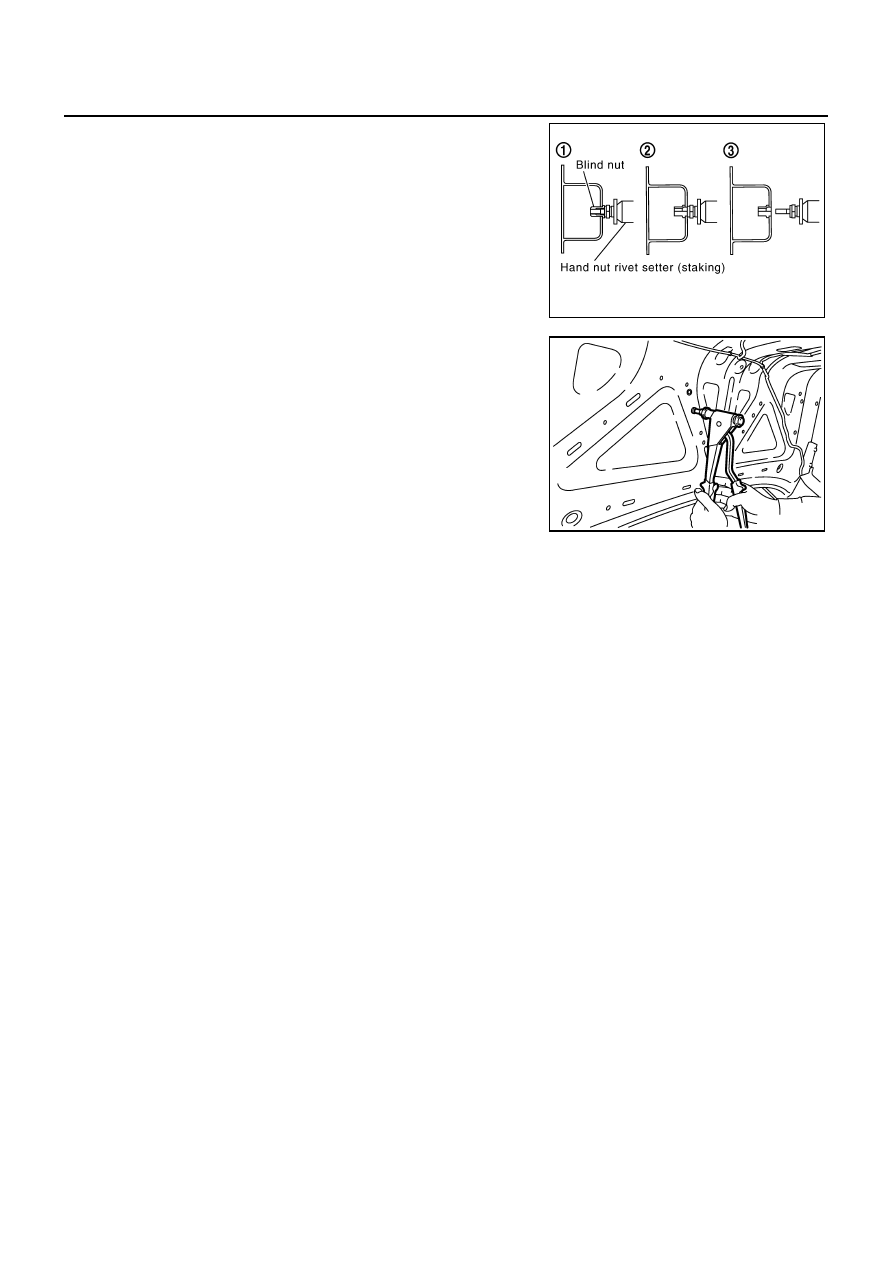

Select blind nut (M6.0 X 1.0/aluminum).

PIIA3369E

PIIA3370E

 :5.0 N·m (0.51 kg-m, 44 in-lb)

PIIB1558E

BL-120

TRUNK LID

2.

Set blind nut to hand nut rivet setter.

3.

Stake blind nut using hand nut rivet setter.

4.

Install dynamic damper to trunk lid panel.

PIIB1559E

PIIA8264J
