Infiniti Q45. Manual - part 211





REAR DOOR LOCK

BL-113

C

D

E

F

G

H

J

K

L

M

A

B

BL

ASSEMBLY

1.

Align the actuator pivot with the cutout on the knob lever of the door lock assembly, then assemble the
actuator.

2.

Move the knob lever and the actuator pivot toward the lock-on direction, and check that it engages
securely.

BL-114

TRUNK LID

TRUNK LID

PFP:H4300

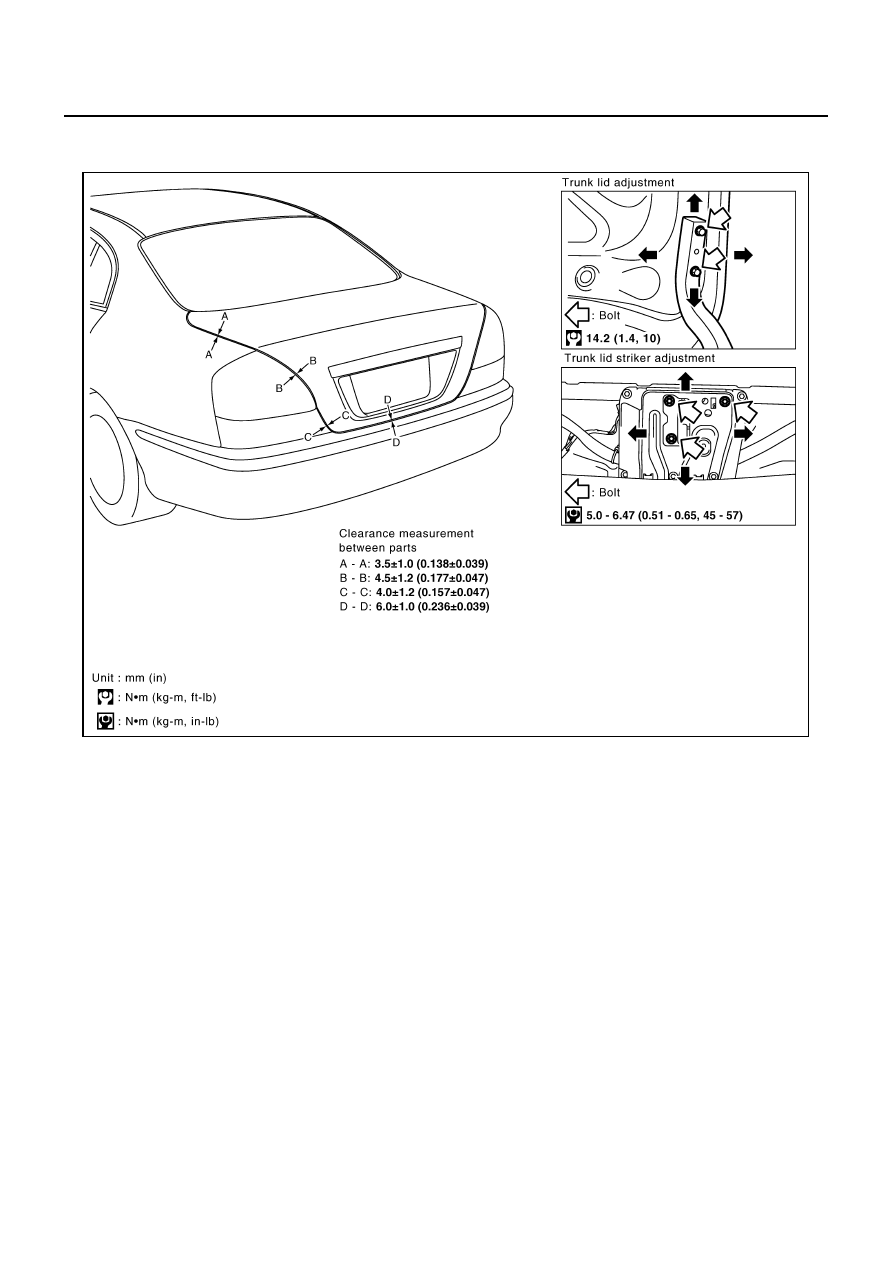

Fitting Adjustment

NIS000VJ

LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT

1.

With the striker released, loosen the trunk lid hinge mounting bolts to close the trunk lid.

2.

Make the lateral clearance and the clearance to the rear window glass equal, and open the trunk lid to
tighten the mounting bolts to the specified torque.

SURFACE HEIGHT ADJUSTMENT

1.

Loosen the striker mounting bolts. Raise the striker to the top position, and temporarily tighten the upper
mounting bolt at the position.

2.

Close the trunk lid lightly and adjust the surface height, then open the trunk lid to finally tighten the striker
mounting bolts to the specified torque.

PIIB1573E

TRUNK LID

BL-115

C

D

E

F

G

H

J

K

L

M

A

B

BL

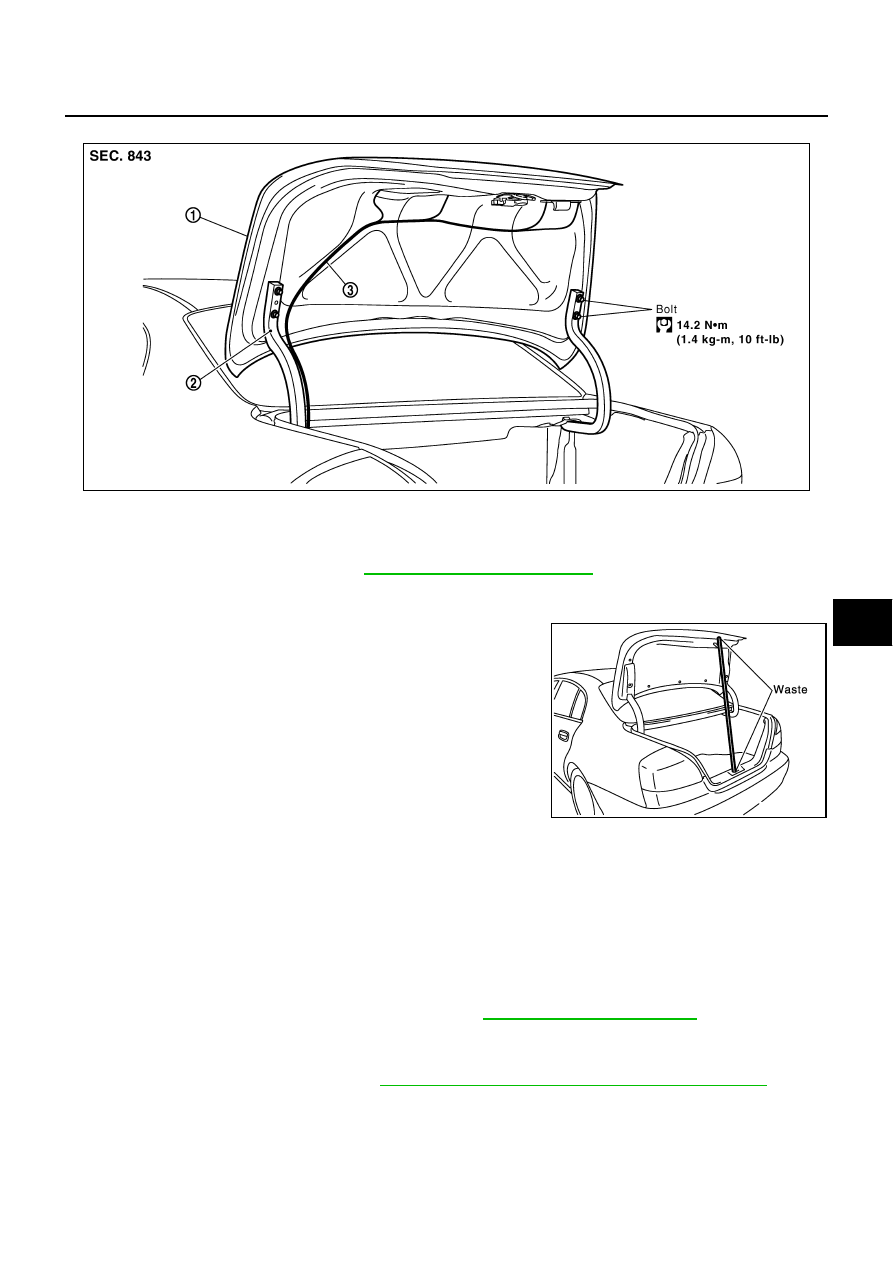

Removal and Installation of Trunk Lid Assembly

NIS000VK

REMOVAL

1.

Remove the trunk lid finisher. Refer to

EI-60, "Removal and Installation"

 .

2.

Support the trunk lid closure & striker with a proper material to prevent it from falling.

WARNING:

Body injury may occur if no supporting rod is holding the
trunk lid open when removing the damper stay.

3.

Disconnect the connectors in the trunk lid, and remove the harness clamps to pull the harness out of the
trunk lid.

4.

Remove the mounting bolts, and remove the trunk lid assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.

After installing, check operation.

After installing, perform fitting adjustment. Refer to

BL-114, "Fitting Adjustment"

 .

Removal and Installation of Trunk Lid Stay

NIS000VL

REMOVAL

1.

Remove the trunk front finisher. Refer to

EI-60, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

2.

Support the trunk lid closure & striker with a proper material to prevent it from falling.

PIIB1574E

1.

Trunk lid assembly

2.

Trunk lid hinge

3.

Trunk lid harness

PIIA3442E

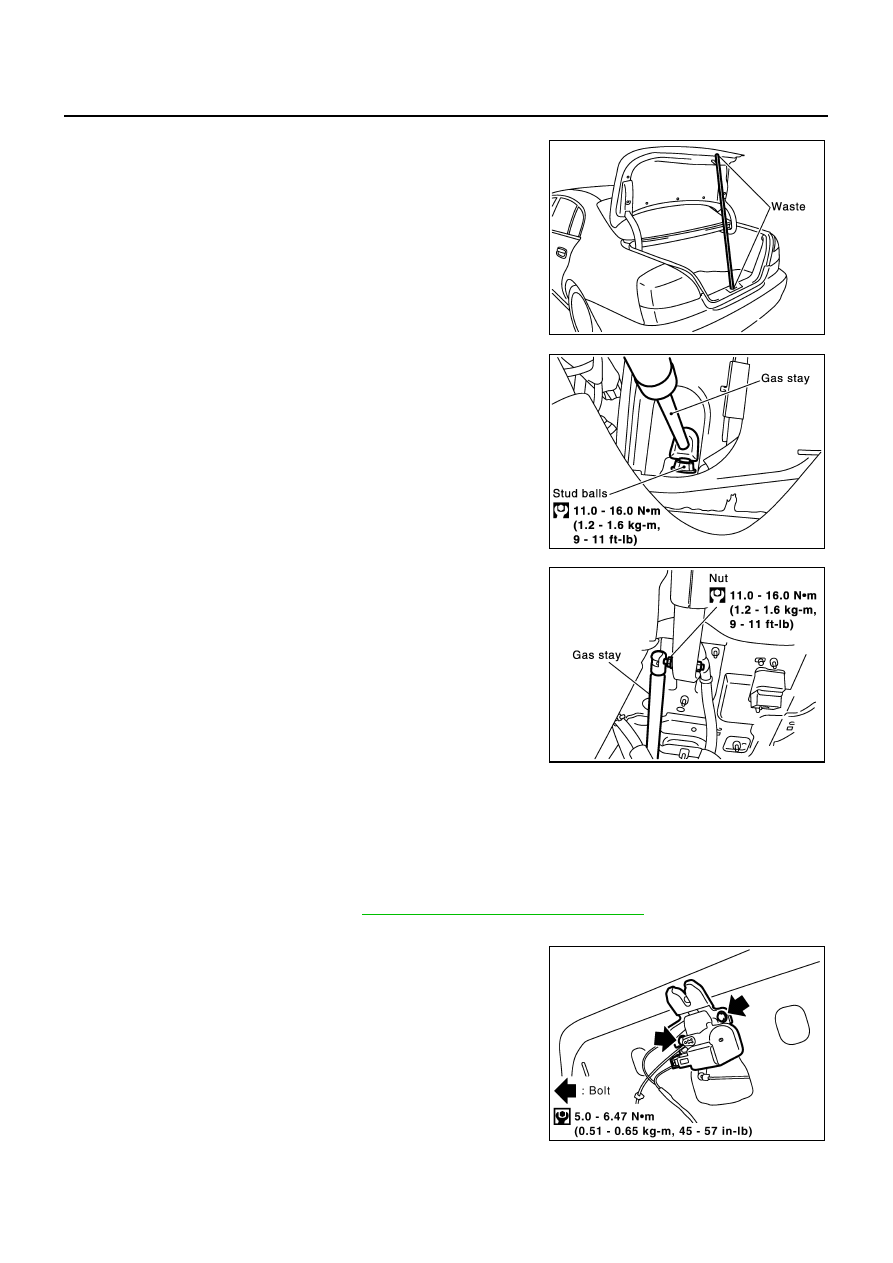

BL-116

TRUNK LID

WARNING:

Body injury may occur if no supporting rod is holding the
trunk lid open when removing the damper stay.

3.

Remove the mounting bolts on the vehicle.

4.

Remove the mounting nuts on trunk lid hinge, and remove trunk
lid stay.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, check operation.

Removal and Installation of Trunk Lid Lock

NIS000VM

REMOVAL

1.

Remove the trunk lid finisher. Refer to

EI-61, "TRUNK LID FINISHER (INNER)"

 .

2.

Separate the key cylinder rod.

3.

After removing the harness connector, remove the mounting
bolts, and remove the trunk lid lock.

PIIA3442E

PIIA3444E

PIIA3443E

PIIA3368E
