Infiniti Q45. Manual - part 196





REMOTE KEYLESS ENTRY SYSTEM

BL-53

C

D

E

F

G

H

J

K

L

M

A

B

BL

REMOTE KEYLESS ENTRY SYSTEM

PFP:28596

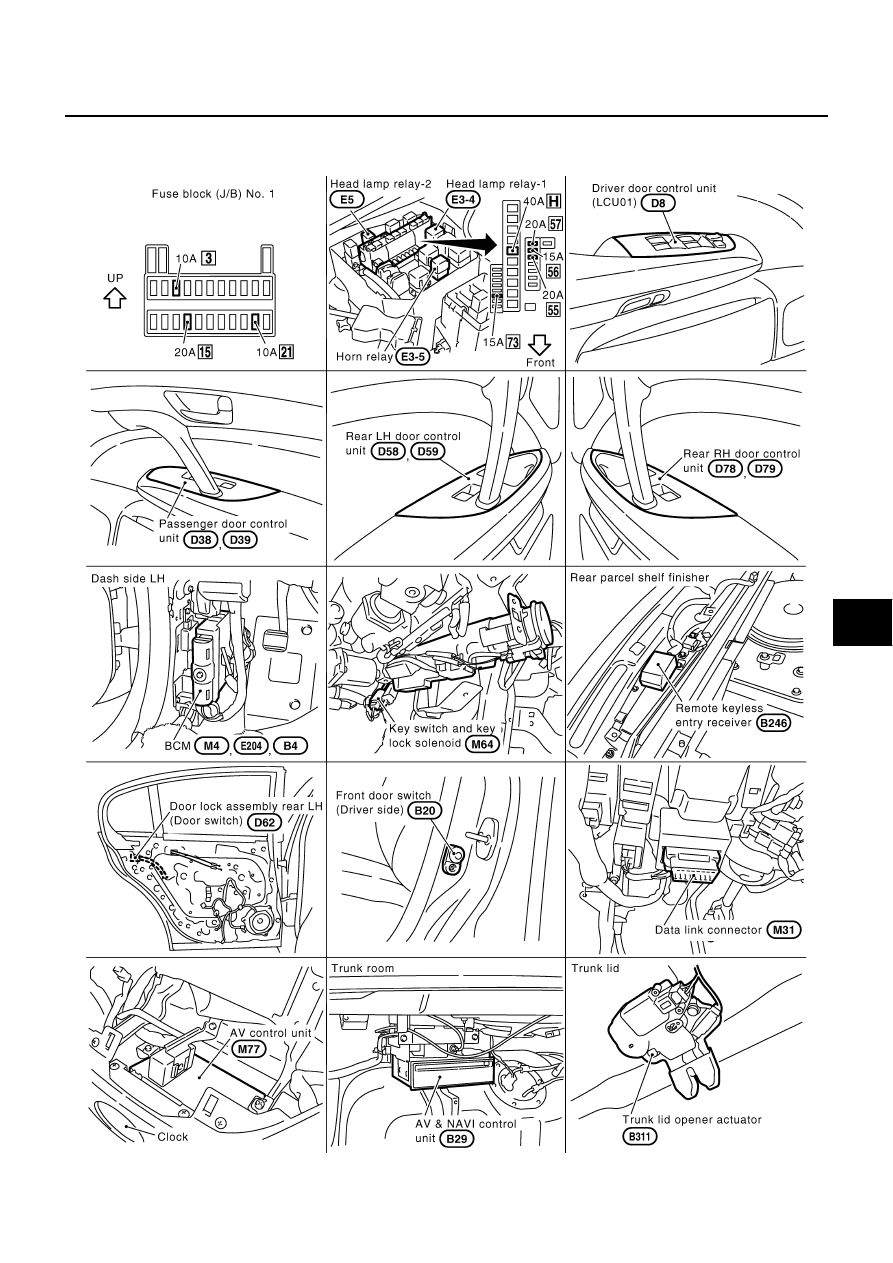

Component Parts and Harness Connector Location

NIS000UC

PIIB7756E

BL-54

REMOTE KEYLESS ENTRY SYSTEM

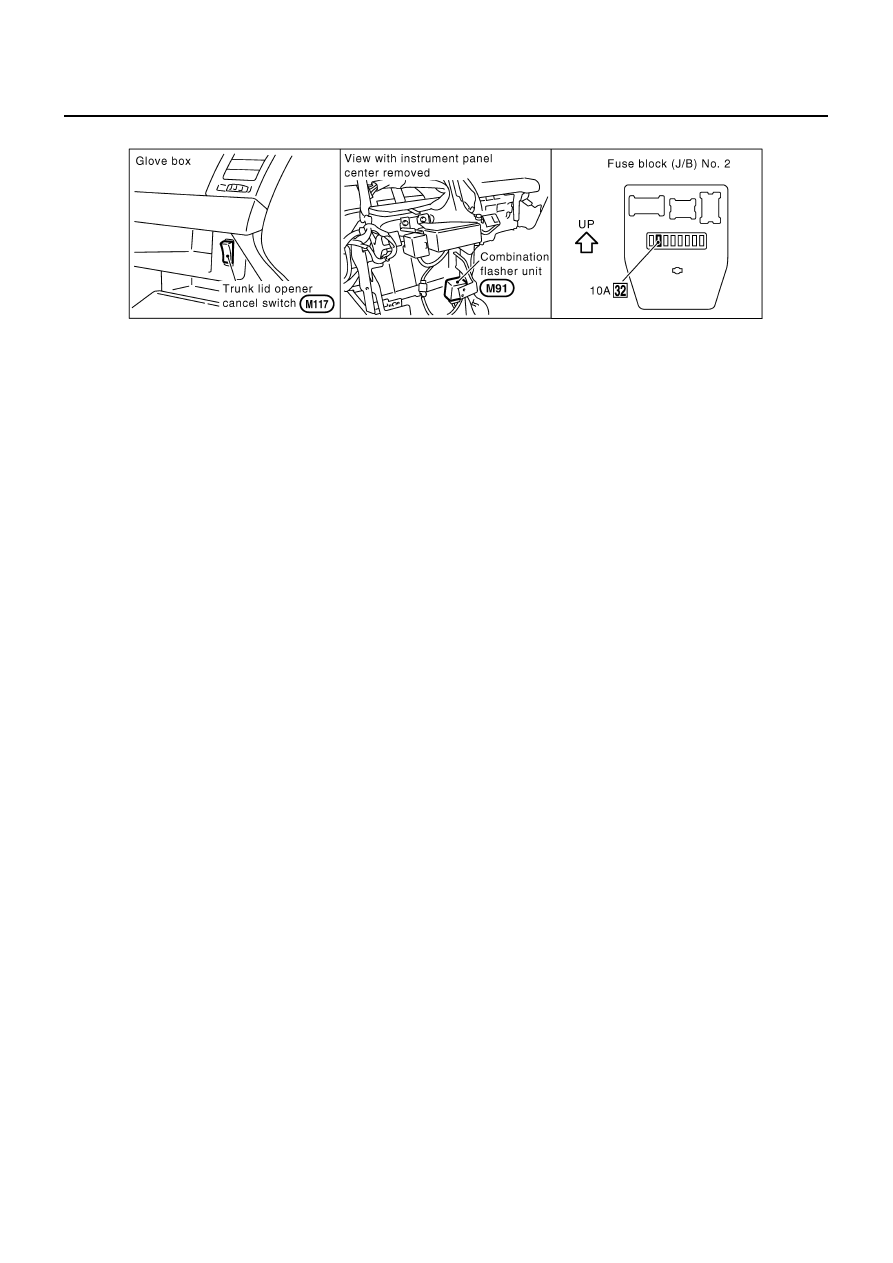

Component Parts and Harness Connector Location

NIS000UD

System Description

NIS000UE

POWER SUPPLY AND GROUND

Power is supplied at all times

to BCM terminal 105

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1].

to key switch terminal 3

through 10A fuse [No. 32, located in the fuse block (J/B) No. 2].

When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 69

through key switch terminal 4.

When the ignition switch is ACC or ON, power is supplied

to BCM terminal 60

through 10A fuse [No. 21, located in the fuse block (J/B) No. 1].

When front door switches are ON position (front doors are open), ground is supplied

to BCM terminals 142 (driver side), 37 (passenger side).

through front door switch terminals 1 and case ground

When rear door switches are ON position (rear doors are open), ground is supplied

to BCM terminals 33 (rear LH), 143 (rear RH).

through rear door switch terminals 1 and 2

through grounds B17 and B57 (rear LH), B217 and B256 (rear RH)

When door is unlocked, ground is supplied

to driver door control unit (LCU01) terminal 6 or passenger, rear LH, RH door control unit terminal 13.

through each door unlock sensor terminals 2, 4

through body grounds M24, M114, B17, B57, B217, B256

Electronic key signal input

to BCM terminal 27

through remote keyless entry receiver terminal 2.

The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

trunk lid opener

panic alarm

keyless power window down (open)

auto door lock

interior lamp and step lamp

BCM is connected to LCU01 via DATA LINE A-3.

PIIB0453E

REMOTE KEYLESS ENTRY SYSTEM

BL-55

C

D

E

F

G

H

J

K

L

M

A

B

BL

OPERATING PROCEDURE

BCM can receive signals from electronic key when key switch is OFF position (key is not in ignition key cylin-
der). It then sends the signals to LCU01 via DATA LINE A-3.

POWER DOOR LOCK OPERATION

When BCM receives a LOCK signal from electronic key, BCM will then send a LOCK signal [when all door
switches are OFF (all doors are closed)]

from it's terminal 67 (DATA LINE A-3)

to driver door control unit (LCU01) terminal 8.

When an UNLOCK signal is sent from electronic key once, driver’s door will be unlocked.
Then, if an UNLOCK signal is sent from electronic key again within 5 seconds, all other doors will be unlocked.
For detailed description, Refer to

BL-19, "POWER DOOR LOCK SYSTEM"

 .

HAZARD AND HORN REMINDER

Power is supplied at all times

to horn relay terminal 2

through 15A fuse (No. 56, located in the fuse, fusible link and relay block).

When BCM receives a LOCK or UNLOCK signal from electronic key, ground is supplied [when specific door
switch is ON (specific door is OPEN), BCM does not receive a LOCK signal (BCM receives a UNLOCK sig-
nal)]

to horn relay terminal 1

through BCM terminal 127

through ground.

When BCM receives a LOCK or UNLOCK signal from electronic key, power is supplied

to combination flasher unit terminal 6

through BCM terminal 7.

combination flasher unit and security horn relay are now engaged, and hazard warning lamps flash and secu-
rity horn sounds as a reminder.

OPERATING FUNCTION OF HAZARD AND HORN REMINDER

This vehicle is set in hazard and horn mode when you first receive the vehicle.

Hazard And Horn Mode

When the LOCK button is pushed, the hazard warning lamp flashes twice and horn chirps once.
When the UNLOCK button is pushed, the hazard warning lamp flashes once.

Hazard Only Mode

When the LOCK button is pushed, the hazard warning lamp flashes twice.
When the UNLOCK button is pushed, neither the hazard warning lamp nor the hone operates.

MODE

(Push “LOCK” and “UNLOCK” buttons for more

than 2 seconds to switch)

Switching indicator

LOCK

UNLOCK

Hazard and horn

Hazard only

Hazard - 3 times

Hazard - twice

No operation

Hazard only

Hazard and horn

Hazard - once

Horn - once

Hazard - twice

Horn - once

Hazard - once

BL-56

REMOTE KEYLESS ENTRY SYSTEM

TRUNK LID OPENER OPERATION

Power is supplied at all times

to trunk lid opener actuator terminal 1

through 20A fuse [No. 15, located in the fuse block (J/B) No. 1].

When a TRUNK OPEN signal is sent from electronic key without the electronic key inserted in the ignition key
cylinder, if the trunk lid opener cancel switch is ON position, power is supplied

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1].

through trunk lid opener relay

through trunk lid cancel switch terminals 1 and 2

to BCM terminal 109.

Then ground is supplied

to trunk lid opener actuator terminal 2

through trunk lid opener relay

through grounds E24 and E44.

Then power and ground are supplied, trunk lid opener actuator opens trunk lid.

PANIC ALARM OPERATION

Remote keyless entry system activates horn and headlamps intermittently when an ALARM signal is sent from
electronic key to remote keyless entry system without the electronic key inserted in the ignition key cylinder.
For detailed description, Refer to

BL-155, "VEHICLE SECURITY (THEFT WARNING) SYSTEM"

 .

KEYLESS POWER WINDOW DOWN (OPEN) OPERATION

When electronic key unlock switch is turned ON with ignition switch OFF, and electronic key unlock switch is
detected to be on continuously for 3 seconds, the front door LH, RH power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the electronic key unlock switch is
pressed.

AUTO DOOR LOCK OPERATION

Auto lock function signal is sent for operation when any of the following signals are not sent within 5 minutes
after the unlock signal is sent from the electronic key:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the electronic key.

INTERIOR LAMP AND STEP LAMP OPERATION

When the following conditions come:

condition of interior lamp switch is DOOR position;

door switch OFF (when all the doors are closed);

Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob. For detailed description, Refer to

LT-117, "INTERIOR ROOM LAMP"

 .
