POWER DOOR LOCK SYSTEM

BL-21

C

D

E

F

G

H

J

K

L

M

A

B

BL

Key Reminder Door System

However, if the electronic key is in the electronic key cylinder and one or more of the front doors are open, set-
ting the lock & unlock switch to “LOCK” locks the doors once but then immediately unlocks them. (Combina-
tion signals from key switch, door switch)

BL-22

POWER DOOR LOCK SYSTEM

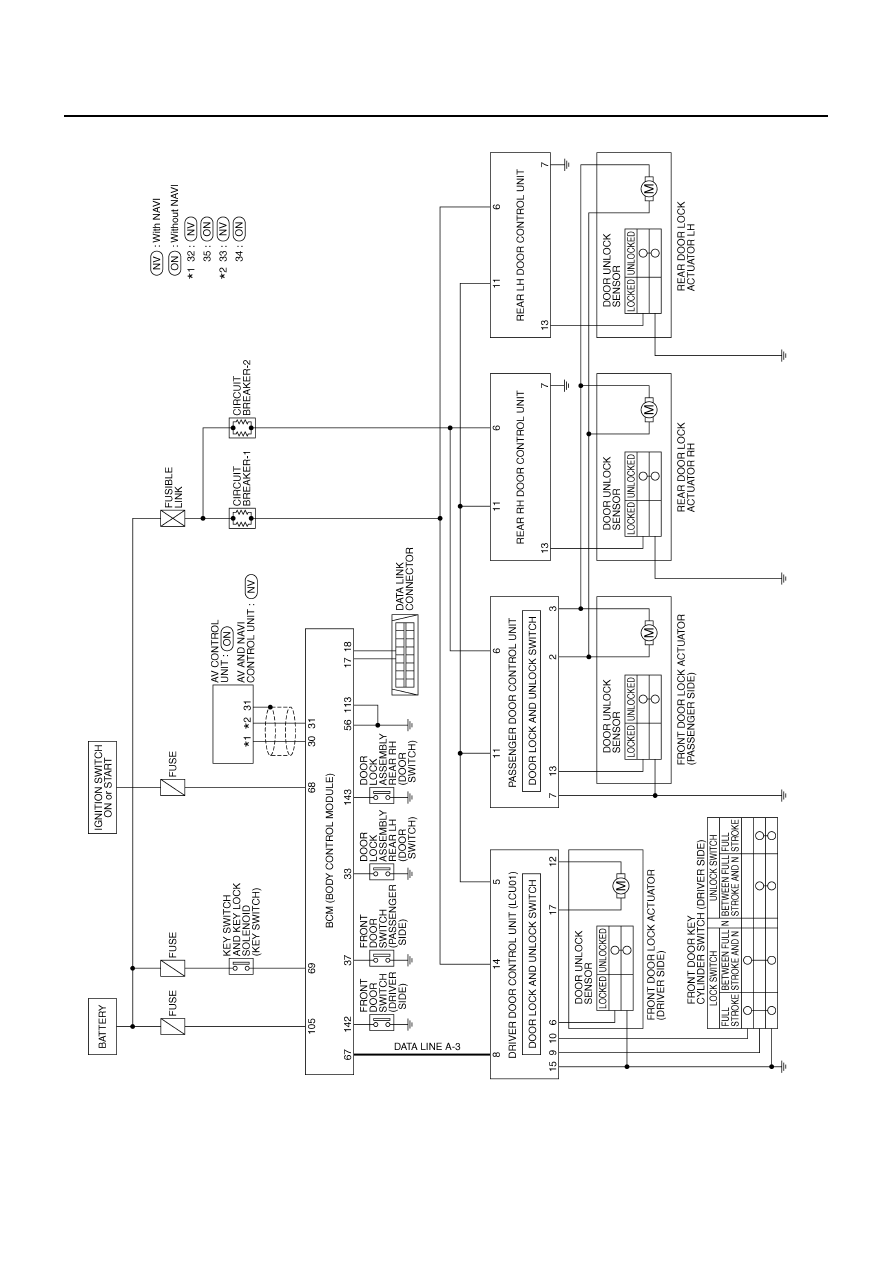

Schematic

NIS000TU

TIWM0141E

POWER DOOR LOCK SYSTEM

BL-23

C

D

E

F

G

H

J

K

L

M

A

B

BL

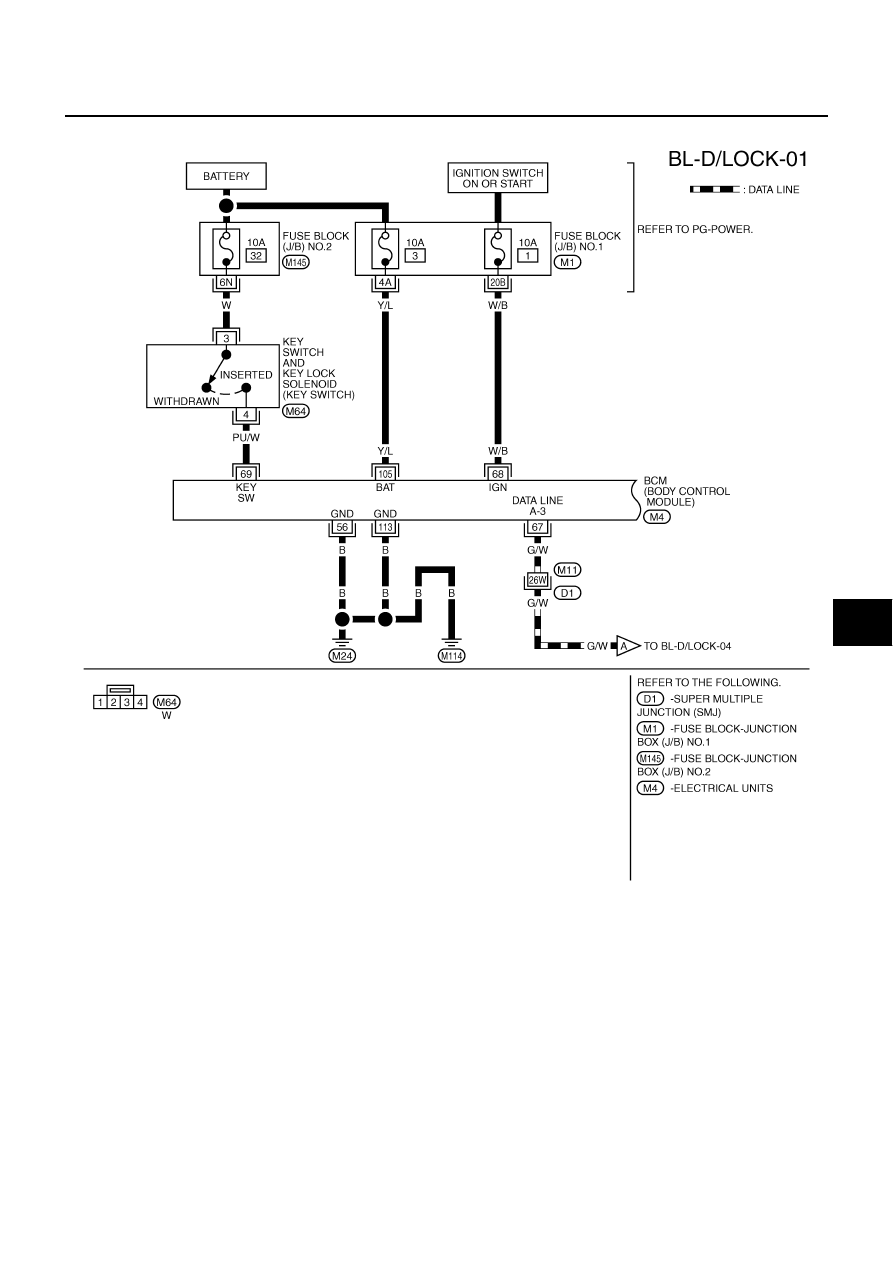

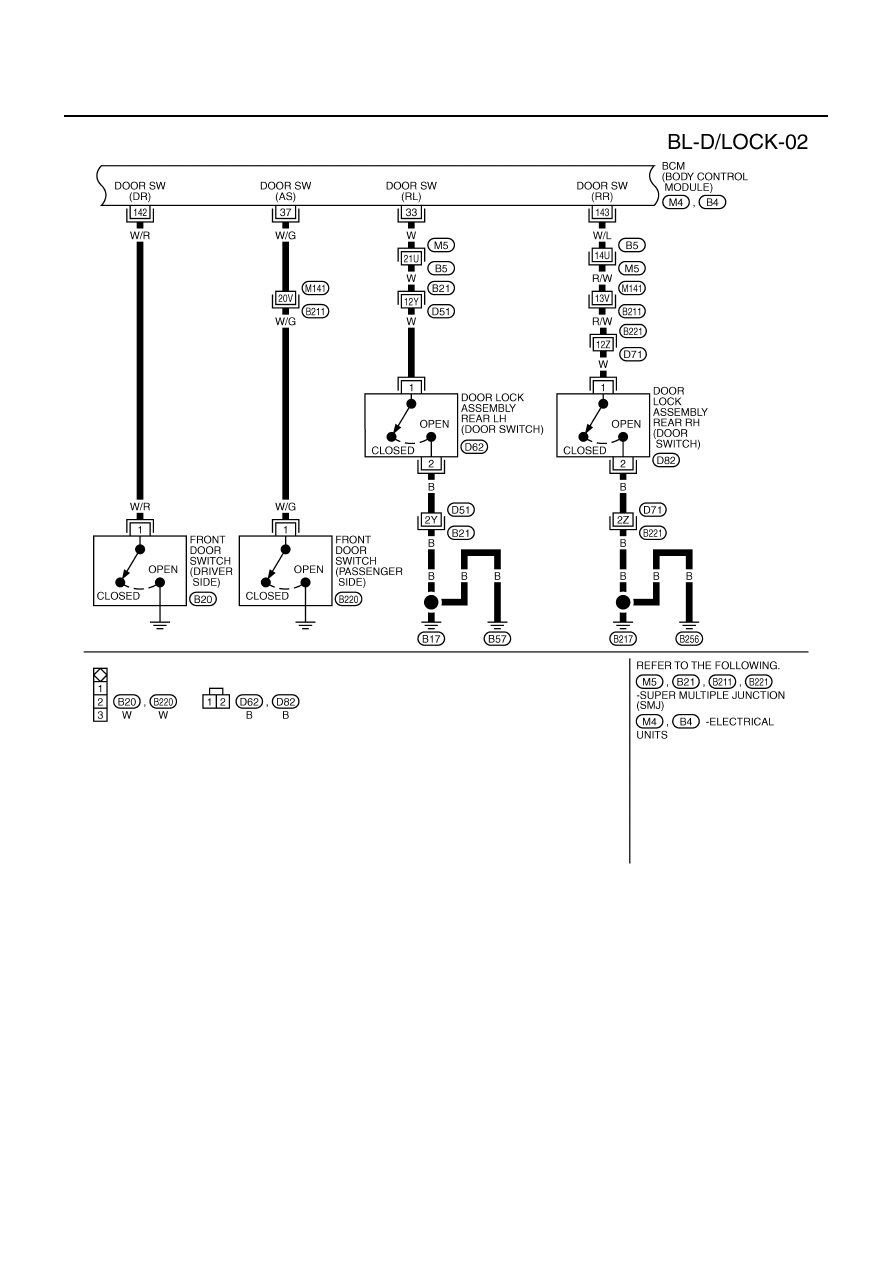

Wiring Diagram — D/LOCK —

NIS000TV

TIWM0660E

BL-24

POWER DOOR LOCK SYSTEM

TIWM0661E
