Infiniti Q45. Manual - part 168





NAVIGATION SYSTEM

AV-101

C

D

E

F

G

H

I

J

L

M

A

B

AV

Special Note for Trouble Diagnosis

NKS002KN

Prior to perform trouble diagnosis, make sure there are no corresponding description in the “Example of
Symptoms Possible No Malfunction”. Refer to

AV-128, "Example of Symptoms Possible No Malfunction"

 .

On Board Self-Diagnosis Function (Without CONSULT-II)

NKS001IX

DESCRIPTION

Trouble diagnosis function of navigation system has a Self Diagnosis mode by automatic operation and a
Confirmation/Adjustment mode by manual operation.

Self Diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the display.

Confirmation/Adjustment mode displays trouble diagnosis that require an operation and a judgment by a
human (auto-decision can not be performed by the system), confirmation of preset value, and an error his-
tory.

If the on board self-diagnosis does not start (because the display is not displayed, the multifunction switch
operation is not activated, etc.), perform diagnosis using CONSULT-II. Refer to

AV-115, "CONSULT-II

Function (MULTI AV)"

 .

DIAGNOSIS ITEM

Mode

Description

Self Diagnosis

AV and NAVI control unit diagnosis (DVD-ROM drive will not be diagnosed when
no DVD-ROM is in it.).

Analyzes connection between the AV and NAVI control unit and the GPS
antenna, connection between the AV and NAVI control unit and each unit, and
operation of each unit.

Confirmation/
Adjustment

Display Diagnosis

Color tone and shading of the screen can be checked by the display of a color bar
and a gray scale.

Vehicle Signals

Diagnosis of signals that are input to AV and NAVI control unit can be performed for
Vehicle Speed, Light, IGN (ignition switch) and Reverse.

History of Errors

Malfunctions that occurred in the past are displayed, along with the number of times
each has occurred. Time and location when/where the errors occurred are also dis-
played.

Rearview

The guiding line position that overlaps rear view camera image can be adjusted.
Refer to

DI-185, "Side Distance Guideline Correction"

 .

Navigation

Display Longitude
& Latitude

This mode is to display the map. Use the joystick to adjust position. Longitude and
latitude will be displayed.

Speed Calibration

Under ordinary conditions, the navigation system distance measuring function will
automatically compensate for minute decreases in wheel and tire diameter caused
by tire wear or low-pressure. Speed Calibration can immediately restore system
accuracy in cases such as when distance calibration is needed because of the use
of tire chains.

Angle Adjustment

This mode is used to correct difference between actual turning angle of a vehicle
and turning angle of the vehicle mark on the display.

Initialize Location

This mode is for initializing the current location. Use when the vehicle is transported
a long distance on a trailer, etc.

Auto Climate Control

Turns all A/C screens on display and A/C switch indicator lamp on. Refer to

ATC-

53, "Self-diagnosis Function"

 .

Speaker Test

Refer to

AV-40, "DIAGNOSIS ITEM"

 .

Voice Mic. Test

Refer to

DI-211, "DIAGNOSIS ITEM"

 .

AV-102

NAVIGATION SYSTEM

Self-Diagnosis Mode

NKS001IY

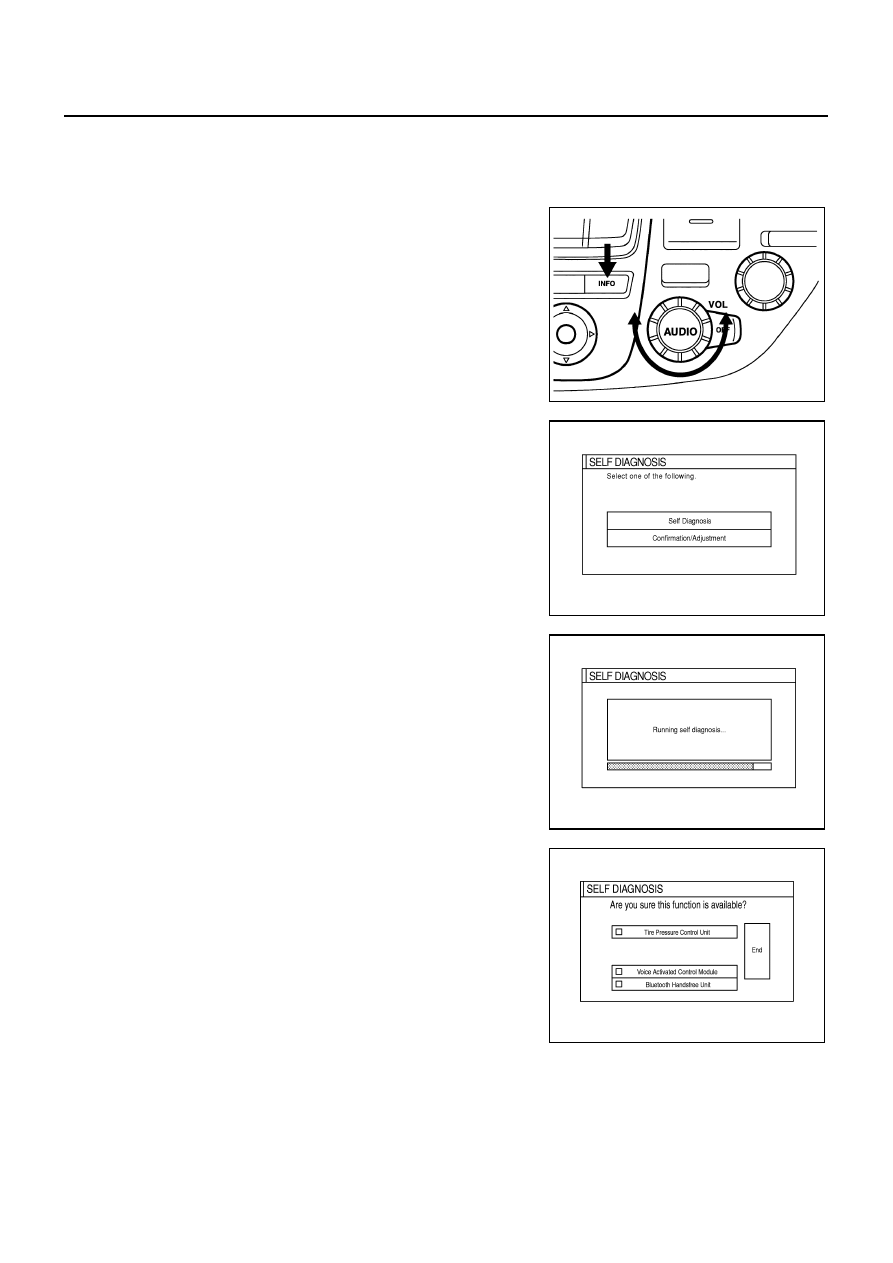

OPERATION PROCEDURE

1.

Start the engine.

2.

Turn the audio system OFF.

3.

While pressing the “INFO” button, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “PREV” button.

4.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

5.

Perform self-diagnosis by selecting the “Self Diagnosis”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.

6.

When the self-diagnosis completes, optional part confirmation
screen will be shown.

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “End”. Then the “SELF DIAGNOSIS”
screen will be shown.

When the optional part is connected normally, the switch for
the part will not appear on the screen.

SKIB7617E

SKIA0381E

SKIA0382E

SKIB7626E

NAVIGATION SYSTEM

AV-103

C

D

E

F

G

H

I

J

L

M

A

B

AV

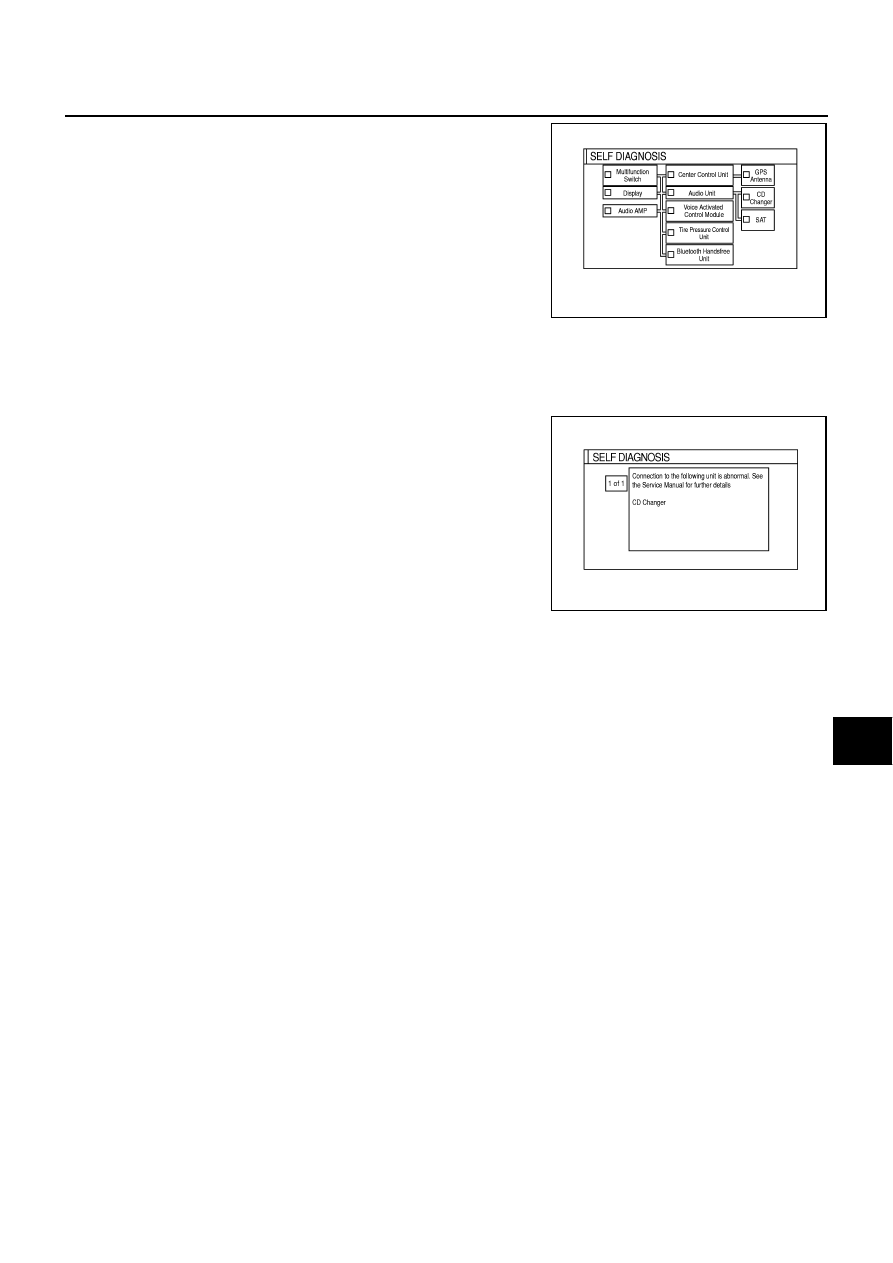

7.

On the diagnosis results screen, each unit name will be colored
according to the diagnosis result, as follows.

NOTE:

Audio AMP = BOSE speaker amp.

Center Control Unit = AV and NAVI control unit

Bluetooth Handsfree Unit = TEL adapter unit

SAT = Satellite radio tuner

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.

8.

Select a switch on the diagnosis results screen, and comments
for the diagnosis results will be shown.

Green

: No malfunctioning.

Yellow

: Cannot be judged by self-diagnosis results.

Red

: Unit is malfunctioning.

Gray

: Diagnosis has not been done.

SKIB7627E

SKIA0385E

AV-104

NAVIGATION SYSTEM

SELF-DIAGNOSIS RESULT
Quick Reference Table

1.

Select the applicable diagnosis number in the quick reference table of diagnosis result.

2.

Confirm the possible malfunction with the diagnosis table, and then perform inspection.

3.

Turn ignition switch OFF and perform self-diagnosis again.

NOTE:

Audio AMP = BOSE speaker amp.

Center Control Unit = AV and NAVI control unit

Bluetooth Handsfree Unit = TEL adapter unit

SAT = Satellite radio tuner

*: In a case that screen switches (on the self-diagnosis result screen) are not displayed though the vehicle has
voice activated control module, or TEL adapter unit, or both of them.

Switch

color

Screen switch

Diagnosis

No.

Audio

AMP

Center

Control

Unit

Audio

Unit

Voice

Activated

Control
Module

Tire

Pressure

Control

Unit

Bluetooth

Hands-

free Unit

GPS

Antenna

CD

Changer

SAT

Red

×

1

Gray

×

2

Yellow

×

3

×

×

4

×

×

×

×

 (Gray)

×

 (Gray)

5

×

×

6

×

×

7

×

×

×

 (Gray)

×

 (Gray)

8

×

×

9

×

×

×

10

×

×

11

Screen
switch
not dis-

played

*

×

12

×

13

×

×

14
