NAVIGATION SYSTEM

AV-77

C

D

E

F

G

H

I

J

L

M

A

B

AV

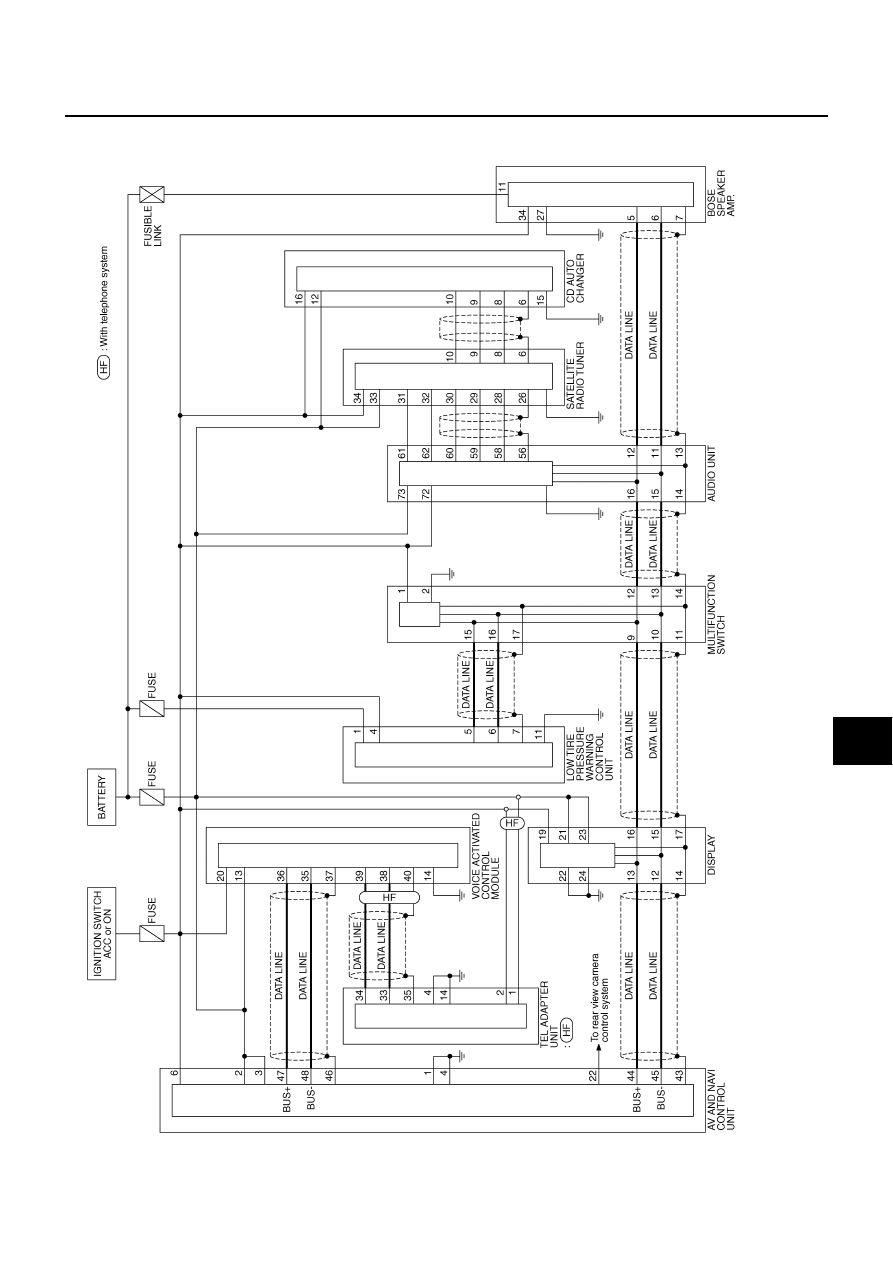

Schematic — COMM — / With Voice Activated Control System

NKS001IR

WITH SATELLITE RADIO

TKWM3805E

AV-78

NAVIGATION SYSTEM

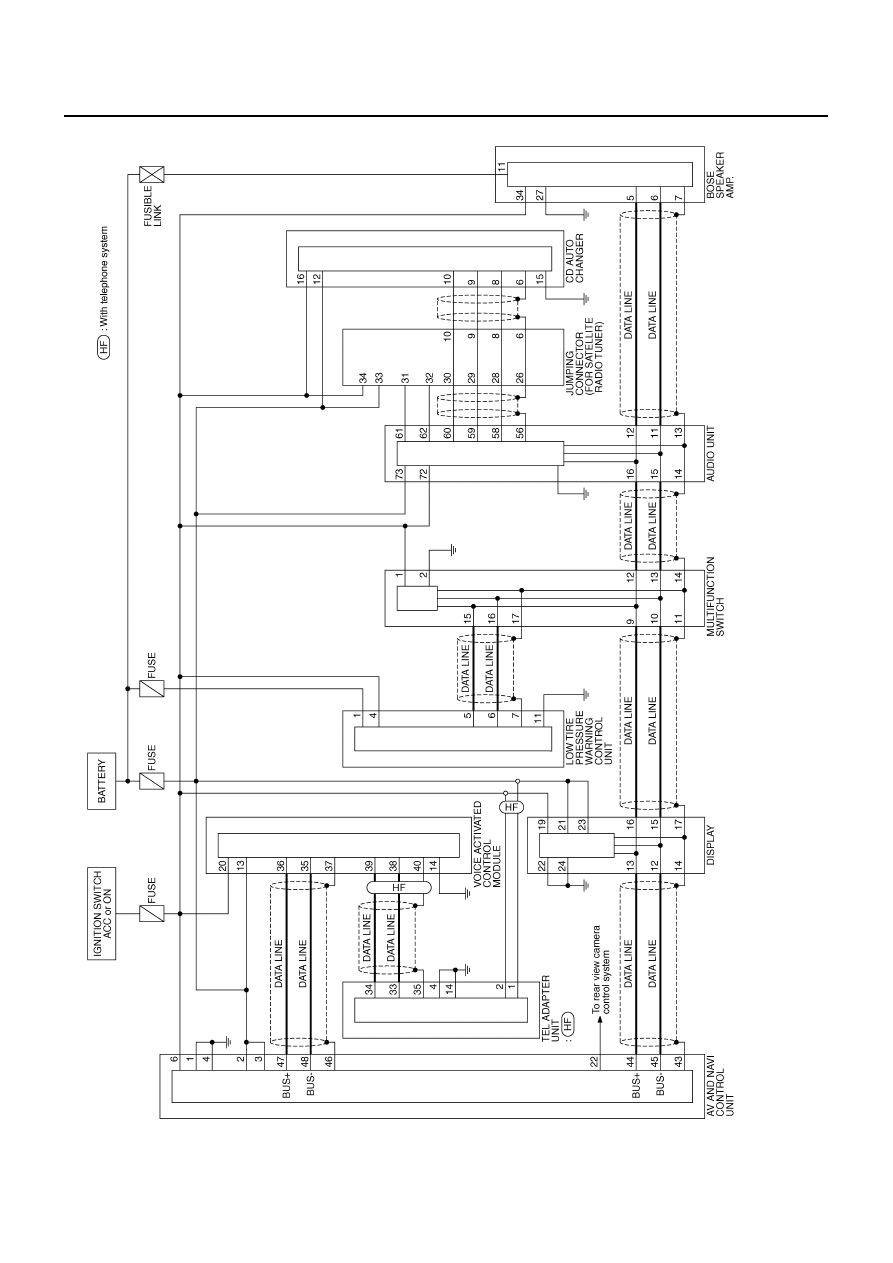

WITHOUT SATELLITE RADIO

TKWM3806E

NAVIGATION SYSTEM

AV-79

C

D

E

F

G

H

I

J

L

M

A

B

AV

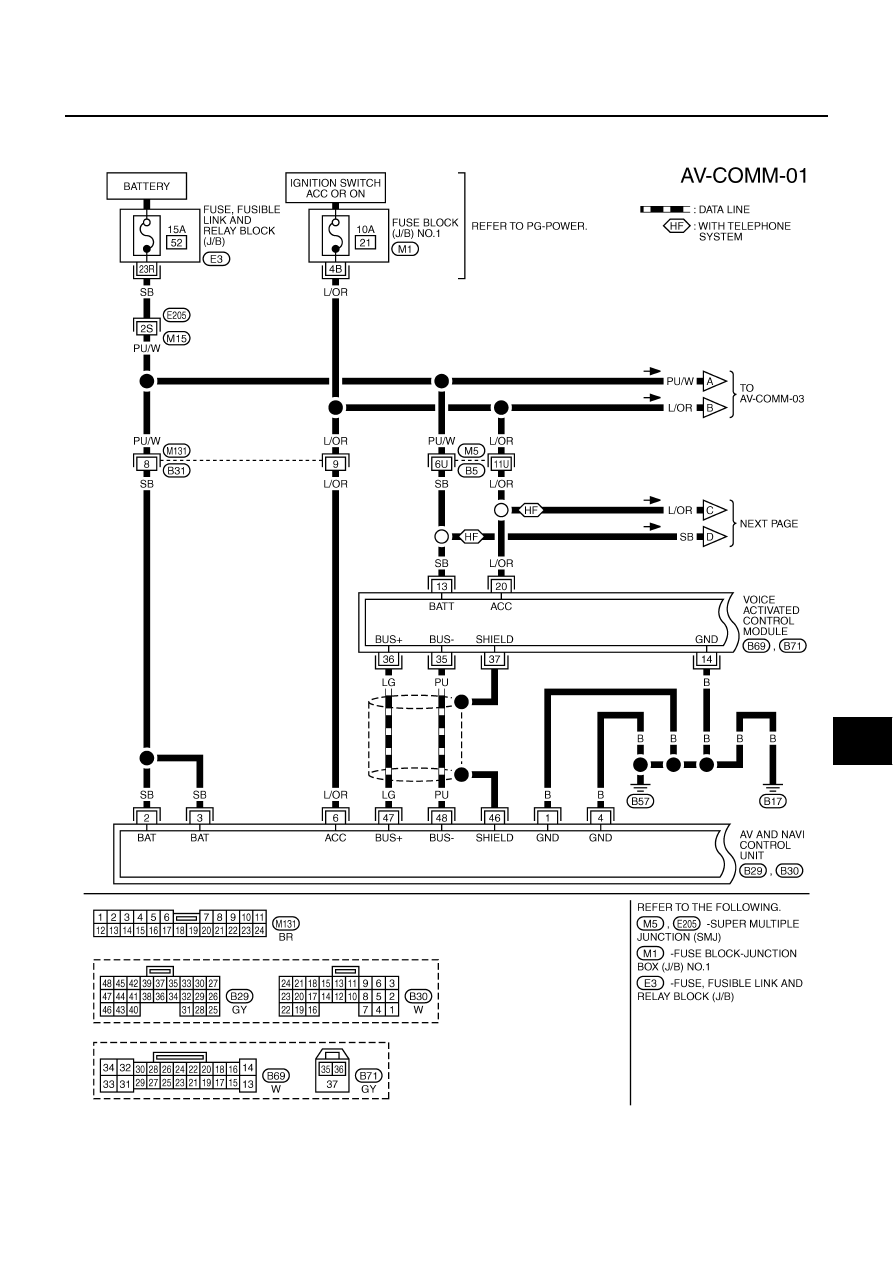

Wiring Diagram — COMM — / With Voice Activated Control System

NKS001IS

WITH SATELLITE RADIO

TKWM3807E

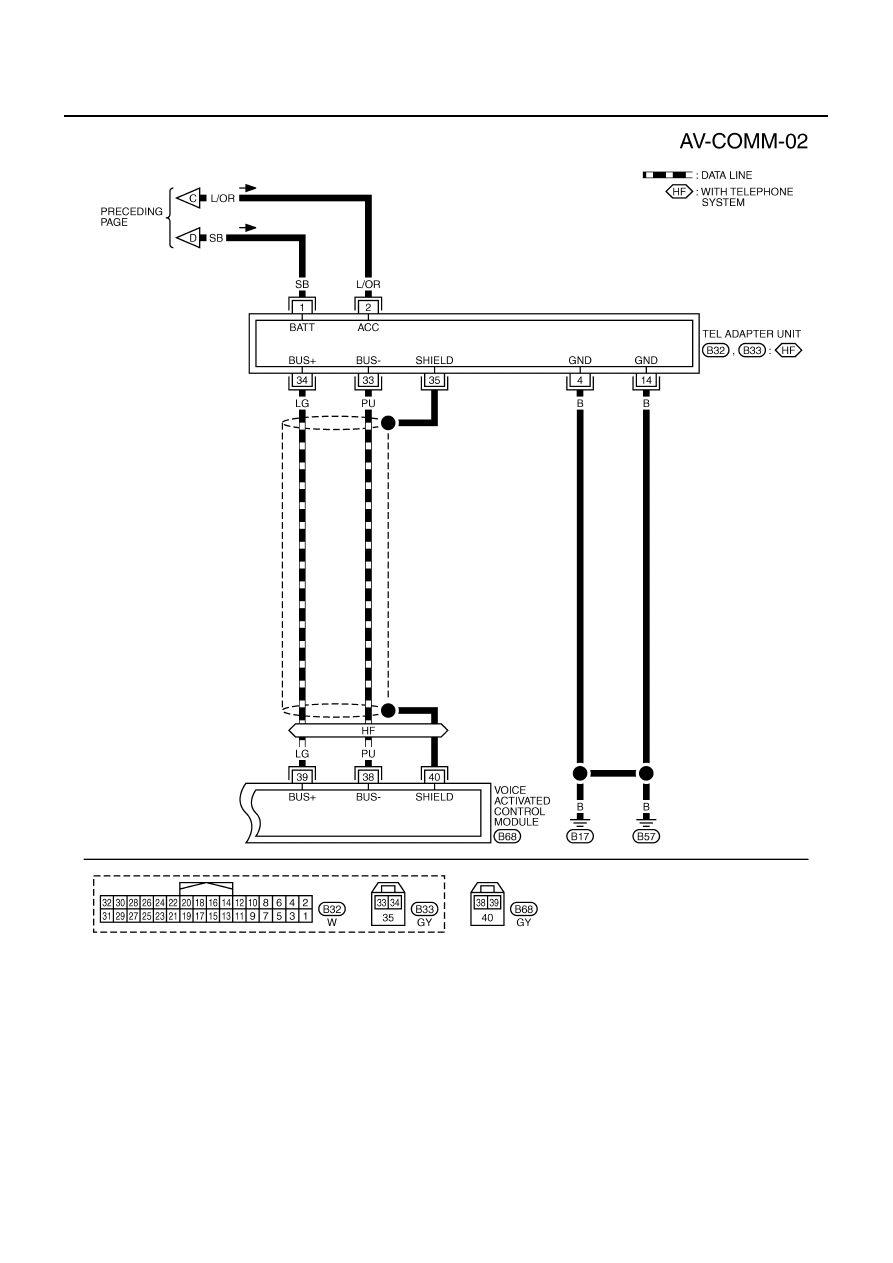

AV-80

NAVIGATION SYSTEM

TKWM3808E
