Infiniti Q45. Manual - part 137





DUCTS AND GRILLES

ATC-143

C

D

E

F

G

H

I

K

L

M

A

B

ATC

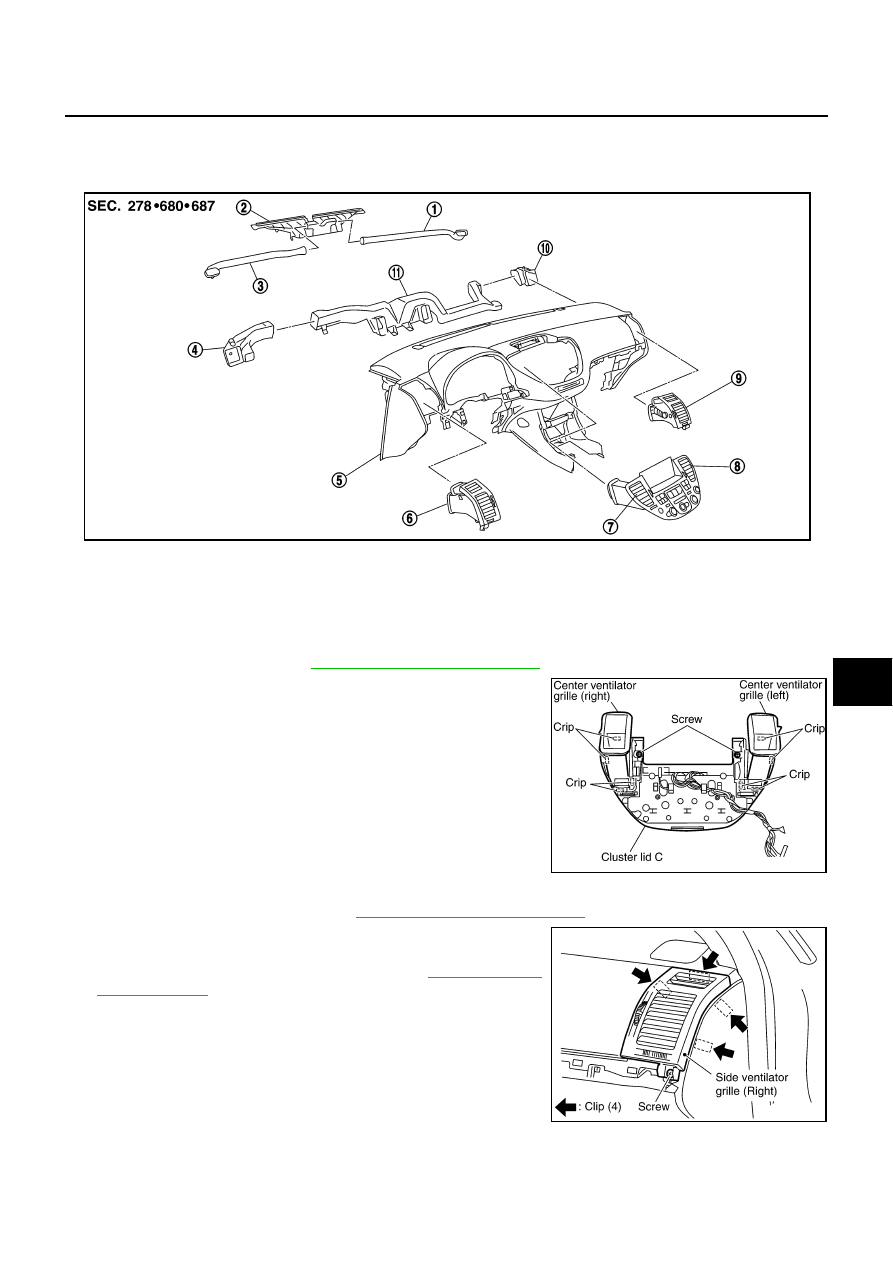

DUCTS AND GRILLES

PFP:27860

Removal and Installation

NJS0009G

REMOVAL

Removal of Center Ventilator Grilles

1.

Remove cluster lid C. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove mounting screw and clips, and then remove center ven-
tilator grilles (left and right).

Removal of Side Ventilator Grilles

1.

Remove instrument finisher. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove mounting screw and clips, and then remove side venti-
lator grille (right).

3.

Remove instrument lower driver panel. Refer to

IP-10, "Removal

and Installation"

 .

4.

Remove mounting screw and clips, and then remove side venti-
lator grille (left).

1.

Side defroster duct (right)

2.

Center defroster nozzle

3.

Side defroster duct (left)

4.

Side ventilator duct (left)

5.

Instrument panel

6.

Side ventilator grille (left)

7.

Center ventilator grille (left)

8.

Center ventilator grille (right)

9.

Side ventilator grille (right)

10. Side ventilator duct (right)

11.

Ventilator duct

RJIA3206E

RJIA2682E

RJIA3207E

ATC-144

DUCTS AND GRILLES

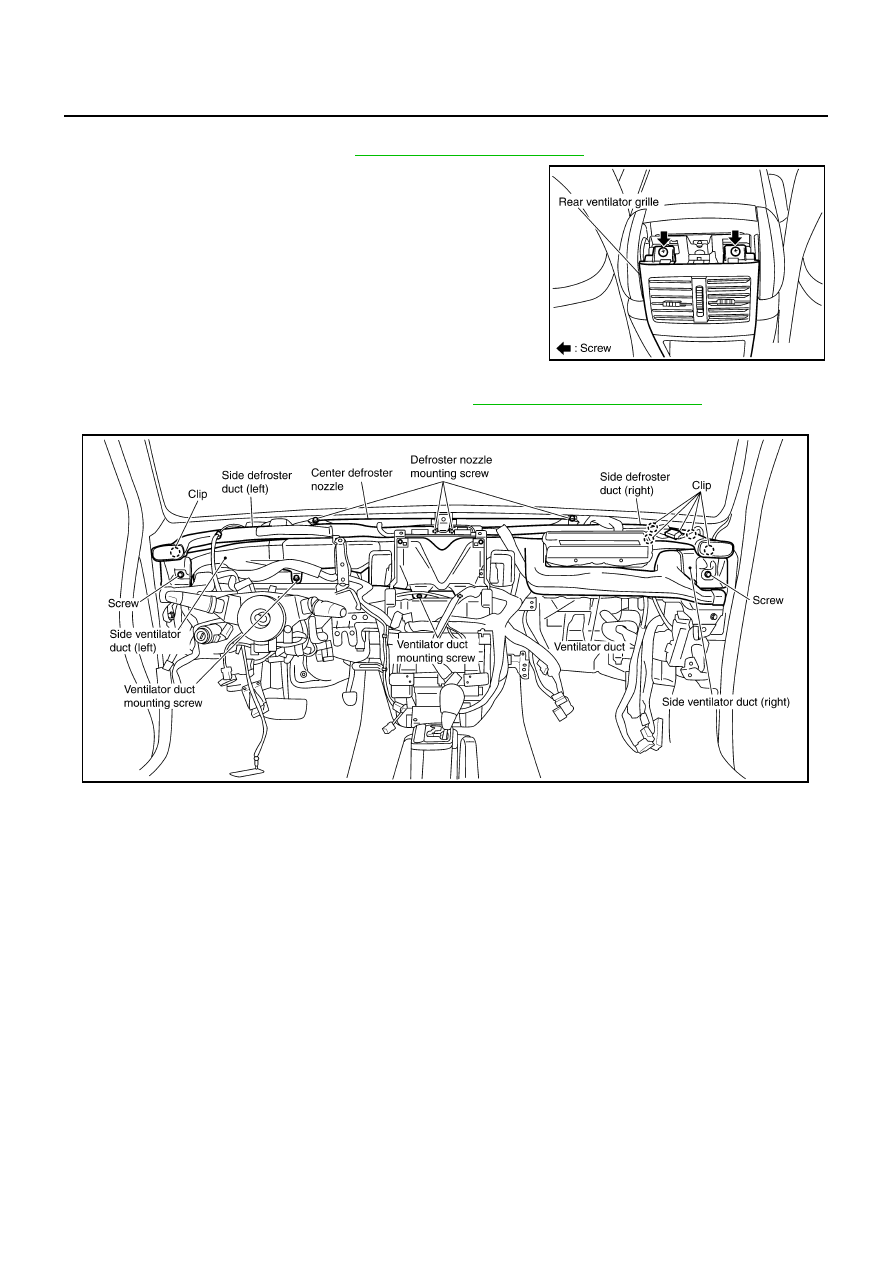

Removal of Rear Ventilator Grille

1.

Remove console rear cover. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove mounting screws, and then remove rear ventilator
grille.

Removal of Center Defroster Nozzle, Duct and Ventilator Duct

1.

Remove instrument panel and pad assembly. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove harness clip.

3.

Remove mounting clips, and then remove side defroster ducts (left and right).

4.

Remove mounting screws, and then remove center defroster nozzle.

5.

Remove mounting screw, and then remove side ventilator ducts (left and right).

6.

Remove mounting screws, and then remove ventilator duct.

RJIA1939E

RJIA3208E

DUCTS AND GRILLES

ATC-145

C

D

E

F

G

H

I

K

L

M

A

B

ATC

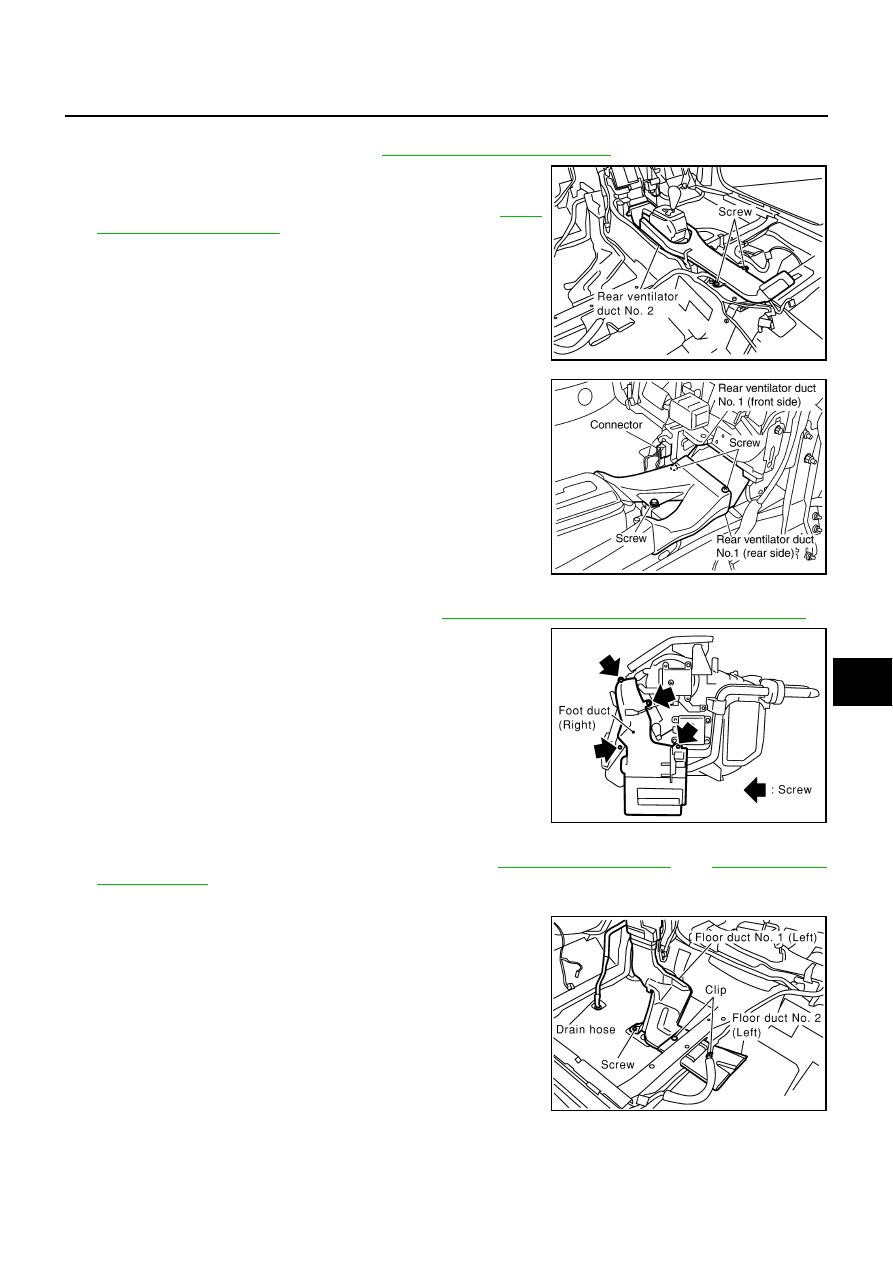

Removal of Rear Ventilator Ducts

1.

Remove console box assembly. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove mounting screws, and then remove rear ventilator duct
No. 2.

3.

Remove instrument panel and pad assembly. Refer to

IP-10,

"Removal and Installation"

 .

4.

Remove mounting screws, and then remove rear ventilator duct
No. 1 (rear side).

5.

Disconnect rear ventilator door motor connector.

6.

Remove rear ventilator duct No. 1 (front side).

Removal of Foot Ducts

1.

Remove heater & cooling unit assembly. Refer to

ATC-135, "HEATER & COOLING UNIT ASSEMBLY"

 .

2.

Remove mounting screws, and then remove foot duct (right).

3.

Remove aspirator from heater & cooling unit assembly.

4.

Remove mounting screws, and then remove foot duct (left).

Removal of Floor Duct

1.

Remove front seats and console box assembly. Refer to

SE-182, "FRONT SEAT"

  and

IP-10, "Removal

and Installation"

 .

2.

Peel back floor trim to a point where floor duct is visible.

3.

Remove floor duct No. 2 (left and right).

4.

Remove mounting screw, and then remove floor duct No. 1 (left
and right).

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0337E

RJIA2688E

RJIA0324E

RJIA0128E

ATC-146

REFRIGERANT LINES

REFRIGERANT LINES

PFP:92600

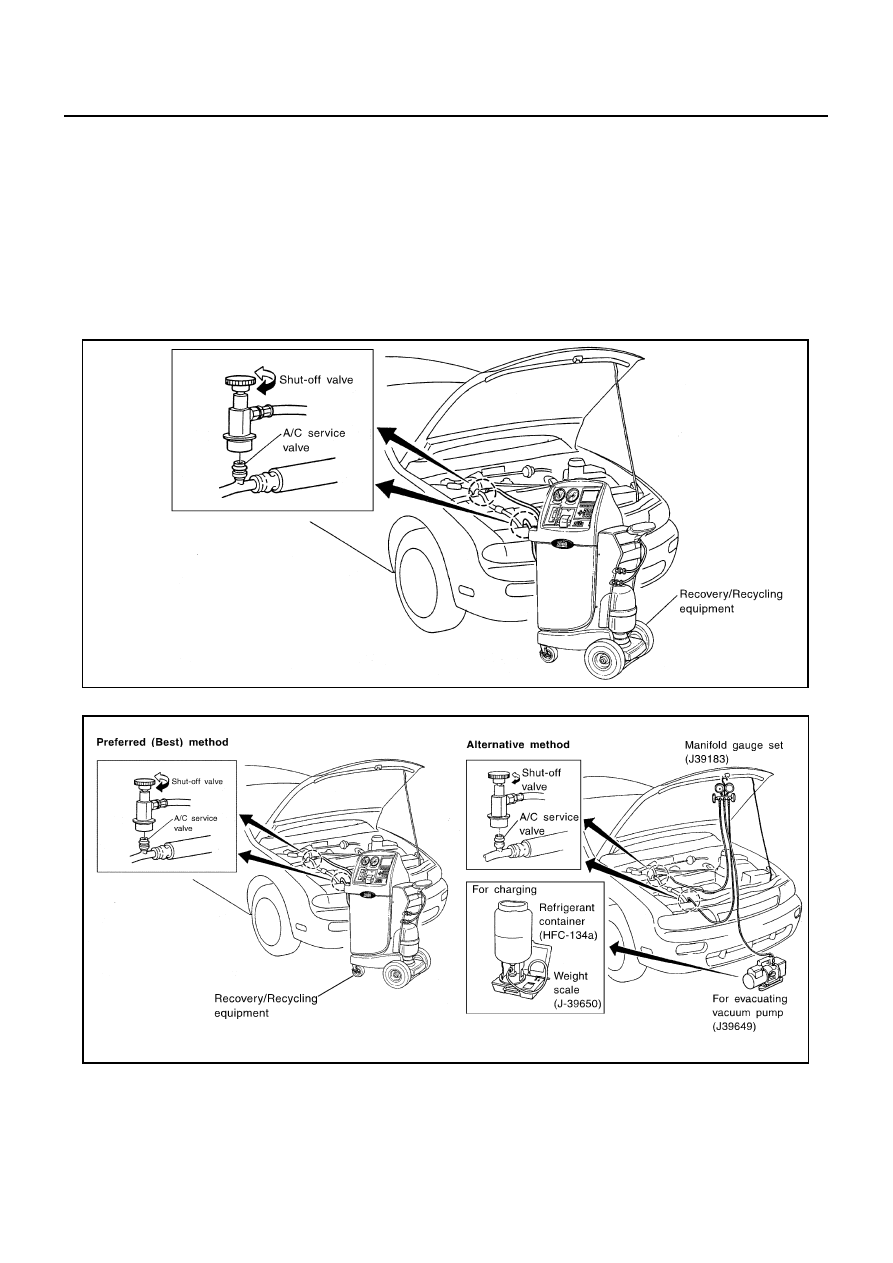

HFC-134a (R-134a) Service Procedure

NJS0009H

SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant

WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting
requirements of SAE J-2210 [HFC-134a (R-134a) recycling equipment] or J-2209 [HFC-134a (R-134a)
recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming ser-
vice. Additional health and safety information may be obtained from refrigerant and lubricant manu-
facturers.

Evacuating System and Charging Refrigerant

WJIA0614E

WJIA0615E
