Infiniti Q45. Manual - part 133





IN-VEHICLE SENSOR

ATC-127

C

D

E

F

G

H

I

K

L

M

A

B

ATC

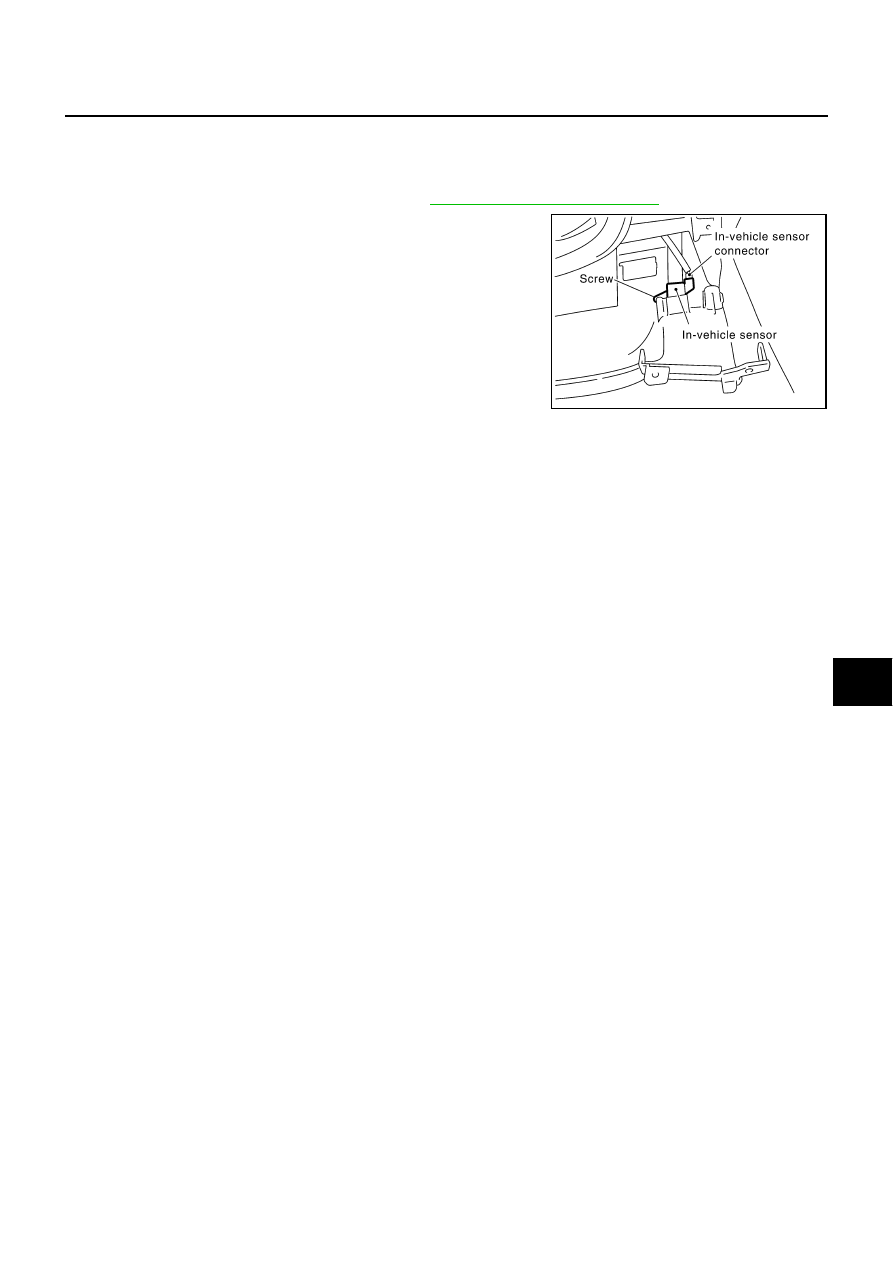

IN-VEHICLE SENSOR

PFP:27720

Removal and Installation

NJS00092

REMOVAL

1.

Remove instrument lower driver panel. Refer to

IP-10, "Removal and Installation"

 .

2.

Disconnect in-vehicle sensor connector and aspirator duct.

3.

Remove mounting screw, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0312E

ATC-128

SUNLOAD SENSOR

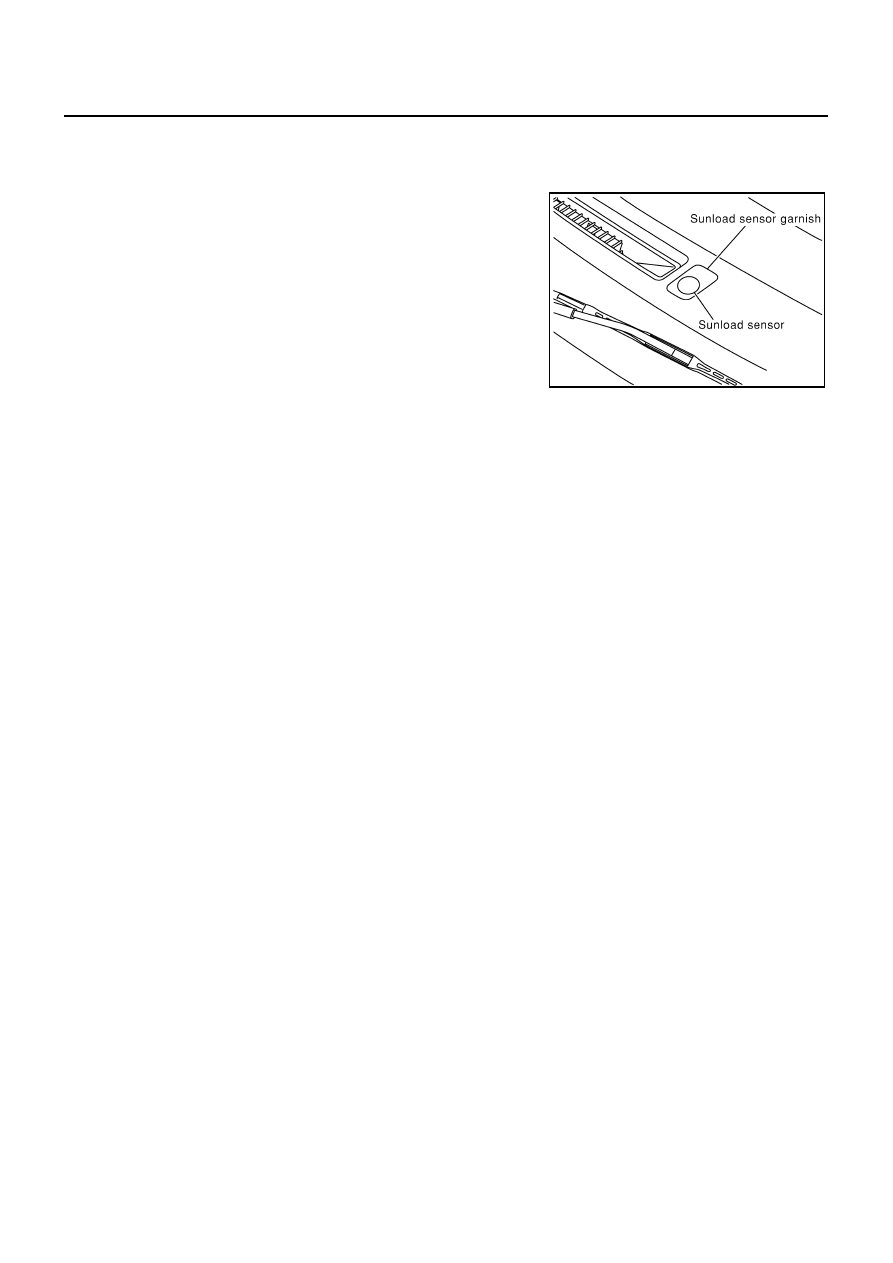

SUNLOAD SENSOR

PFP:27721

Removal and Installation

NJS00093

REMOVAL

1.

Remove sunload sensor garnish.

2.

Disconnect sunload sensor connector, and then remove
sunload sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0109E

INTAKE SENSOR

ATC-129

C

D

E

F

G

H

I

K

L

M

A

B

ATC

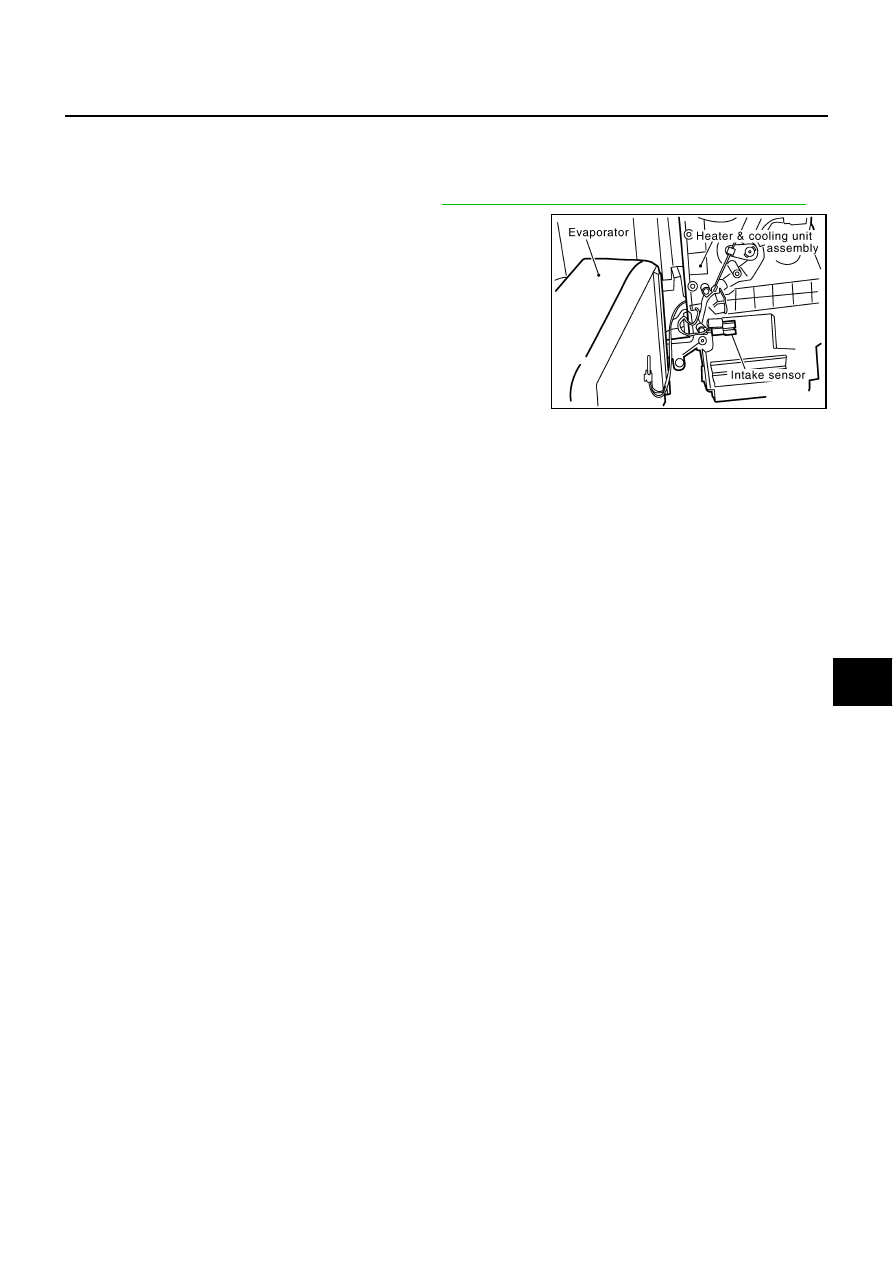

INTAKE SENSOR

PFP:27723

Removal and Installation

NJS00094

REMOVAL

1.

Remove heater & cooling unit assembly. Refer to

ATC-135, "HEATER & COOLING UNIT ASSEMBLY"

 .

2.

Remove evaporator from heater & cooling unit assembly.

3.

Separate heater & cooling unit case.

4.

Remove intake sensor.

INSTALLATION

Installation is basically the reverse order of removal.

Mark mounting position of intake sensor bracket prior to removal so that the reinstalled sensor can be
located in the same position.

When recharging refrigerant, check for leaks.

SJIA1310E

ATC-130

BLOWER UNIT

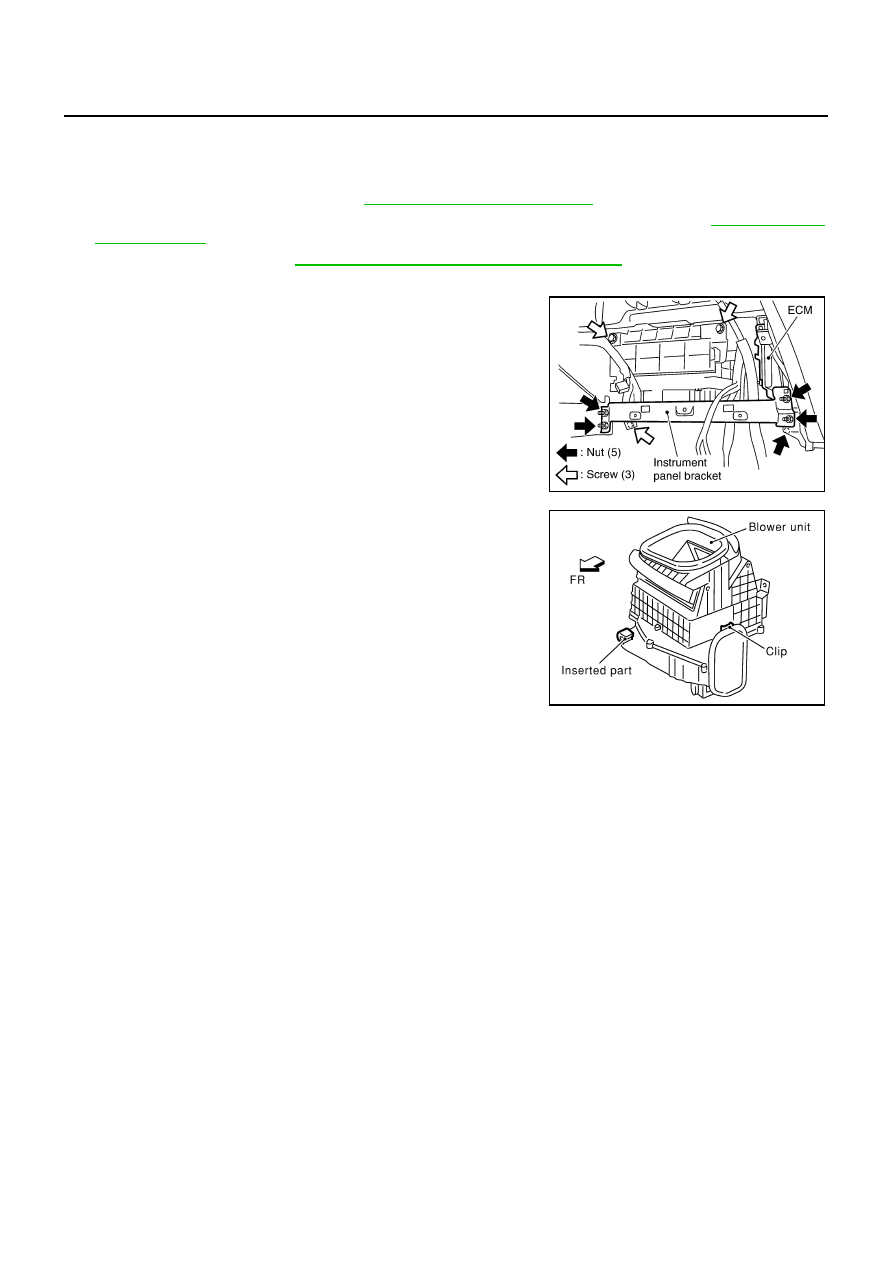

BLOWER UNIT

PFP:27200

Removal and Installation

NJS00095

REMOVAL

1.

Remove glove box assembly. Refer to

IP-10, "Removal and Installation"

 .

2.

Remove glove box cover, instrument lower cover and instrument panel bracket. Refer to

IP-10, "Removal

and Installation"

 .

3.

Remove audio unit. Refer to

AV-52, "Removal and Installation of Audio Unit"

 .

4.

Disconnect blower motor connector, intake door motor connector and auto amp. connector.

5.

Remove ECM with bracket attached.

6.

Remove blower unit mounting screws.

7.

Remove blower unit.

CAUTION:

Move blower unit rightward, and remove locating pins (2
parts) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Make sure locating pins (2 parts) are securely installed.

NOTE:
When attaching the blower unit, the work will be easier if the blower motor is removed first.

RJIA3204E

RJIA0314E
