TROUBLE DIAGNOSIS

ATC-123

C

D

E

F

G

H

I

K

L

M

A

B

ATC

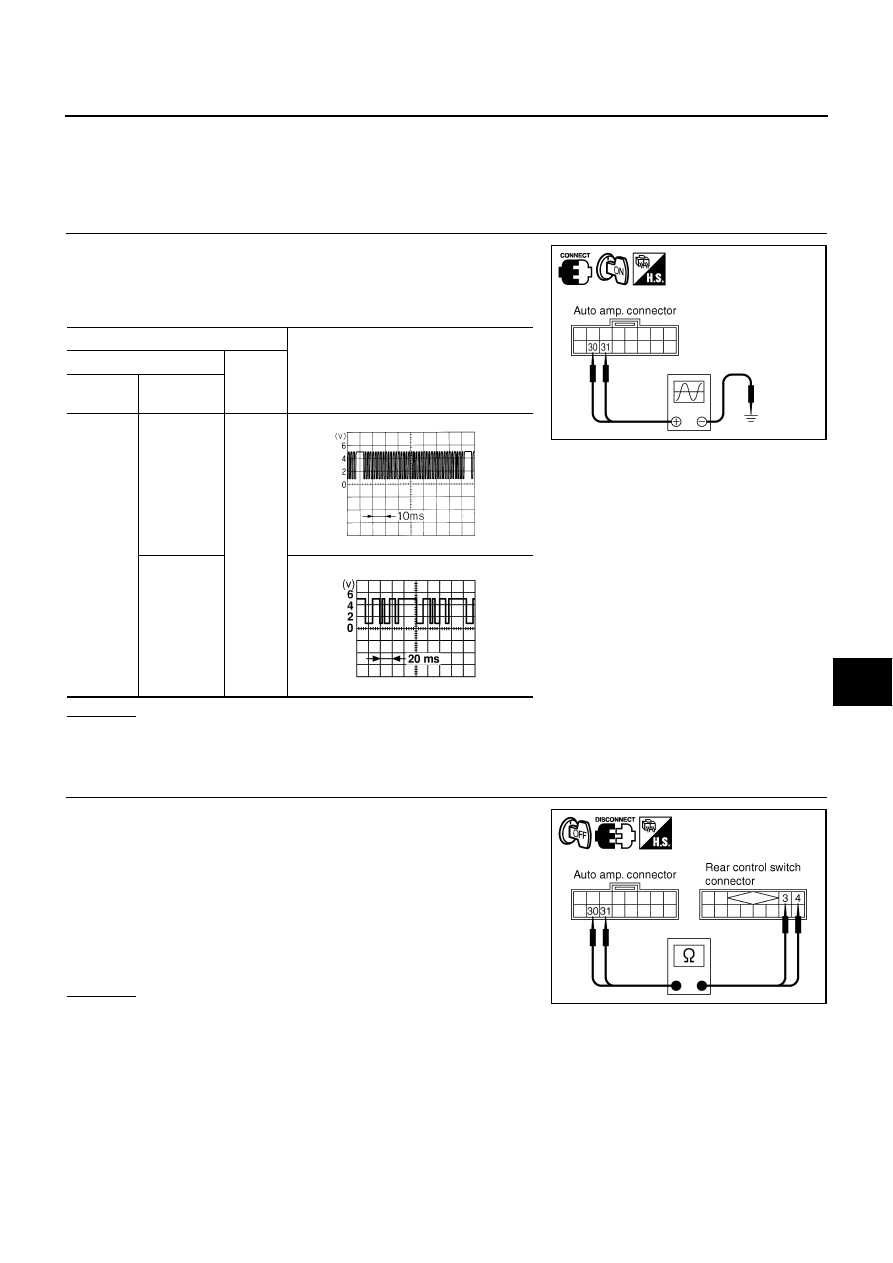

DIAGNOSIS PROCEDURE FOR MULTIPLEX COMMUNICATION CIRCUIT (REAR CONTROL
SWITCH)

SYMPTOM: Rear control switch A/C operation does not work.

1.

CHECK FOR AUTO AMP. OUTPUT

1.

Turn ignition switch ON.

2.

Confirm multiplex communication signal between auto amp. har-
ness connector M120 terminal 30, 31 and ground using an oscil-
loscope.

OK or NG

OK

>> GO TO 2

NG

>> Replace auto amp.

2.

CHECK CIRCUIT CONTINUITY BETWEEN REAR CONTROL SWITCH AND AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect rear control switch connector and auto amp. connec-
tor.

3.

Check continuity between rear control switch harness connector
B502 terminals 3, 4 and auto amp. harness connector M120 ter-
minals 30, 31.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

Terminals

Voltage

(+)

(

−

)

Auto amp.

connector

Terminal No.

M120

30

Ground

31

RJIA3075E

HAK0364D

RJIA0215E

3 – 30

: Continuity should exist.

4 – 31

: Continuity should exist.

RJIA3076E

ATC-124

TROUBLE DIAGNOSIS

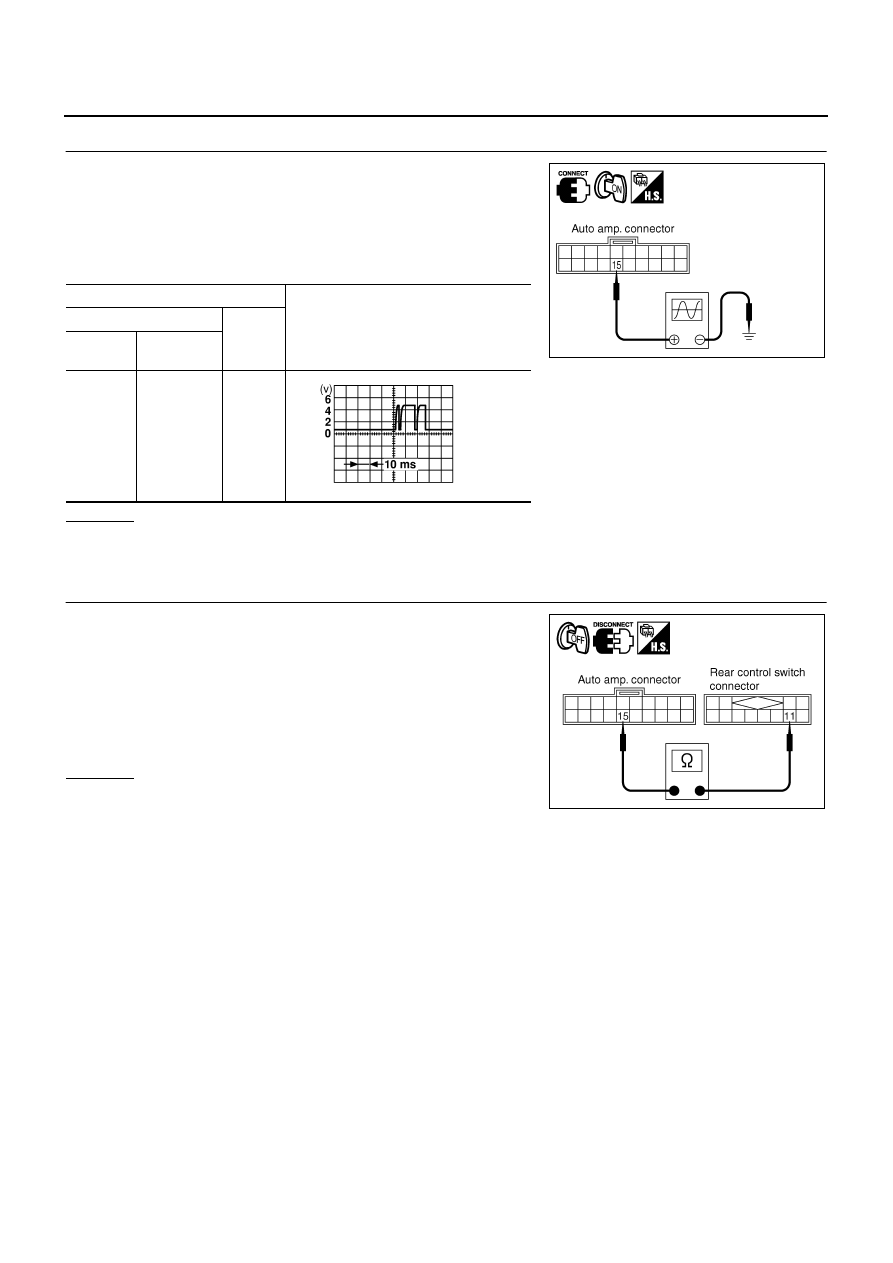

3.

CHECK FOR AUTO AMP. INPUT

1.

Reconnect rear control switch connector and auto amp. connec-
tor.

2.

Turn ignition switch ON.

3.

Confirm multiplex communication signal between auto amp. har-
ness connector M119 terminal 15 and ground using an oscillo-
scope.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK CIRCUIT CONTINUITY BETWEEN REAR CONTROL SWITCH AND AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect rear control switch connector and auto amp. connec-
tor.

3.

Check continuity between rear control switch harness connector
B502 terminal 11 and auto amp. harness connector M119 termi-
nal 15.

OK or NG

OK

>> Replace rear control switch.

NG

>> Repair harness or connector.

Terminals

Voltage

(+)

(

−

)

Auto amp.

connector

Terminal No.

M119

15

Ground

RJIA3077E

RJIA0214E

11–15

: Continuity should exist.

RJIA3078E

CONTROLLER

ATC-125

C

D

E

F

G

H

I

K

L

M

A

B

ATC

CONTROLLER

PFP:27500

Removal and Installation of Multifunction Switch

NJS000CL

REMOVAL

Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

INSTALLATION

Installation is basically the reverse order of removal.

Removal and Installation of Rear Control Switch

NJS000CM

REMOVAL

Refer to

AV-55, "Removal and Installation of Rear Control Switch"

 .

INSTALLATION

Installation is basically the reverse order of removal.

Removal and Installation of Rear Control Cancel Switch

NJS000CN

REMOVAL

Refer to

AV-55, "Removal and Installation of Rear Control Cancel Switch"

 .

INSTALLATION

Installation is basically the reverse order of removal.

ATC-126

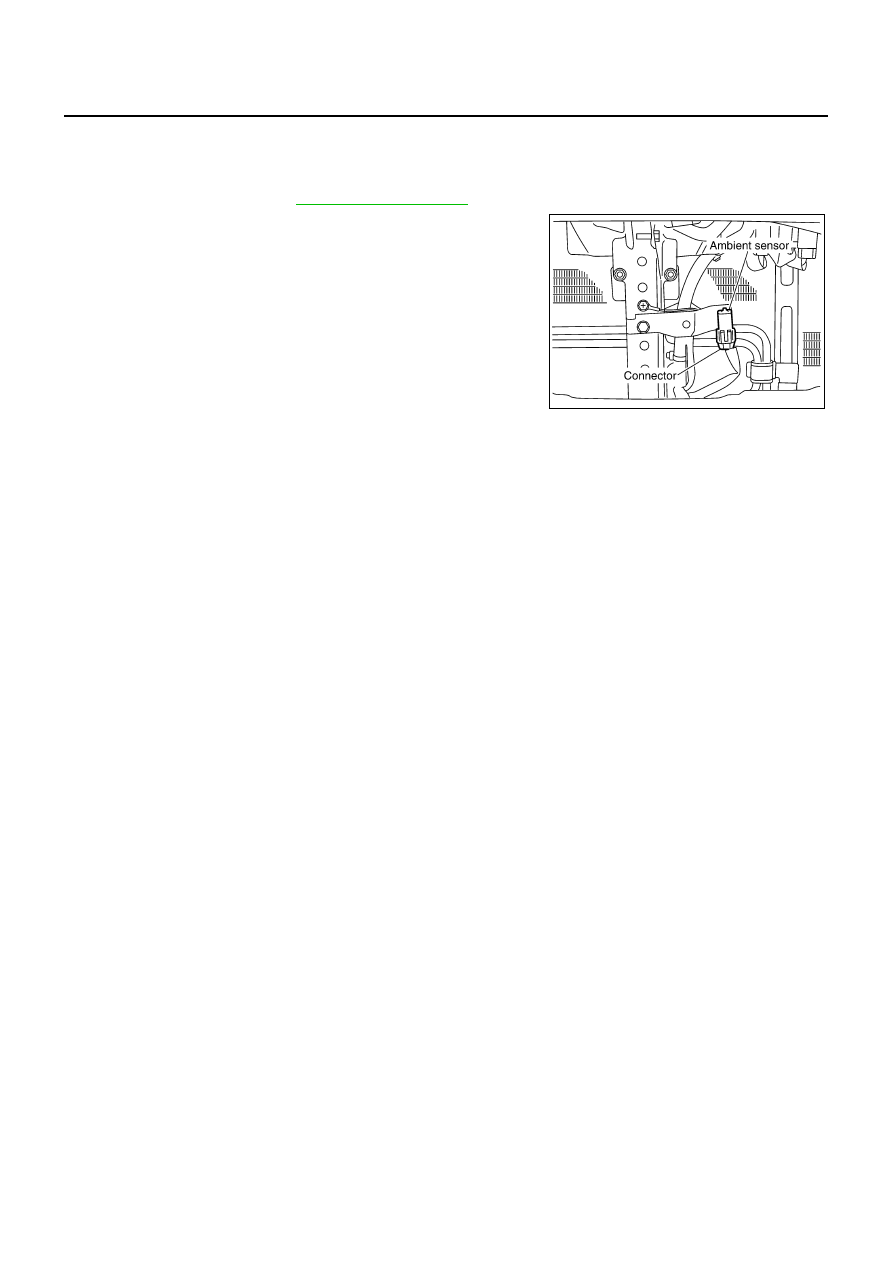

AMBIENT SENSOR

AMBIENT SENSOR

PFP:27722

Removal and Installation

NJS00091

REMOVAL

1.

Remove front grille. Refer to

EI-21, "FRONT GRILLE"

 .

2.

Disconnect ambient sensor connector, and then remove ambi-
ent sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA3203E
