Infiniti Q45. Manual - part 111

TROUBLE DIAGNOSIS

ATC-39

C

D

E

F

G

H

I

K

L

M

A

B

ATC

Schematic

NJS00088

TJWM0091E

ATC-40

TROUBLE DIAGNOSIS

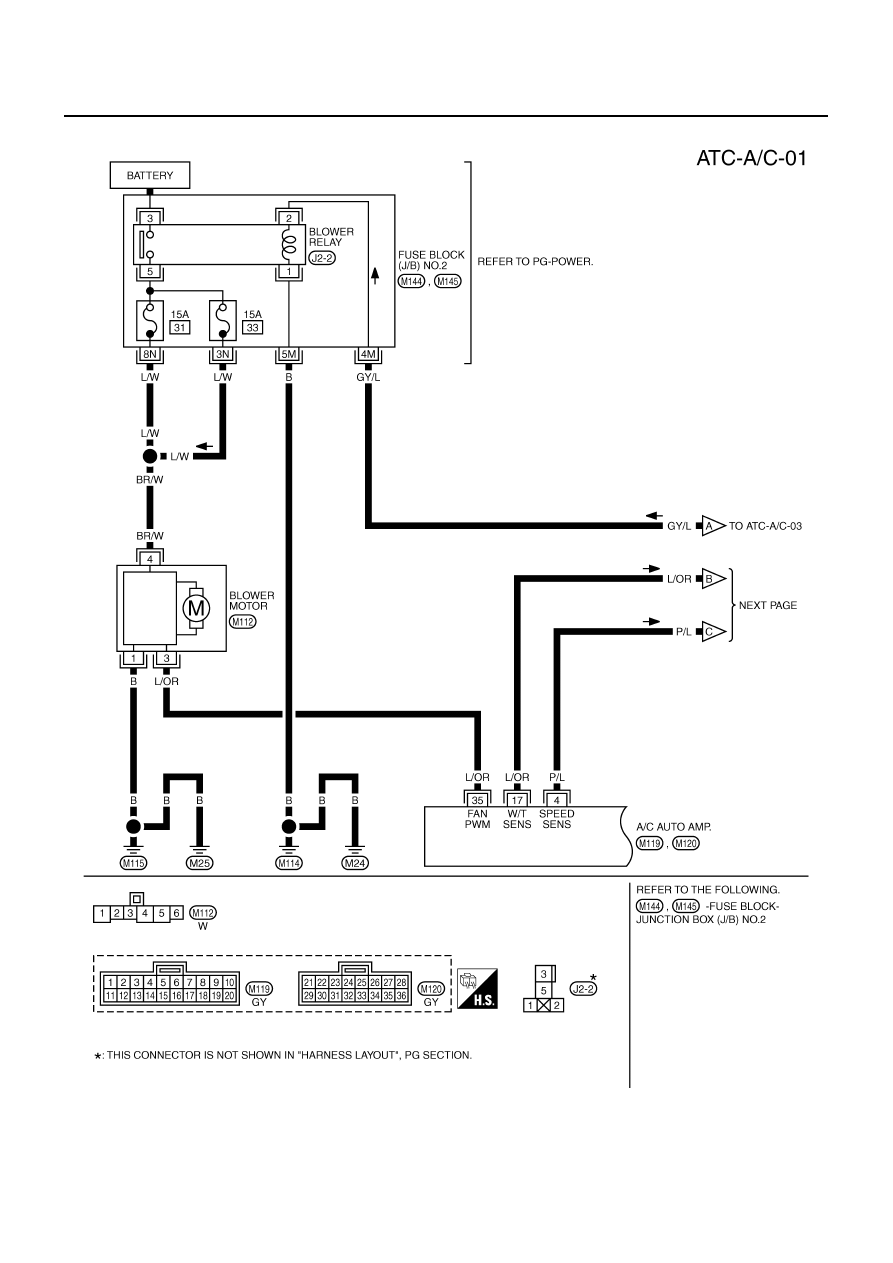

Wiring Diagram — A/C —

NJS00089

TJWM0221E

TROUBLE DIAGNOSIS

ATC-41

C

D

E

F

G

H

I

K

L

M

A

B

ATC

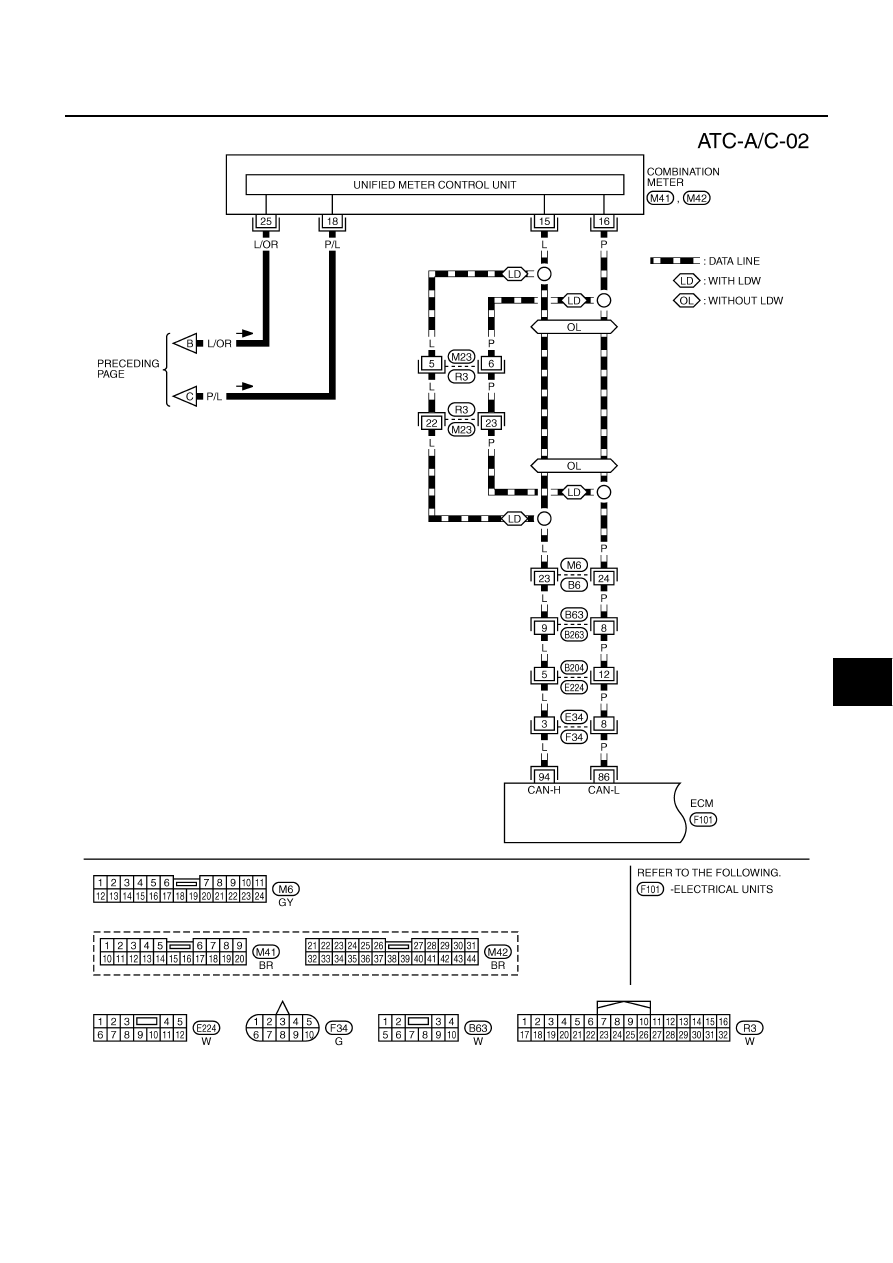

TJWM0222E

ATC-42

TROUBLE DIAGNOSIS

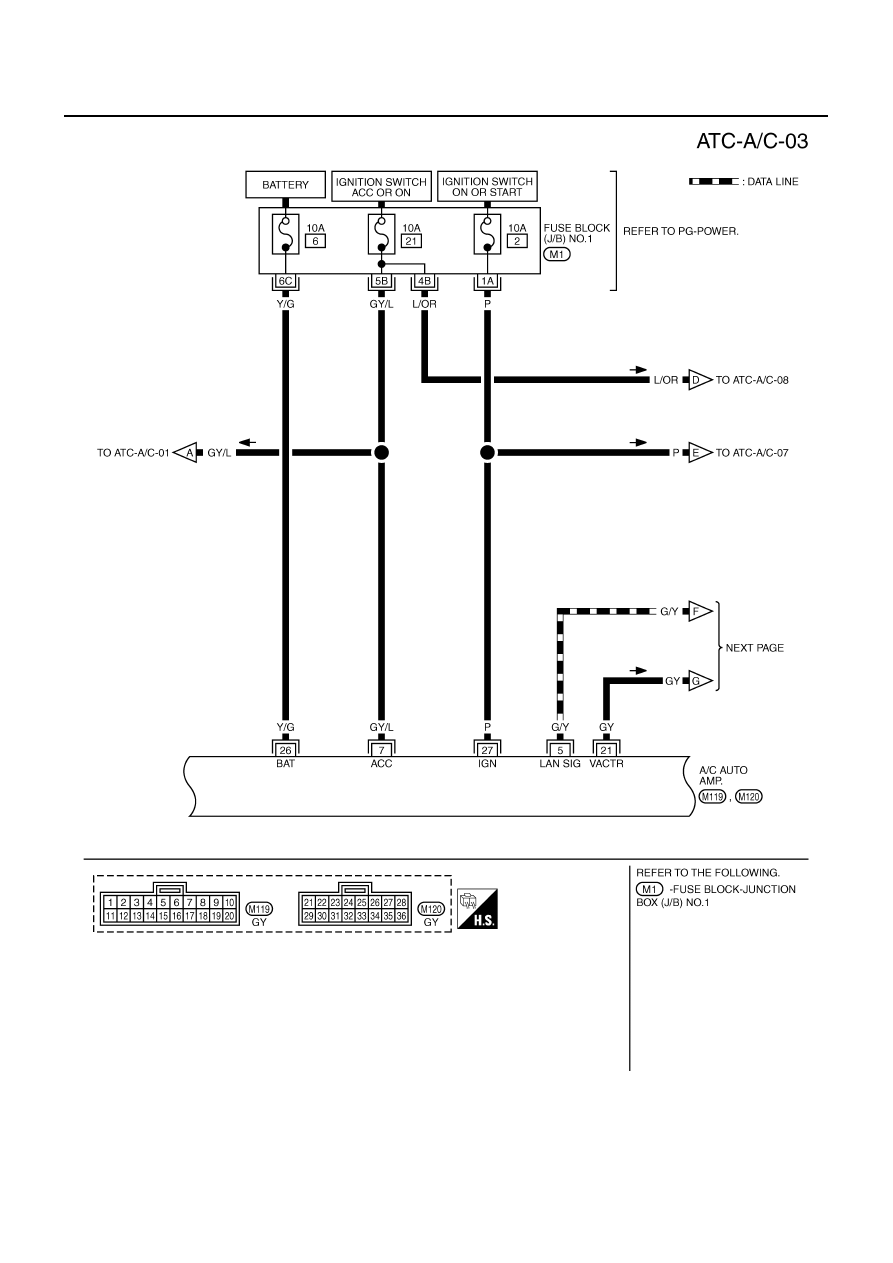

TJWM0223E
