AIR CONDITIONER CONTROL

ATC-31

C

D

E

F

G

H

I

K

L

M

A

B

ATC

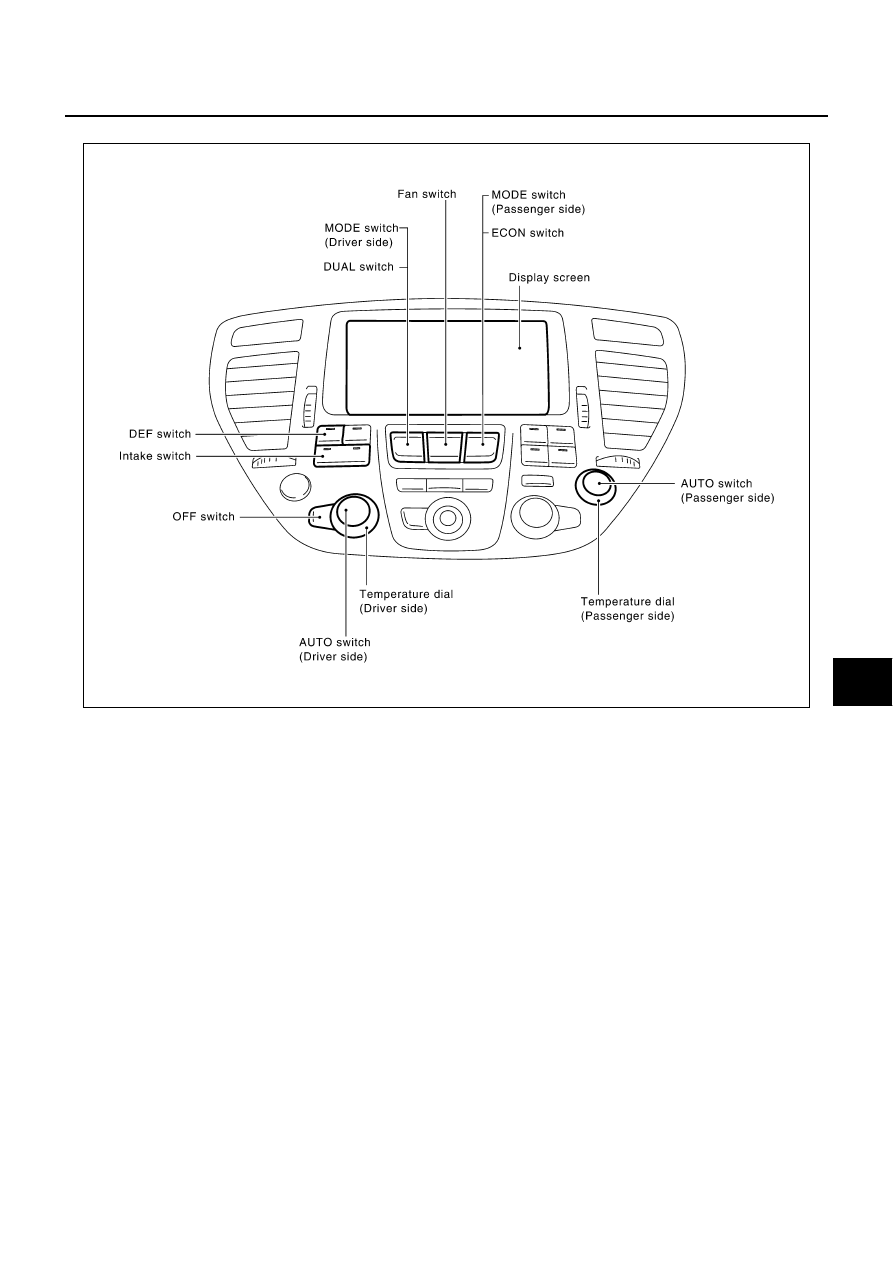

Control Operation

NJS00082

DISPLAY SCREEN

The operation status of the system is displayed on the screen.

AUTO SWITCH (DRIVER SIDE)

The compressor, intake doors, air mix doors, outlet doors and blower speed are automatically controlled
so that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the
operator.

When the A/C system is operating, if the screen is not displayed, press the AUTO switch once to display
the A/C screen. (The display time is determined by the navigation system settings.)

When the A/C system is in manual control, and the DUAL switch is depressed, pressing the AUTO switch
changes to auto-control for the driver side only.

AUTO SWITCH (PASSENGER SIDE)

The compressor, intake doors, air mix doors, outlet doors and blower speed are automatically controlled
so that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the
operator.

When the A/C system is operating, if the screen is not displayed, press the AUTO switch once to display
the A/C screen. (The display time is determined by the navigation system settings.)

When the A/C system is in manual control, and the DUAL switch is depressed, pressing the AUTO switch
changes to auto-control for the passenger side only.

TEMPERATURE DIAL (POTENTIO TEMPERATURE CONTROL) (DRIVER SIDE)

The set temperature is increased or decreased with this dial.

TEMPERATURE DIAL (POTENTIO TEMPERATURE CONTROL) (PASSENGER SIDE)

The set temperature is increased or decreased with this dial.

SJIA1134E

ATC-32

AIR CONDITIONER CONTROL

When the temperature dial is turned, the DUAL switch indicator will automatically illuminate.

INTAKE SWITCH

Set the inlet to automatic control or to REC-fixed. However, REC-fixed cannot be selected in DEF mode.
When the FRE switch is ON, the air inlet will be automatically controlled.

DEFROSTER (DEF) SWITCH

Mode doors are set to the defrost position with this switch. Also, intake doors are set to the outside air position,
and compressor turns ON.

OFF SWITCH

Compressor and blower are OFF, the intake doors are set to the outside air position, and the mode doors are
set to the foot (80% foot and 20% defrost) position.

MODE SWITCH (DRIVER SIDE)

When the DUAL switch indicator is not illuminated, the left and right outlets are switched together.

When the DUAL switch indicator is illuminated, only the driver-side outlet is switched.

MODE SWITCH (PASSENGER SIDE)

When the MODE switch is pressed, the DUAL switch indicator illuminates, and only the passenger-side outlet
is switched.

ECON (ECONOMY) SWITCH

By pressing the ECON switch, the indicator of ECON switch should illuminate, and the control is switched
to economy control.

When press ECON switch again, the indicator of ECON switch should not illuminate and the compressor
always turns OFF. With the compressor OFF, the system will not remove heat (cool) or de-humidify. The
system will maintain the in-vehicle temperature at the set temperature when the set temperature is above
the ambient (outside) temperature. The system will set the intake doors to the outside air position.

When press ECON switch again, the control is switched to economy control.

FAN SWITCH

The blower speed is manually controlled with this switch. Five speeds are available for manual control (as
shown on the display screen).

DUAL SWITCH

When the DUAL switch indicator is illuminated, the driver-side outlet and passenger-side outlet, as well as
the setting temperature, can each be set independently.

When the DUAL switch indicator is not illuminated, the driver-side outlet and setting temperature is
applied to both sides.

REAR CONTROL SWITCH

Pressing rear control switch activates rear seat switch operation screen. It allows operating rear seat air outlet
switch and air cleaner switch.

Fail-Safe Function

NJS00083

If a communication error exists between auto amp. and AV C/U or AV and NAVI C/U for 30 seconds or
longer, air conditioner is controlled under the following conditions:

Compressor: ON

Air outlet: AUTO

Air inlet: FRE (Fresh)

Blower fan speed: AUTO

Set temperature: Setting before communication error occurs

AIR CONDITIONER CONTROL

ATC-33

C

D

E

F

G

H

I

K

L

M

A

B

ATC

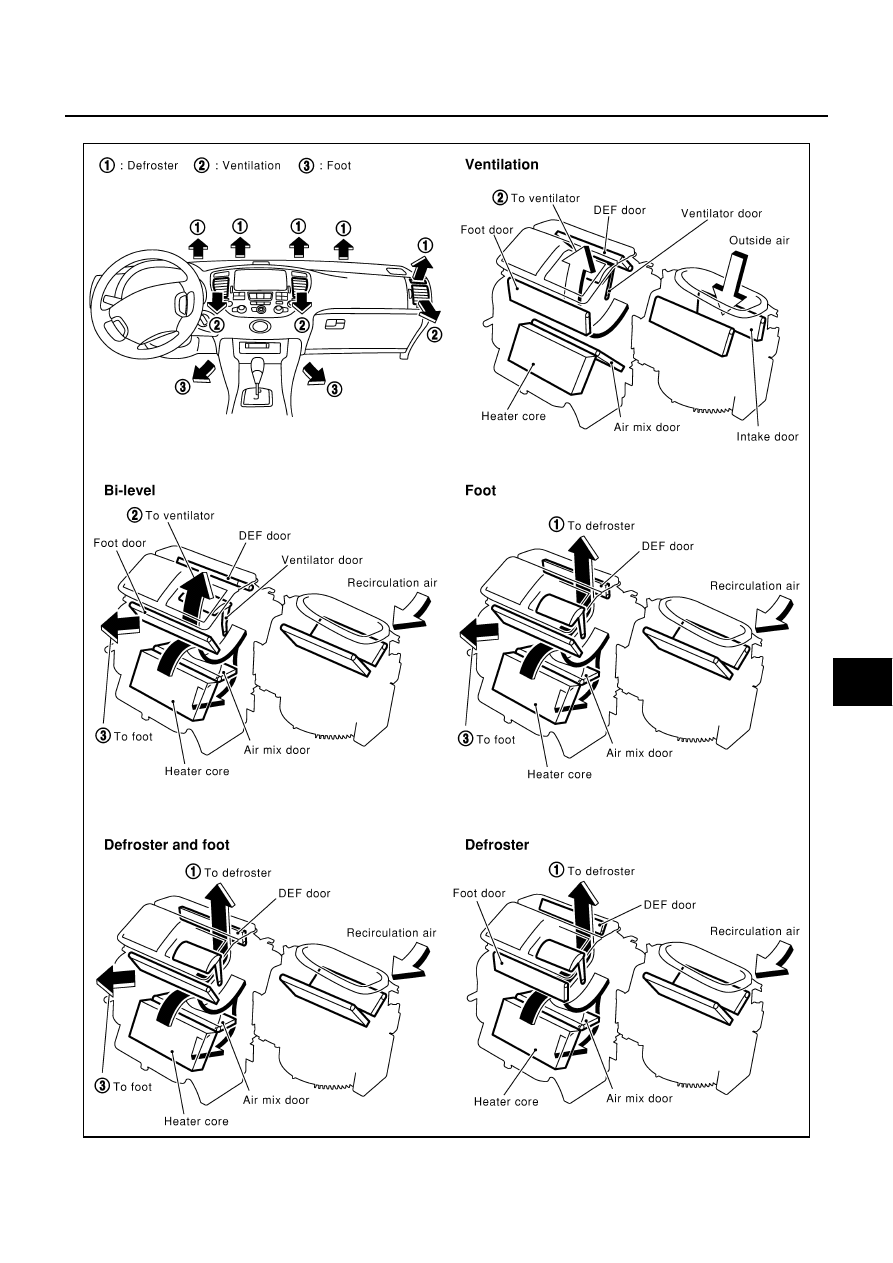

Discharge Air Flow

NJS00084

RJIA0205E

ATC-34

AIR CONDITIONER CONTROL

System Description

NJS00085

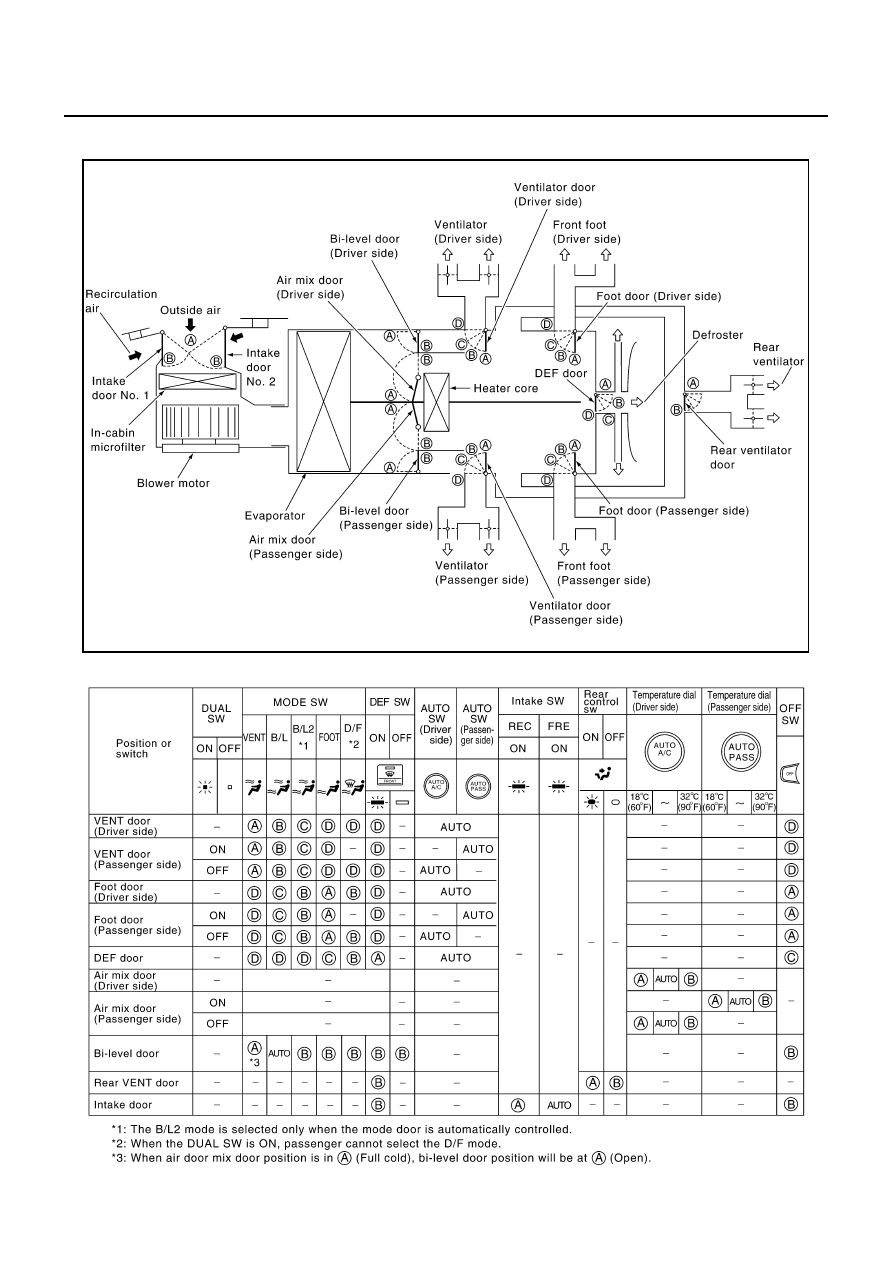

SWITCHES AND THEIR CONTROL FUNCTION

RJIA1873E

SJIA1135E
