OVERHAUL

AT-257

D

E

F

G

H

I

J

K

L

M

A

B

AT

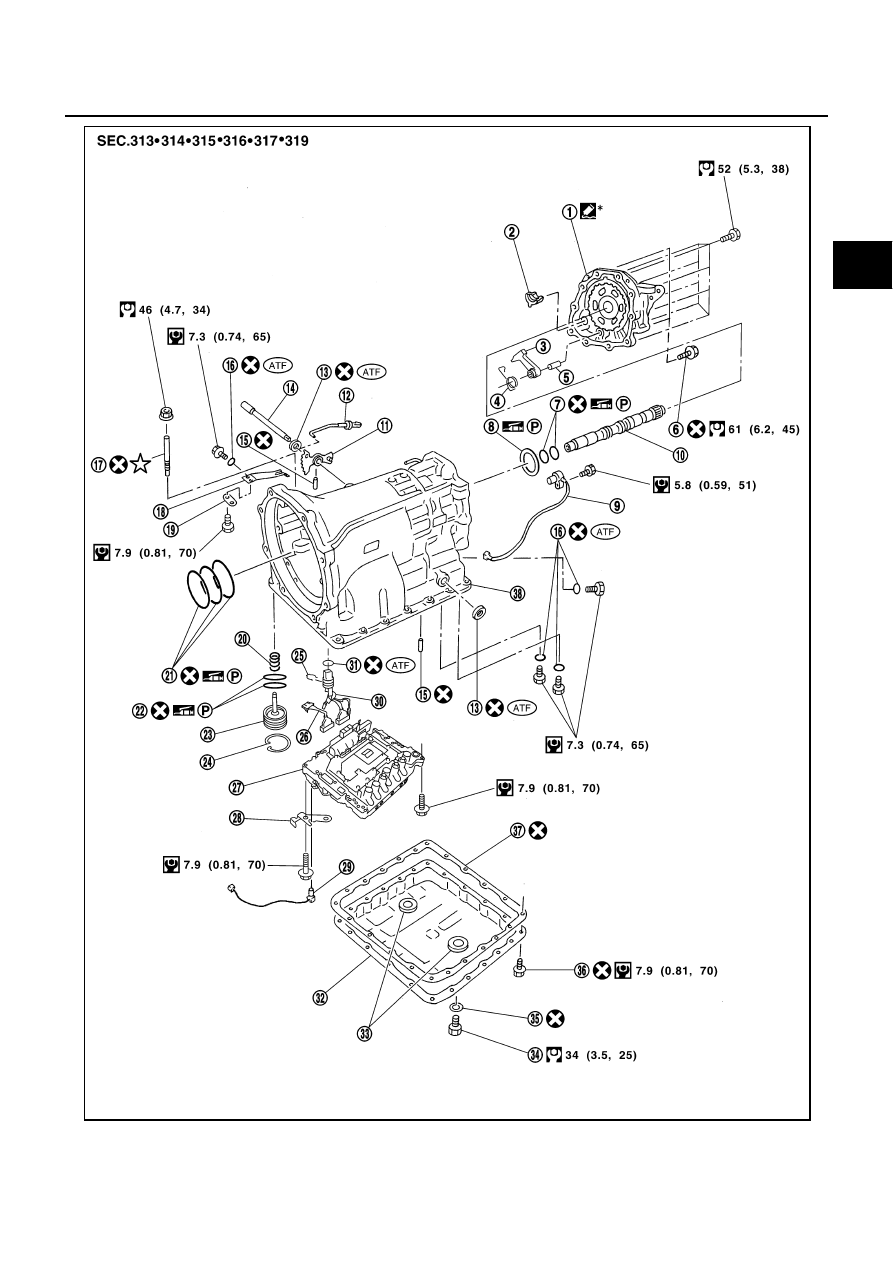

1.

Output shaft & companion flange
complement

2.

Parking actuator support

3.

Parking pawl

4.

Return spring

5.

Pawl shaft

6.

Self-sealing bolt

SCIA6954E

AT-258

OVERHAUL

7.

Seal ring

8.

Needle bearing

9.

Revolution sensor

10. Intermediate shaft

11.

Manual plate

12. Parking rod

13. Manual shaft oil seal

14. Manual shaft

15. Retaining pin

16. O-ring

17. Band servo anchor end pin

18. Detent spring

19. Spacer

20. Return spring

21. Seal ring

22. O-ring

23. Servo assembly

24. Snap ring

25. Snap ring

26. Sub-harness

27. Control valve with TCM

28. Bracket

29. A/T fluid temperature sensor 2

30. Terminal cord assembly

31. O-ring

32. Oil pan

33. Magnet

34. Drain plug

35. Drain plug gasket

36. Oil pan mounting bolt

37. Oil pan gasket

38. A/T case

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-9, "Components"

 .

However, refer to the following for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-45, "Recommended Chemical Products and Sealants"

 .

OVERHAUL

AT-259

D

E

F

G

H

I

J

K

L

M

A

B

AT

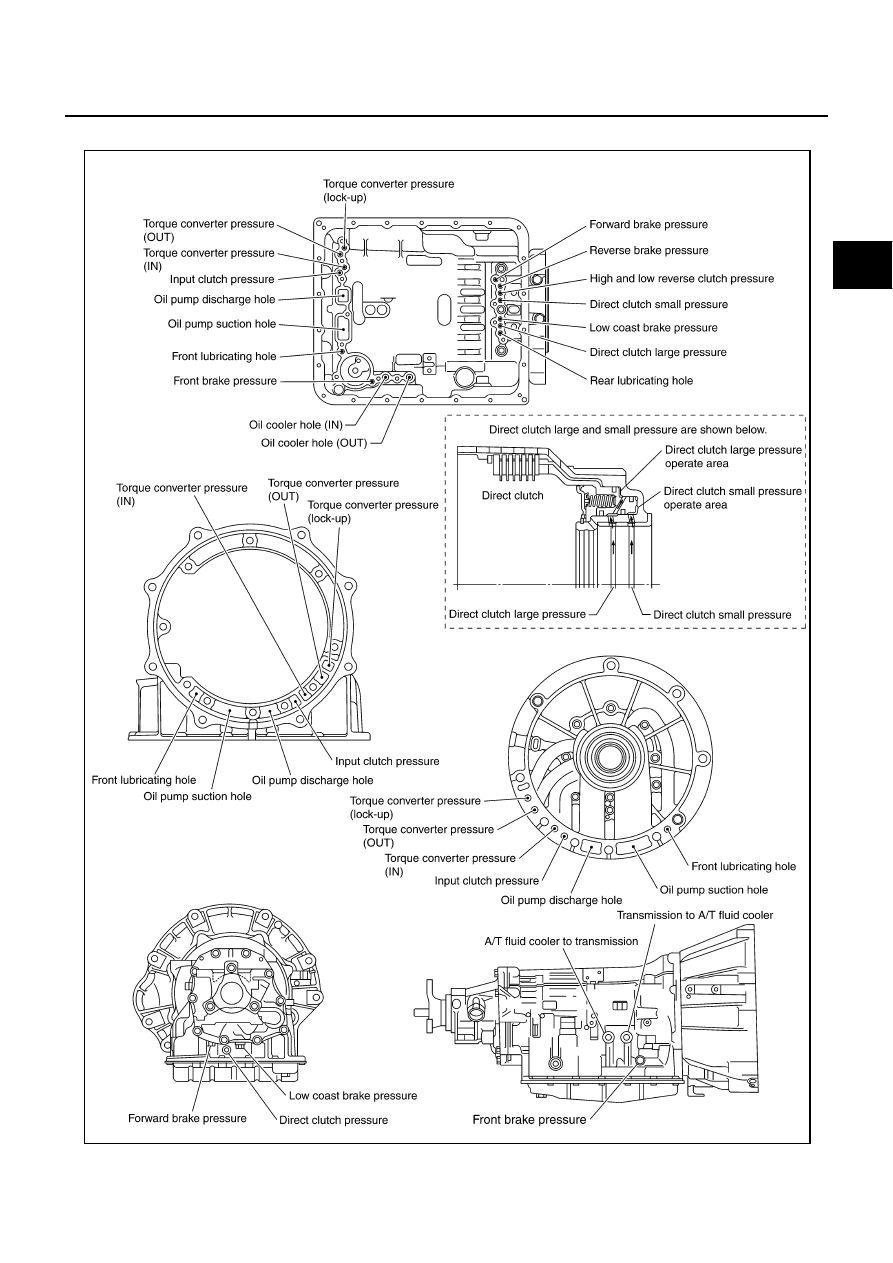

Oil Channel

NCS0011F

SCIA5678E

AT-260

OVERHAUL

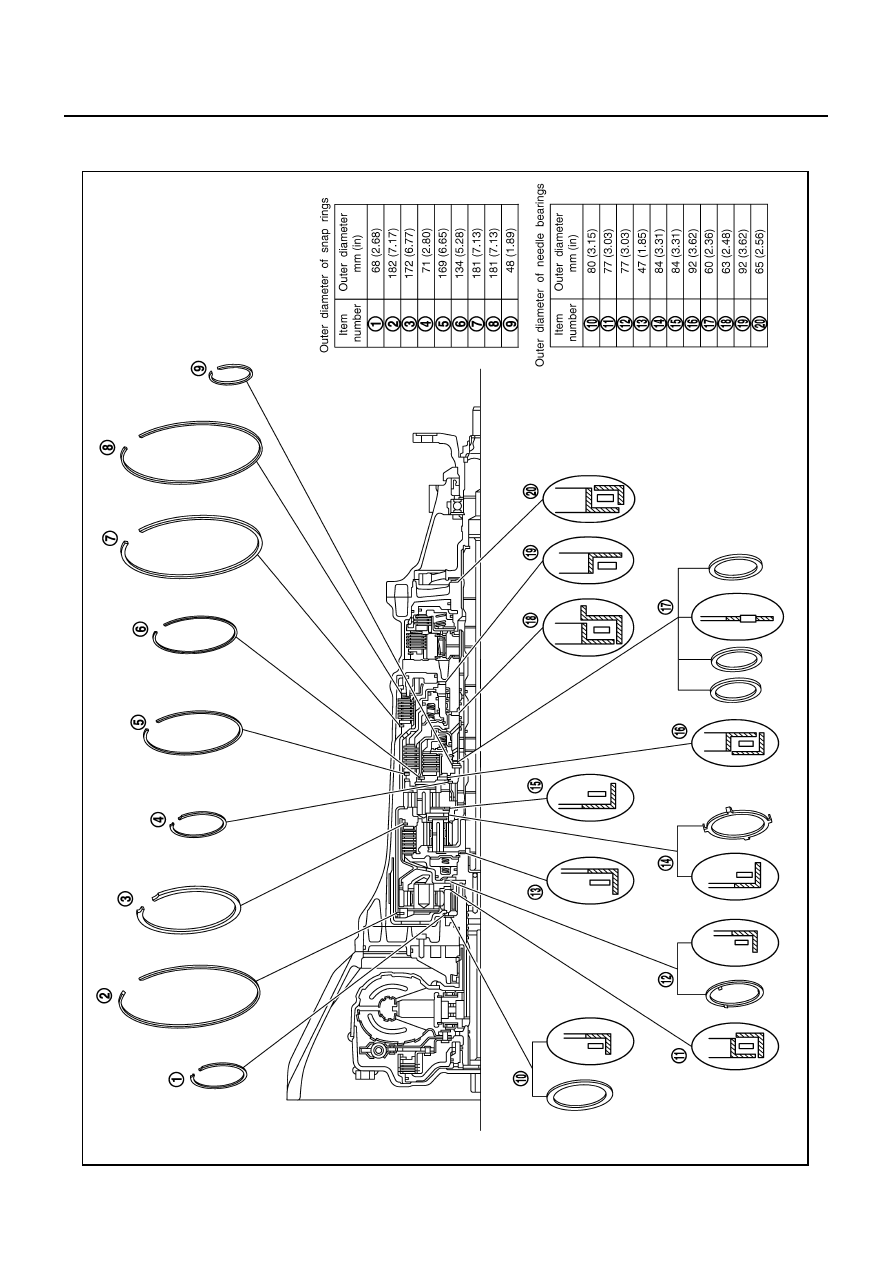

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings

NCS0011G

SCIA7577E
