ON-VEHICLE SERVICE

AT-233

D

E

F

G

H

I

J

K

L

M

A

B

AT

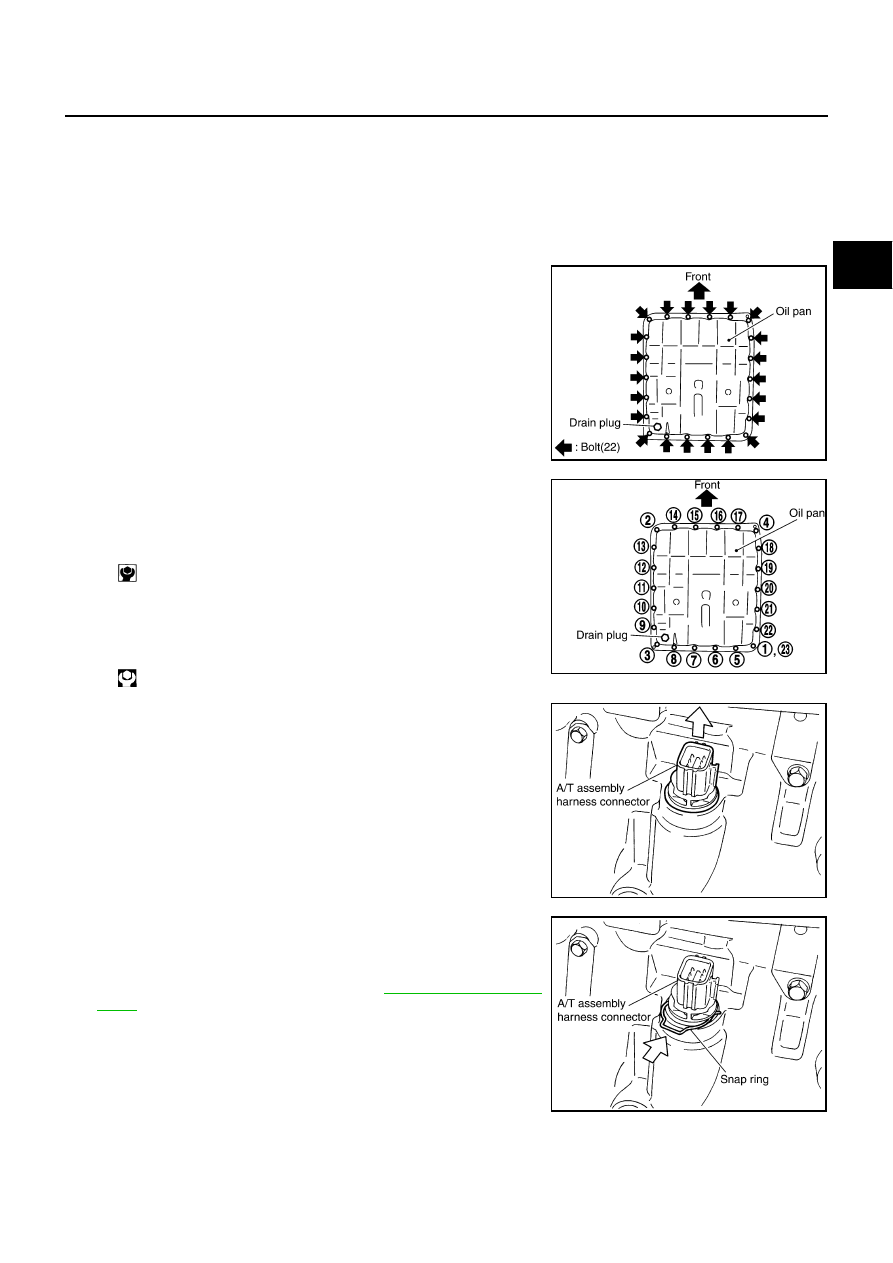

15. Install oil pan to transmission case.

a.

Install oil pan gasket to oil pan.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

b.

Install oil pan (with oil pan gasket) to transmission case.

CAUTION:

●

Install it so that drain plug comes to the position as
shown in the figure.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

c.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.

CAUTION:

Do not reuse oil pan mounting bolts.

16. Install drain plug to oil pan.

CAUTION:

Do not reuse drain plug gasket.

17. Pull up A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

18. Install snap ring to A/T assembly harness connector.

19. Connect A/T assembly harness connector.

20. Connect heated oxygen sensor 2 harness connector.
21. Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T

Fluid"

 .

22. Connect the battery cable to the negative terminal.

SCIA2308E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E

SCIA5038E

SCIA5039E

AT-234

ON-VEHICLE SERVICE

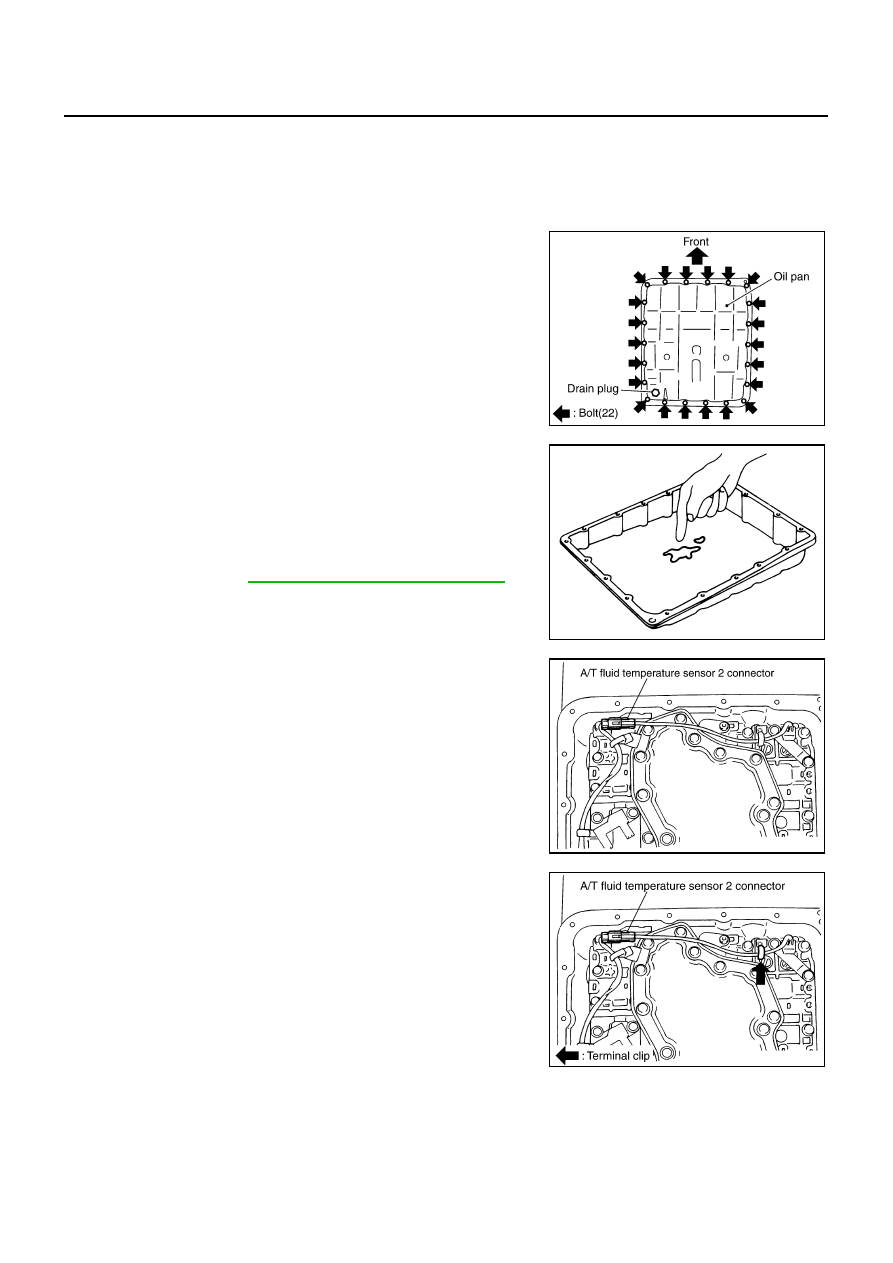

A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION
Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Disconnect heated oxygen sensor 2 harness connector.

3.

Drain ATF through drain plug.

4.

Remove oil pan and oil pan gasket.

5.

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

●

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-14, "A/T Fluid Cooler Cleaning"

 .

6.

Disconnect A/T fluid temperature sensor 2 connector.

CAUTION:

Be careful not to damage connector.

7.

Straighten terminal clip to free A/T fluid temperature sensor 2
harness.

SCIA2308E

SCIA5199E

SCIA5023E

SCIA5146E

ON-VEHICLE SERVICE

AT-235

D

E

F

G

H

I

J

K

L

M

A

B

AT

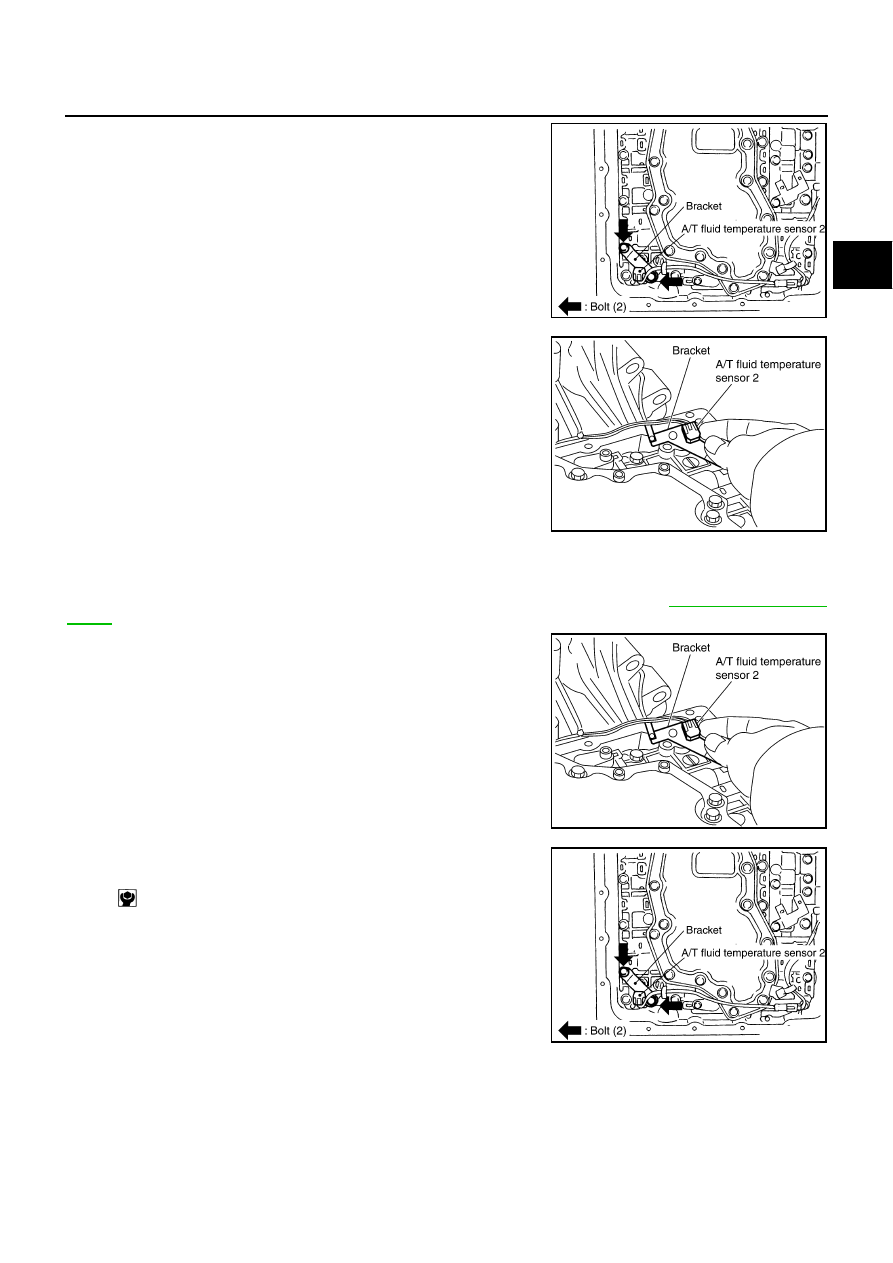

8.

Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.

9.

Remove bracket from A/T fluid temperature sensor 2.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-13, "Checking A/T

Fluid"

 .

1.

Install A/T fluid temperature sensor 2 to bracket.

2.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM.

SCIA5302E

SCIA5264E

SCIA5264E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5302E

AT-236

ON-VEHICLE SERVICE

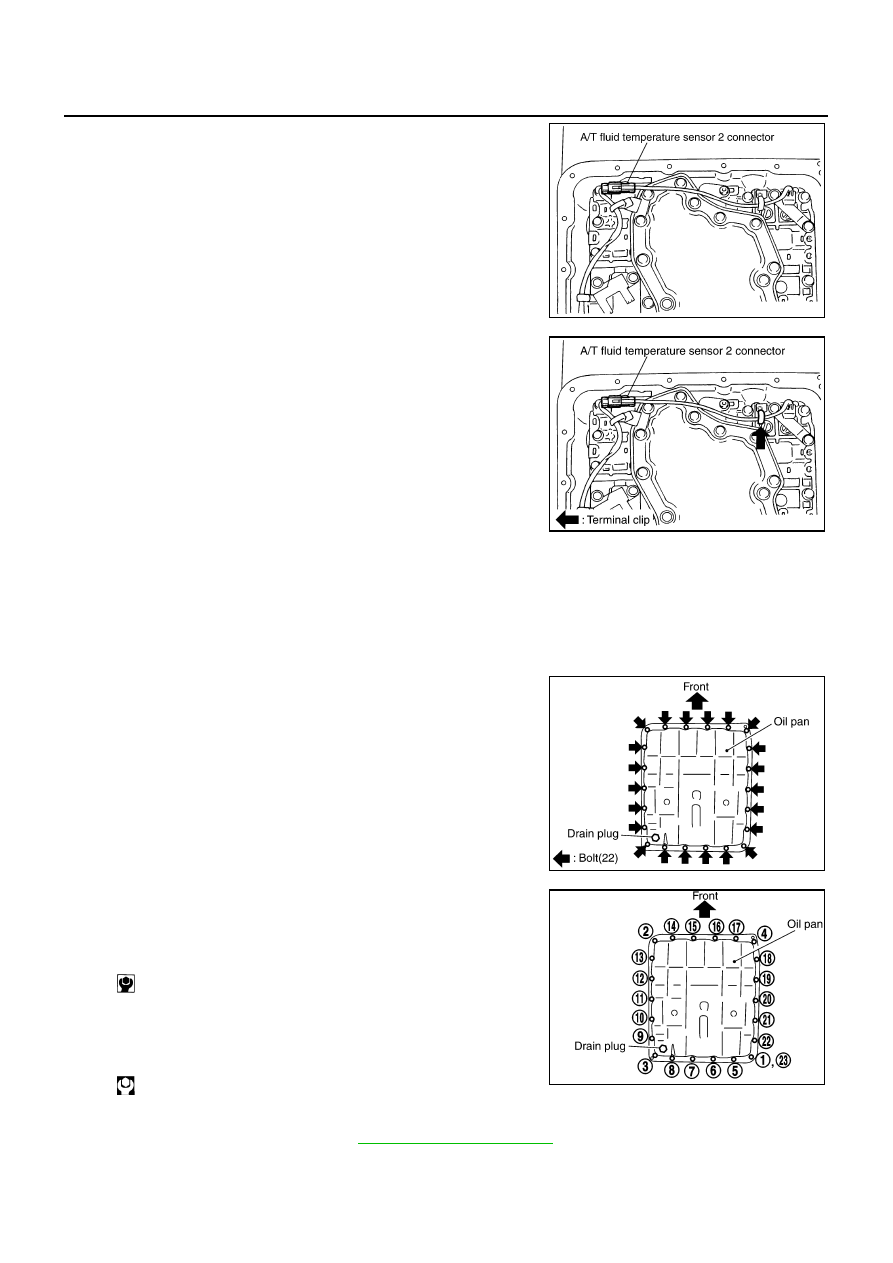

3.

Connect A/T fluid temperature sensor 2 connector.

4.

Securely fasten A/T fluid temperature sensor 2 harness with ter-
minal clip.

5.

Install oil pan to transmission case.

a.

Install oil pan gasket to oil pan.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

b.

Install oil pan (with oil pan gasket) to transmission case.

CAUTION:

●

Install it so that drain plug comes to the position as
shown in the figure.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

c.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.

CAUTION:

Do not reuse oil pan mounting bolts.

6.

Install drain plug to oil pan.

CAUTION:

Do not reuse drain plug gasket.

7.

Connect heated oxygen sensor 2 harness connector.

8.

Pour ATF into A/T assembly. Refer to

AT-12, "Changing A/T Fluid"

 .

9.

Connect the battery cable to the negative terminal.

SCIA5023E

SCIA5146E

SCIA2308E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

: 34 N·m (3.5 kg-m, 25 ft-lb)

SCIA4113E
