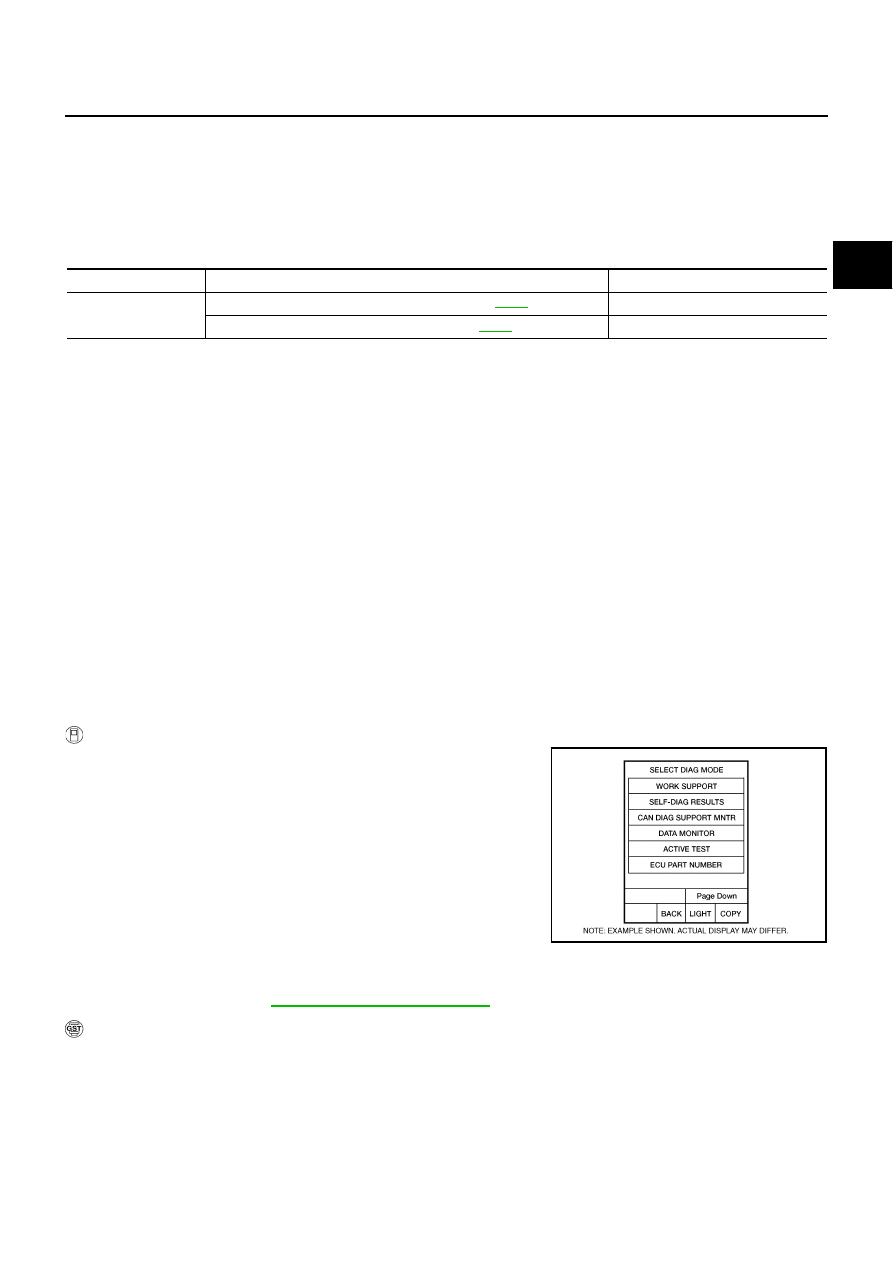

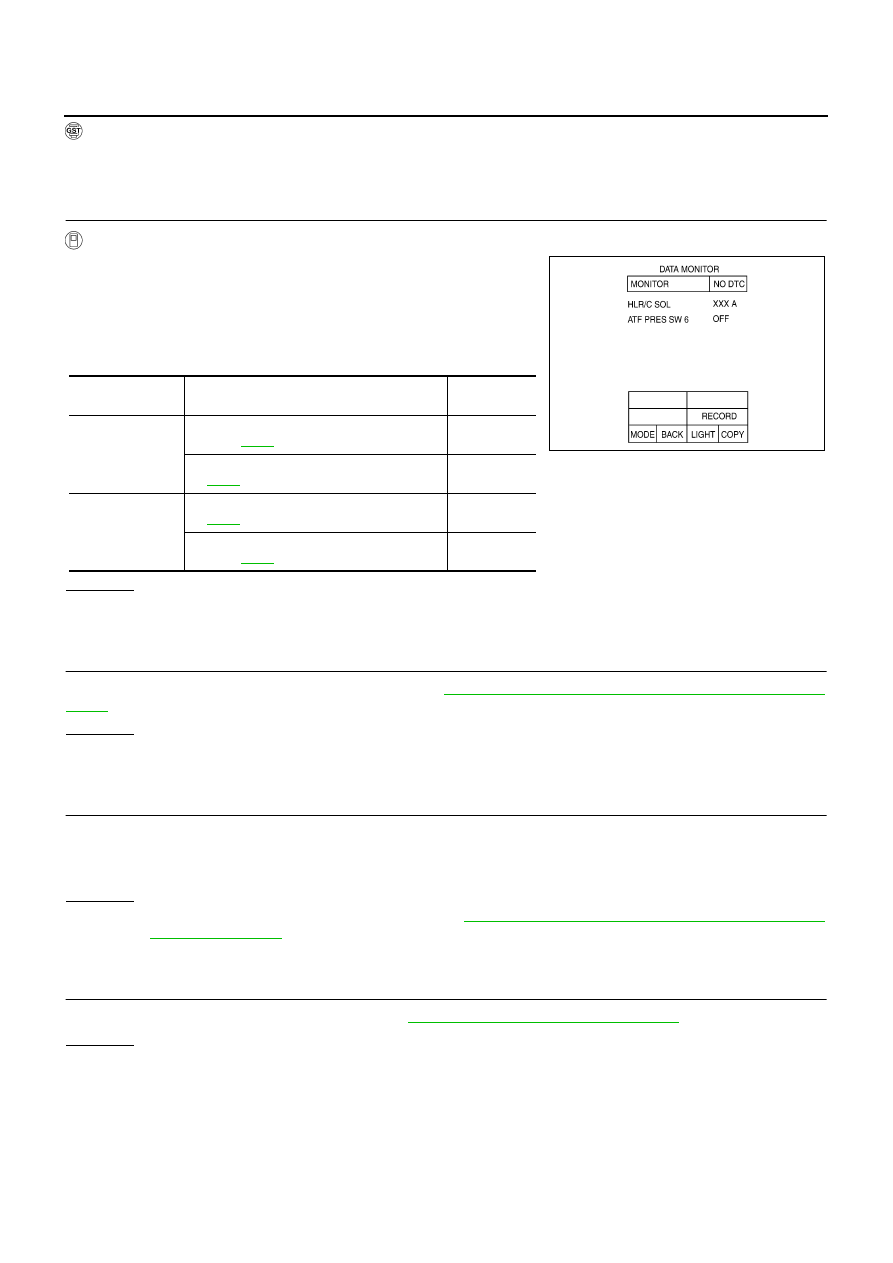

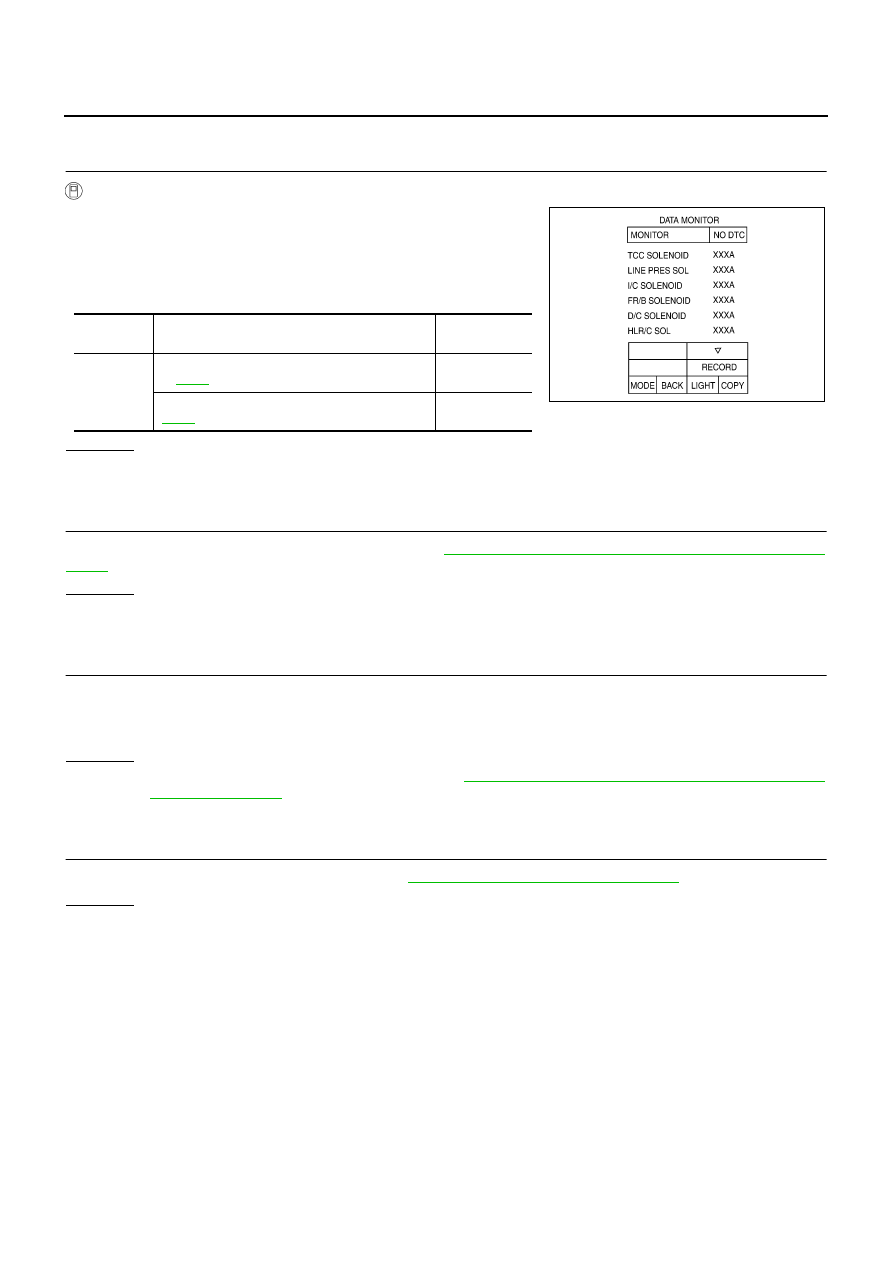

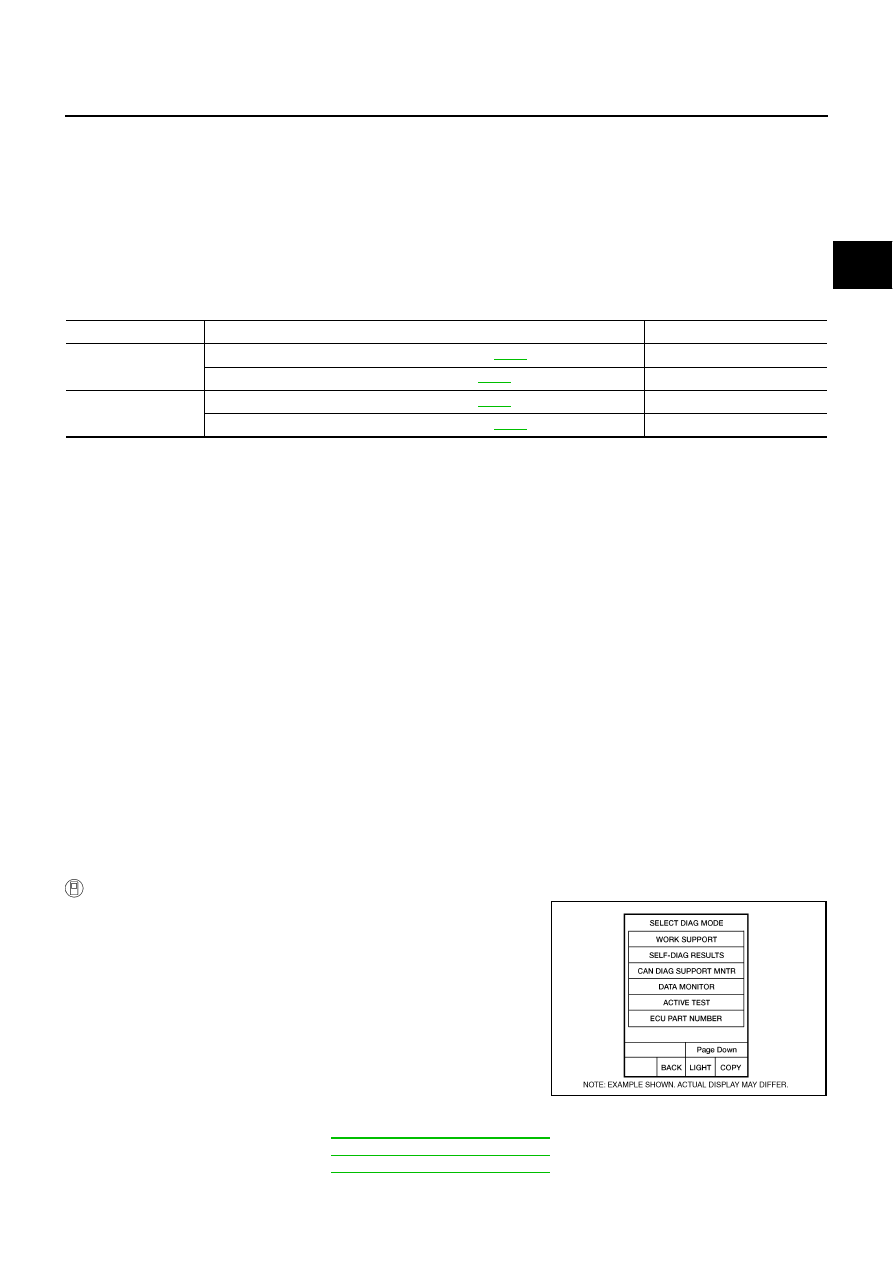

DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE AT-153 D E F G H I J K L M A B AT DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE PFP:31940 Description NCS000YK High and low reverse clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP CONSULT-II Reference Value NCS000YL On Board Diagnosis Logic NCS000YM ● This is an OBD-II self-diagnostic item. ● Diagnostic trouble code “P1767 HLR/C SOL/CIRC” with CONSULT-II or 8th judgement flicker without – When TCM detects an improper voltage drop when it tries to operate the solenoid valve. – When TCM detects as irregular by comparing target value with monitor value. Possible Cause NCS000YN ● Harness or connectors ● High and low reverse clutch solenoid valve DTC Confirmation Procedure NCS000YO CAUTION: Always drive vehicle at a safe speed. WITH CONSULT-II 1. Turn ignition switch ON. (Do not start engine.) 2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode 3. Touch “START”. 4. Start engine. 5. Drive vehicle and maintain the following conditions for at least 5 Þ “3” (HLR/C ON/OFF) Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving 6. AT-154, "Diagnostic Procedure" WITH GST Follow the procedure “WITH CONSULT-II”. Item name Condition Display value (Approx.) HLR/C SOL High and low reverse clutch disengaged. Refer to
. 0.6 - 0.8 A High and low reverse clutch engaged. Refer to 0 - 0.05 A BCIA0031E |
