DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-129

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

PFP:31940

Description

NCS000WO

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

CONSULT-II Reference Value

NCS000WP

On Board Diagnosis Logic

NCS000WQ

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1710 (A/T), P0710 (ENGINE) ATF TEMP SEN/CIRC” with CONSULT-II or 10th
judgement flicker without CONSULT-II is detected when TCM receives an excessively low or high voltage
from the sensor.

Possible Cause

NCS000WR

Harness or connectors
(Sensor circuit is open or shorted.)

A/T fluid temperature sensors 1 and/or 2

DTC Confirmation Procedure

NCS000WS

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

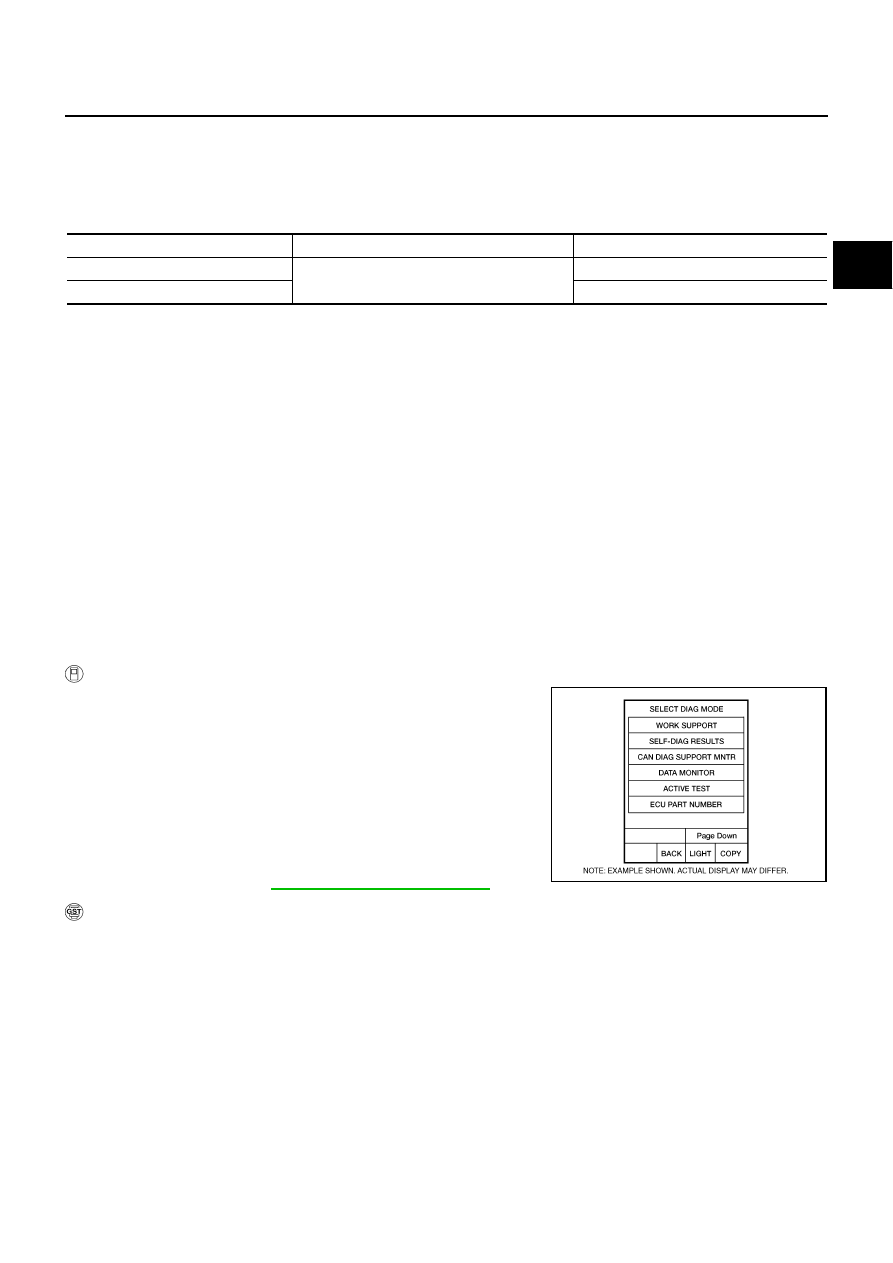

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ACCELE POSI” and “SLCT LVR POSI”.

3.

Touch “START”.

4.

Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
VHCL/S SE-A/T: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position

5.

If DTC is detected, go to

AT-131, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

°

C (

°

F) Display

value

(Approx.)

ATF TEMP SE 1

0 (32) - 20 (68) - 80 (176)

3.3 - 2.7 - 0.9 V

ATF TEMP SE 2

3.3 - 2.5 - 0.7 V

BCIA0031E

AT-130

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

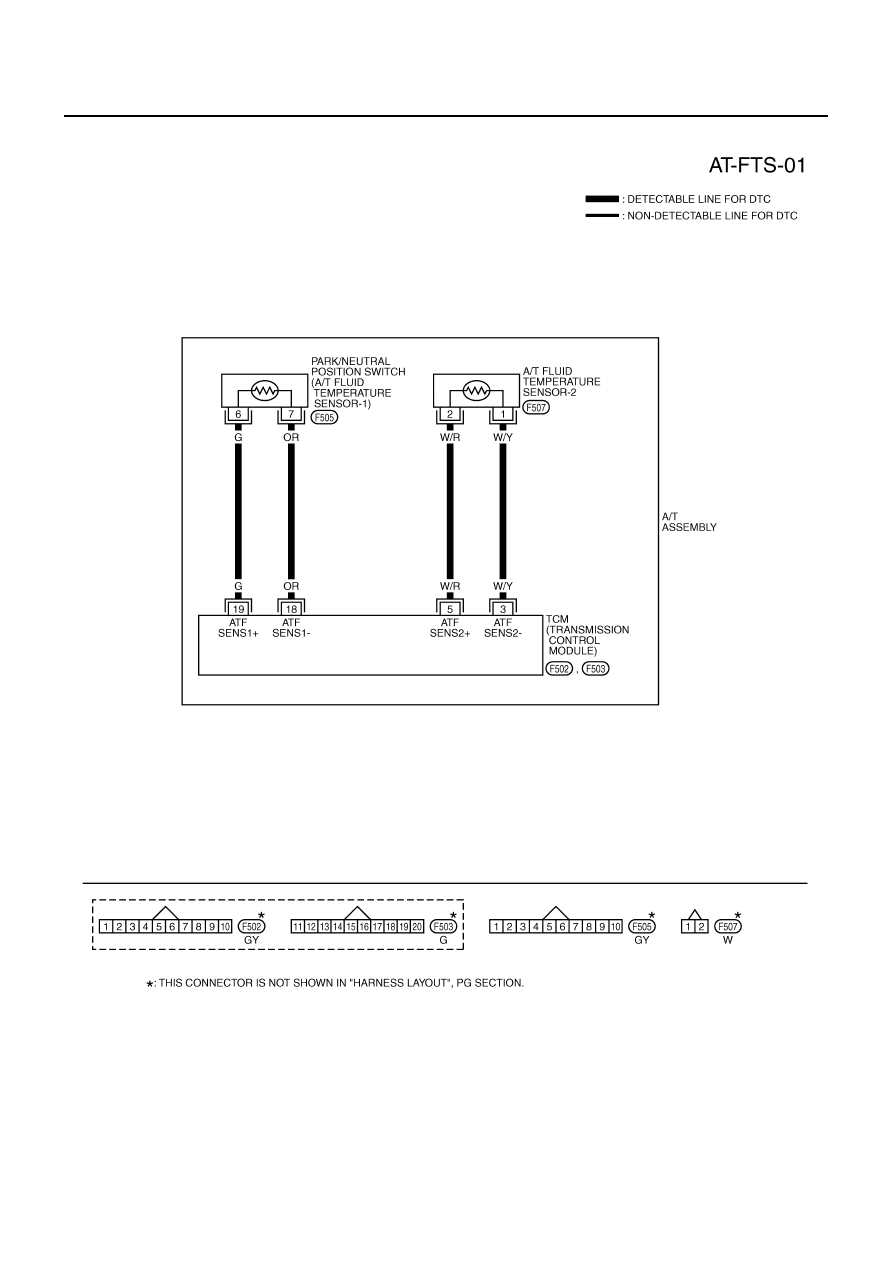

Wiring Diagram — AT — FTS

NCS000WT

TCWM0306E

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-131

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS000WU

1.

CHECK A/T FLUID TEMPERATURE SENSOR 1 SIGNAL

 With CONSULT-II

1.

Start engine.

2.

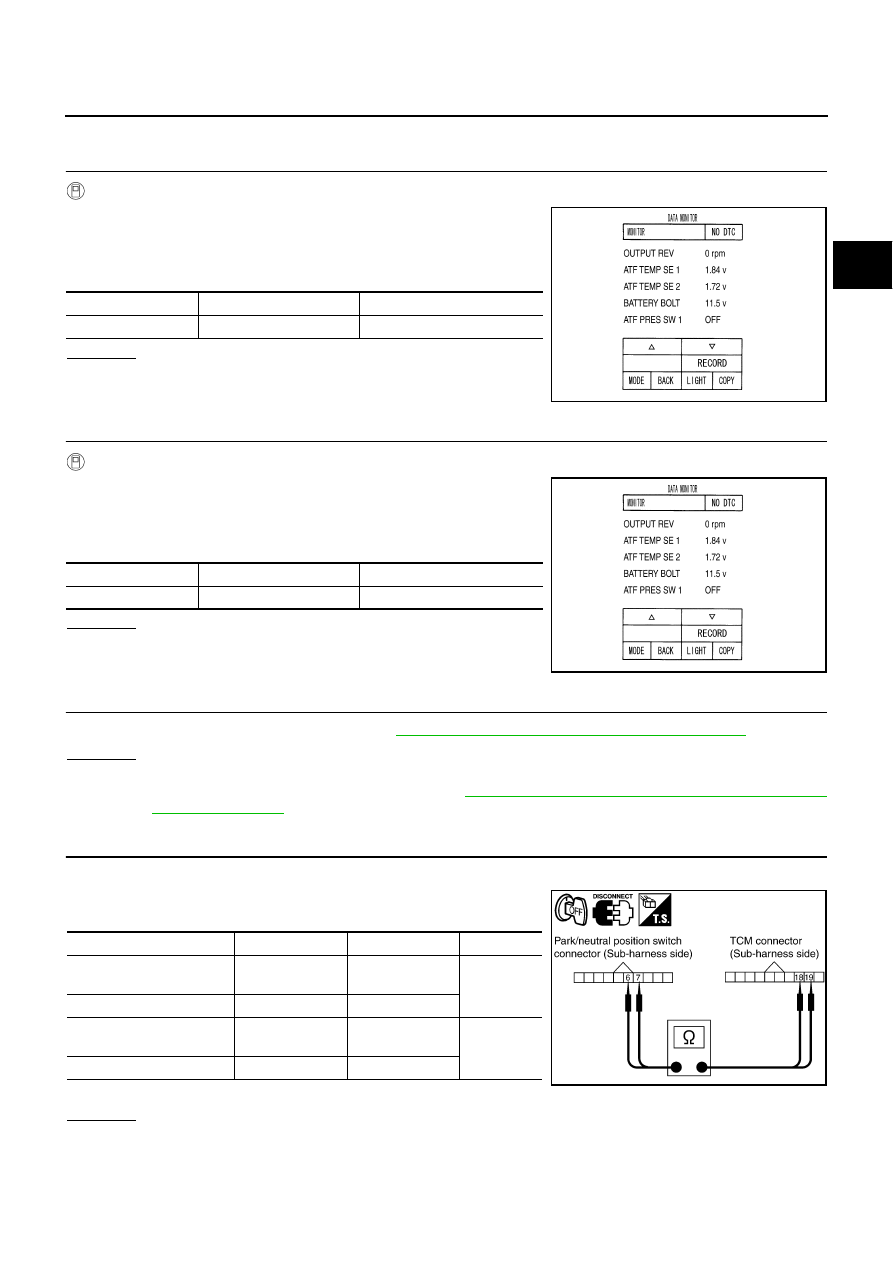

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “ATF TEMP SE 1”.

OK or NG

OK >> GO

TO

2.

NG

>> GO TO 3.

2.

CHECK A/T FLUID TEMPERATURE SENSOR 2 SIGNAL

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “ATF TEMP SE 2”.

OK or NG

OK >> GO

TO

8.

NG

>> GO TO 5.

3.

CHECK A/T FLUID TEMPERATURE SENSOR 1

Check A/T fluid temperature sensor 1. Refer to

AT-133, "A/T FLUID TEMPERATURE SENSOR 1"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Replace the control valve with TCM. Refer to

AT-225, "Control Valve with TCM and A/T Fluid Tem-

perature Sensor 2"

 .

4.

CHECK SUB-HARNESS

1.

Disconnect park/neutral position switch connector and TCM connector.

2.

Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.

3.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

Item name

Condition

°

C (

°

F)

Display value (Approx.)

ATF TEMP SE 1

0 (32) - 20 (68) - 80 (176)

3.3 - 2.7 - 0.9 V

PCIA0039E

Item name

Condition

°

C (

°

F)

Display value (Approx.)

ATF TEMP SE 2

0 (32) - 20 (68) - 80 (176)

3.3 - 2.5 - 0.7 V

PCIA0039E

Item

 Connector

Terminal

Continuity

Park/neutral position switch
connector

F505

6

Yes

TCM connector

F503

19

Park/neutral position switch
connector

F505

7

Yes

TCM connector

F503

18

SCIA5461E

AT-132

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

5.

CHECK A/T FLUID TEMPERATURE SENSOR 2

Check A/T fluid temperature sensor 2. Refer to

AT-133, "A/T FLUID TEMPERATURE SENSOR 2"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Replace the A/T fluid temperature sensor 2. Refer to

AT-234, "A/T FLUID TEMPERATURE SEN-

SOR 2 REMOVAL AND INSTALLATION"

 .

6.

CHECK TERMINAL CORD ASSEMBLY

1.

Disconnect A/T fluid temperature sensor 2 connector and TCM connector.

2.

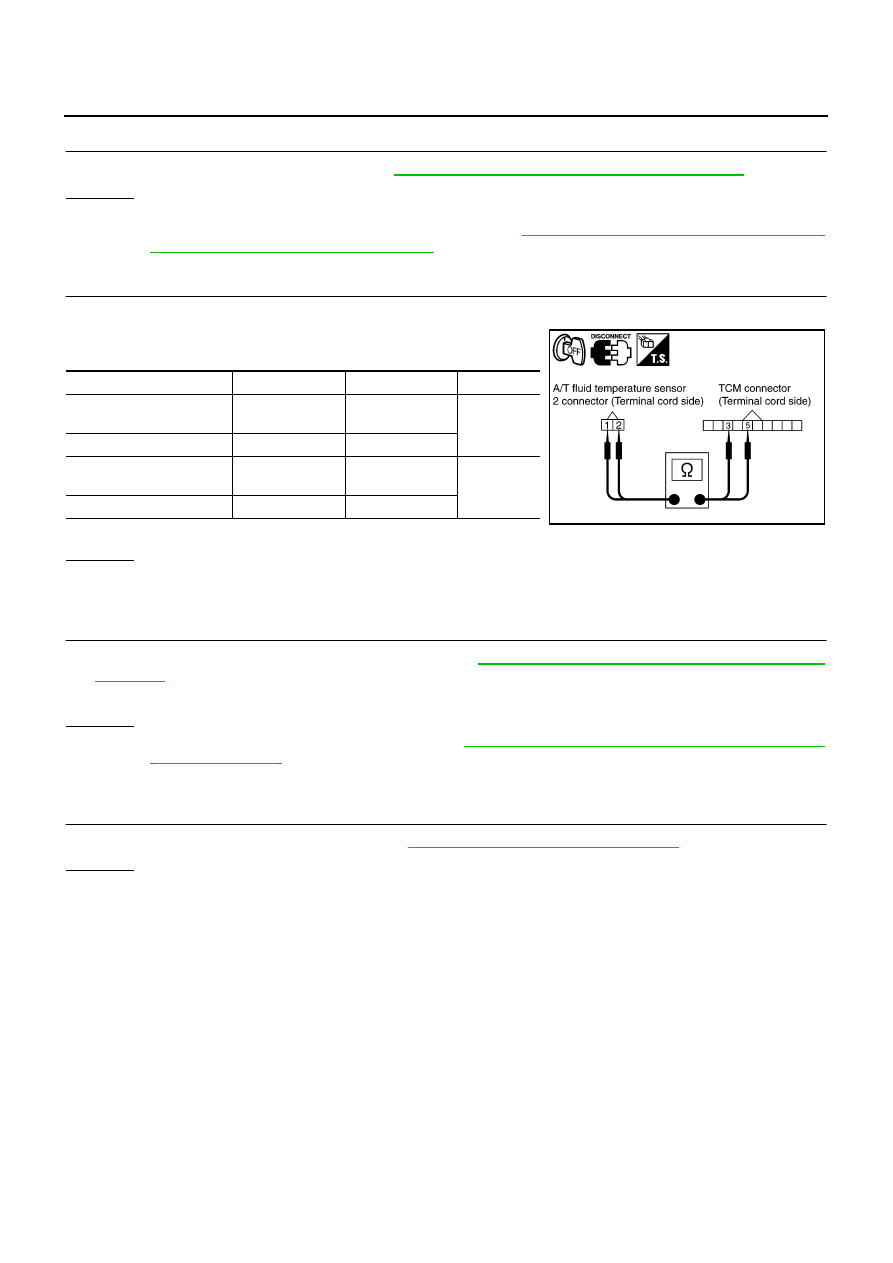

Check continuity between A/T fluid temperature sensor 2 con-
nector terminals and TCM connector terminals.

3.

If OK, check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

7.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

1.

Check TCM power supply and ground circuit. Refer to

AT-173, "MAIN POWER SUPPLY AND GROUND

CIRCUIT"

 .

2.

Reinstall any part removed.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-225, "Control Valve with TCM and A/T Fluid Tem-

perature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

8.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-129, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 1.

Item

 Connector

Terminal

Continuity

A/T fluid temperature sen-
sor 2 connector

F507

1

Yes

TCM connector

F502

3

A/T fluid temperature sen-
sor 2 connector

F507

2

Yes

TCM connector

F502

5

SCIA5462E
