Infiniti Q45. Manual - part 42





TROUBLE DIAGNOSIS

AT-81

D

E

F

G

H

I

J

K

L

M

A

B

AT

61

Others

Engine brake does
not work M3

 M2.

ON vehicle

1. PNP switch

AT-107

2. A/T fluid level and state

AT-51

3. A/T position

AT-218

4. Manual mode switch

AT-161

5. ATF pressure switch 6

AT-171

6. CAN communication line

AT-99

7. Control valve with TCM

AT-225

OFF vehicle

8. Front brake (brake band)

AT-261

9. Input clutch

AT-282

10. High and low reverse clutch

AT-292

62

Engine brake does
not work M2

 M1.

ON vehicle

1. PNP switch

AT-107

2. A/T fluid level and state

AT-51

3. A/T position

AT-218

4. Manual mode switch

AT-161

5. ATF pressure switch 5

AT-169

6. CAN communication line

AT-99

7. Control valve with TCM

AT-225

OFF vehicle

8. Input clutch

AT-282

9. High and low reverse clutch

AT-292

10. Direct clutch

AT-294

63

Maximum speed low.

ON vehicle

1. A/T fluid level and state

AT-51

2. Line pressure test

AT-53

3. Accelerator pedal position sensor

AT-126

4. CAN communication line

AT-99

5. Direct clutch solenoid valve

AT-149

6. Control valve with TCM

AT-225

OFF vehicle

7. Torque converter

AT-261

8. Oil pump assembly

AT-277

9. Input clutch

AT-282

10. Gear system

AT-253

11. High and low reverse clutch

AT-292

12. Direct clutch

AT-294

13. Forward one-way clutch (Parts behind drum support is
impossible to perform inspection by disassembly. Refer to

AT-17, "Cross-Sectional View"

 .

AT-249

14. Forward brake (Parts behind drum support is impossible
to perform inspection by disassembly. Refer to

AT-17,

"Cross-Sectional View"

 .

AT-249

No.

Items

Symptom

Condition

Diagnostic Item

Reference

page

AT-82

TROUBLE DIAGNOSIS

64

Others

Extremely large
creep.

ON vehicle

1. Engine idle speed

EC-76

2. CAN communication line

AT-99

3. ATF pressure switch 5

AT-169

OFF vehicle

4. Torque converter

AT-261

65

With selector lever in
“P” position, vehicle
does not enter parking
condition or, with
selector lever in
another position, park-
ing condition is not
cancelled.
Refer to

AT-184, "In

“P” Position, Vehicle
Moves When Pushed"



.

ON vehicle

1. PNP switch

AT-107

2. A/T position

AT-218

3. Parking components

AT-237

66

Vehicle runs with A/T
in “P” position.

ON vehicle

1. PNP switch

AT-107

2. A/T fluid level and state

AT-51

3. A/T position

AT-218

4. Control valve with TCM

AT-225

5. Parking components

AT-237

OFF vehicle

6. Gear system

AT-253

67

Vehicle runs with A/T
in “N” position.
Refer to

AT-185, "In

“N” Position, Vehicle
Moves"

 .

ON vehicle

1. PNP switch

AT-107

2. A/T fluid level and state

AT-51

3. A/T position

AT-218

4. Control valve with TCM

AT-225

OFF vehicle

5. Input clutch

AT-282

6. Gear system

AT-253

7. Direct clutch

AT-294

8. Reverse brake

AT-261

9. Forward one-way clutch (Parts behind drum support is
impossible to perform inspection by disassembly. Refer to

AT-17, "Cross-Sectional View"

 .

AT-249

10. Low coast brake (Parts behind drum support is impossi-
ble to perform inspection by disassembly. Refer to

AT-17,

"Cross-Sectional View"

 .

AT-249

No.

Items

Symptom

Condition

Diagnostic Item

Reference

page

TROUBLE DIAGNOSIS

AT-83

D

E

F

G

H

I

J

K

L

M

A

B

AT

68

Others

Engine does not start
in “N” or “P” position.
Refer to

AT-183,

"Engine Cannot Be
Started In “P” or “N”
Position"

 .

ON vehicle

1. Ignition switch and starter

PG-2

SC-

9

2. A/T position

AT-218

3. PNP switch

AT-107

69

Engine starts in posi-
tions other than “N” or
“P”.

ON vehicle

1. Ignition switch and starter

PG-2

SC-

9

2. A/T position

AT-218

3. PNP switch

AT-107

70

Engine stall.

ON vehicle

1. A/T fluid level and state

AT-51

2. Engine speed signal

AT-118

3. Turbine revolution sensor

AT-111

4. Torque converter clutch solenoid valve

AT-120

5. CAN communication line

AT-99

6. Control valve with TCM

AT-225

OFF vehicle

7. Torque converter

AT-261

71

Engine stalls when
selector lever shifted
“N”

 “D”or “R”.

ON vehicle

1. A/T fluid level and state

AT-51

2. Engine speed signal

AT-118

3. Turbine revolution sensor

AT-111

4. Torque converter clutch solenoid valve

AT-120

5. CAN communication line

AT-99

6. Control valve with TCM

AT-225

OFF vehicle

7. Torque converter

AT-261

72

Engine speed does
not return to idle.
Refer to

AT-205,

"Engine Speed Does
Not Return to Idle"

 .

ON vehicle

1. A/T fluid level and state

AT-51

2. ATF pressure switch 5 and direct clutch solenoid valve

AT-169

AT-149



3. ATF pressure switch 1 and front brake solenoid valve

AT-165

AT-145

4. Accelerator pedal position sensor

AT-126

5. Vehicle speed sensor·A/T and vehicle speed sensor·MTR

AT-113

AT-134

6. CAN communication line

AT-99

7. Control valve with TCM

AT-225

OFF vehicle

8. Front brake (brake band)

AT-261

9. Direct clutch

AT-294

No.

Items

Symptom

Condition

Diagnostic Item

Reference

page

AT-84

TROUBLE DIAGNOSIS

TCM Input/Output Signal Reference Values

NCS000UL

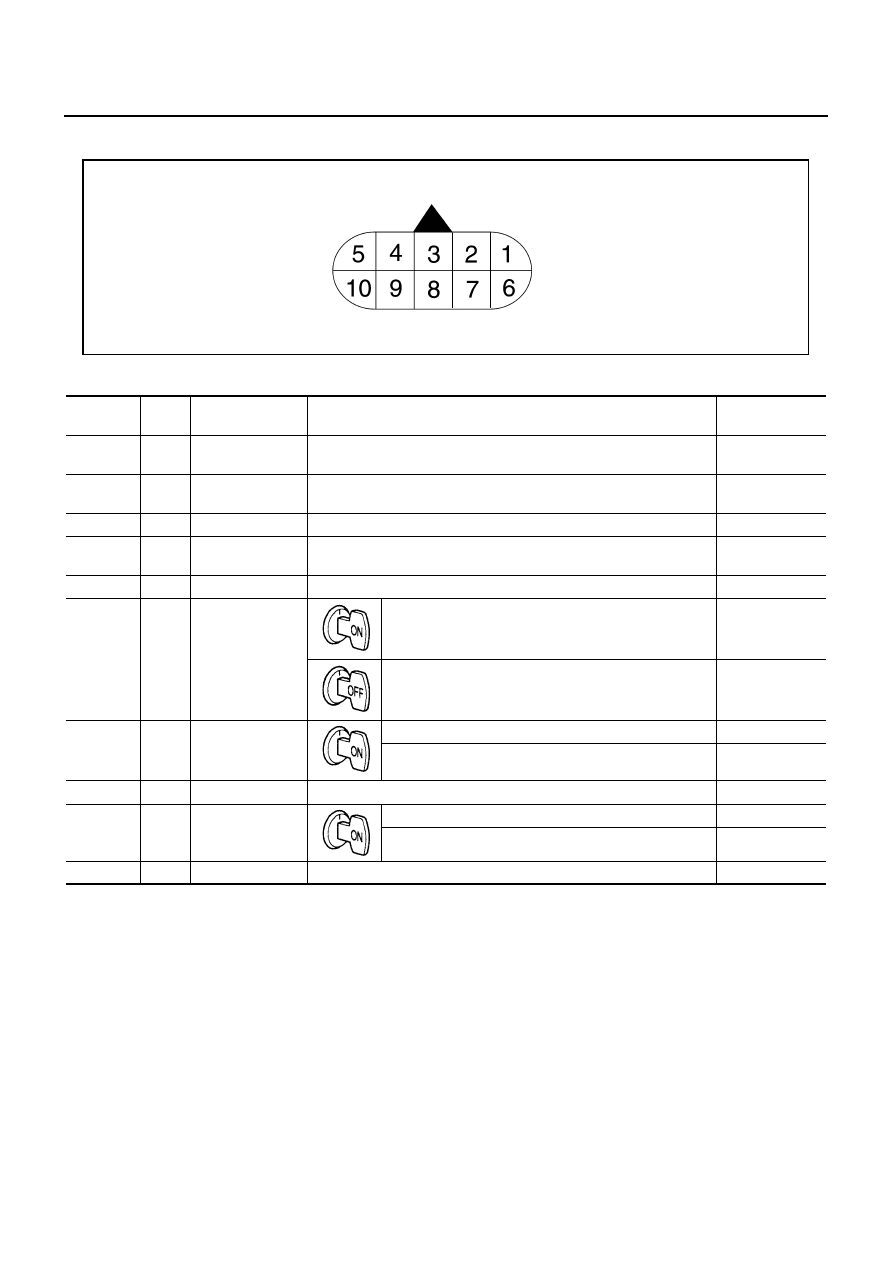

A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE

Data are reference value and are measured between each terminal and ground.

SCIA1658E

Terminal

Wire

color

Item

Condition

Data (Approx.)

1

W/B

Power supply
(Memory back-up)

Always

Battery voltage

2

W/B

Power supply
(Memory back-up)

Always

Battery voltage

3

L

CAN-H

4

PU

K-line (CONSULT-
II signal)

The terminal is connected to the data link connector for CONSULT-II.

5

B

Ground

Always

0 V

6

G/R

Power supply

Battery voltage

0 V

7

R

Back-up lamp
relay

Selector lever in “R” position.

0 V

Selector lever in other positions.

Battery voltage

8

P

CAN-L

9

B/W

Park/neutral posi-
tion relay

Selector lever in “N”, “P” positions.

Battery voltage

Selector lever in other positions.

0 V

10

B

Ground

Always

0 V
