Infiniti Q45 (FY33). Manual - part 526





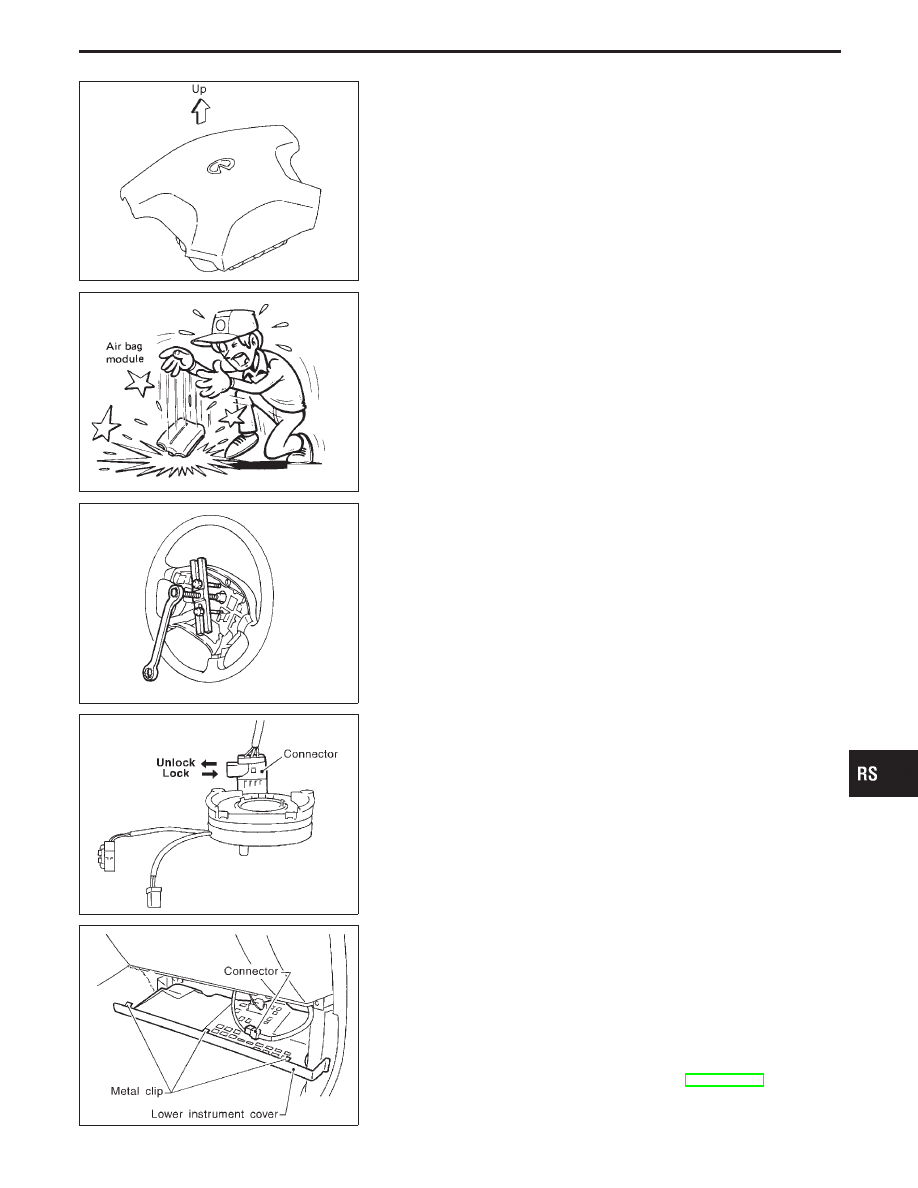

SRS226

CAUTION:

I

Always place air bag module with pad side facing upward.

I

Do not attempt to disassemble air bag module.

I

The special bolts are coated with bonding agent. Do not
use old bolts after removal; replace with new ones.

I

Do not insert any foreign objects (screwdriver, etc.) into
air bag module connector.

SBF814E

I

Replace air bag module if it has been dropped or sus-
tained an impact.

I

Do not expose the air bag module to temperatures exceed-
ing 90°C (194°F).

I

Do not allow oil, grease or water to come in contact with
the air bag module.

SBF239F

4.

Set steering wheel in the neutral position.

5.

Disconnect horn connector and remove nuts.

6.

Remove dynamic damper. Then using steering wheel puller,
remove steering wheel. Be careful not to over-tighten puller
bolt on steering wheel.

CAUTION:

I

Do not tap or bump the steering wheel.

7.

Remove steering column cover.

SRS384

8.

Unlock the spiral cable connector. Then disconnect connector
and remove the four screws. The spiral cable can then be
removed.

CAUTION:

I

Do not attempt to disassemble spiral cable.

I

Do not apply lubricant to the spiral cable.

SRS227

Removal — Front Passenger Air Bag Module

CAUTION:

I

Before servicing SRS, turn the ignition switch off, discon-
nect both battery cables and wait at least 3 minutes.

I

Always work from the side of or under air bag module.

1.

Remove lower instrument cover.

2.

Remove connector bracket from air bag module and discon-
nect inflator connector from body harness air bag connector.

3.

Remove glove box assembly. Refer to BT section, “INSTRU-
MENT PANEL” for details.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

BT

HA

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Removal — Driver Air Bag Module and Spiral
Cable (Cont’d)

RS-19

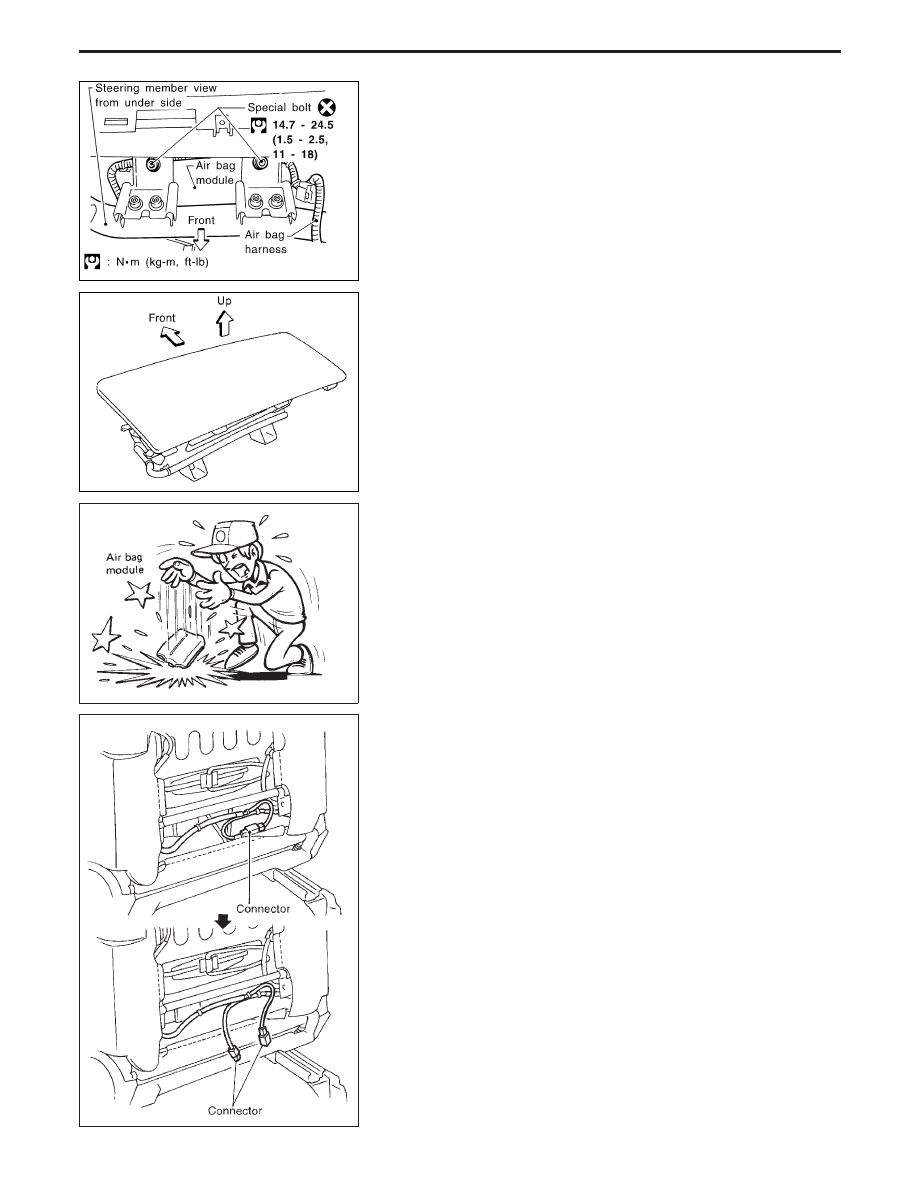

SRS228-A

4.

Remove special bolts from air bag module using TAMPER
RESISTANT TORX (Size T50).

5.

Remove mounting bolts from back of instrument assembly.

6.

Move air bag module upward, and remove it from instrument
assembly.

I

The air bag module is heavy and should be supported using
both hands during removal.

SRS229

CAUTION:

I

Always place air bag module with pad side facing upward.

I

Do not attempt to disassemble air bag module.

I

The special bolts are coated with bonding agent. Do not
use old bolts after removal; replace with new coated bolts.

I

Do not insert any foreign objects (screwdriver, etc.) into
air bag module connector.

SBF814E

I

Replace air bag module if it has been dropped or sus-
tained an impact.

I

Do not expose the air bag module to temperatures exceed-
ing 90°C (194°F).

I

Do not allow oil, grease or water to come in contact with
the air bag module.

I

After air bag inflates, the front instrument panel assembly
should be replaced if damaged.

SRS325

Removal — Side Air Bag Module (Built-in type)

CAUTION:

I

Before servicing SRS, turn the ignition switch off, discon-
nect both battery cables and wait at least 3 minutes.

I

Always work from the rear of air bag module.

1.

Remove seat back board.

I

When using a clip removal tool to remove the seat back
board, take care not to damage the air bag harness.

2.

Disconnect side air bag module connector.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Removal — Front Passenger Air Bag Module
(Cont’d)

RS-20

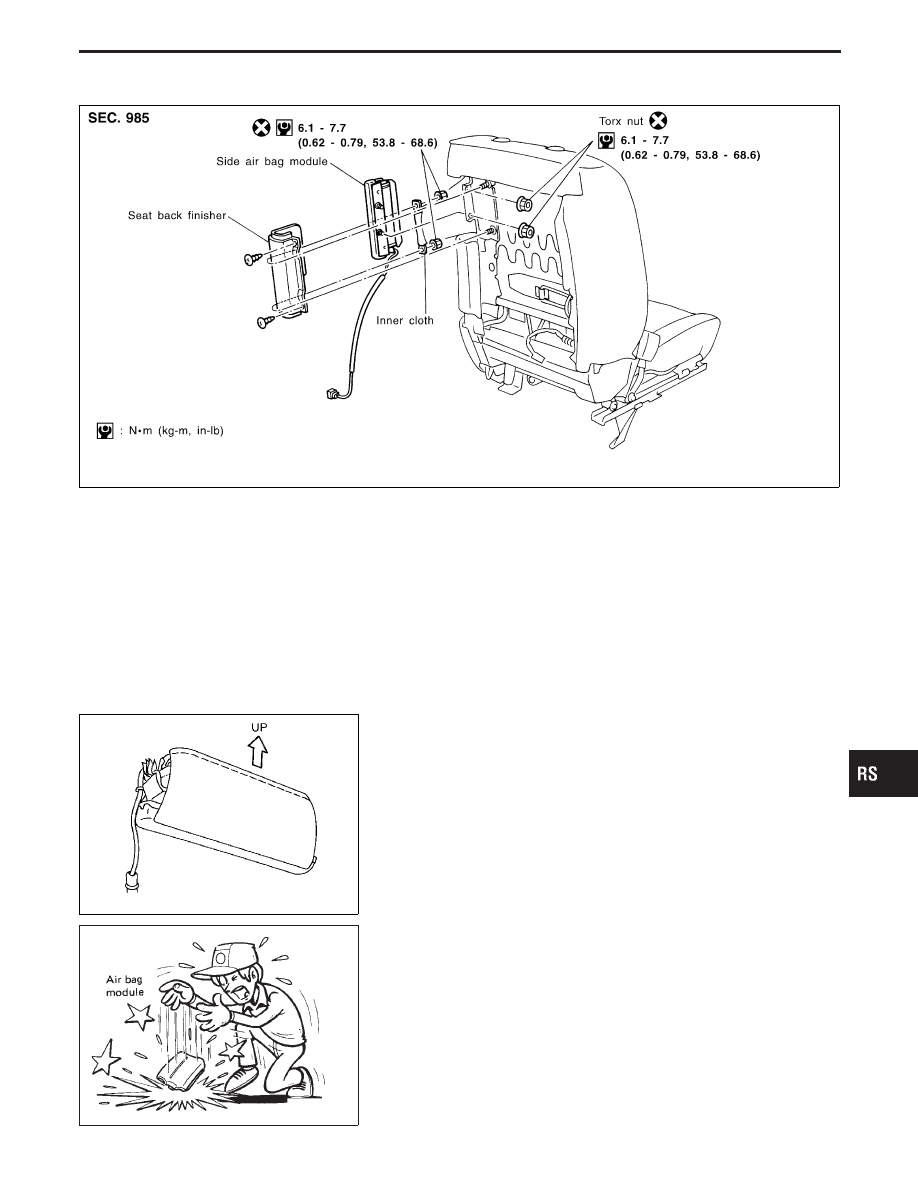

SRS809

3.

Pull up the seat back trim.

4.

Remove the nuts securing the inner cloth which covers side air
bag module. Then pull up the inner cloth.

5.

Remove the screws securing the seat back finisher. Then
remove the seat back finisher.

6.

Remove the torx nuts coated with bonding agent from side air
bag module.

7.

Remove harness clips. Side air bag module can then be
removed.

SRS573

CAUTION:

I

Always place the air bag module with the stud bolt side
facing down.

I

Do not attempt to disassemble air bag module.

I

The torx nuts are coated with bonding agent. Do not use
old nuts after removal; replace with new coated nuts.

I

Do not insert any foreign objects (screwdriver, etc.) into
air bag module connector.

SBF814E

I

Replace air bag module if it has been dropped or sus-
tained an impact.

I

Do not expose the air bag module to temperatures exceed-
ing 90°C (194°F).

I

Do not allow oil, grease or water to come in contact with
the air bag module.

I

After air bag inflates, all parts of front seat back (includ-
ing front seat back frame) should be replaced.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

BT

HA

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Removal — Side Air Bag Module (Built-in type)
(Cont’d)

RS-21

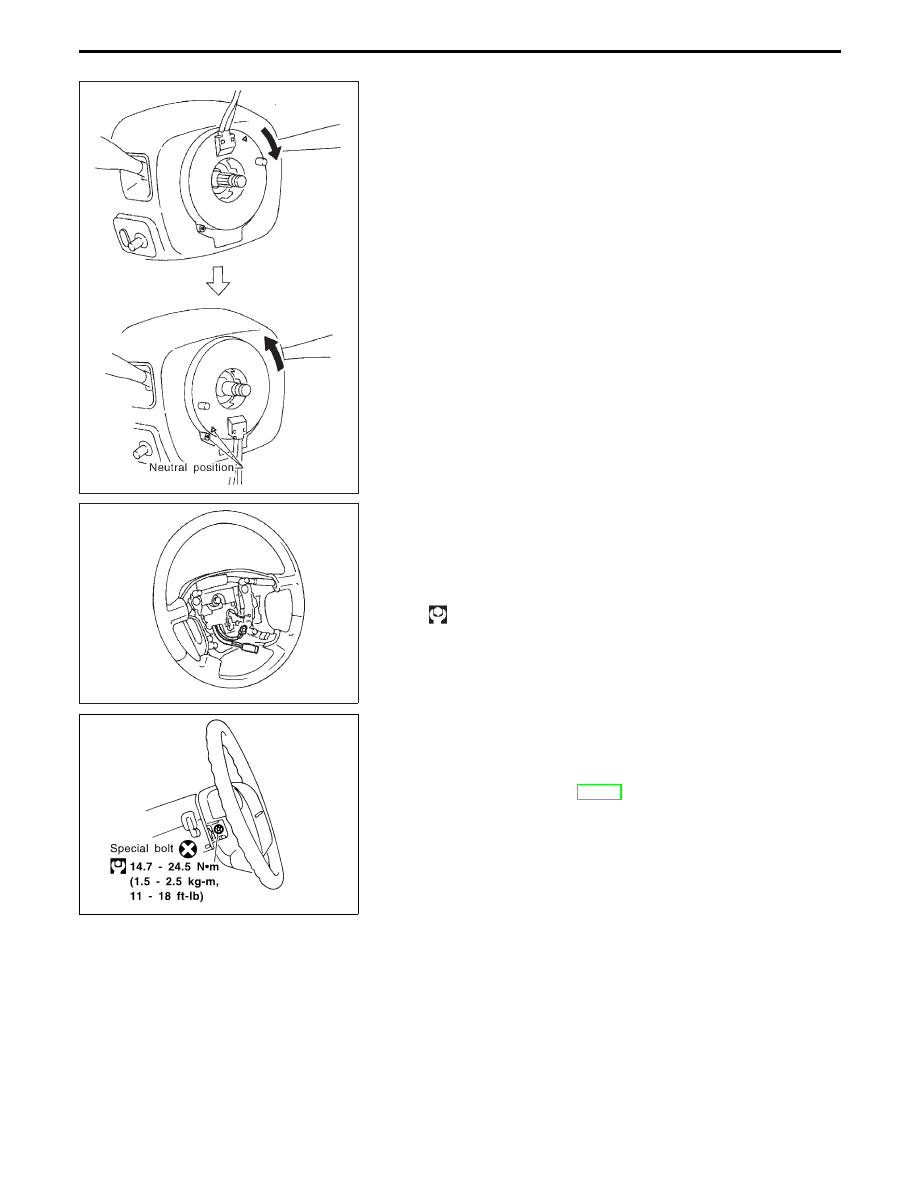

SRS358

Installation — Driver Air Bag Module and Spiral
Cable

1.

Set the front wheels in the straight-ahead position.

2.

Make sure that the spiral cable is in the neutral position.
The neutral position is detected by turning left about 2.5 revo-
lutions from the right end position. Align the two marks (

h

G

).

CAUTION:

I

The spiral cable may snap due to steering operation if the
cable is installed in an improper position.
Also, with the steering linkage disconnected, the cable
may snap by turning the steering wheel beyond the limited
number of turns.
The spiral cable can be turned up to about 2.5 turns from
the neutral position to both the right and left.

3.

Connect and lock spiral cable connector and tighten with
screws. Install steering column cover.

SRS231

4.

Install steering, wheel setting spiral cable pin guide, and pull
spiral cable through.

5.

Connect horn connector and engage spiral cable with pawls in
steering wheel. Move air bag module connector away from
steering wheel lower lid opening.

6.

Tighten nut.

: 29.4 - 39.2 N

m (3.0 - 4.0 kg-m, 22 - 28 ft-lb)

7.

Install dynamic damper.

SBF812EH

8.

Position air bag module and tighten with new special bolts.

I

Always service the air bag module from the side.

9.

Connect air bag module connector.

10. Install steering switches and lid.
11. Go to “Self-diagnosis”, RS-38 and perform self-diagnosis to

ensure entire SRS operates properly. (Use CONSULT-II or
warning lamp check.)
Before performing self-diagnosis, connect both battery cables.

12. Turn steering wheel to the left end and then to the right end

fully to make sure that spiral cable is set in the neutral posi-
tion.
If air bag warning lamp blinks or stays ON (at the User
mode), it shows the spiral cable may be snapped due to its
improper position. Perform self-diagnosis again (use CON-
SULT-II or warning lamp). If a malfunction is detected, replace
the spiral cable with a new one.

13. Perform self-diagnosis again to check that no malfunction is

detected.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

RS-22
