REAR AXLE &

REAR SUSPENSION

SECTION

RA

CONTENTS

PRECAUTIONS AND PREPARATION............................2

Precautions ..................................................................2
Special Service Tools ..................................................2
Commercial Service Tools ...........................................3

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING
.....................................................4

NVH Troubleshooting Chart.........................................4

REAR SUSPENSION SYSTEM.......................................5
ON-VEHICLE SERVICE ..................................................6

Rear Axle and Rear Suspension Parts .......................6
Rear Wheel Bearing ....................................................7
Rear Wheel Alignment.................................................7

Drive Shaft ...................................................................8

REAR AXLE.....................................................................9

Wheel Hub and Axle Housing .....................................9
Drive Shaft .................................................................15

REAR SUSPENSION.....................................................19

Removal and Installation ...........................................20
Coil Spring and Shock Absorber ...............................21
Multi-link and Lower Ball Joint...................................22
Stabilizer Bar .............................................................25

SERVICE DATA AND SPECIFICATIONS (SDS) ..........26

General Specifications...............................................26
Inspection and Adjustment ........................................26

GI

MA

EM

LC

EC

FE

AT

PD

FA

BR

ST

RS

BT

HA

EL

IDX

SBR686C

Precautions

I

When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*

Fuel, radiator coolant and engine oil full. Spare tire,
jack, hand tools and mats in designated positions.

I

Use flare nut wrench when removing or installing brake
lines.

I

After installing removed suspension parts, check wheel
alignment and adjust if necessary.

I

Always torque brake lines when installing.

I

Do not jack up at the lower arm.

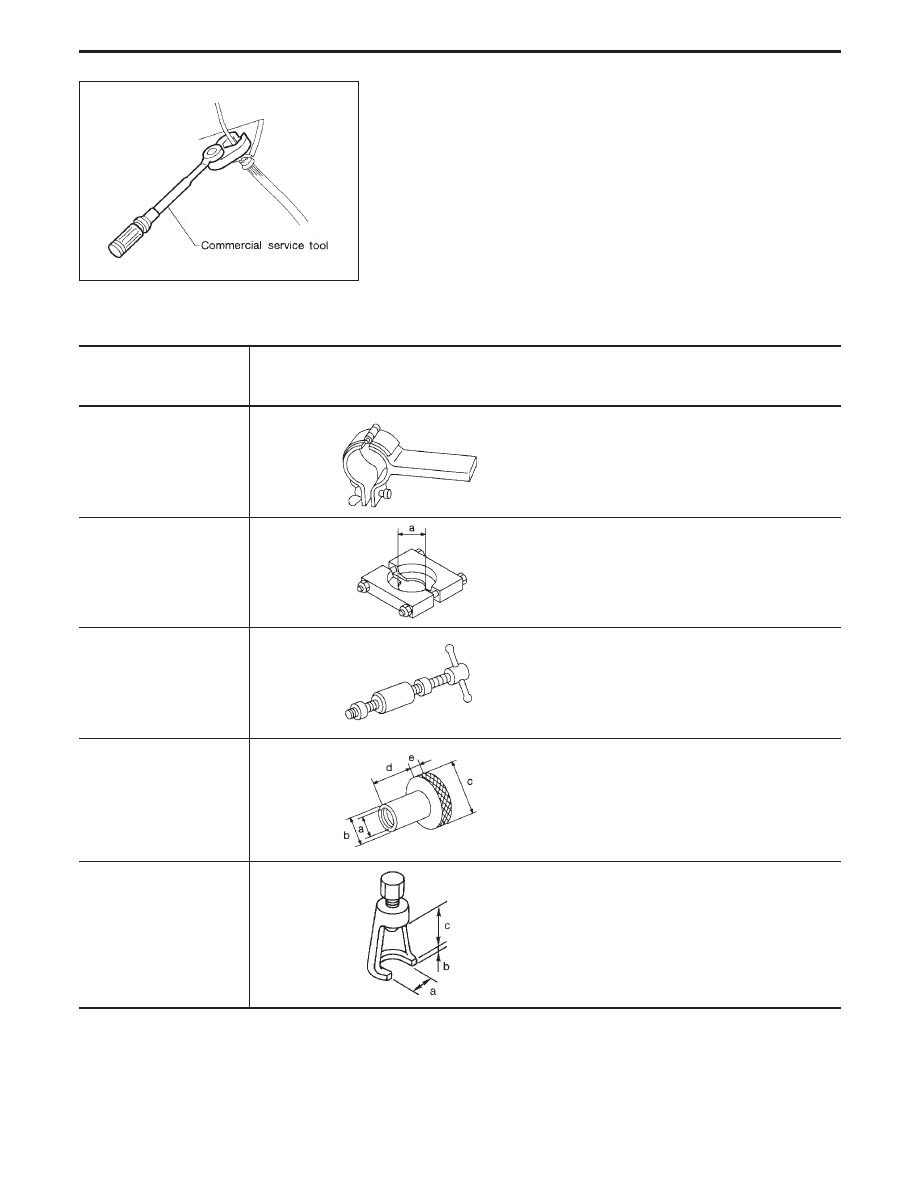

Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST35652000
(

)

Shock absorber
attachment

NT145

Fixing strut assembly

ST30031000
(J22912-01)
Bearing puller

NT412

Removing inner race of wheel bearing

a: 50 mm (1.97 in) dia.

ST38280000
(

)

Arm bushing remover

NT157

Removing and installing rear axle
housing bushing

IM23600800
(

)

Attachment

NT148

Measure rear wheel alignment

a: Screw M24 x 1.5

b: 35 mm (1.38 in) dia.

c: 65 mm (2.56 in) dia.

d: 56 mm (2.20 in)

e: 12 mm (0.47 in)

ST29020001
(24319-01)
Pitman arm puller

NT694

Removing lower ball joint

a: 34 mm (1.34 in)

b: 6.5 mm (0.256 in)

c: 61.5 mm (2.421 in)

PRECAUTIONS AND PREPARATION

RA-2

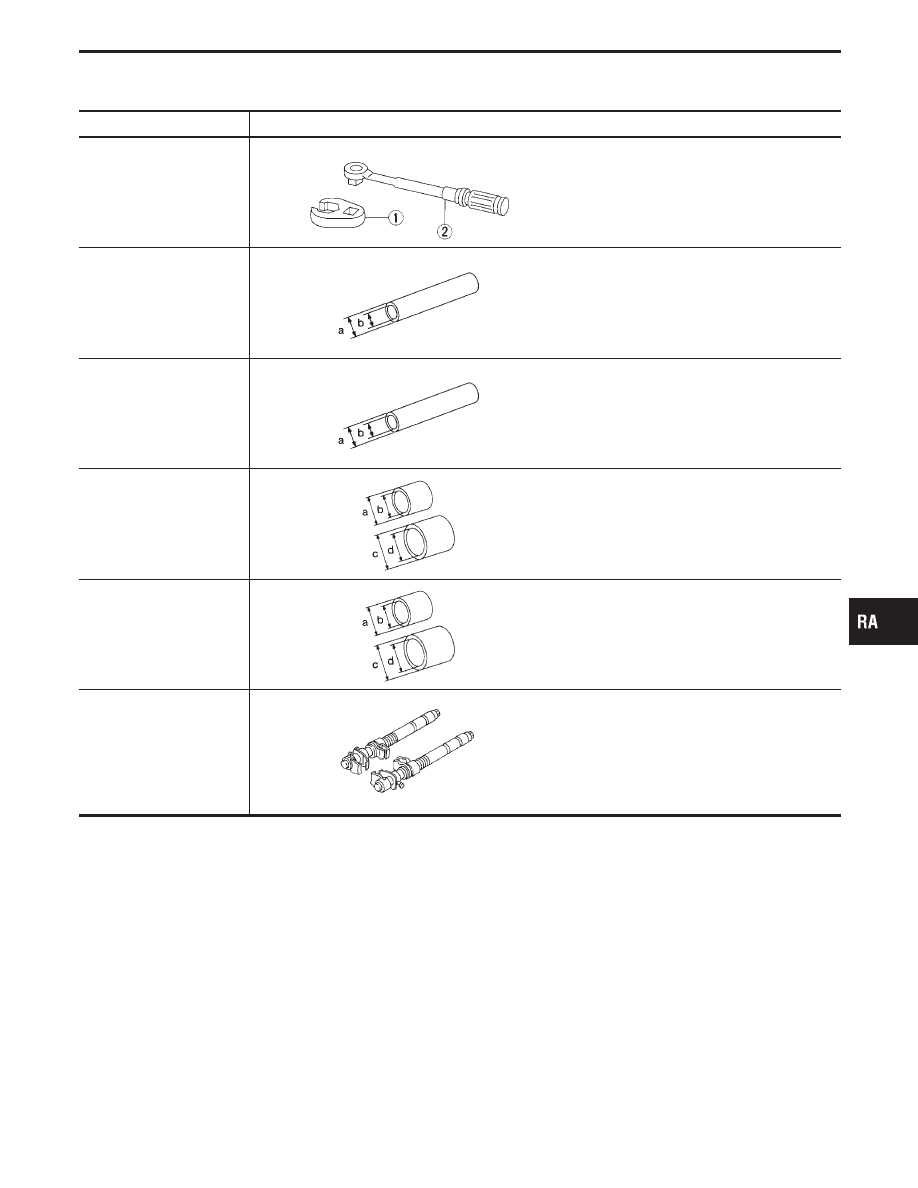

Commercial Service Tools

Tool name

Description

q

1

Flare nut crowfoot

q

2

Torque wrench

NT223

Removing and installing each brake piping

Rear wheel bearing
drift

NT065

Installing wheel bearing

a: 76 mm (2.99 in) dia.

b: 68.5 mm (2.697 in) dia.

Rear drive shaft plug
seal drift

NT065

Installing rear drive shaft plug seal

a: 78 mm (3.07 in) dia.

b: 72 mm (2.83 in) dia.

Rear axle housing ball
joint drift

NT164

Removing ball joint

a: 28 mm (1.10 in) dia.

b: 20 mm (0.79 in) dia.

c: 43 mm (1.69 in) dia.

d: 40 mm (1.57 in) dia.

Rear axle housing ball
joint drift

NT164

Installing ball joint

a: 43 mm (1.69 in) dia.

b: 33 mm (1.30 in) dia.

c: 40 mm (1.57 in) dia.

d: 30 mm (1.18 in) dia.

Spring compressor

NT717

Removing and installing coil spring

GI

MA

EM

LC

EC

FE

AT

PD

FA

BR

ST

RS

BT

HA

EL

IDX

PRECAUTIONS AND PREPARATION

RA-3

NVH Troubleshooting Chart

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

Reference page

RA-17

RA-6

RA-21

RA-5,

19

RA-7

RA-25

RA-9

NVH

in

PD

section

NVH

in

PD

section

NVH

in

F

A

section

Refer

to

REAR

AXLE

AND

REAR

SUSPENSION

in

this

chart.

NVH

in

F

A

section

NVH

in

F

A

section

Refer

to

DRIVE

SHAFT

in

this

chart.

NVH

in

BR

section

NVH

in

ST

section

Possible cause and
SUSPECTED PARTS

Excessive

joint

angle

Joint

sliding

resistance

Imbalance

Improper

installation,

looseness

Shock

absorber

deformation,

damage

or

deflection

Bushing

or

mounting

deterioration

Parts

interference

Spring

fatigue

Suspension

looseness

Incorrect

wheel

alignment

Stabilizer

bar

fatigue

Wheel

bearing

damage

PROPELLER

SHAFT

DIFFERENTIAL

FRONT

AXLE

AND

FRONT

SUSPENSION

REAR

AXLE

AND

REAR

SUSPENSION

TIRES

ROAD

WHEEL

DRIVE

SHAFT

BRAKES

STEERING

Symptom

DRIVE
SHAFT

Noise, Vibration

X

X

X

X

X

X

X

X

X

X

Shake

X

X

X

X

X

X

X

X

X

REAR
AXLE AND
REAR
SUSPEN-
SION

Noise

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Shake

X

X

X

X

X

X

X

X

X

X

X

X

Vibration

X

X

X

X

X

X

X

X

X

X

Shimmy

X

X

X

X

X

X

X

X

X

X

Judder

X

X

X

X

X

X

X

X

Poor quality ride or handling

X

X

X

X

X

X

X

X

X

X

X

X: Applicable

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

RA-4
