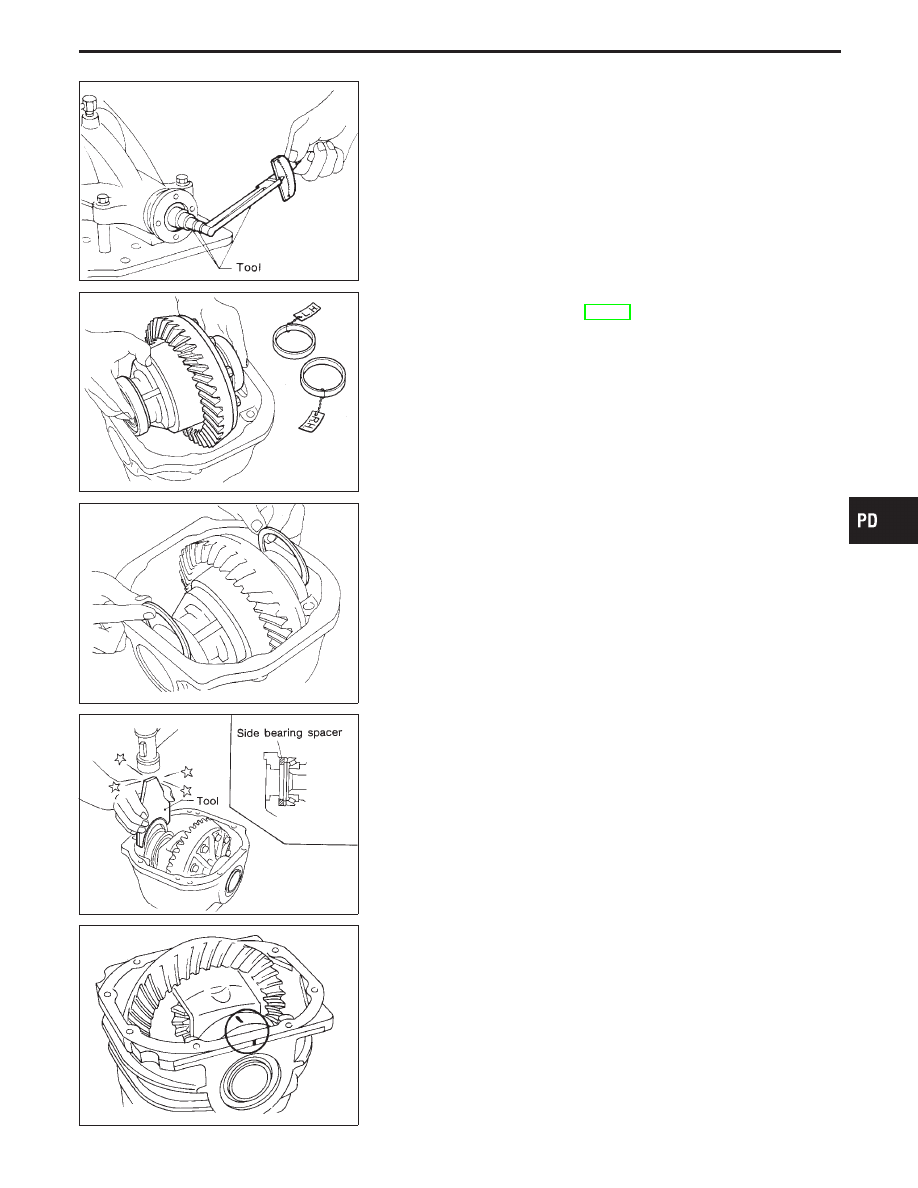

11. Turn drive pinion in both directions several times, and measure

pinion bearing preload.

Tool number: ST3127S000 (See J25765-A)
Pinion bearing preload:

1.1 - 1.4 N

⋅

m (11 - 14 kg-cm, 9.5 - 12.2 in-lb)

When pinion bearing preload is outside specifications,
replacement is required for pinion bearing adjusting washer
and spacer. Replace with those of different thickness.

SPD919

12. Select side bearing adjusting washer.

Refer to ADJUSTMENT (PD-20).

13. Install differential case assembly with side bearing outer races

into gear carrier.

SPD924

14. Insert left and right side bearing adjusting washers in place

between side bearings and carrier.

SPD559

15. Drive in side bearing spacer with Tool.

Tool number: KV38100600 (J25267)
Spacer location:

Right side

SPD889

16. Align mark on bearing cap with that on gear carrier and install

bearing cap on gear carrier.

IDX

ASSEMBLY

PD-29

SPD560

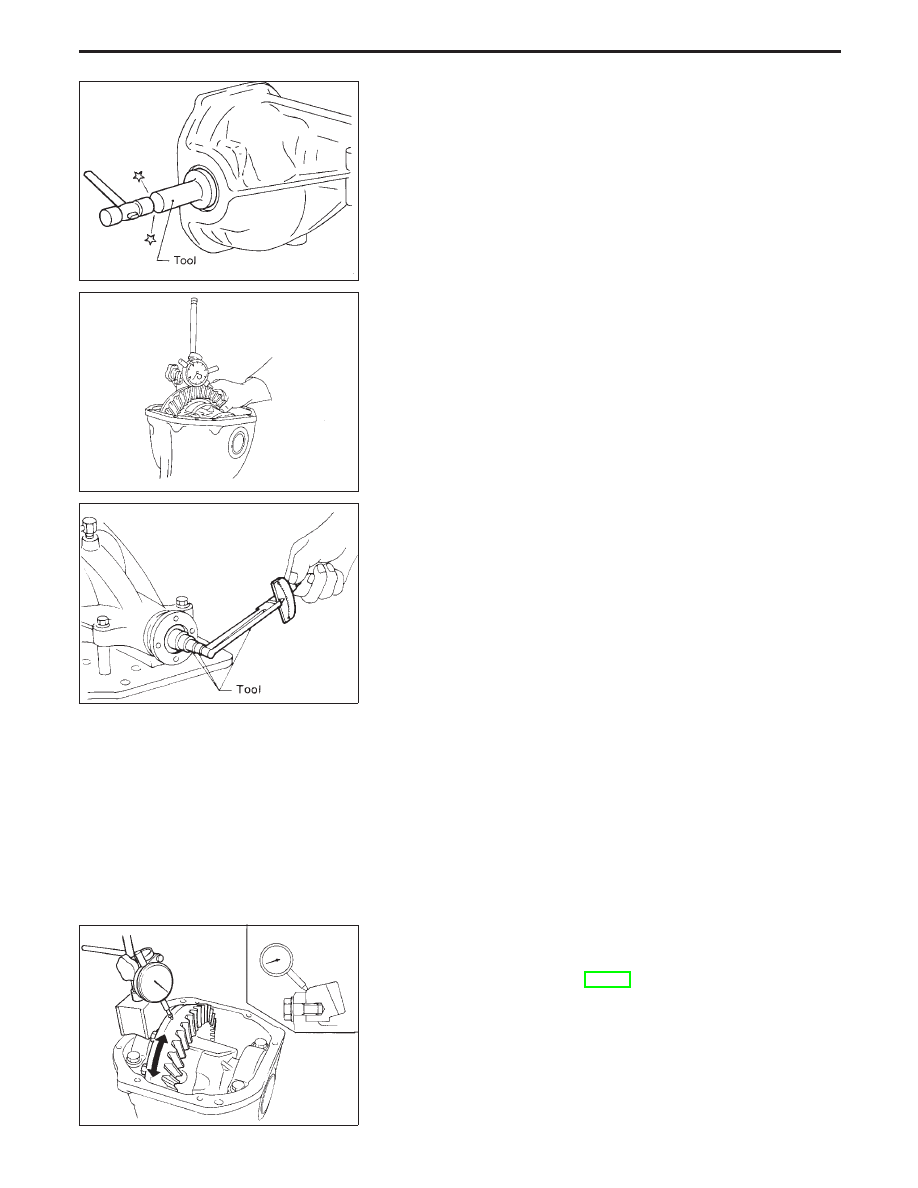

17. Install side oil seal.

Tool number: KV38100200 (J26233)

SPD513

18. Measure ring gear-to-drive pinion backlash with a dial indica-

tor.

Ring gear backlash:

0.10 - 0.15 mm (0.0039 - 0.0059 in)

It backlash is too small, adjustment of shim thickness is
required. Decrease thickness of left shim and increase thick-
ness of right shim by the same amount.
If backlash is too great, reverse the above procedure.

Never change the total amount of shims as it will change the
bearing preload.

SPD884

19. Check total preload with Tool.

Tool number: ST3127S000 (See J25765-A)

When checking preload, turn drive pinion in both directions
several times to seat bearing rollers correctly.

Total preload:

1.4 - 2.8 N

⋅

m (14 - 29 kg-cm, 12 - 25 in-lb)

If preload is too great, remove the same amount of shim to
each side.

If preload is too small, add the same amount of shim to each
side.

Never add or remove a different number of shims for each
side. Difference in number of shims will change ring gear to
drive pinion backlash.
20. Recheck ring gear to drive pinion backlash. Increase or

decrease in thickness of shims will cause change to ring gear
to pinion backlash.

Check whether the backlash varies excessively in different
places. Foreign matter may be caught between the ring gear
and the differential case causing the trouble.

The backlash can vary greatly even when the ring gear runout
is within a specified range. In that case, replace the hypoid
gear set or differential case.

SPD524

21. Check runout of ring gear with a dial indicator.

Runout limit: 0.05 mm (0.0020 in)

22. Check tooth contact.

Refer to ADJUSTMENT (PD-26).

23. Install rear cover and gasket.

ASSEMBLY

PD-30

Propeller Shaft

GENERAL SPECIFICATIONS

Unit: mm (in)

Propeller shaft model

3S80A-R

Number of joints

Coupling method with
transmission

Sleeve type

Type of journal bearings

Shell type

(Non-disassembly type)

Shaft length (Spider to spider)

1st

680 (26.77)

2nd

658 (25.91)

Shaft outer diameter

1st

82.6 (3.252)

2nd

65 (2.56)

SPECIFICATIONS AND ADJUSTMENT

Unit: mm (in)

Propeller shaft runout limit

0.6 (0.024)

Journal axial play

0 (0)

Final Drive

GENERAL SPECIFICATIONS

Final drive model

R200V

Ring gear pitch diameter

mm (in)

205 (8.07)

Gear ratio

3.692

Number of teeth
(Ring gear/Drive pinion)

48/13

Oil capacity (approx.)

(US pt, Imp pt)

1.3 (2-3/4, 2-1/4)

Number of pinion gears

Side gear bearing spacer location

Right

INSPECTION AND ADJUSTMENT
Ring gear runout

Ring gear runout limit

mm (in)

0.05 (0.0020)

Side gear adjustment

Clearance between side
gear and differential case

mm (in)

0.03 - 0.09

(0.0012 - 0.0035)

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

PD-31

Available side gear thrust washers

Thickness

mm (in)

Part number

0.80 (0.0315)

38424-40F60

0.83 (0.0327)

38424-40F61

0.86 (0.0339)

38424-40F62

0.89 (0.0350)

38424-40F63

0.92 (0.0362)

38424-40F64

0.95 (0.0374)

38424-40F65

0.98 (0.0386)

38424-40F66

1.01 (0.0398)

38424-40F67

1.04 (0.0409)

38424-40F68

1.07 (0.0421)

38424-40F69

1.10 (0.0433)

38424-40F70

1.13 (0.0445)

38424-40F71

1.16 (0.0457)

38424-40F72

1.19 (0.0469)

38424-40F73

1.22 (0.0480)

38424-40F74

1.25 (0.0492)

38424-40F75

1.28 (0.0504)

38424-40F76

1.31 (0.0516)

38424-40F77

1.34 (0.0528)

38424-40F78

1.37 (0.0539)

38424-40F79

1.40 (0.0551)

38424-40F80

1.43 (0.0563)

38424-40F81

1.46 (0.0575)

38424-40F82

1.49 (0.0587)

38424-40F83

*: Always check with the Parts Department for the latest parts informa-

tion.

Drive pinion height adjustment

Available pinion height adjusting washers

Thickness

mm (in)

Part number

3.09 (0.1217)

38154-P6017

3.12 (0.1228)

38154-P6018

3.15 (0.1240)

38154-P6019

3.18 (0.1252)

38154-P6020

3.21 (0.1264)

38154-P6021

3.24 (0.1276)

38154-P6022

3.27 (0.1287)

38154-P6023

3.30 (0.1299)

38154-P6024

3.33 (0.1311)

38154-P6025

3.36 (0.1323)

38154-P6026

3.39 (0.1335)

38154-P6027

3.42 (0.1346)

38154-P6028

3.45 (0.1358)

38154-P6029

3.48 (0.1370)

38154-P6030

3.51 (0.1382)

38154-P6031

3.54 (0.1394)

38154-P6032

3.57 (0.1406)

38154-P6033

3.60 (0.1417)

38154-P6034

3.63 (0.1429)

38154-P6035

3.66 (0.1441)

38154-P6036

*: Always check with the Parts Department for the latest parts informa-

tion.

Drive pinion preload adjustment

Drive pinion bearing
adjusting method

Pinion bearing adjusting

washer and spacer

Drive pinion preload with
front oil seal

⋅

m (kg-cm, in-lb)

1.1 - 1.4

(11 - 14, 9.5 - 12.2)

Available drive pinion bearing preload adjusting washers

Thickness

mm (in)

Part number

3.80 - 3.82 (0.1496 - 0.1504)

38125-61001

3.82 - 3.84 (0.1504 - 0.1512)

38126-61001

3.84 - 3.86 (0.1512 - 0.1520)

38127-61001

3.86 - 3.88 (0.1520 - 0.1528)

38128-61001

3.88 - 3.90 (0.1528 - 0.1535)

38129-61001

3.90 - 3.92 (0.1535 - 0.1543)

38130-61001

3.92 - 3.94 (0.1543 - 0.1551)

38131-61001

3.94 - 3.96 (0.1551 - 0.1559)

38132-61001

3.96 - 3.98 (0.1559 - 0.1567)

38133-61001

3.98 - 4.00 (0.1567 - 0.1575)

38134-61001

4.00 - 4.02 (0.1575 - 0.1583)

38135-61001

4.02 - 4.04 (0.1583 - 0.1591)

38136-61001

4.04 - 4.06 (0.1591 - 0.1598)

38137-61001

4.06 - 4.08 (0.1598 - 0.1606)

38138-61001

4.08 - 4.10 (0.1606 - 0.1614)

38139-61001

*: Always check with the Parts Department for the latest parts informa-

tion.

Available drive pinion bearing preload adjusting spacers

Length

mm (in)

Part number

45.60 (1.7953)

38165-10V05

45.90 (1.8071)

38165-10V06

46.20 (1.8189)

38165-10V07

46.50 (1.8307)

38165-10V00

46.80 (1.8425)

38165-10V01

*: Always check with the Parts Department for the latest parts informa-

tion.

Total preload adjustment

Drive pinion to ring gear
backlash

mm (in)

0.10 - 0.15

(0.0039 - 0.0059)

Total preload

⋅

m (kg-cm, in-lb)

1.4 - 2.8

(14 - 29, 12 - 25)

Available side bearing adjusting washers

Thickness

mm (in)

Part number

2.00 (0.0787)

38453-N3100

2.05 (0.0807)

38453-N3101

2.10 (0.0827)

38453-N3102

2.15 (0.0846)

38453-N3103

2.20 (0.0866)

38453-N3104

2.25 (0.0886)

38453-N3105

2.30 (0.0906)

38453-N3106

2.35 (0.0925)

38453-N3107

2.40 (0.0945)

38453-N3108

2.45 (0.0965)

38453-N3109

2.50 (0.0984)

38453-N3110

2.55 (0.1004)

38453-N3111

2.60 (0.1024)

38453-N3112

2.65 (0.1043)

38453-N3113

*: Always check with the Parts Department for the latest parts informa-

tion.

SERVICE DATA AND SPECIFICATIONS (SDS)

Final Drive (Cont’d)

PD-32
