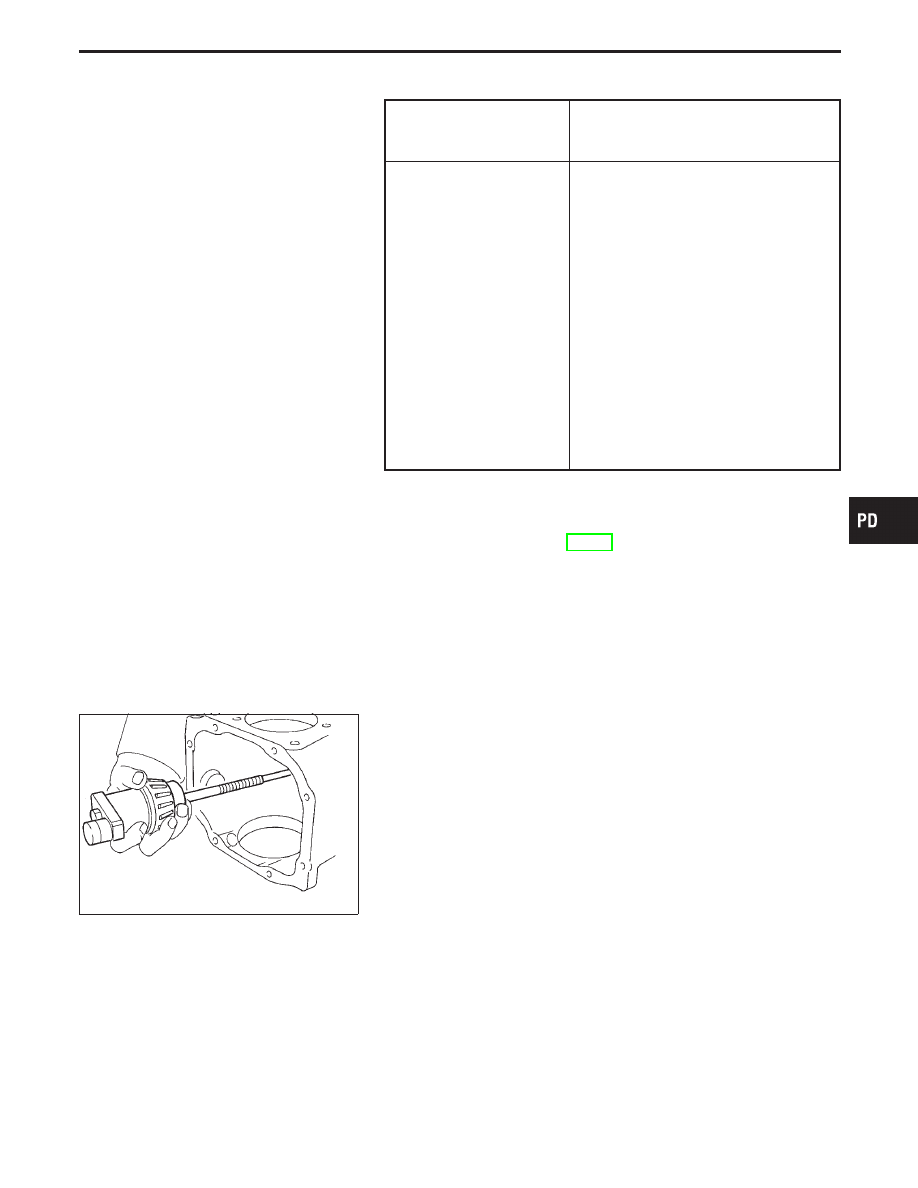

Pinion head height number

Add or remove from the standard
pinion height washer thickness
measurement

− 6

Add 0.06 mm (0.0024 in)

− 5

Add 0.05 mm (0.0020 in)

− 4

Add 0.04 mm (0.0016 in)

− 3

Add 0.03 mm (0.0012 in)

− 2

Add 0.02 mm (0.0008 in)

− 1

Add 0.01 mm (0.0004 in)

0

Use the selected washer thickness

+1

Subtract 0.01 mm (0.0004 in)

+2

Subtract 0.02 mm (0.0008 in)

+3

Subtract 0.03 mm (0.0012 in)

+4

Subtract 0.04 mm (0.0016 in)

+5

Subtract 0.05 mm (0.0020 in)

+6

Subtract 0.06 mm (0.0024 in)

15. Select the correct pinion height washer from the following

chart.

Drive pinion height adjusting washer:

Refer to SDS (PD-32).

SPD205A

16. Remove the J34309 pinion preload shim selector Tool from the

final drive housing. Then disassemble to retrieve the pinion
bearings.

GI

MA

EM

LC

EC

FE

AT

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ADJUSTMENT

Pinion Gear Height and Pinion Bearing Preload
(Cont’d)

PD-25

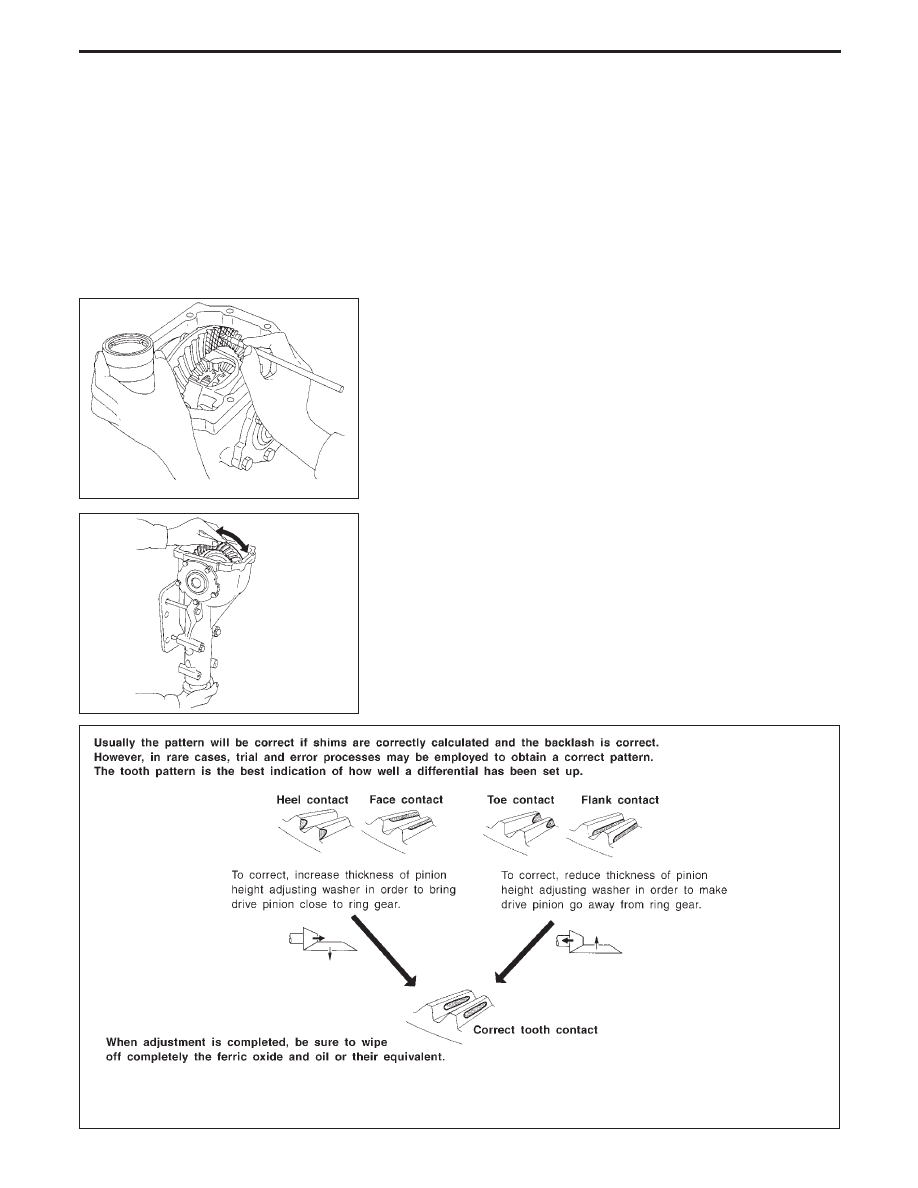

Tooth Contact

Checking gear tooth contact pattern is necessary to verify correct
relationship between ring gear and drive pinion.
Hypoid gears which are not positioned in proper arrangement may
be noisy and/or have a short life. Check gear tooth contact pattern
to obtain the best contact for low noise and long life.

SPD357

1.

Thoroughly clean ring gear and drive pinion teeth.

2.

Lightly apply a mixture of powdered ferric oxide and oil or the
equivalent. Apply it to 3 or 4 teeth of ring gear drive side.

SPD308

3.

Hold companion flange steady by hand and rotate the ring gear
in both directions.

SPD007-B

ADJUSTMENT

PD-26

SPD554

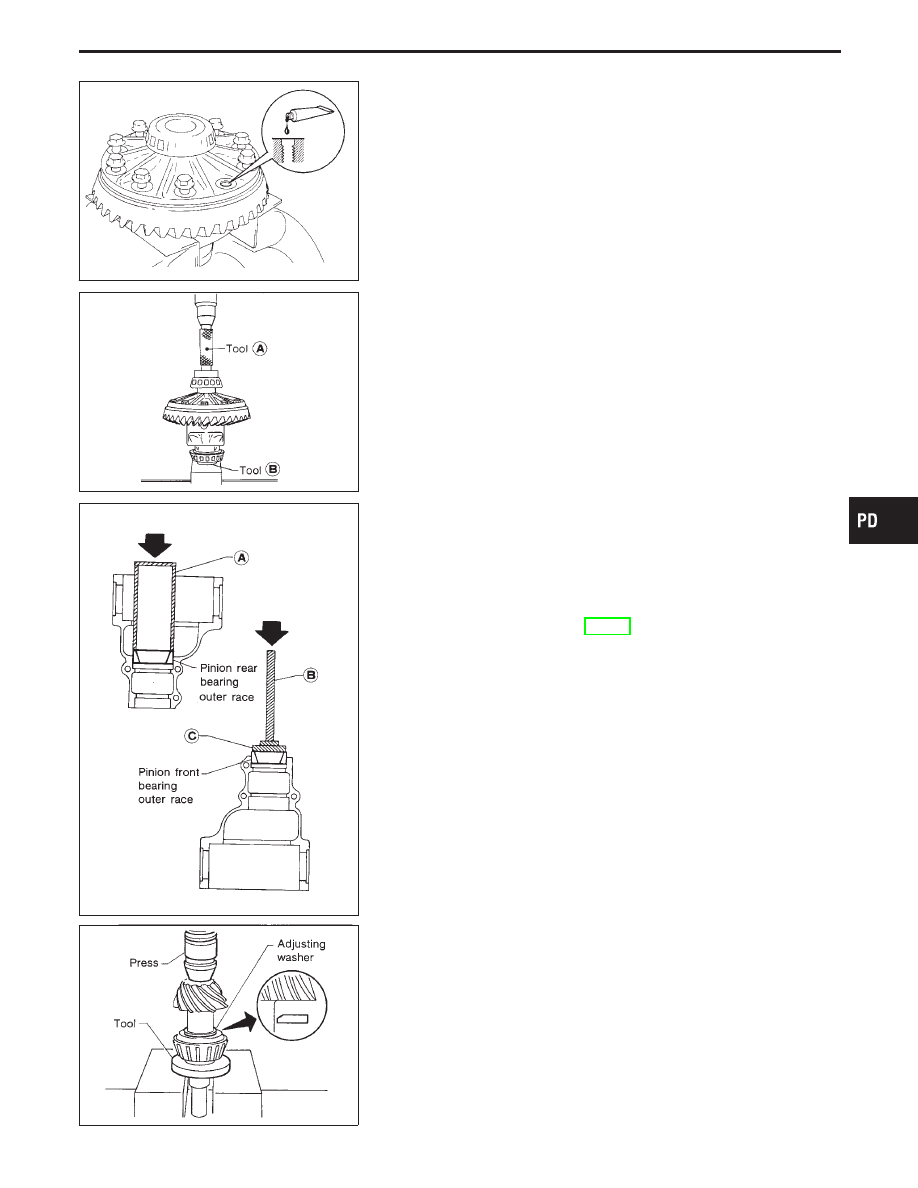

1.

Place differential case on ring gear.

2.

Apply locking sealant to ring gear bolts, and install them.

Tighten bolts in a criss-cross fashion, lightly tapping bolt head
with a hammer.

SPD353

3.

Press-fit side bearing inner cones on differential case with Tool.

Tool number:

q

A

KV38100300 (J25523)

q

B

ST33061000 (J8107-2)

SPD992

4.

Press-fit front and rear bearing outer races with Tools.

Tool number:

q

A

Suitable tool

q

B

ST30611000 (J25742-1)

q

C

ST30613000 (J25742-3)

5.

Select pinion bearing adjusting washer and drive pinion bear-
ing spacer.
Refer to ADJUSTMENT (PD-21).

SPD377

6.

Install selected drive pinion height adjusting washer in drive
pinion. Using press and Tool, press-fit pinion rear bearing inner
cone into it.

Tool number: ST30901000 (

)

GI

MA

EM

LC

EC

FE

AT

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ASSEMBLY

PD-27

SPD581

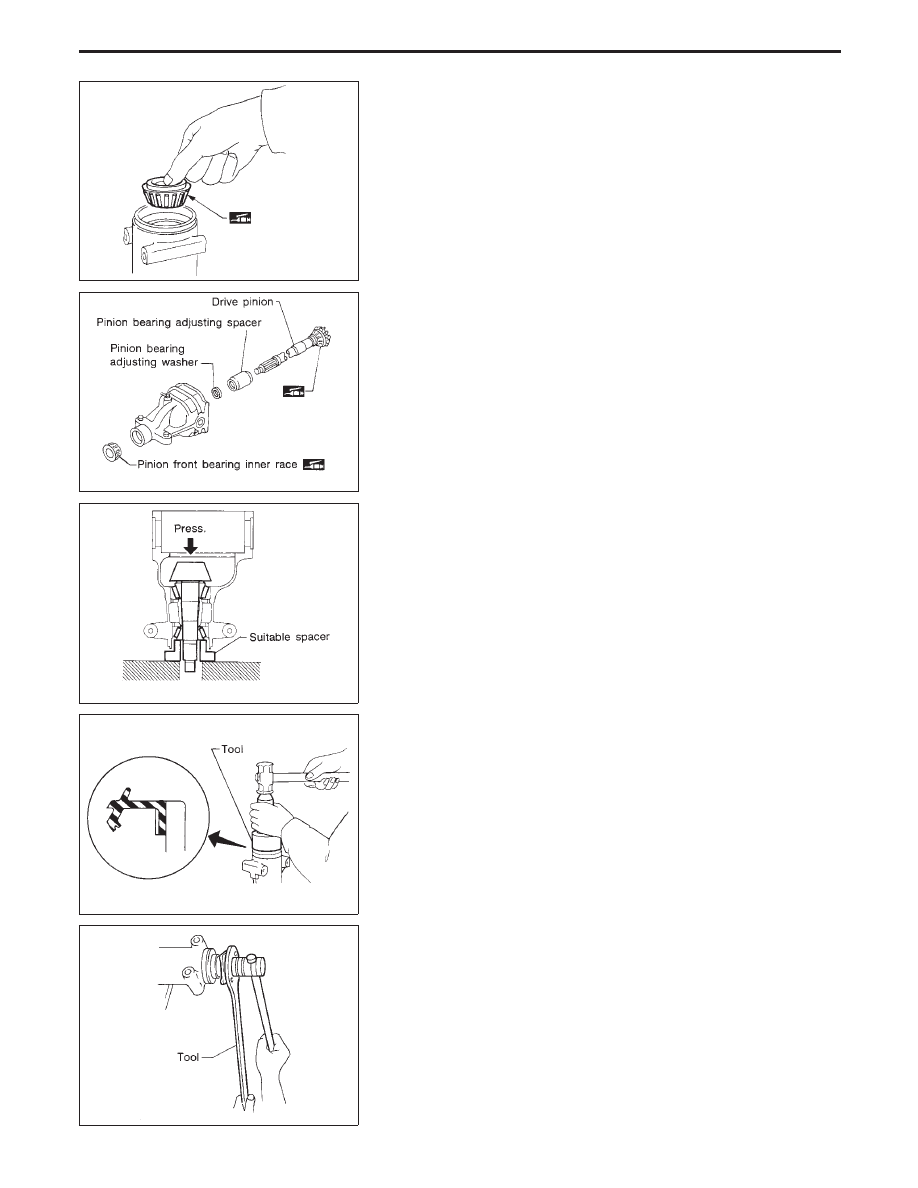

7.

Place pinion front bearing inner cone in final drive housing.

SPD897

8.

Set drive pinion assembly (as shown in figure at left) in differ-
ential carrier and install drive pinion, with press and suitable
tool.

Stop when drive pinion touches bearing.
Apply multi-purpose grease to pinion rear bearing inner race
and pinion front bearing inner race.

SPD896

SPD557

9.

Install front oil seal with Tool.

Tool number: KV38100500 (

)

PD416

10. Install companion flange, and tighten pinion nut to specified

torque with Tool.

Ascertain that threaded portion of drive pinion and pinion nut
are free from oil or grease.

Tool number: KV38104700 (J34311)

ASSEMBLY

PD-28
