Infiniti Q45 (FY33). Manual - part 508





NVH Troubleshooting Chart

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

Reference page

PD-8

PD-6

PD-7

PD-8

PD-18

PD-26

PD-18

PD-14

Refer

to

MA

section.

Refer

to

PROPELLER

SHAFT

in

this

chart.

Refer

to

DIFFERENTIAL

in

this

chart.

Refer

to

F

A

and

RA

sections.

Refer

to

F

A

section.

Refer

to

F

A

section.

Refer

to

RA

section.

Refer

to

BR

section.

Refer

to

ST

section.

Possible cause and
SUSPECTED PARTS

Uneven

rotation

torque

Center

bearing

improper

installation

Excessive

center

bearing

axial

end

play

Center

bearing

mounting

(insulator)

cracks,

damage

or

deterioration

Excessive

joint

angle

Rotation

imbalance

Excessive

runout

Rough

gear

tooth

Improper

gear

contact

T

ooth

surfaces

worn

Incorrect

backlash

Companion

flange

excessive

runout

Improper

gear

oil

PROPELLER

SHAFT

DIFFERENTIAL

AXLE

AND

SUSPENSION

TIRES

ROAD

WHEEL

DRIVE

SHAFT

BRAKES

STEERING

Symptom

PRO-
PELLER
SHAFT

Noise

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Shake

X

X

X

X

X

X

X

X

Vibration

X

X

X

X

X

X

X

X

X

X

X

DIFFER-
ENTIAL

Noise

X

X

X

X

X

X

X

X

X

X

X

X

X

X: Applicable

GI

MA

EM

LC

EC

FE

AT

FA

RA

BR

ST

RS

BT

HA

EL

IDX

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PD-5

SPD377A

SPD053A

On-vehicle Service

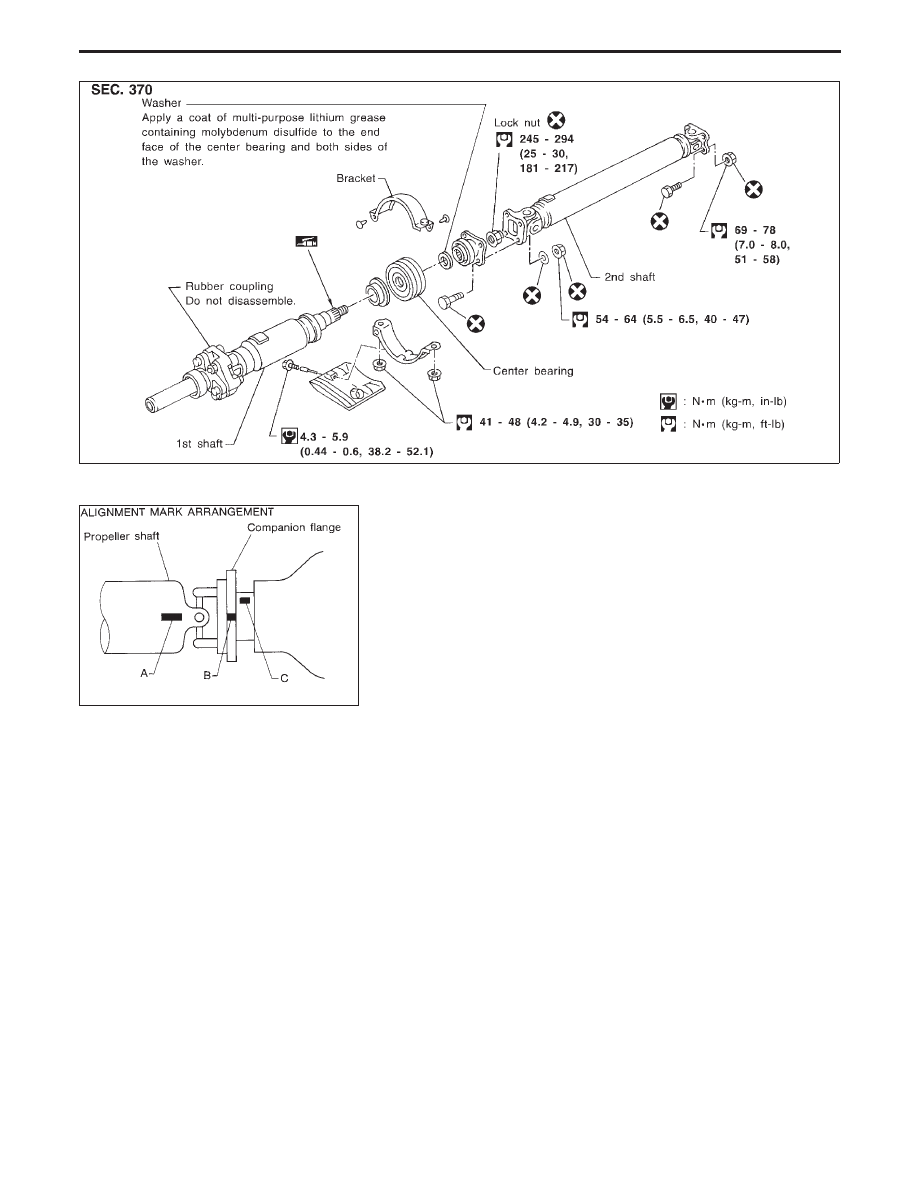

PROPELLER SHAFT VIBRATION

If vibration is present at high speed, check mounting between pro-
peller shaft and companion flange.
Make sure alignment marks A and B are located as close to
each other as possible.
If not, change mounting as indicated in “Installation”.

APPEARANCE CHECKING

I

Inspect propeller shaft tube surface for dents or cracks.
If damaged, replace propeller shaft assembly.

I

If center bearing is noisy or damaged, replace center bearing.

Removal

When removing the propeller shaft from the vehicle, confirm
the alignment mark on the bolt head before removal. Also,
when installing the propeller shaft, be sure to use new bolts
and make sure the alignment marks on the bolt heads are in
the same position as before removal.

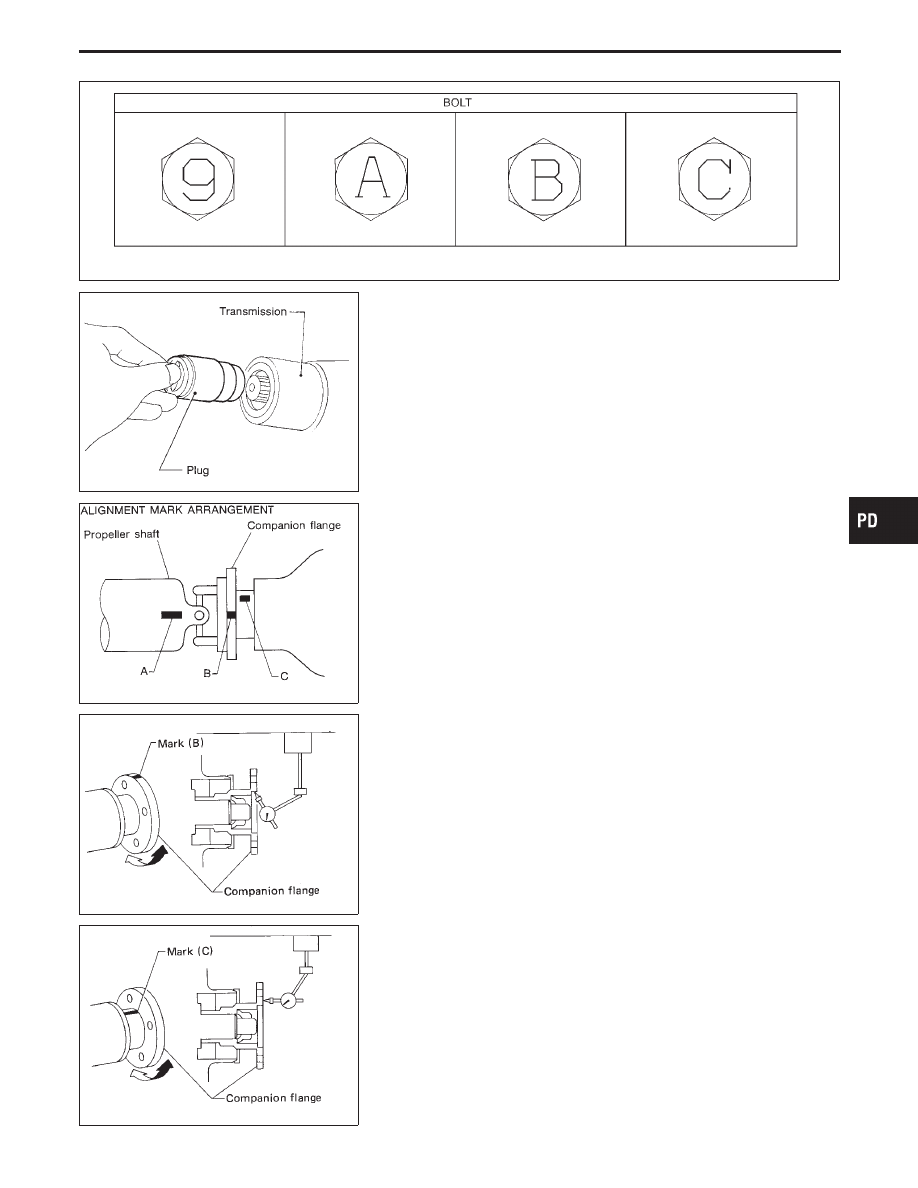

If propeller shaft is replaced with a new one, replace all bolts
with “9” bolts. Do not use “A”, “B” or “C” bolts.

PROPELLER SHAFT

PD-6

SPD378A

SPD359

I

Draw out propeller shaft from transmission and plug up rear
end of transmission rear extension housing.

SPD053A

Installation

If companion flange has been removed, put new alignment marks
B and C on it. Then reassemble using the following procedure.
(Perform step 4 when final drive and propeller shaft are separated
from each other. Also perform step 4 when either of these parts is
replaced with a new one.)

SPD062A

1.

Erase original marks B and C from companion flange with
suitable solvent.

2.

Mark (B)

a.

Measure companion flange vertical runout.

b.

Determine the position where maximum runout is read on dial
gauge. Put mark (shown by B in figure at left) on flange perim-
eter corresponding to maximum runout position.

SPD063A

3.

Mark (C)

a.

Measure companion flange surface runout.

b.

Determine the position where maximum runout is read on dial
gauge. Put mark (shown by C in figure at left) on flange perim-
eter corresponding to maximum runout position.

GI

MA

EM

LC

EC

FE

AT

FA

RA

BR

ST

RS

BT

HA

EL

IDX

PROPELLER SHAFT

Removal (Cont’d)

PD-7

SPD061A

4.

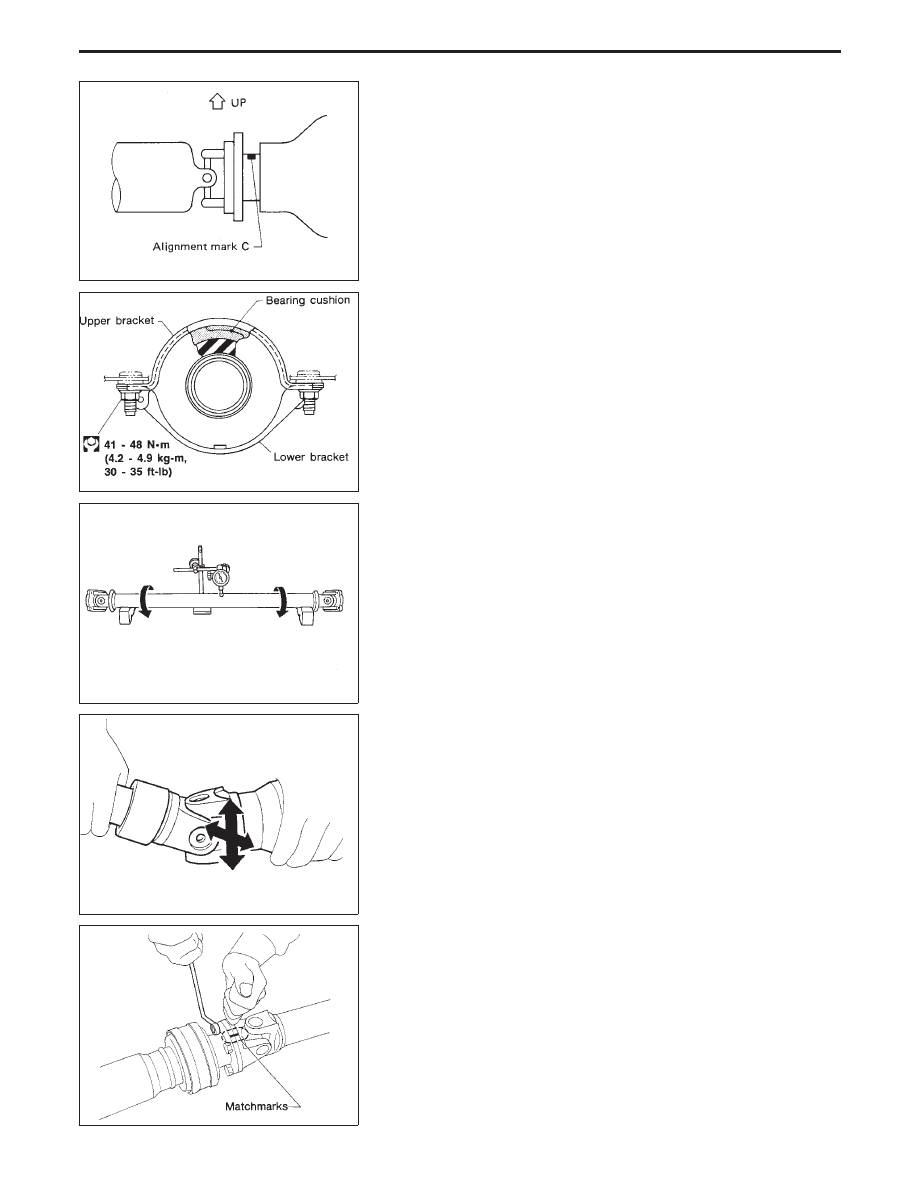

Position companion flange and propeller shaft using alignment
marks A and B. Set the marks A and B as close to each other
as possible. Temporarily attach bolts and nuts.

5.

Press down propeller shaft with alignment mark C facing
upward. Then tighten the lower nut to specified torque.

6.

Tighten remaining nuts to specified torque.

SPD139AB

CENTER BEARING BRACKET INSTALLATION

I

Position the bearing cushion overlap as illustrated at left.

SPD106

Inspection

I

Inspect propeller shaft runout. If runout exceeds specifications,
replace propeller shaft assembly.

Runout limit: 0.6 mm (0.024 in)

SPD874

I

Inspect journal axial play.
If the play exceeds specifications, replace propeller shaft
assembly.

Journal axial play:

0 mm (0 in)

SPD109-A

Disassembly

CENTER BEARING

1.

Put matchmarks on flanges, and separate 2nd tube from 1st
tube.

PROPELLER SHAFT

Installation (Cont’d)

PD-8
