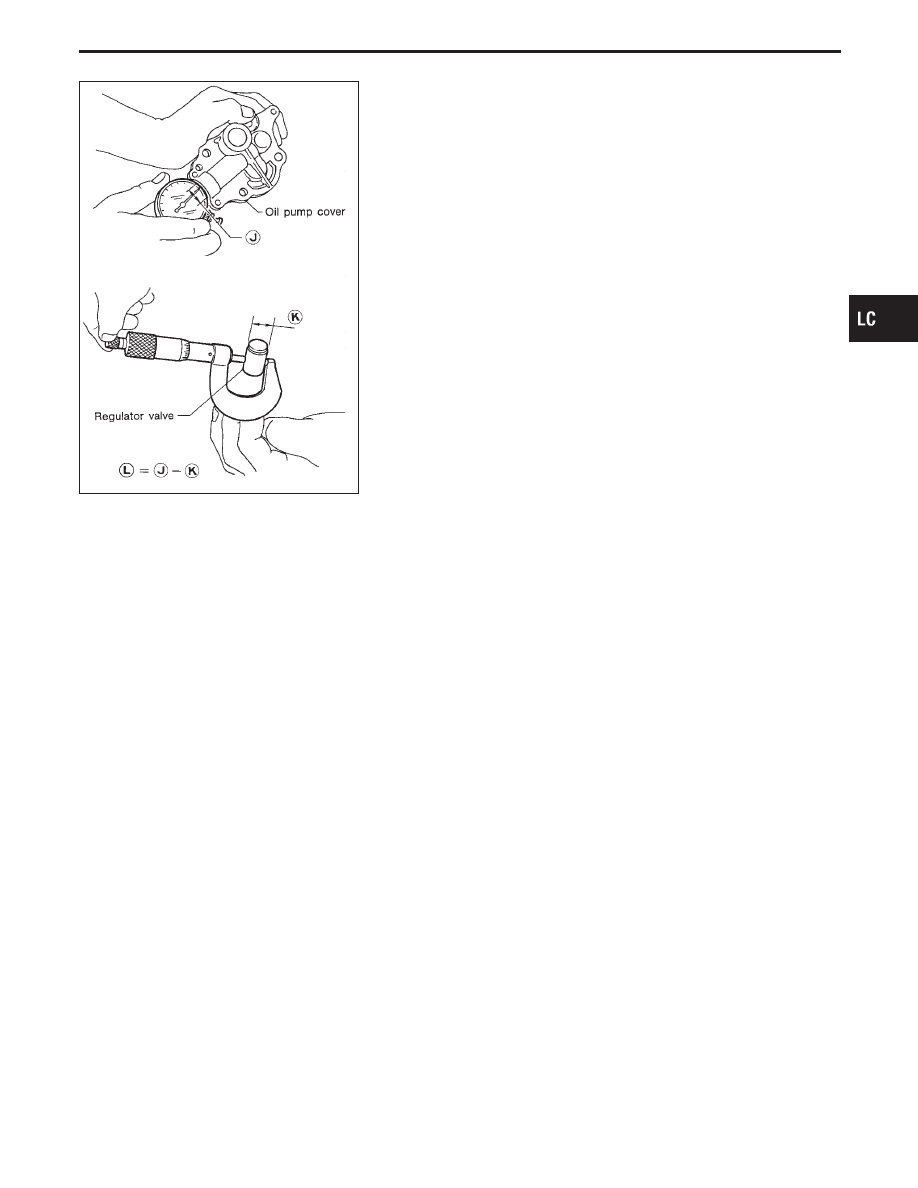

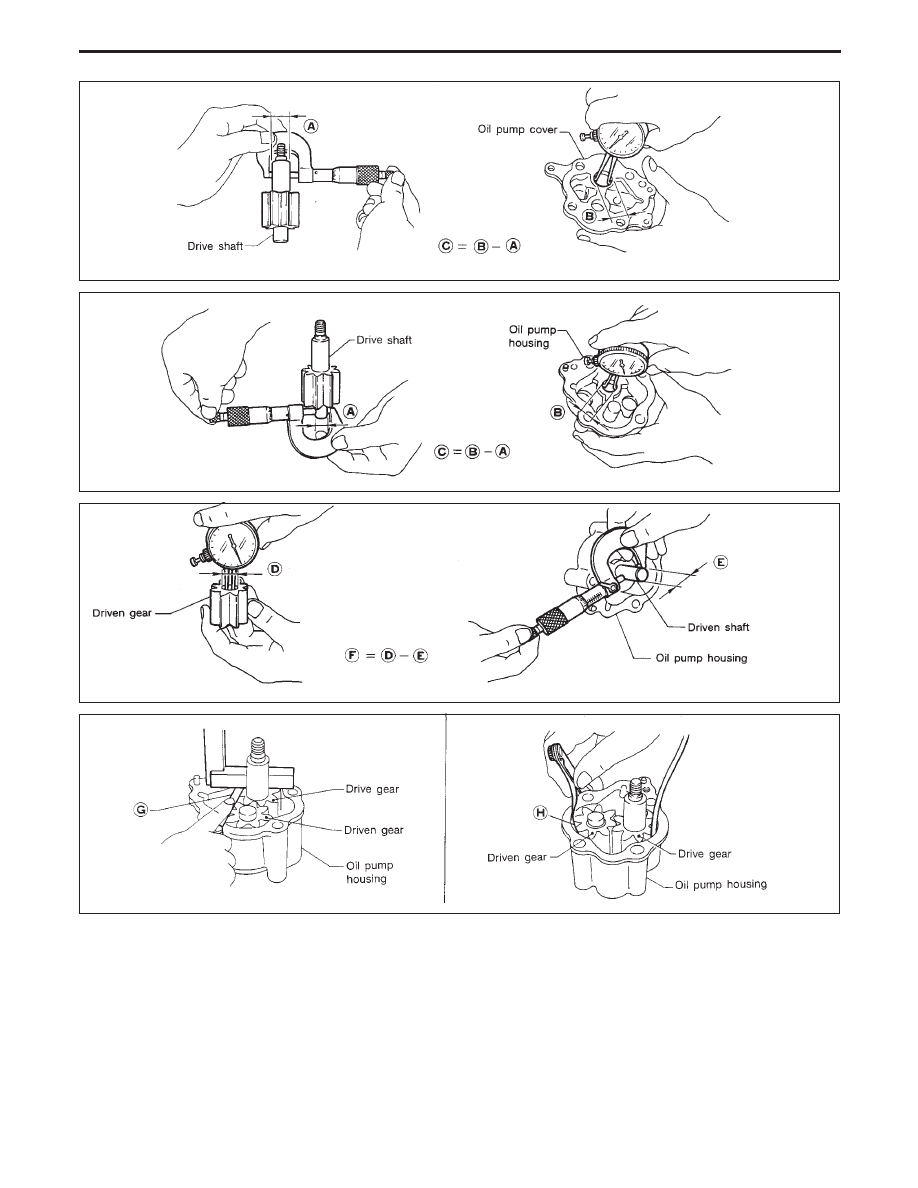

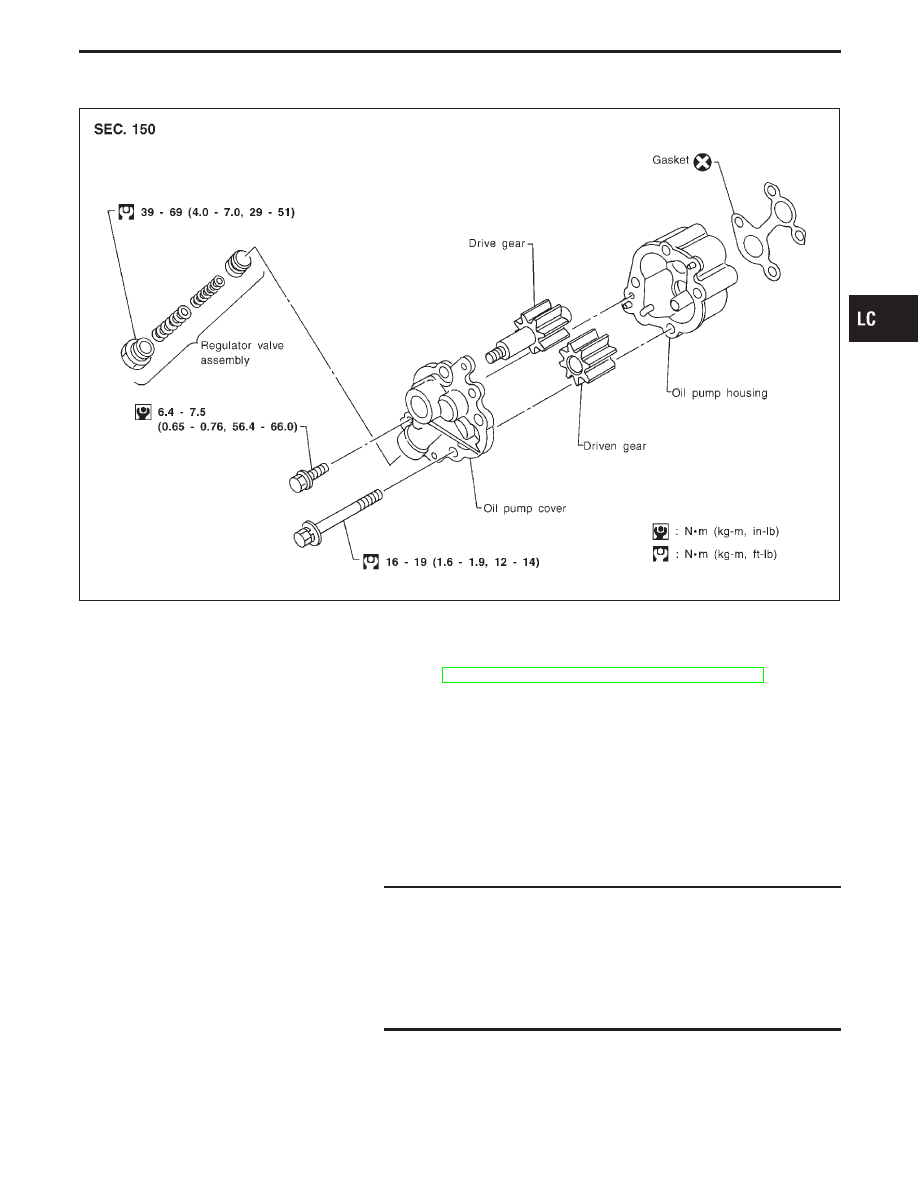

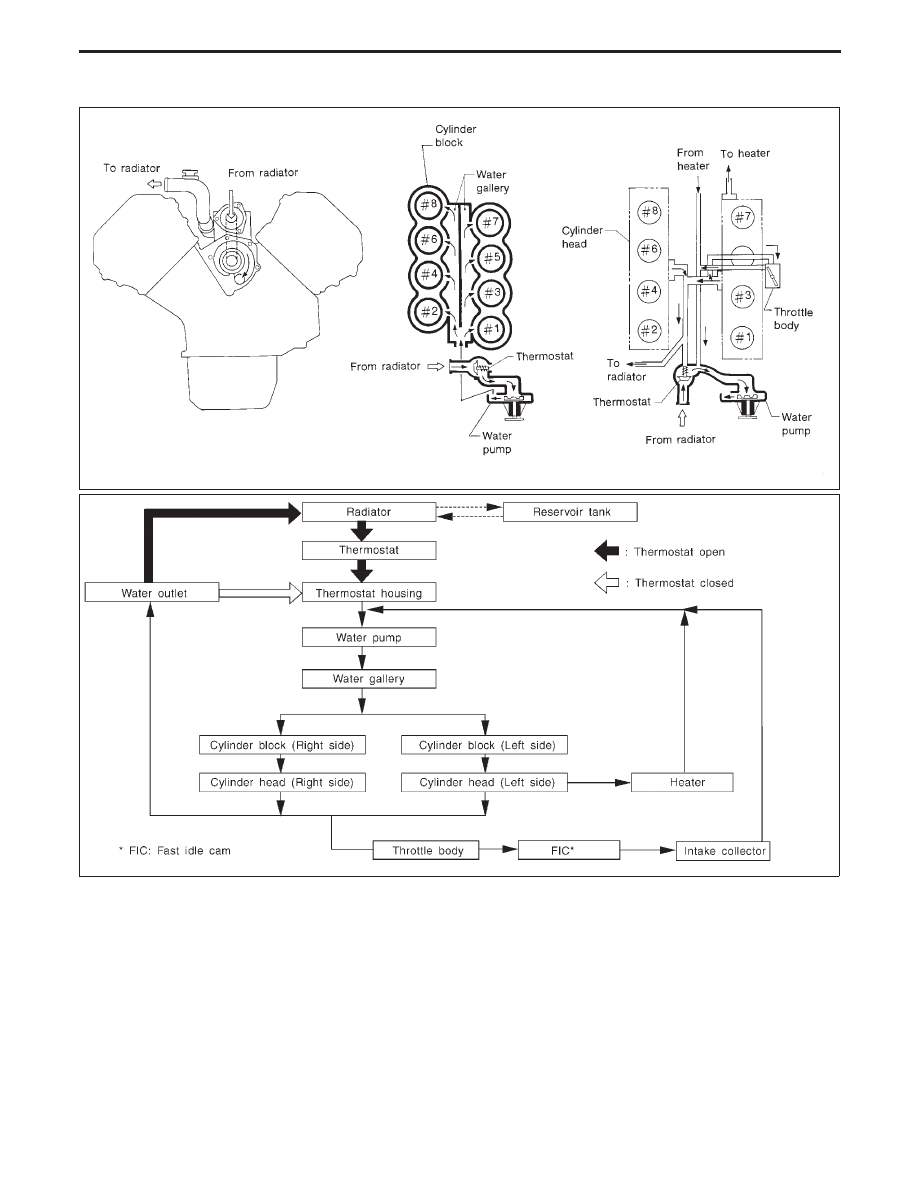

Oil Pump SLC106B REMOVAL AND INSTALLATION 1. Remove timing chain. Refer to EM section (“Removal”, “TIMING CHAIN”). Remove oil pump assembly. 3. Reinstall any parts removed in reverse order of removal. After installing oil pump, make sure drive gear turns smoothly INSPECTION If it exceeds the limit, replace gear set or entire oil pump assem- Unit: mm (in) Drive shaft to cover and housing clearance q C 0.024 - 0.069 (0.0009 - 0.0027) Driven gear to driven shaft clearance q F 0.025 - 0.064 (0.0010 - 0.0025) Drive and driven gear to housing axial clear- q G 0.08 - 0.130 (0.0031 - 0.0051) Drive and driven gear to housing radial q H 0.125 - 0.245 (0.0049 - 0.0096) GI MA EM EC FE AT PD FA RA BR ST RS BT HA EL IDX ENGINE LUBRICATION SYSTEM LC-5 |
