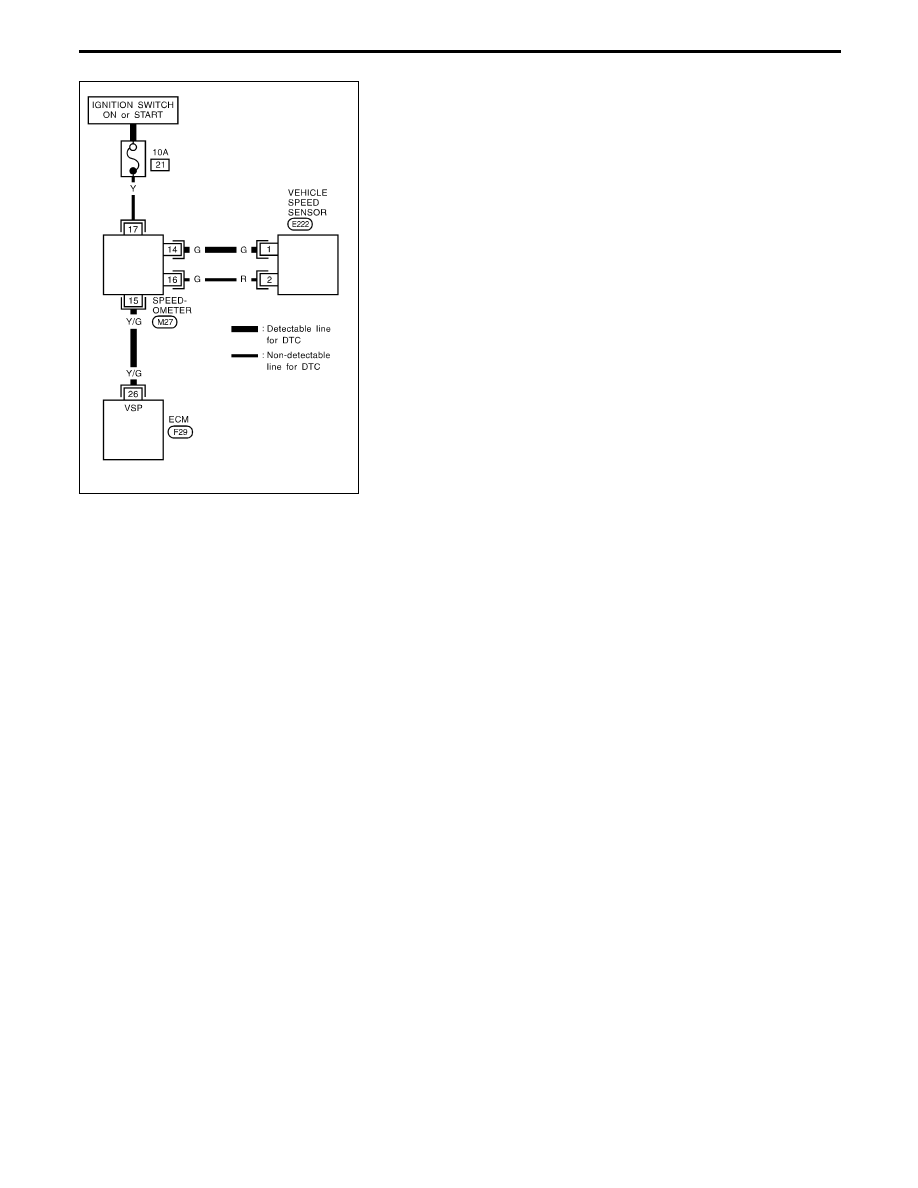

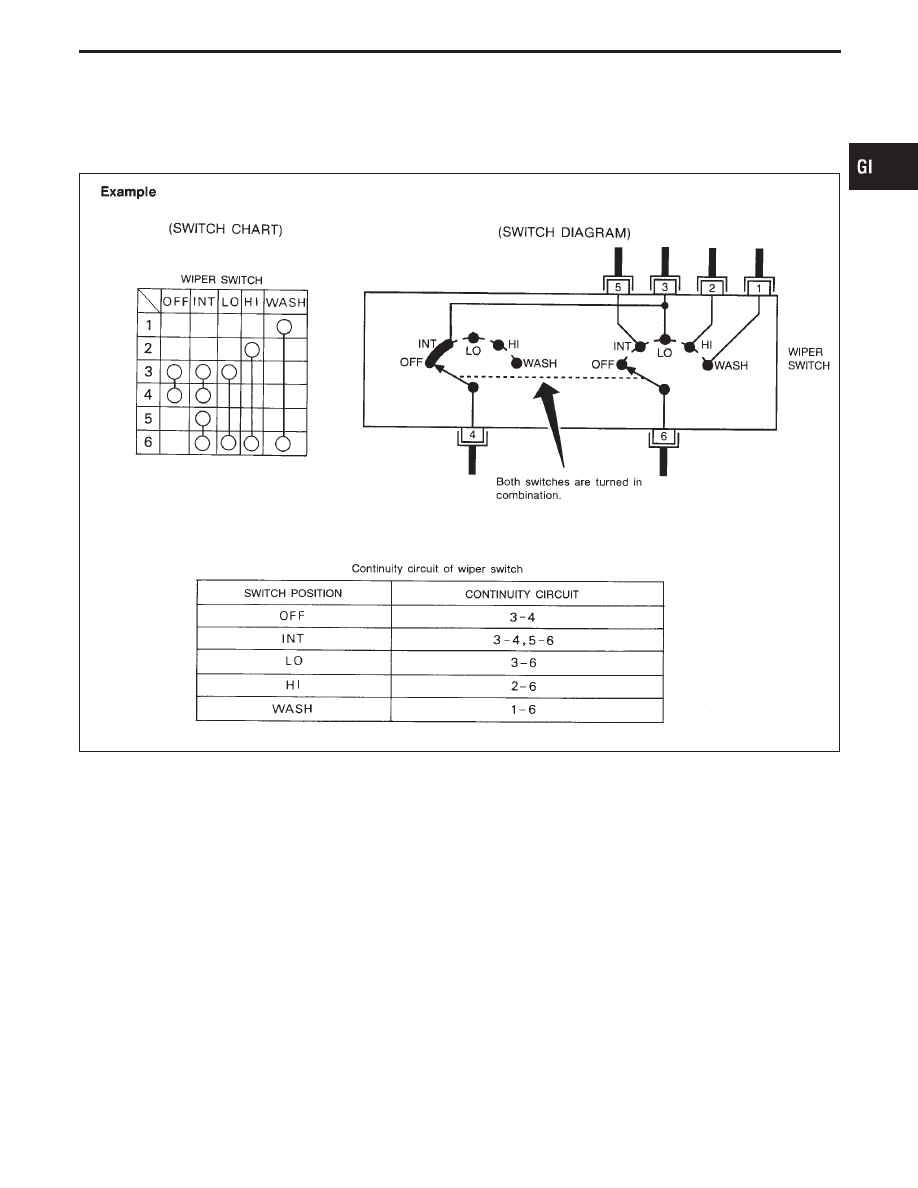

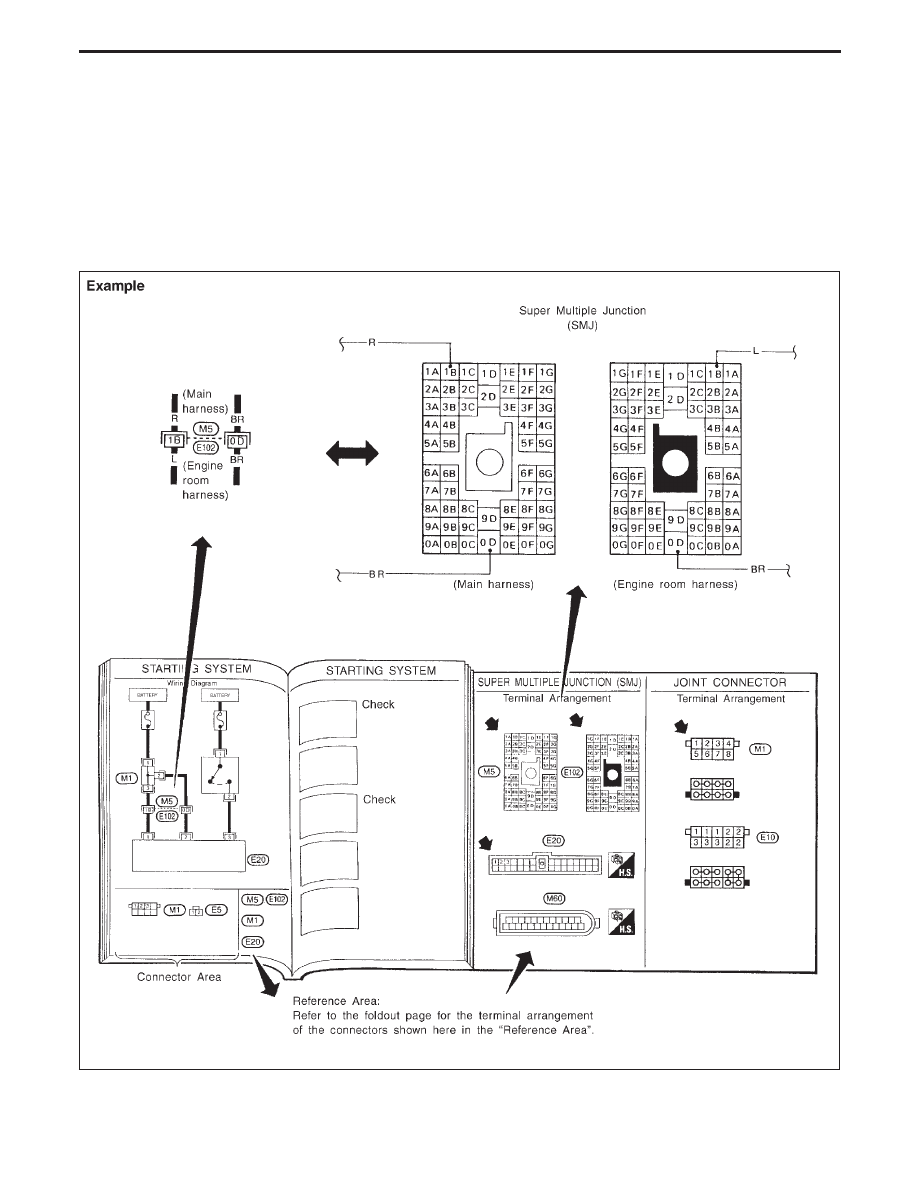

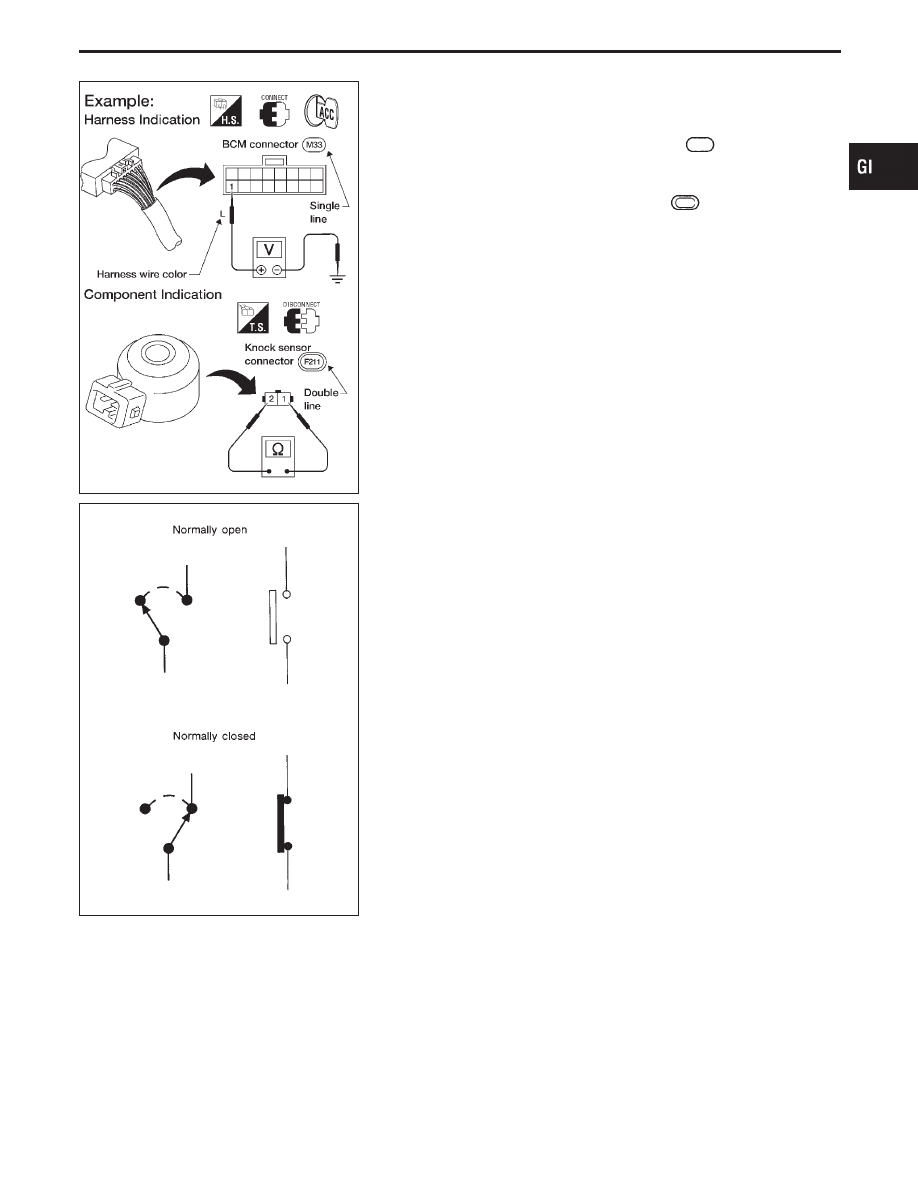

AGI070 Harness indication I Letter designations next to test meter probe indicate harness I Connector numbers in a single circle M33 indicate harness connectors. Component indication I Connector numbers in a double circle F211 indicate component connectors. SGI860 SWITCH POSITIONS Switches are shown in wiring diagrams as if the vehicle is in the I ignition switch is “OFF”, I doors, hood and trunk lid/back door are closed, I pedals are not depressed, and I parking brake is released. MA EM LC EC FE AT PD FA RA BR ST RS BT HA EL IDX HOW TO READ WIRING DIAGRAMS Description (Cont’d) GI-15 |
