CEL470

INSTALLATION

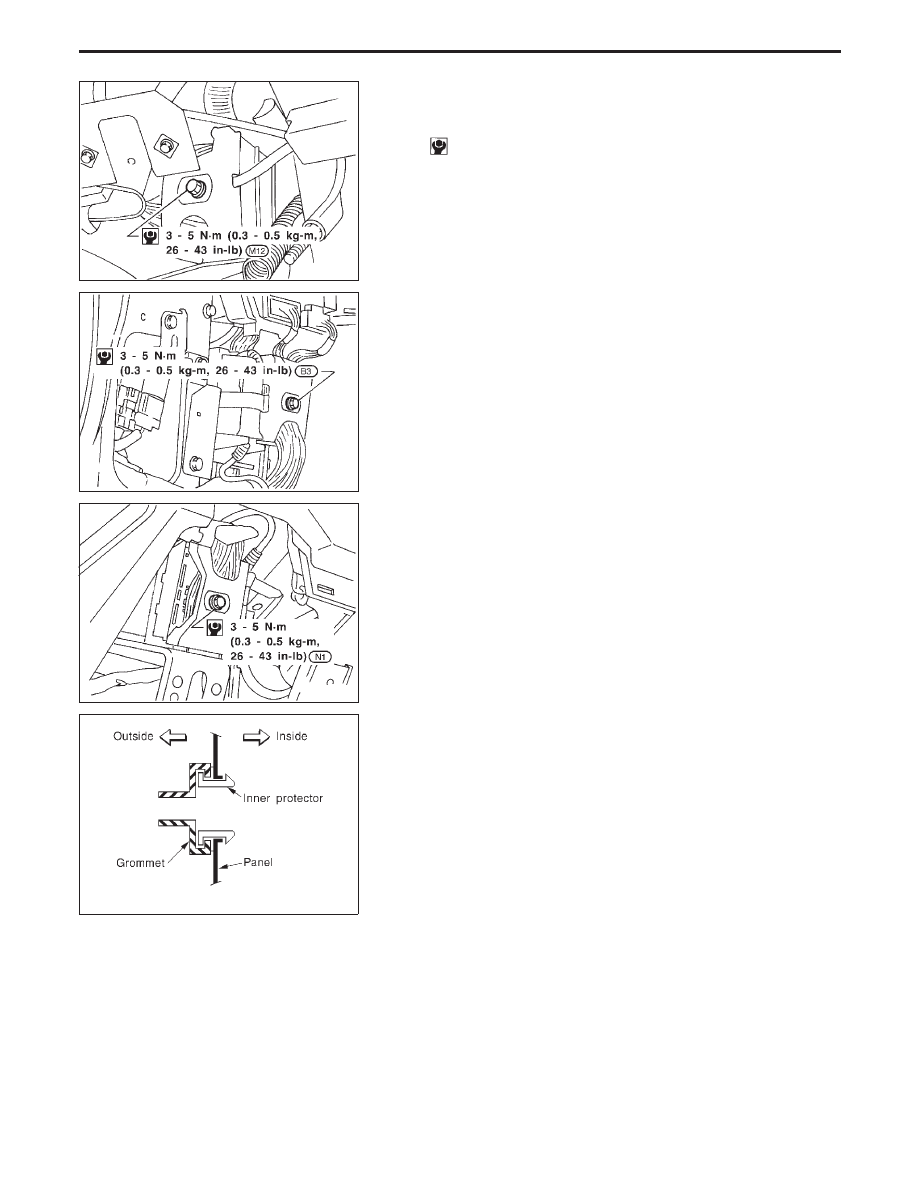

To install SMJ, tighten bolts until orange “fulltight” mark appears
and then retighten to specified torque as required.

: 3 - 5 N

m

(0.3 - 0.5 kg-m, 26 - 43 in-lb)

CAUTION:
Do not overtighten bolts, otherwise, they may be damaged.

CEL471

CEL472

SEL656U

Grommet

A grommet of the shape shown on left is used for engine room
harness through hole and engine control harness.
CAUTION:
Do not use old inner protector after removal; replace with new
one.

SUPER MULTIPLE JUNCTION (SMJ)

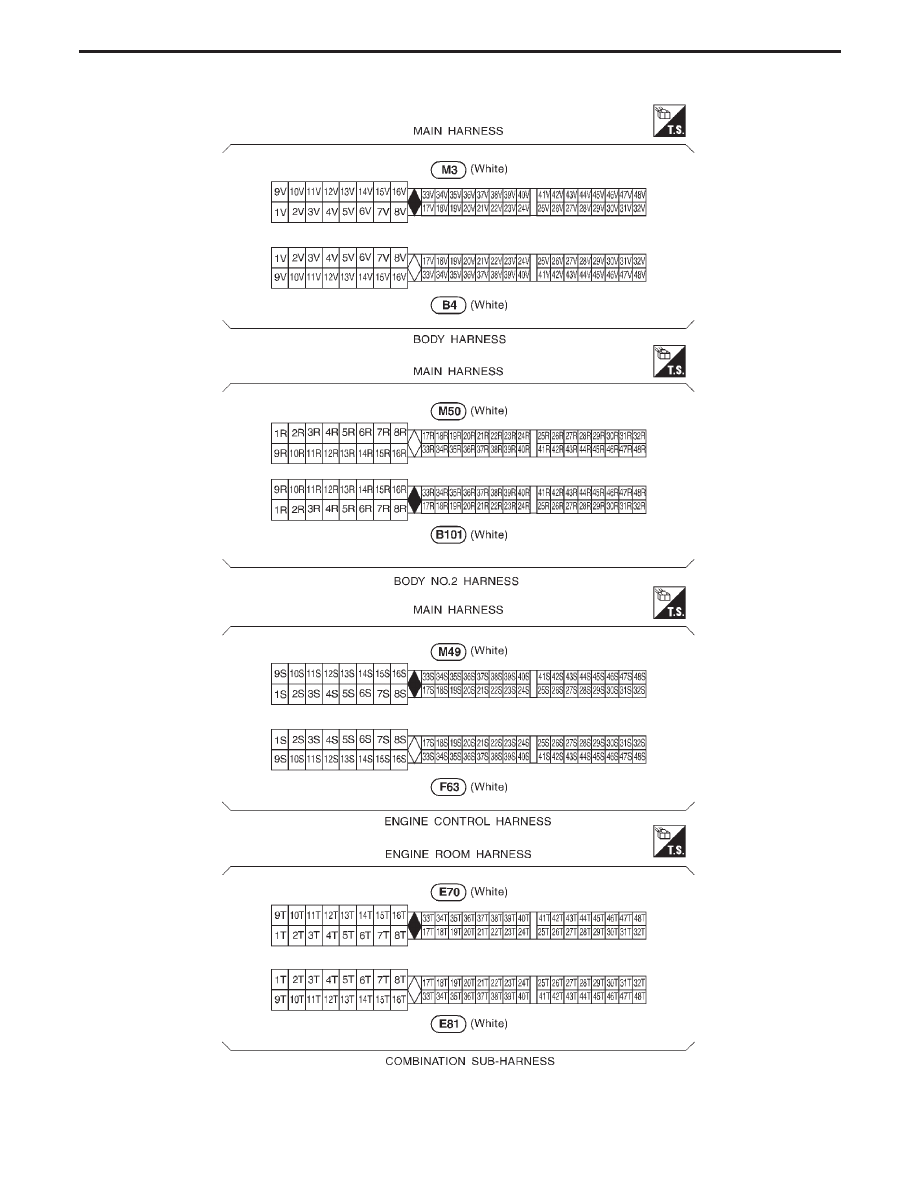

Terminal Arrangement

CEL473

SUPER MULTIPLE JUNCTION (SMJ)

CEL023A

SUPER MULTIPLE JUNCTION (SMJ)

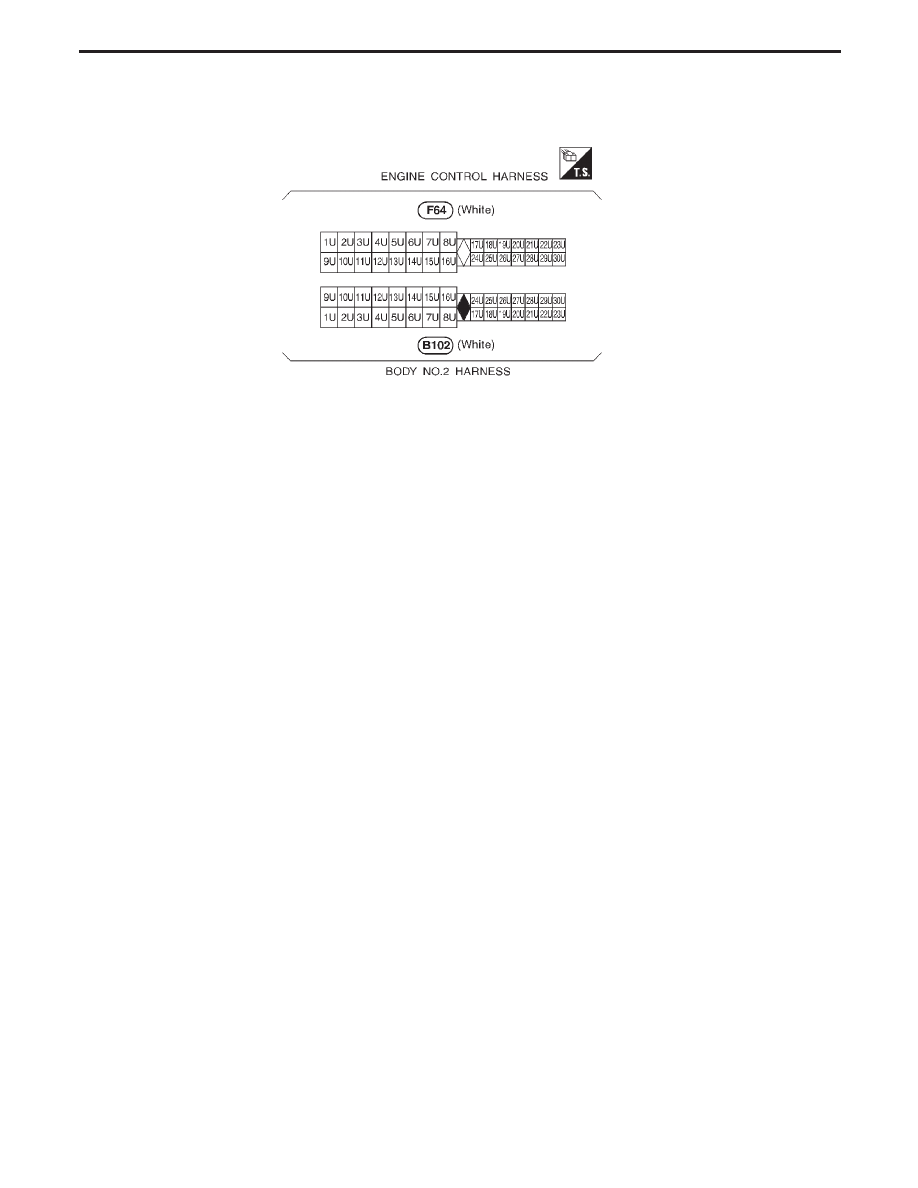

Terminal Arrangement (Cont’d)

CEL024A

SUPER MULTIPLE JUNCTION (SMJ)

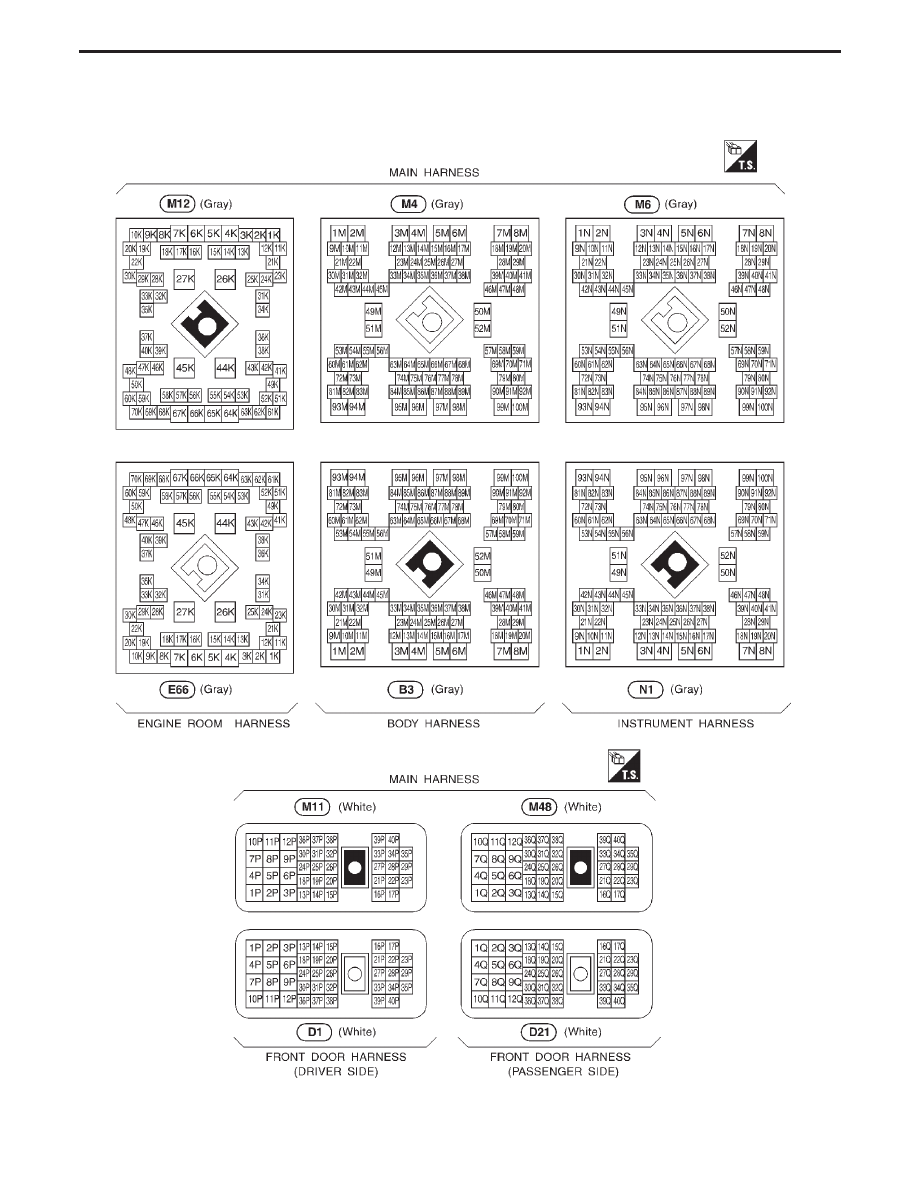

Terminal Arrangement (Cont’d)
