ACCELERATOR CONTROL, FUEL &

EXHAUST SYSTEMS

SECTION

FE

CONTENTS

PREPARATION ................................................................2

Special Service Tool ....................................................2
Commercial Service Tools ...........................................2

ACCELERATOR CONTROL SYSTEM ...........................3

Adjusting Accelerator Wire ..........................................4

FUEL SYSTEM ................................................................5

Fuel Tank .....................................................................6

EXHAUST SYSTEM ........................................................7

GI

MA

EM

LC

EC

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

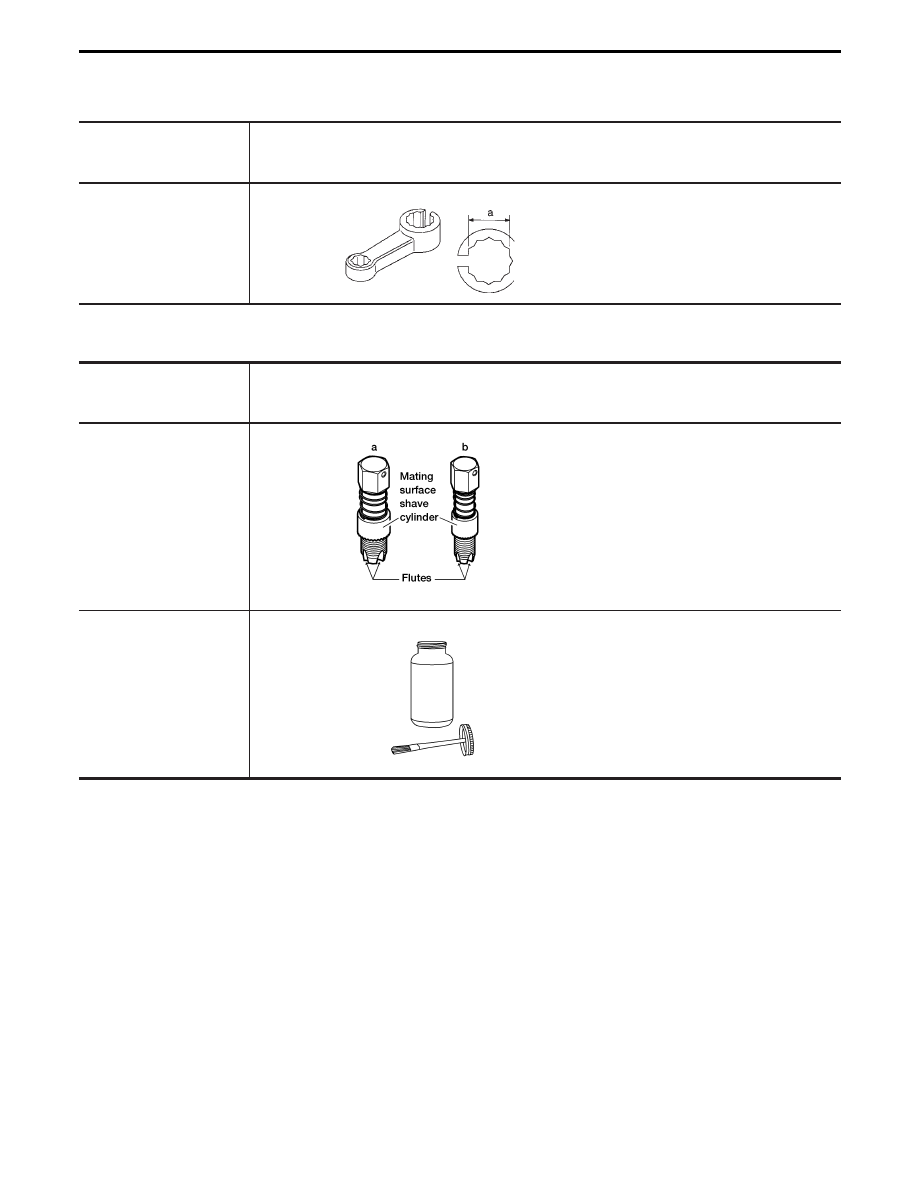

Special Service Tool

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor
wrench

NT636

Loosening or tightening front and rear heated
oxygen sensors
3/8 drive
a: 22 mm (0.87 in)

Commercial Service Tools

Tool number
(Kent-Moore No.)
Tool name

Description

(J-43897-18)
(J-43897-12)
Oxygen sensor thread
cleaner

AEM488

Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia

oxygen sensor

b: J-43897-12 (12 mm dia.) for titania oxy-

gen sensor

Anti-seize lubricant (Perma-
tex 133AR or equivalent
meeting MIL specification
MIL-A-907)

AEM489

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

PREPARATION

FE-2

CAUTION:

I

When removing accelerator wire, make a mark to indicate lock nut’s initial position.

I

Check that throttle valve opens fully when accelerator pedal is fully depressed. Also check that it
returns to idle position when pedal is released.

I

Check accelerator control parts for improper contact with any adjacent parts.

I

When connecting accelerator wire, be careful not to twist or scratch wire.

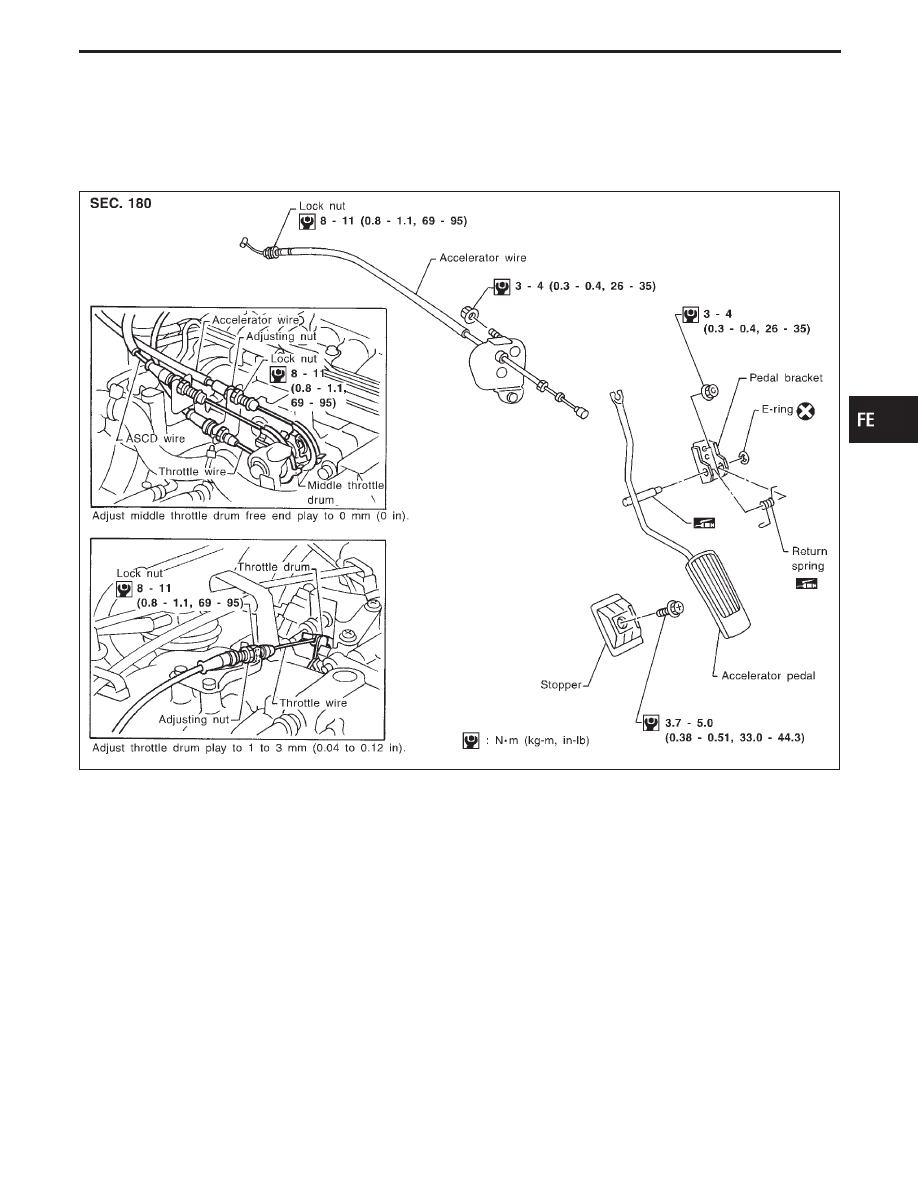

SFE438A

GI

MA

EM

LC

EC

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

ACCELERATOR CONTROL SYSTEM

FE-3

Adjusting Accelerator Wire

CAUTION:

I

Make sure the ASCD wire is not pulling the throttle drum.

I

Refer to EL section, “AUTOMATIC SPEED CONTROL
DEVICE” for ASCD wire adjustment.

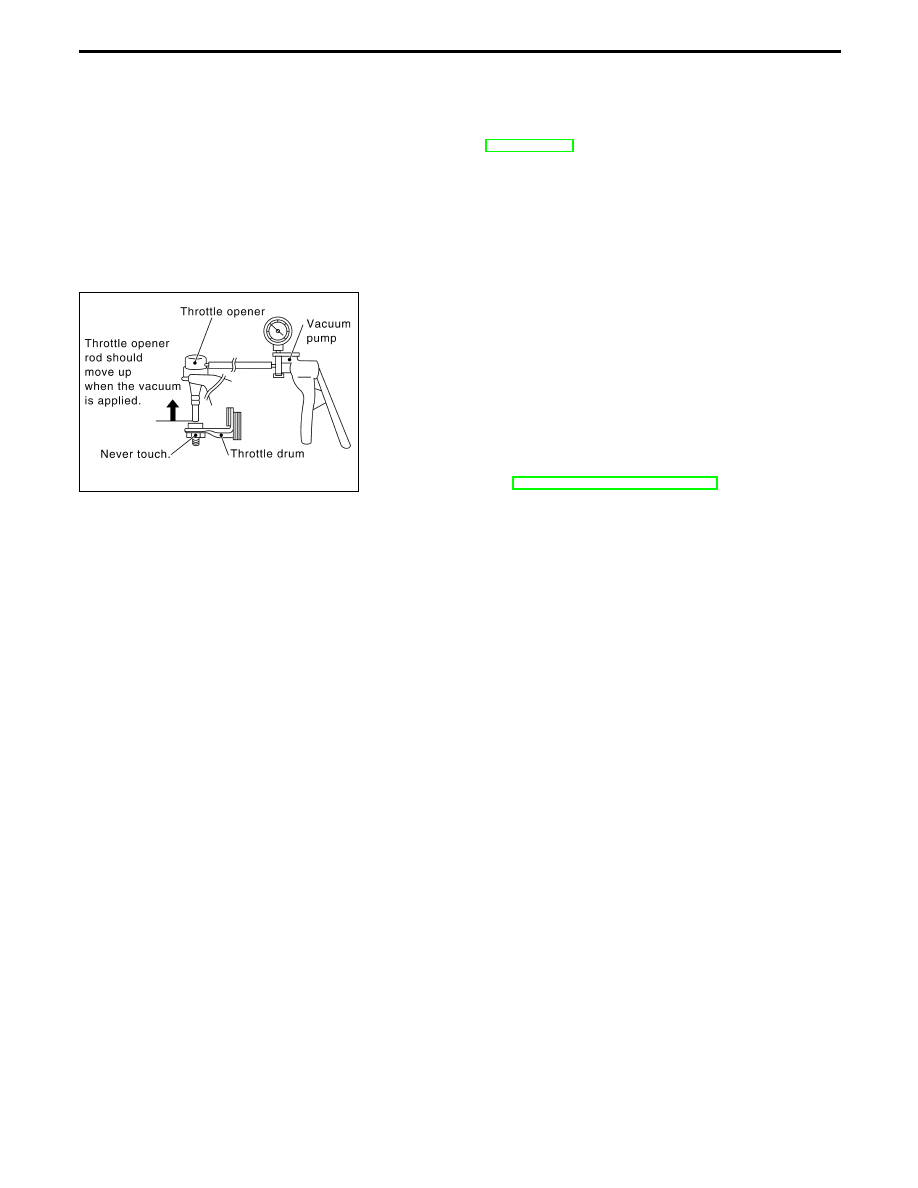

SEF793W

MIDDLE THROTTLE DRUM AND THROTTLE DRUM
ADJUSTMENT

1.

Remove the vacuum hose connected to the throttle opener.

2.

Connect suitable vacuum hose to vacuum pump as shown at
left.

3.

Apply vacuum [more than −40.0 kPa (−300 mmHg, −11.81
inHg)] until the throttle drum becomes free from the rod of the
throttle opener.
Make sure that there is clearance between the throttle
drum and rod.
If NG, refer to EC section, “Basic Inspection”.
If OK, go to the following steps.

Middle throttle drum side

4.

Loosen lock nut, and tighten adjusting nut until middle throttle
drum starts to move.

5.

Fasten adjusting nut with lock nut.

Throttle drum side

6.

Start engine and warm it up.

7.

Loosen lock nut, and tighten adjusting nut until throttle drum
starts to move.

8.

From that position turn back adjusting nut 1.5 to 2 turns, and
fasten it with lock nut.

9.

Release vacuum from the throttle opener.

10. Remove vacuum pump and vacuum hose from the throttle

opener.

11. Reinstall the original vacuum hose to the throttle opener

securely.

ACCELERATOR CONTROL SYSTEM

FE-4
