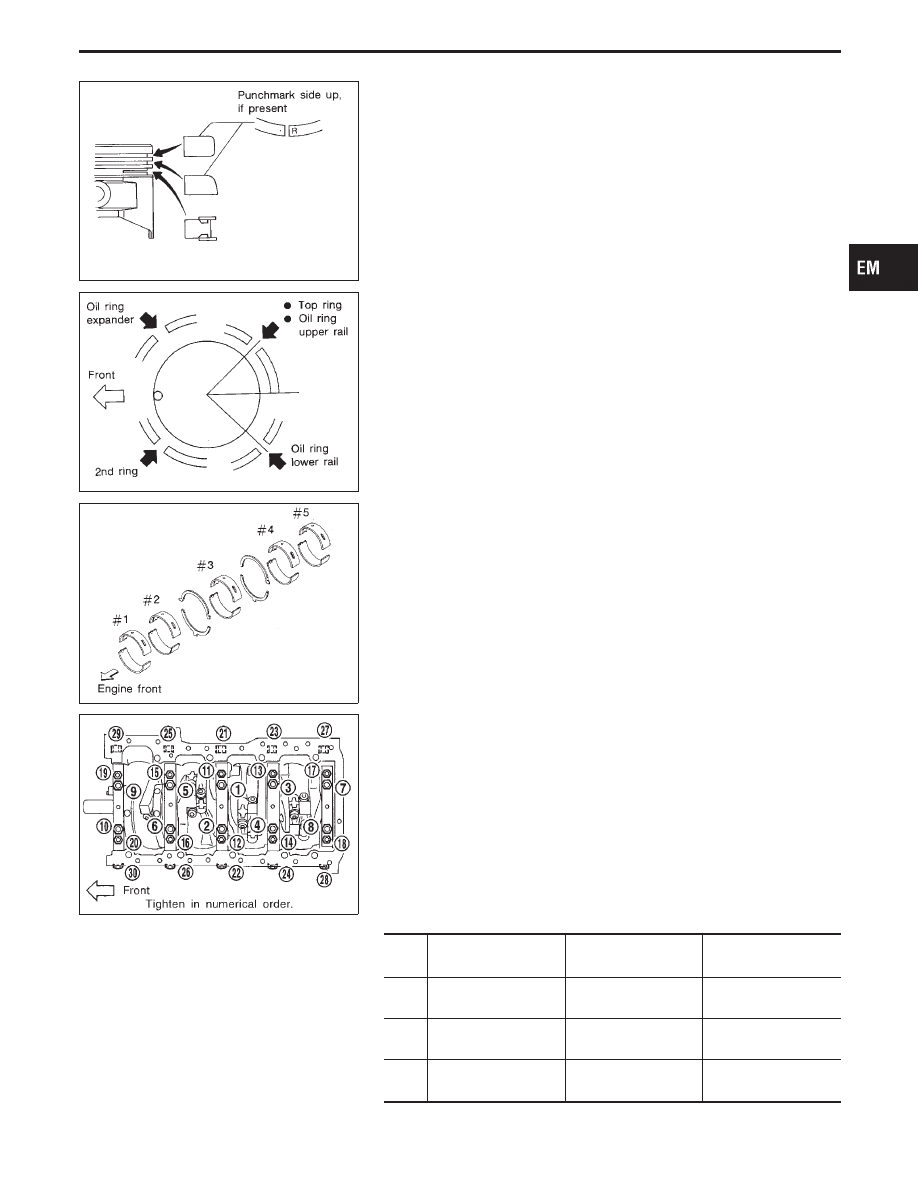

Set piston rings as shown.

CAUTION:

I

When piston rings are not replaced, make sure that piston
rings are mounted in their original positions.

I

When replacing piston rings, these without punchmarks,
present, piston rings can be mounted with either side up.

SEM536E

I

Align piston rings so that end gaps are positioned as
shown in the figure.

SEM753C

CRANKSHAFT

1.

Set main bearings in their proper positions on cylinder block
and main bearing cap.

I

Confirm that correct main bearings are used. Refer to
“Inspection” of this section.

I

Apply engine oil to bearing surface.

SEM461F

2.

Install crankshaft, main bearing caps and beam and tighten
bolts to the specified torque.

I

Lubricate threads and seat surfaces of the bolts with new
engine oil.

I

Prior to tightening bearing cap bolts, place bearing cap in
its proper position by shifting in the axial direction.

I

Tightening procedure

1)

Tighten bolts (

q

1

-

q

20

) to

q

a

.

2)

Turn bolts (

q

1

-

q

20

)

q

b

degrees clockwise with angle

wrench.

3)

Tighten all bolts (

q

21

-

q

30

) to

q

c

.

Unit: N

m (kg-m, ft-lb)

Bolts

(

q

1

-

q

10

)

Bolts

(

q

11

-

q

20

)

Bolts

(

q

21

-

q

30

)

q

a

36 - 42

(3.7 - 4.3, 27 - 31)

26 - 32

(2.7 - 3.3, 20 - 24)

q

b

40

+5

-0

degrees

35

+5

-0

degrees

q

c

46 - 52

(4.7 - 5.3, 34 - 38)

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

CYLINDER BLOCK

Assembly (Cont’d)

EM-53

I

After securing bearing cap bolts, make sure crankshaft
turns smoothly by hand.

SEM462F

3.

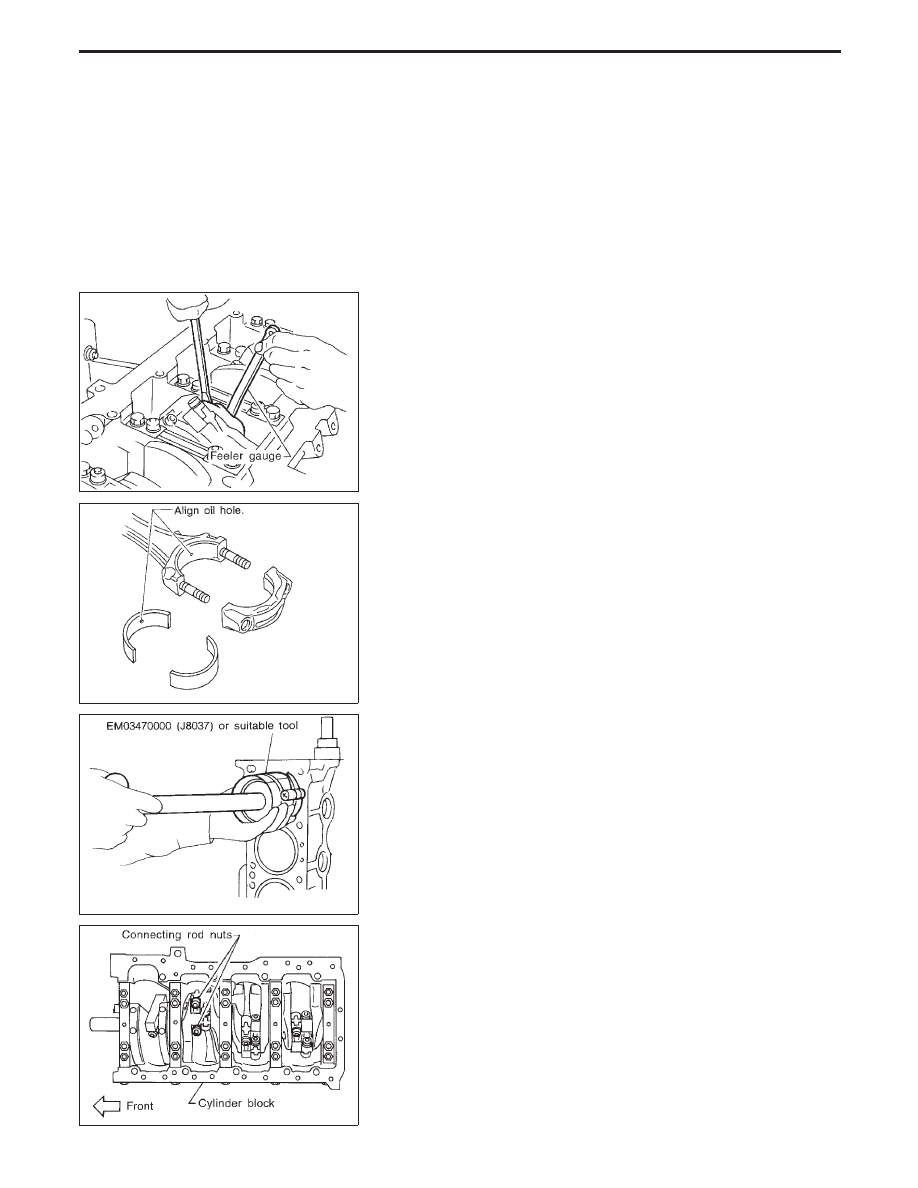

Measure crankshaft end play.

Crankshaft end play:

Standard

0.10 - 0.26 mm (0.0039 - 0.0102 in)

Limit

0.30 mm (0.0118 in)

If beyond the limit, replace bearing with a new one.

SEM159B

4.

Install connecting rod bearings in connecting rods and con-
necting rod caps.

I

Confirm that correct bearings are used. Refer to “Inspec-
tion”.

I

Install bearings so that oil hole in connecting rod aligns
with oil hole of bearing.

SEM460E

5.

Install pistons with connecting rods.

a.

Install them into corresponding cylinders with Tool.

I

Be careful not to scratch cylinder wall with the connecting
rod.

I

Arrange so that front mark on piston head faces toward
front of engine.

I

Apply engine oil to piston rings and sliding surface of
piston.

SEM463F

b.

Install connecting rod caps.

I

Apply engine oil to bolt threads and bearing surface.
Tighten connecting rod bearing cap nuts to the specified
torque.

Tightening procedure:

1) Tighten nuts to 14 to 16 N

m (1.4 to 1.6 kg-m,

10 to 12 ft-lb).

2) Turn nuts 60 to 65 degrees clockwise with

angle wrench.

CYLINDER BLOCK

Assembly (Cont’d)

EM-54

SEM464F

6.

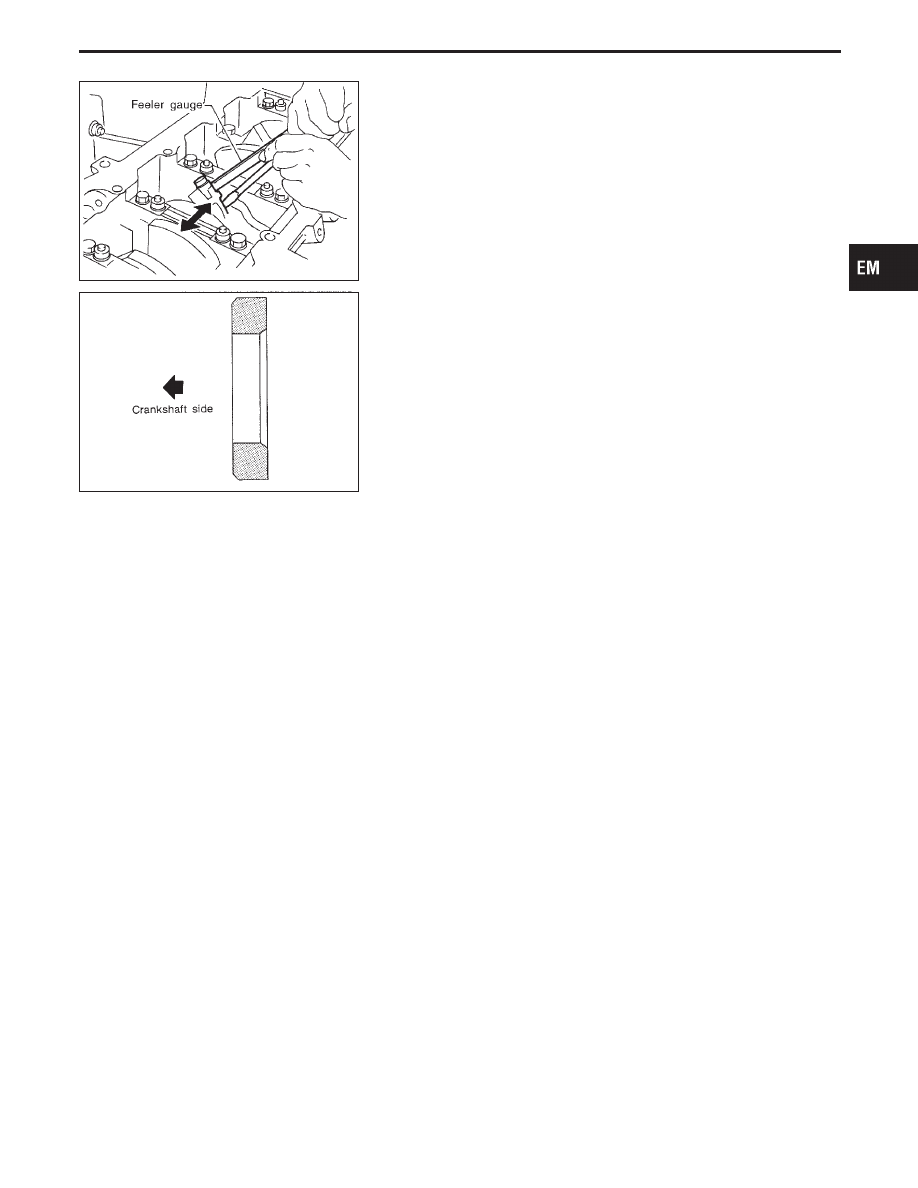

Measure connecting rod side clearance.

Connecting rod side clearance:

Standard

0.20 - 0.35 mm (0.0079 - 0.0138 in)

Limit

0.40 mm (0.0157 in)

If beyond the limit, replace connecting rod and/or crankshaft.
7.

Install rear oil seal retainer.

SEM537E

REPLACING PILOT CONVERTER

1.

Remove pilot converter.

2.

Install pilot converter.

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

CYLINDER BLOCK

Assembly (Cont’d)

EM-55

General Specifications

Cylinder arrangement

V-8

Displacement

cm

3

(cu in)

4,130 (252.01)

Bore and stroke

mm (in)

93 x 76 (3.66 x 2.99)

Valve arrangement

DOHC

Firing order

1-8-7-3-6-5-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

10.5

Cylinder number

SEM957C

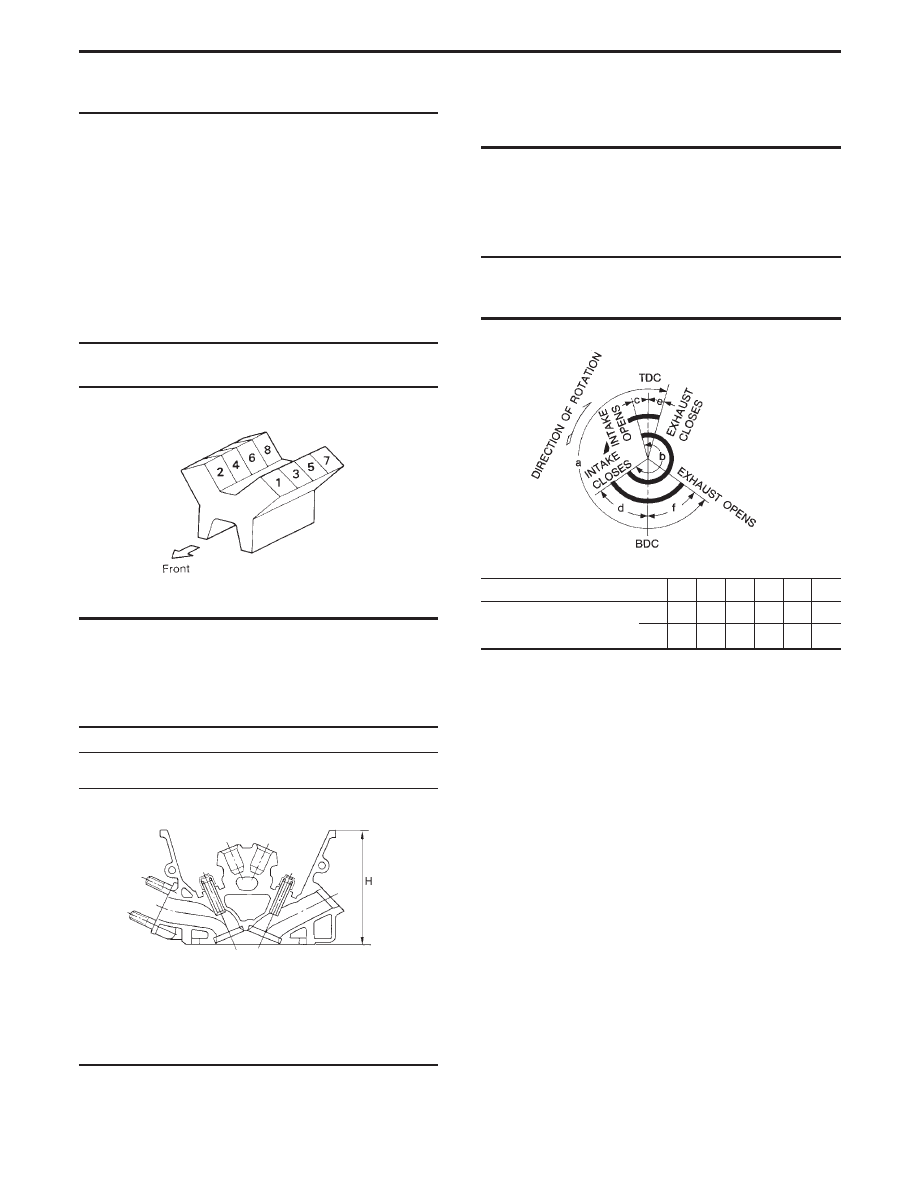

COMPRESSION PRESSURE

Unit: kPa (kg/cm

2

, psi)/300 rpm

Compression pressure

Standard

1,285 (13.1, 186)

Minimum

991 (10.1, 144)

Differential limit between
cylinders

98 (1.0, 14)

Valve timing

EM120

Unit: degree

a

b

c

d

e

f

Intake valve timing control
solenoid valve

ON

232 232

15

37

5

47

OFF 232 232

−5

57

5

47

Inspection and Adjustment

CYLINDER HEAD

Unit: mm (in)

Standard

Limit

Head surface distortion

Less than

0.03 (0.0012)

0.1 (0.004)

SEM956C

Nominal cylinder head height:
H = 130.7 - 130.9 mm (5.146 - 5.154 in)

SERVICE DATA AND SPECIFICATIONS (SDS)
