ENGINE MECHANICAL

SECTION

EM

CONTENTS

PRECAUTIONS ...............................................................2

Parts Requiring Angular Tightening.............................2
Liquid Gasket Application Procedure ..........................2

PREPARATION ................................................................3

Special Service Tools ..................................................3
Commercial Service Tools ...........................................4

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING
.....................................................6

NVH Troubleshooting - Engine Noise .........................7

OUTER COMPONENT PARTS .......................................8
COMPRESSION PRESSURE........................................10

Measurement of Compression Pressure...................10

OIL PAN ......................................................................... 11

Removal..................................................................... 11
Installation..................................................................12

TIMING CHAIN ..............................................................13

Removal.....................................................................15
Inspection...................................................................18
Installation..................................................................19

OIL SEAL REPLACEMENT ..........................................27
CYLINDER HEAD..........................................................29

Removal.....................................................................30
Camshaft Removal ....................................................30
Camshaft Installation .................................................31
Cylinder Head Assembly Removal ............................32
Disassembly...............................................................33
Inspection...................................................................35
Assembly ...................................................................40
Installation..................................................................40

ENGINE REMOVAL.......................................................43

Removal.....................................................................44

CYLINDER BLOCK .......................................................45

Disassembly...............................................................46
Inspection...................................................................47
Assembly ...................................................................52

SERVICE DATA AND SPECIFICATIONS (SDS) ..........56

General Specifications...............................................56
Inspection and Adjustment ........................................56

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

Parts Requiring Angular Tightening

I

Use an angle wrench for the final tightening of the following
engine parts:
(1)

Cylinder head bolts

(2)

Main bearing cap bolts

(3)

Connecting rod cap nuts

I

Do not use a torque value for final tightening.

I

The torque value for these parts are for a preliminary step.

I

Ensure thread and seat surfaces are clean and coated with
engine oil.

SEM164F

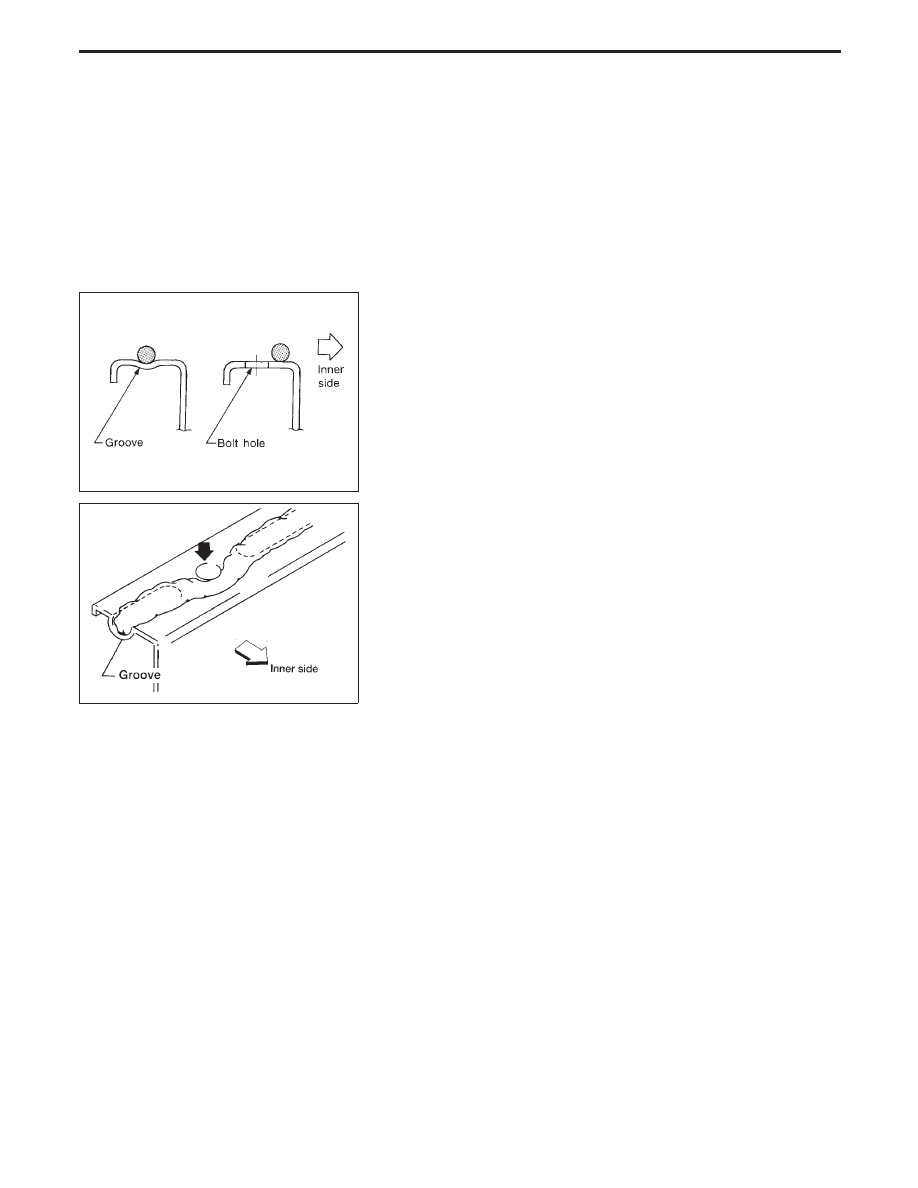

Liquid Gasket Application Procedure

a.

Use a scraper to remove all traces of old liquid gasket
from mating surfaces and grooves. Also, completely clean
any oil from these areas.

b.

Apply a continuous bead of liquid gasket to mating sur-
faces. (Use Genuine RTV silicone sealant part No. 999MP-
A7007 or equivalent.)

I

Be sure liquid gasket diameter is as specified.

AEM080

c.

Apply liquid gasket around the inner side of bolt holes
(unless otherwise specified).

d.

Assembly should be done within 5 minutes after coating.

e.

Wait at least 30 minutes before refilling engine oil and
engine coolant.

PRECAUTIONS

EM-2

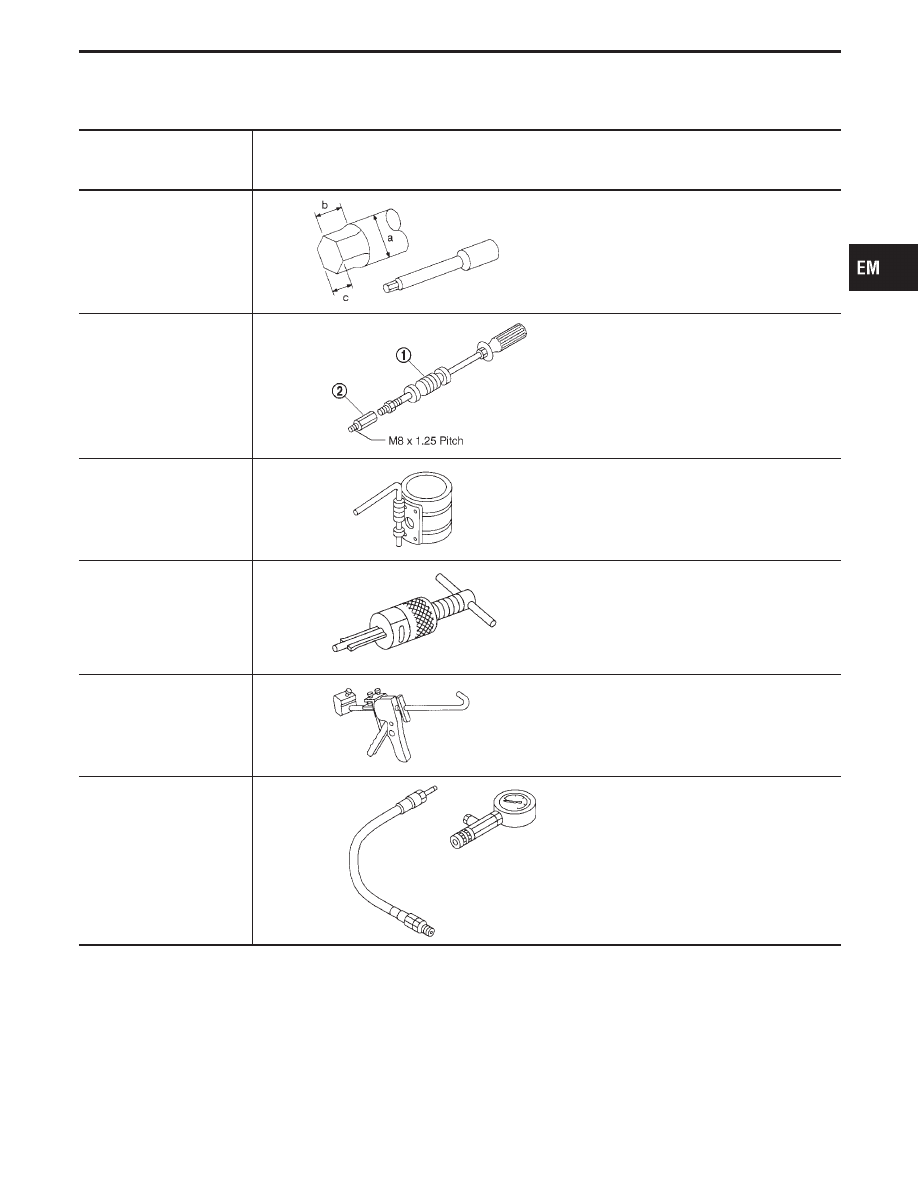

Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST10120000
(J24239-01)
Cylinder head bolt wrench

NT583

Loosening and tightening cylinder head bolt

a: 13 mm (0.51 in) dia.
b: 12 mm (0.47 in)
c: 10 mm (0.39 in)

q

1

(J6125-1B)

Slide hammer

q

2

(J38139-1)

Slide hammer adapter

NT377

Removing main bearing cap

EM03470000
(J8037)
Piston ring compressor

NT044

Installing piston assembly into cylinder bore

ST16610001
(J23907)
Pilot bushing puller

NT045

Removing crankshaft pilot bushing

WS39930000
(

)

Tube presser

NT052

Pressing the tube of liquid gasket

EG15060000
(

)

Compression gauge and
adapter

NT238

GI

MA

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

EL

IDX

PREPARATION

EM-3

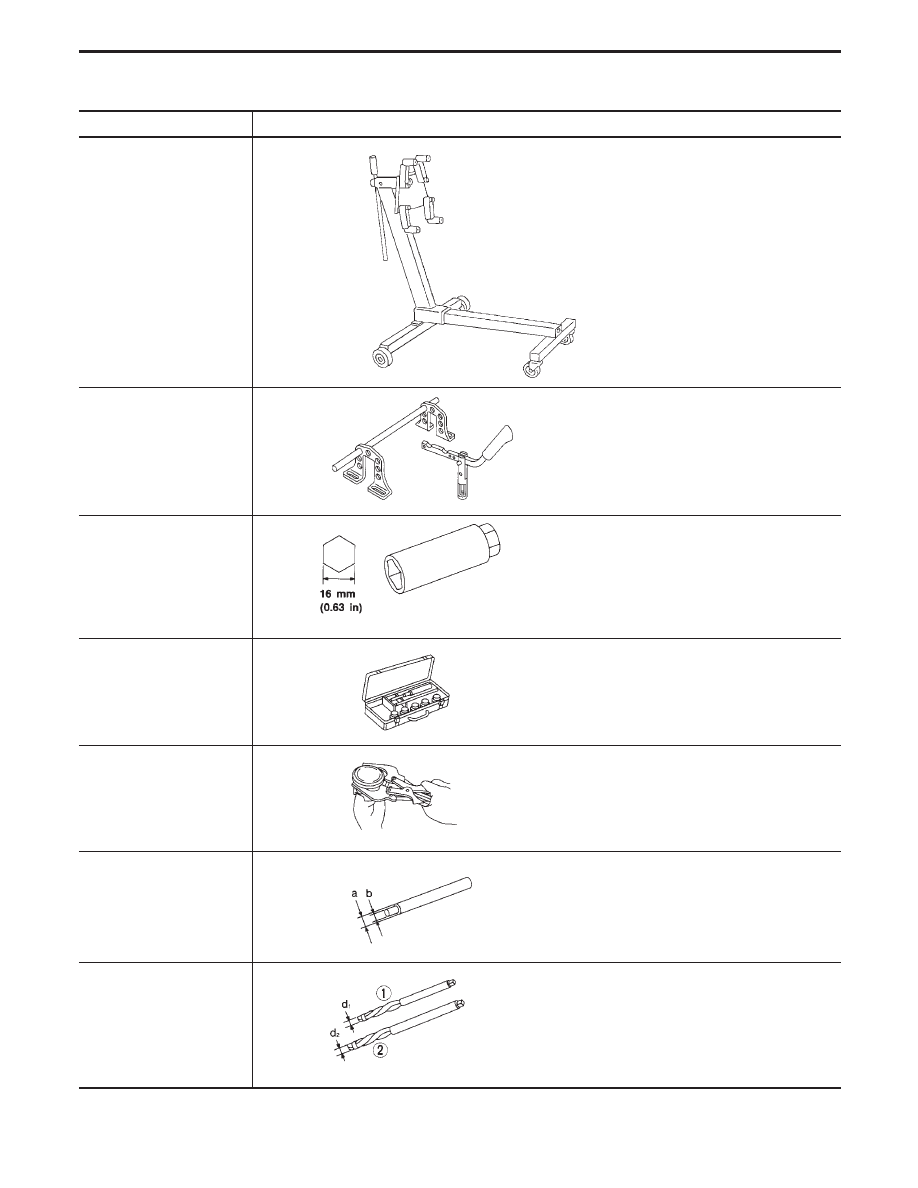

Commercial Service Tools

Tool name

Description

Engine stand assembly

NT388

Disassembling and assembling

Valve spring compressor

NT103

Disassembling and assembling valve com-
ponents

Spark plug wrench

NT047

Removing and installing spark plug

Valve seat cutter set

NT048

Finishing valve seat dimensions

Piston ring expander

NT030

Removing and installing piston ring

Valve guide drift

NT015

Removing and installing valve guide

Intake:

a = 11.5 mm (0.453 in) dia.
b = 6.5 mm (0.256 in) dia.

Exhaust:

a = 12.5 mm (0.492 in) dia.
b = 7.5 mm (0.295 in) dia.

Valve guide reamer

NT016

Reaming valve guide

q

1

or hole for over-

size valve guide

q

2

Intake:

d

1

= 7.000 mm (0.2756 in) dia.

Exhaust:

d

1

= 8.000 mm (0.3150 in) dia.

Intake:

d

2

= 11.175 mm (0.4400 in) dia.

Exhaust:

d

2

= 12.175 mm (0.4793 in) dia.

PREPARATION

EM-4
