Infiniti Q45 (FY33). Manual - part 409

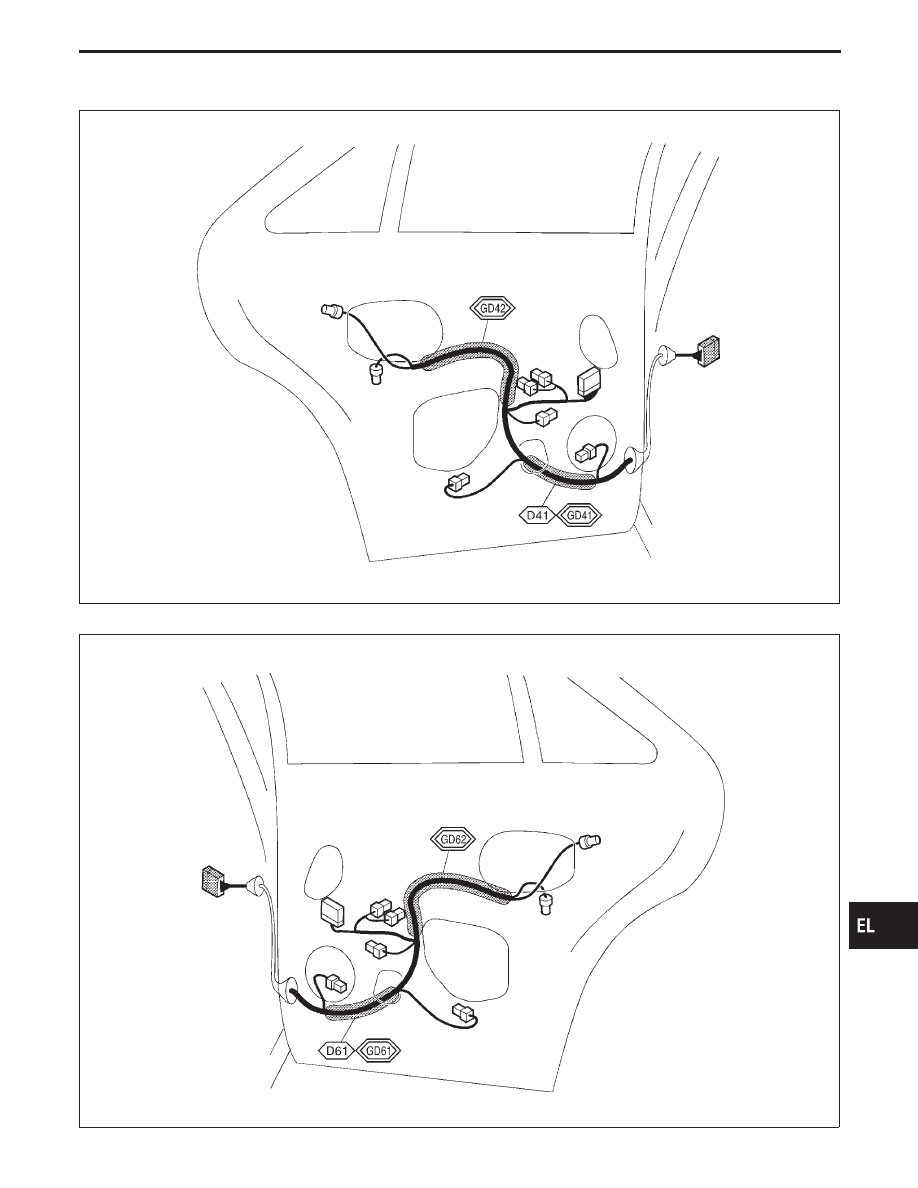

Rear Door Harness

LH SIDE

CEL612

RH SIDE

CEL615

IDX

SPLICE LOCATION

EL-627

Headlamp

Item

Wattage W

High/Low (Without xenon headlamp)

60/55 (HB2)

High/Low (With xenon headlamp)

55/35 (H1/D2R)

Exterior Lamp

Item

Wattage W

Front fog lamp

Front combination lamp

Turn signal/Parking lamp

27/8

Rear combination lamp

Turn signal lamp

Stop/Tail lamp

21/5

Tail lamp

Back-up lamp

License lamp

High-mounted stop lamp

Interior Lamp

Item

Wattage W

Front map lamp

Rear personal lamp

Vanity mirror lamp

1.4

Step lamp

2.7

Footwell lamp

3.4

Trunk room lamp

3.4

BULB SPECIFICATIONS

EL-628

Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.

Code

Section

Wiring Diagram Name

AAC/V

IACV-AAC Valve

A/C

Air Conditioner

AP/SEN

Absolute Pressure Sensor

ASCD

Automatic Speed Control Device
(ASCD)

A/T

AT/IND

A/T Indicator Lamp

AT/C

A/T Control

AUDIO

Audio

AUT/DP

Automatic Drive Positioner — IVMS

BACK/L

Back-up Lamp

BYPS/V

Vacuum Cut Valve Bypass Valve

CANI/V

EVAP Canister Purge Control Valve/
Solenoid Valve

CHARGE

Charging System

CHIME

Warning Chime

CIGAR

Cigarette Lighter

CKPS

Crank Shaft Position Sensor (OBD)

CLOCK

Clock

CMPS

Camshaft Position Sensor

COMM

IVMS — Communication Check,
Power Supply & Ground

COOL/F

Cooling Fan Control

DEF

Rear Window Defogger

D/LOCK

Power Door Lock — IVMS

DTRL

Headlamp - With Daytime Light Sys-
tem

ECTS

Engine Coolant Temperature
Sensor

EGRC1

EGR Function

EGRC/V

EGRC-Solenoid Valve

EGR/TS

EGR Temperature Sensor

EPS

Electric Controlled Power Steering
System

F/FOG

Front Fog Lamp

FO2H-L

Heated Oxygen Sensor 1 Heater
(Front) (Bank 1)

FO2H-R

Heated Oxygen Sensor 1 Heater
(Front) (Bank 2)

FPCM

Fuel Pump Control Module

F/PUMP

Fuel Pump

Code

Section

Wiring Diagram Name

O2H1B1

Heated Oxygen Sensor 1 (Front)
(Bank 1)

O2H1B2

Heated Oxygen Sensor 1 (Front)
(Bank 2)

FUELLH

Fuel Injection System Function
(Left Bank)

FUELRH

Fuel Injection System Function
(Right Bank)

H/AIM

Headlamp Aiming Control System

H/LAMP

Headlamp

HORN

Horn

HSEAT

Heated Seat

IATS

Intake Air Temperature Sensor

IGN/SG

Ignition Signal

ILL

Illumination

I/MIRR

Inside Mirror

INJECT

Injector

INT/L

Vanity Mirror and Trunk Room
Lamps

IVC-L

Intake Valve Timing Control Solenoid
Valve LH

IVC-R

Intake Valve Timing Control Solenoid
Valve RH

IVCS

Infiniti Communicator (IVCS)

IVCS-L

Intake Valve Timing Control Position
Sensor LH

IVCS-R

Intake Valve Timing Control Position
Sensor RH

Knock Sensor

LOAD

Load Signal

MAFS

Mass Air Flow Sensor

MAIN

Main Power Supply and Ground Cir-
cuit

METER

Speedometer, Tachometer, Temp.,
Oil and Fuel Gauges

MIL/DL

MIL and Data Link Connectors

MIRROR

Door Mirror

MULTI

Multi-remote Control System —
IVMS

NATS

NATS (Nissan Anti-Theft System)

NAVI

Navigation System

P/ANT

Power Antenna

IDX

WIRING DIAGRAM CODES (Cell codes)

EL-629

Code

Section

Wiring Diagram Name

PGC/V

EVAP Canister Purge Control Sole-
noid Valve

PHONE

Telephone

PNP/SW

Park/Neutral Position Switch

POWER

Power Supply Routing

PRE/SE

EVAP Control System Pressure Sen-
sor

PST/SW

Power Steering Oil Pressure Switch

REMOTE

Audio (Remote Control Switch)

ROOM/L

Interior Room Lamp — IVMS

O2H2B1

Heated Oxygen Sensor 2 Heater
(Rear) (Bank1)

O2H2B2

Heated Oxygen Sensor 2 Heater
(Rear) (Bank2)

O2S2B1

Heated Oxygen Sensor 2 (Rear)
(Bank1)

O2S2B2

Heated Oxygen Sensor 2 (Rear)
(Bank2)

SEAT

Power Seat

SHADE

Rear Sunshade

SHIFT

A/T Shift Lock System

SROOF

Sunroof

SRS

Supplemental Restraint System

S/SIG

Start Signal

START

Starting System

STEP/L

Step Lamp — IVMS

Code

Section

Wiring Diagram Name

STOP/L

Stop lamp

STPS

Secondary Throttle Position Sensor

SW/ILL

Power Window Switch Illumination
— IVMS

SW/V

MAP/BARO Switch Solenoid Valve

TAIL/L

Parking, License, Tail and Stop
Lamps

T/CLOS

Trunk Closure

TCS

Traction Control System

TCS

Traction Control System

TCS/SW

TCS Signal

T&FLID

Trunk Lid and Fuel Filler Lid Opener

FTTS

Fuel Tank Temperature Sensor

VEHSEC

Vehicle Security System — IVMS

TPS

Throttle Position Sensor

TP/SW

Throttle Position Switch

TRNSMT

Integrated Homelink Transmitter

TURN

Turn Signal and Hazard Warning
Lamps

VENT/V

EVAP Canister Vent Control Valve

VSS

Vehicle Speed Sensor

WARN

Warning Lamps

WINDOW

Power Window — IVMS

WIPER

Front Wiper and Washer

WIRING DIAGRAM CODES (Cell codes)

EL-630
