Infiniti Q45 (FY33). Manual - part 399

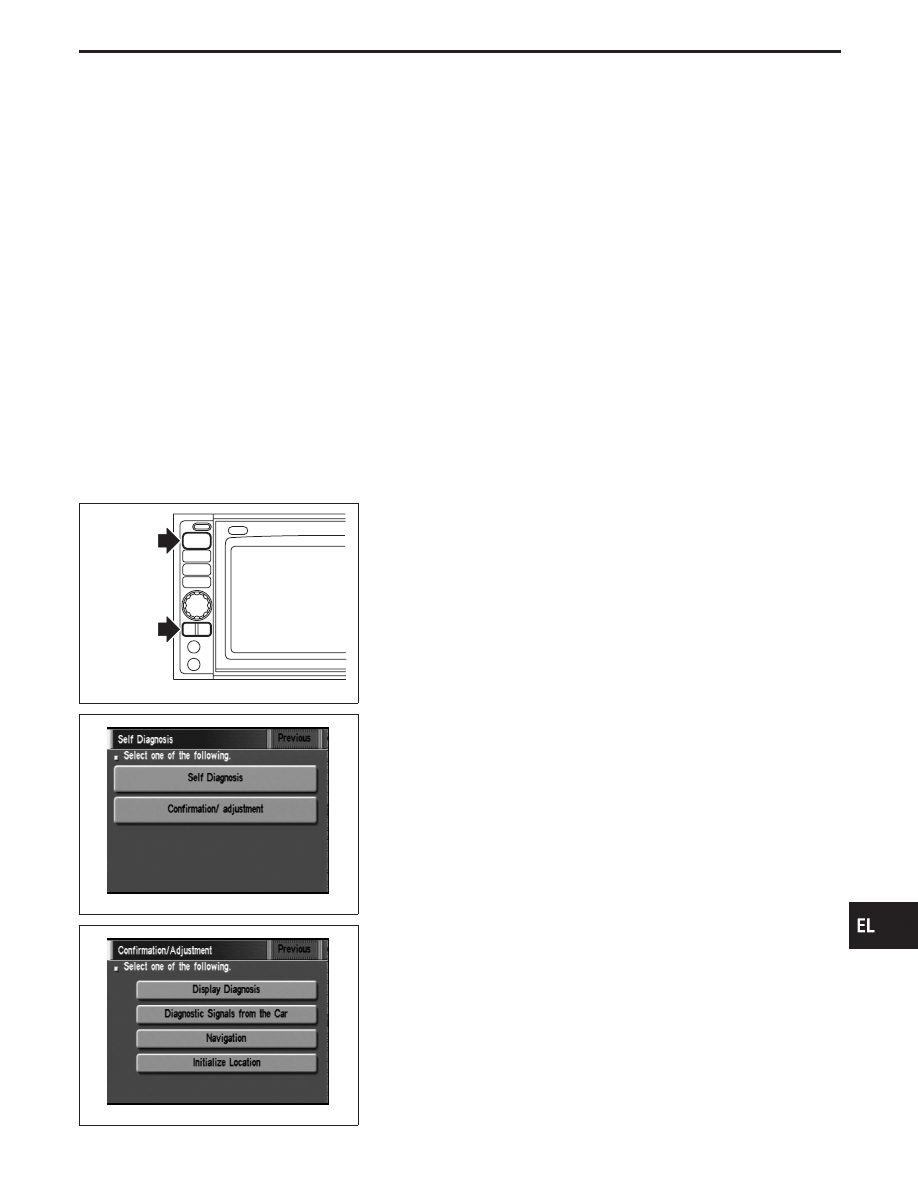

Initialize Location

This procedure is for initializing the current location. Perform “Ini-
tialize Location” when the vehicle is transported a long distance on
a trailer, etc.
Map with grey background appears and the vehicle location can
not be adjusted by scrolling the memory is out of the area of the
inserted map data.
Perform “Initialize Location” when this occurs.
NOTE:

I

Only initialize the system when the display & NAVI control
unit is replaced. If the system is initialized in other cases,
it may cause inaccurate positioning of the position marker
for a while.

I

Initialize the system outside for receiving the radio wave
from the GPS satellite.

Push at the
same time

MAP

D/N

OFF

SEL583X

HOW TO PERFORM

1.

Switch the navigation system mode to self-diagnosis by push-
ing both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

SEL584X

2.

Touch “Confirmation/ adjustment”.

SEL588X

3.

Touch “Initialize Location”. Then the previous screen is dis-
played.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

EL-587

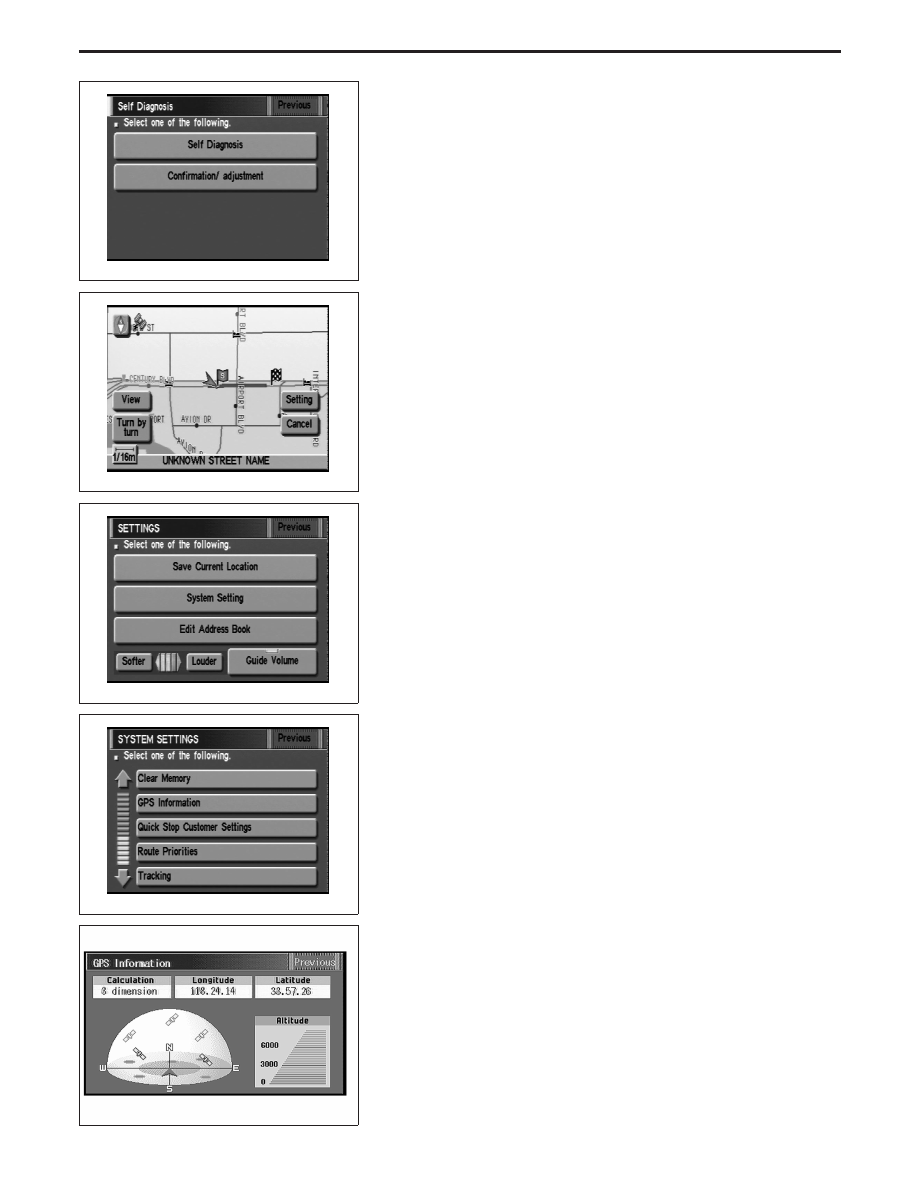

SEL584X

4.

Push “Previous” switch.

SEL598X

5.

Push the “MAP” switch.

6.

Touch “Setting”.

SEL599X

7.

Touch “System Setting”.

SEL600X

8.

Touch “GPS Information”.

SEL146W

9.

More than one GPS satellite icon turns green. (It may take 1
to 15 minutes.)

NOTE:
Drive the vehicle for a while* in order to change the receiving
condition of the radio wave from the GPS satellite if the GPS
icon does not turn green.
* The driving distance which is necessary depends on the

receiving condition of the radio wave from the GPS satellite.

NAVIGATION SYSTEM

Initialize Location (Cont’d)

EL-588

SEL613X

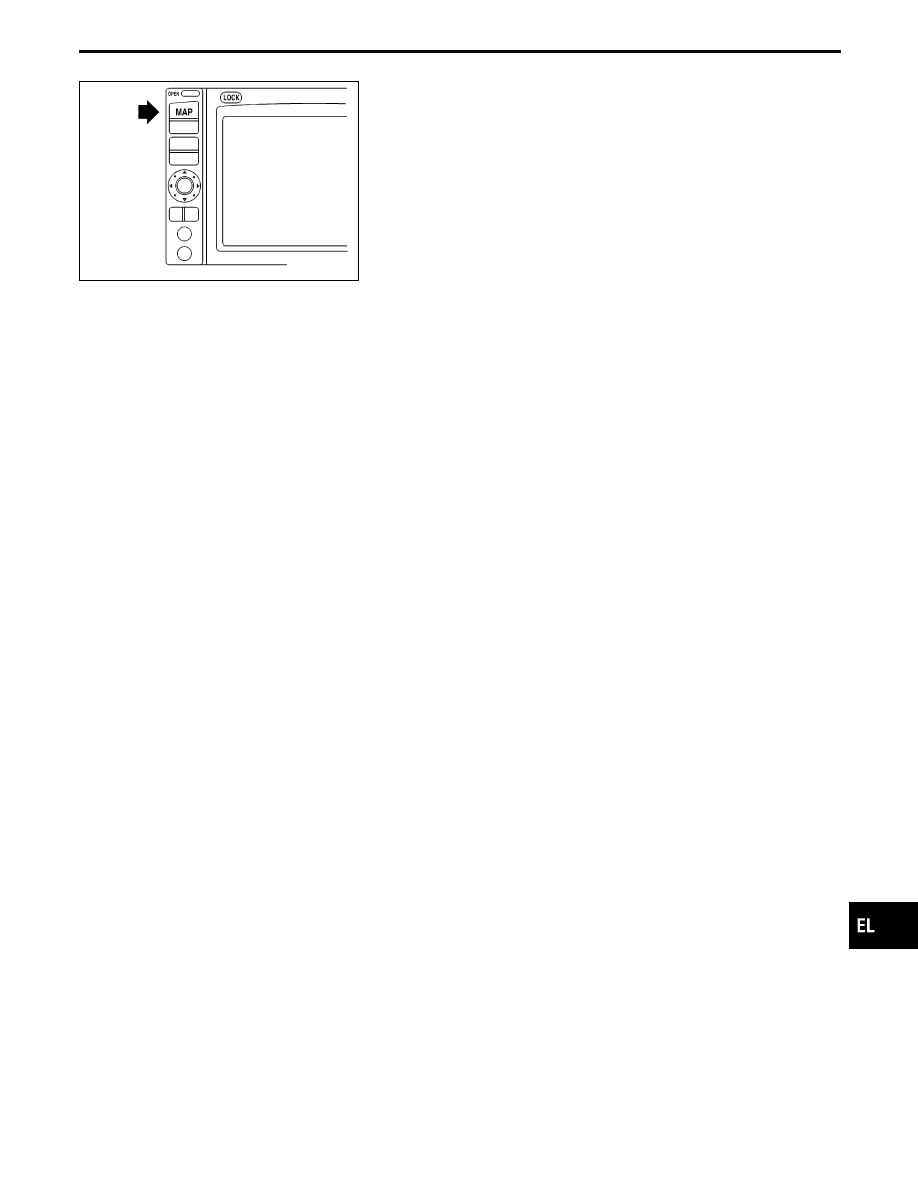

10. Push “MAP” switch and check the following.

I

Confirm that the GPS icon on the map turns green.

I

Then the position marker should show the current location.

I

Position marker rotates corresponding to the movement of the
vehicle.

11. Initialization is completed.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

Initialize Location (Cont’d)

EL-589

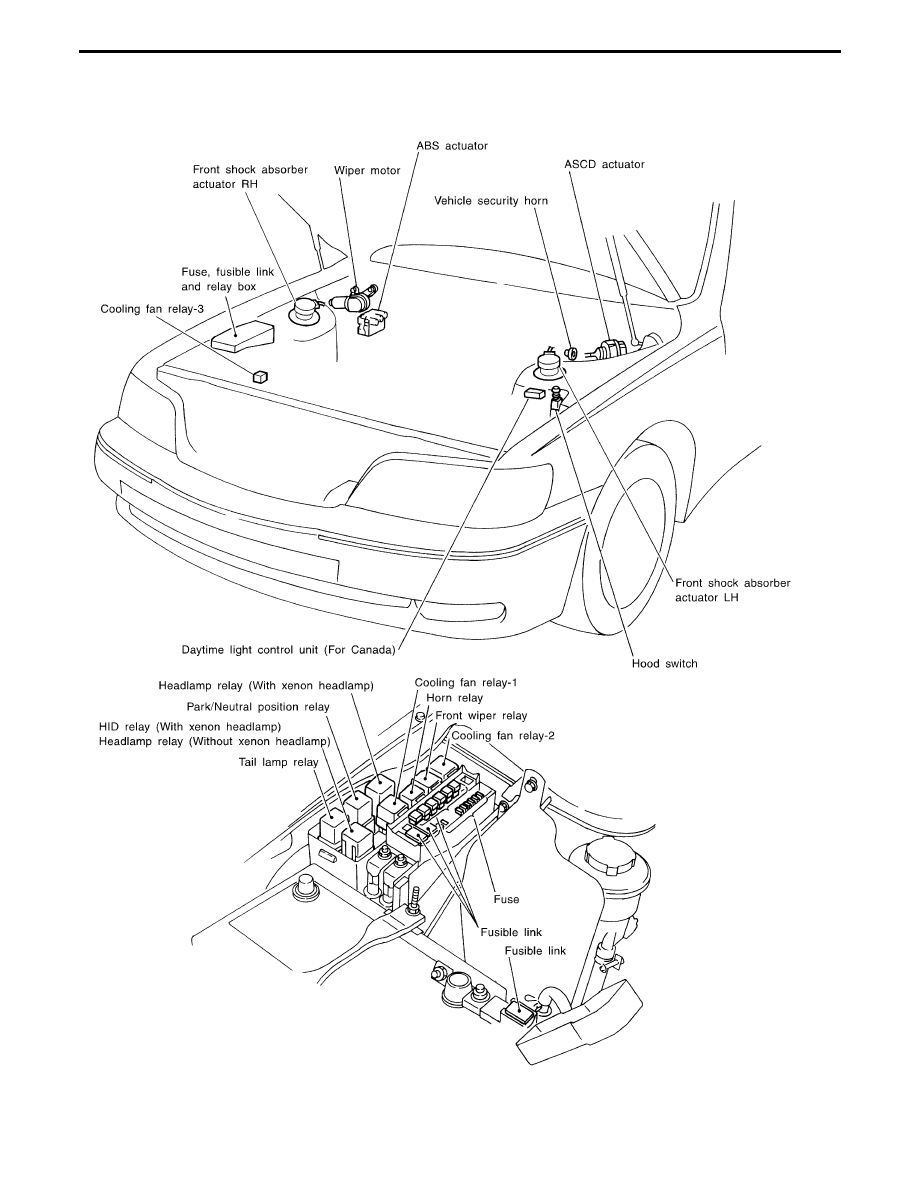

Engine Compartment

CEL280A

LOCATION OF ELECTRICAL UNITS

EL-590
