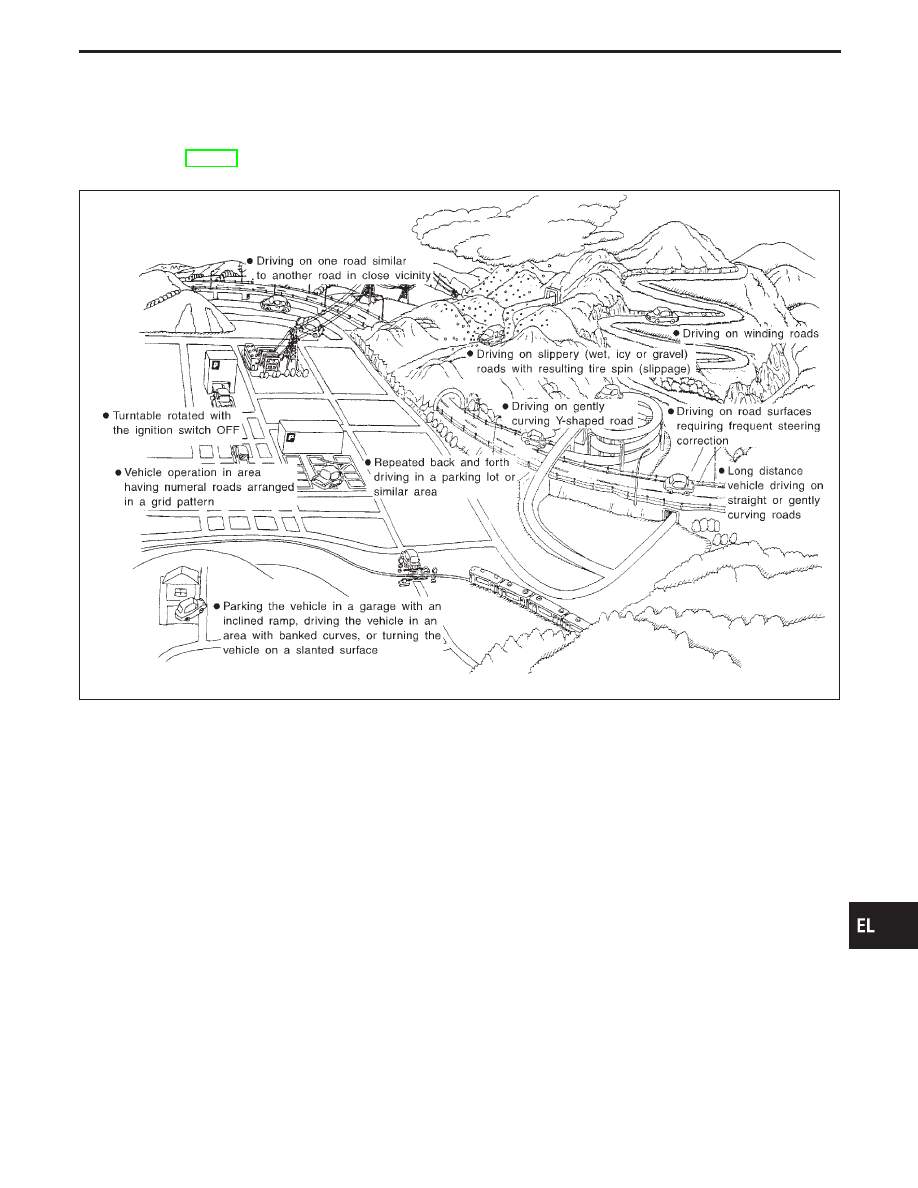

EXAMPLE OF CURRENT VEHICLE POSITION MARKER ERROR

The navigation system reads the vehicle distance and steering angle data. Because the vehicle is moving,
there will be an error in the current position indication. After the error appears, drive the vehicle for a short
distance. Stop the vehicle. If the position marker does not return to its original position, perform “Adjust Cur-
rent Location” (EL-566).

SEL698V

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

This Condition Is Not Abnormal (Cont’d)

EL-579

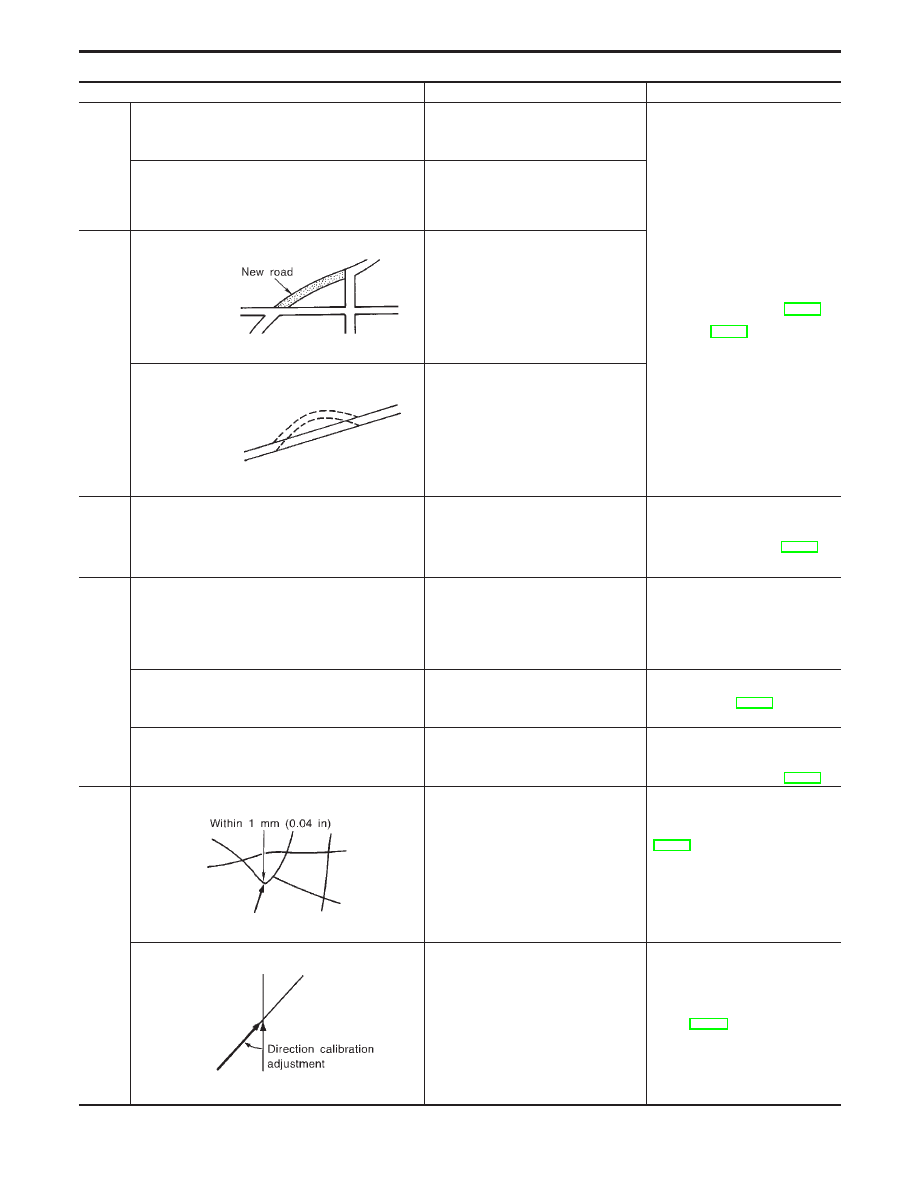

Possible cause

Drive condition

Service procedure

Area

Slippery road surface

On wet, icy, or gravel road where frequent
wheel slippage occurs, distance calcula-
tions may be erroneous. The position
marker may show the vehicle to be in
inaccurate position.

If the position marker does not move
to the correct position even after the
vehicle has been driven approxi-
mately 10 km (6 miles), perform
“Adjust Current Location” (EL-566).
If necessary, perform “SPEED CALI-
BRATION” (EL-564).

Slanted area

Hilly areas where the road has banked
curves. When the vehicle enters these
banked curves, there may be an error in
steering angle measurement. The position
marker may show the vehicle to be in
inaccurate position.

Map
data

Map display
for a given
road does not
appear.

SEL699V

When the vehicle is driven on a newly
constructed road that does not appear on
the existing map. Map marking and cali-
bration are not possible. The position
marker may indicate inaccurate position
in close proximity to the actual position.
Subsequently, when the vehicle is driven
on a road which is available as map data,
the position marker may still indicate an
inaccurate position.

The vehicle is
driven on a
road whose
course has
been altered
(usually to
improve the
road or to
eliminate
some haz-
ard).

SEL700V

When the map data shown on the display
and the actual conditions are different.
Map matching will not be possible. The
position marker may indicate inaccurate
position in close proximity to the actual
position. If the vehicle is driven on the
indicated road, further errors may occur.

Vehicle

Use of tire chains (Stormy weather)

Tire chains will affect distance sensing.
The position marker may indicate inaccu-
rate position.

If the position marker does not move
to the correct position even after the
vehicle has been driven approxi-
mately 10 km (6 miles), perform
“SPEED CALIBRATION” (EL-564).
After removing the tire chains, sens-
ing accuracy may recover by itself.

Opera-
tion

Driving immediately after starting engine.

The gyro (angular velocity sensor) needs
about 15 seconds after the engine is
started to precisely sense the angular
velocity.
Directional sensing errors will occur if the
vehicle is moved immediately after start-
ing the engine. The position marker may
indicate inaccurate position.

Wait a few moments between start-
ing the engine and actually driving
the vehicle.

Continuous driving for long distances (non-stop)

When the vehicle is driven continuously
without stopping over a long distance,
errors in directional sensing may occur.
The position marker may indicate inaccu-
rate position.

Stop the vehicle. Perform “SPEED
CALIBRATION” (EL-564).

Rough or violent driving

Wheel spinning (peeling out) or similar
rough driving techniques can adversely
affect sensing accuracy. The position
marker may indicate inaccurate position.

If the position marker does not move
to the correct position even after the
vehicle has been driven approxi-
mately 10 km (6 miles), perform
“Adjust Current Location” (EL-566).

Posi-
tional
calibra-
tion pro-
cedures

Positional calibration precision

SEL701V

If current vehicle location is roughly set,
the system may be unable to locate the
road that the vehicle is traveling on. (This
is especially true in an area where there
are many roads.)

Perform “Adjust Current Location”
(EL-566) within a precision standard
of 1 mm (0.04 in) on the display.
Note:
During calibration, use the most
detailed map possible.

Position calibration direction

SEL702V

When calibrating the position, check the
vehicle direction. If the vehicle direction is
not correct, subsequent precision of cur-
rent location will be affected.

Perform “Adjust Current Location”,
refer to EL-566.

NAVIGATION SYSTEM

This Condition Is Not Abnormal (Cont’d)

EL-580

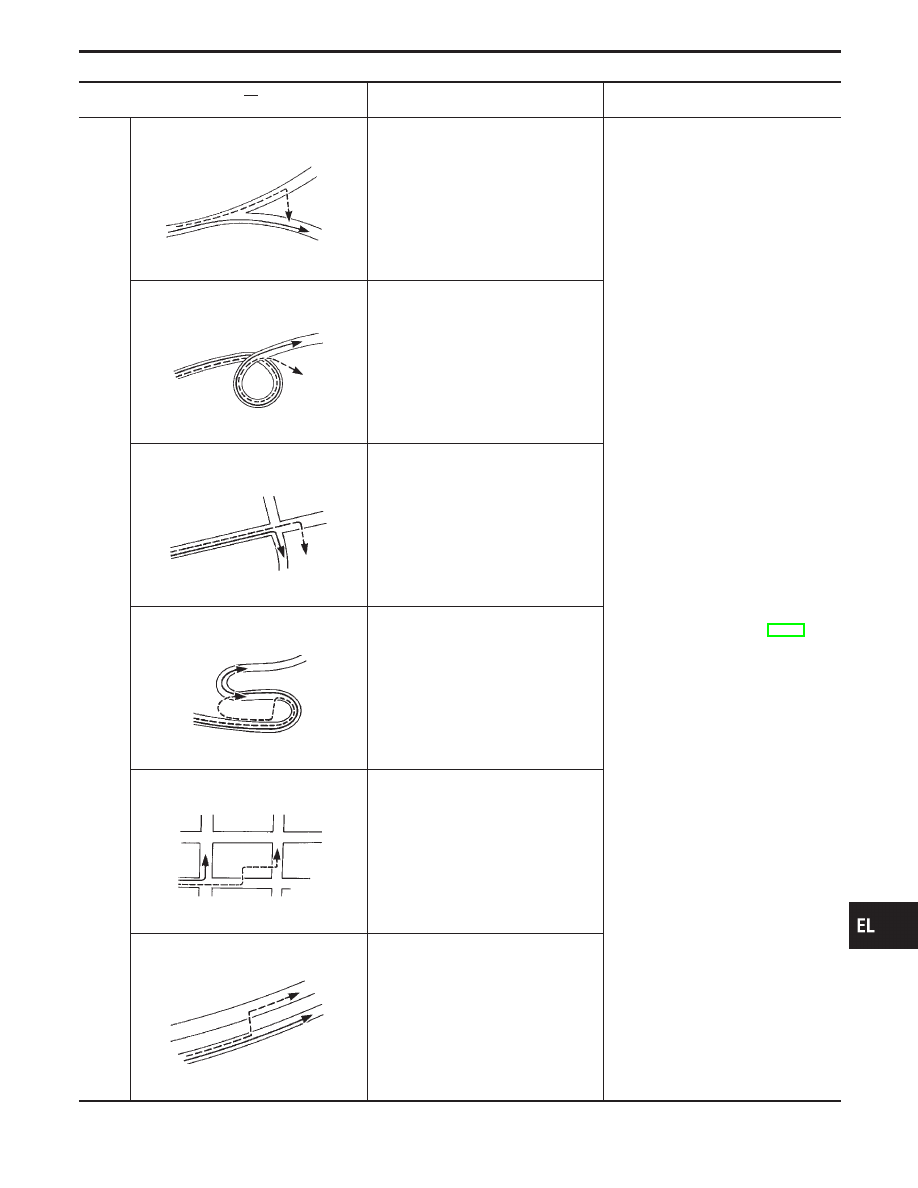

Possible cause

: Vehicle running

--- : Indication

Drive condition

Service procedure

Road
shapes

Y-intersection

SEL703V

In Y-intersections with a very gradual change
in course, a directional sensing may be inac-
curate. This may result in the position
marker giving the wrong road indication.

If the position marker does not move to the
correct position even after the vehicle has
been driven approximately 10 km (6 miles),
perform “Store place”. If required, also per-
form “Adjust Current Location” (EL-566).

Spiral road

SEL704V

On loop bridges and similar structures which
result in a large and continuous turn, turning
angle may be sensed inaccurately. As a
result, the position marker may separate
from the route on the map.

Straight road

SEL705V

In long distance driving on a straight road or
road with very gradual curves, map marking
inaccuracies may occur. In such cases, the
position marker may stray from the route
being traveled during subsequent turns due
to inaccurate distance calculation.

Winding road

SEL706V

Directional sensing precision errors may
occur when traveling on winding roads. Dur-
ing map matching, the position marker may
stray to an adjacent road having a similar
shape. Subsequent position marker error
may occur.

Grid-like road shape

SEL707V

Directional sensing and distance sensing,
precision errors may occur because of many
roads having a similar shape in the immedi-
ate area. During map matching, the position
marker may stray to an adjacent road having
a similar shape. Subsequent position marker
error may occur.

Parallel roads

SEL708V

When driving on a parallel road, map match-
ing errors may occur. Subsequent position
marker error may also occur.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

This Condition Is Not Abnormal (Cont’d)

EL-581

Possible cause

: Vehicle running

--- : Indication

Drive condition

Service procedure

Location

Parking lot or similar area

SEL709V

When the vehicle is driven in a parking lot or
similar area, such as in an area not normally
marked as a road on map, during map
matching, the system may select nearby
roads. This error may continue after the
vehicle exits the parking area and begins to
run on ordinary roads. Vehicle operation in a
parking area may involve frequent turns and
up and/or down operation. Directional sens-
ing errors may occur leading to subsequent
route and position mistakes.

Turntable

SEL710V

When the ignition switch is OFF (the usual
situation when the vehicle is on a turntable),
the navigation system receives no data from
the gyro (angular velocity sensor). When the
turntable rotates, no directional change is
sensed. During subsequent vehicle
operation, directional and route errors may
occur.

Position marker displays a completely different location

In circumstances such as those described below, GPS signal reception conditions may result in an erroneous
position of the position marker. Perform “Adjust Current Location” (EL-566).
NOTE:

I

When GPS satellite signal reception conditions are poor, the position of position marker may be errone-
ous. If correction is not made immediately, the position marker error will be compounded and a completely
different location will be indicated. In an area where GPS satellite signal reception conditions are good,
the system can be returned to normal operation.

I

The vehicle is driven aboard a car ferry or is towed for some distance with the ignition switch OFF. Vehicle
movement is not sensed. Current location calculations do not occur and current location data does not
appear on the display screen. Use GPS to accurately determine actual vehicle position. The system can
be returned to normal operation when the GPS satellite signal reception conditions are good.

Position marker jumps

In circumstances such as those described below, the position marker may jump as a result of automatic cur-
rent location corrections made by the system.
During map matching

I

During map matching, the position marker may jump from one spot to another. In this case, it may be cor-
rected to a wrong road or to an area where no road exist.

GPS location correcting

I

Vehicle current location is sensed using the GPS data. Positional calibration is performed. The position
marker continues to be in the wrong position. It may jump about from one area of the screen to another.
In this case, it may be corrected to a wrong road or to an area where no road exist.

Position marker indicates that the vehicle is in the middle of an ocean or large river

The navigation system does not distinguish between land and water surfaces. In some cases, a position
marker error may cause the display to show the vehicle above a water surface.

Position of position marker varies when the vehicle is repeatedly operated on the same
road

Driving lane and steering wheel movement results in a variety of different positions of the position mark when
traveling on the same road based on sensing results by the GPS antenna and gyro (angular velocity sensor).
Slow locational correction using map matching

I

The map matching function requires verification of local data. To make the map matching function, some
distance needs to be driven.

I

The map matching function may not provide accurate performance in an area where there are numerous
parallel roads. Until the system judges the road characteristics, an incorrect position may be shown.

NAVIGATION SYSTEM

This Condition Is Not Abnormal (Cont’d)

EL-582
