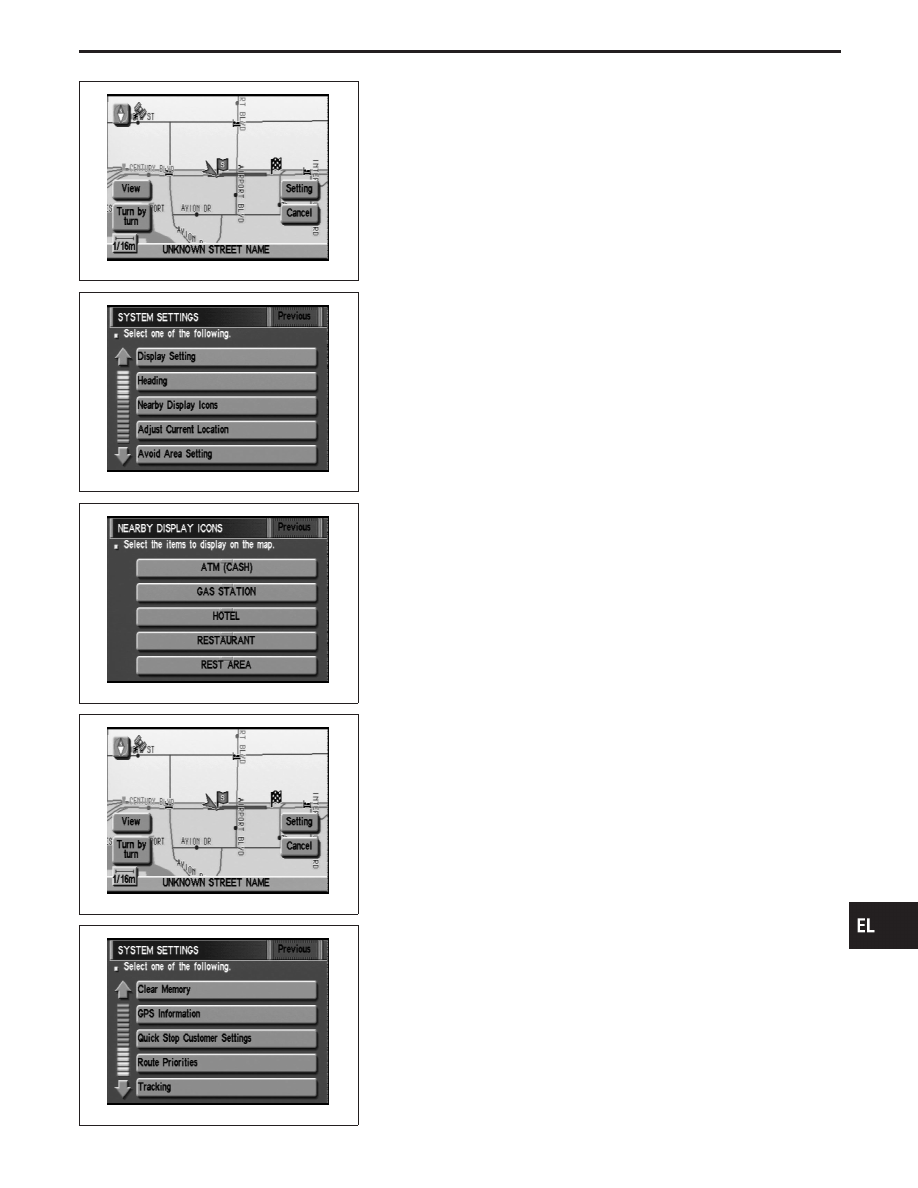

“Nearby Display Icons” MODE

1.

Start the engine.

2.

Push the “MAP” switch.

3.

Touch “Setting”.

4.

Touch “System Setting”.

SEL601X

5.

Touch “Nearby Display Icons”.

SEL610X

6.

Select and touch the itemized list.

7.

Push the “MAP” switch to return the display to the current
location map.

SEL598X

“Clear Memory” MODE

1.

Start the engine.

2.

Push the “MAP” switch.

3.

Touch “Setting”.

4.

Touch “System Setting”.

SEL600X

5.

Touch “Clear Memory”.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-571

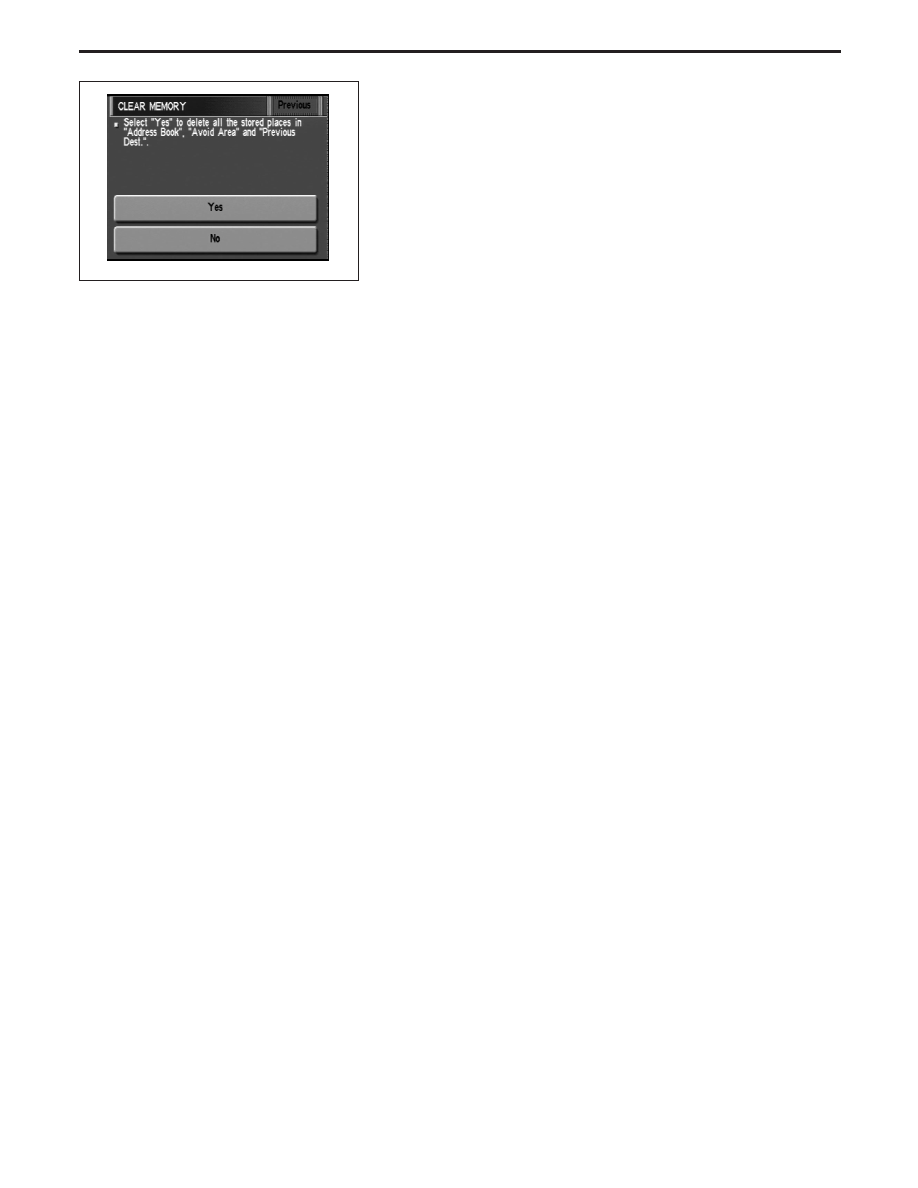

SEL611X

6.

To delete all the stored places in the “Address Book”, “Avoid
Area” and “Previous Dest”, select “Yes”.

NAVIGATION SYSTEM

Setting Mode (Cont’d)

EL-572

Trouble Diagnoses

SYMPTOM CHART

Symptom

Diagnoses/service procedure

Reference

page

Any function of the system
does not operate.

Check power supply and ground circuit for display & NAVI control unit.

EL-576

Strange screen color or
unusual screen brightness.

1. Check “DISPLAY SETTING”.

EL-567

2. Check display in “Display Diagnosis” MODE.

EL-561

The display is not dimmed
when turning lighting switch
to ON.

1. Check “DISPLAY SETTING”.

EL-567

2. Check lighting switch signal input to display & NAVI control unit correctly in

“Diagnosis for the signals from the car” MODE.

EL-559

No navigation guide voice
are heard from both front
speakers.

1. Check “Voice Guidance Setting”.

2. Check voice guide operation.

EL-577

Beep does not sound when
the system guides route.

Check “BEEP ON/OFF SETTING”.

EL-567

Position marker does not
trace along the route being
traveled.

Go to “WORK FLOW FOR NAVIGATION INSPECTION”.

EL-574

Position marker does not
indicate forward or backward
movement.

Check reverse signal input to display & NAVI control unit correctly by “Diagnosis for
the signals from the car” MODE.

EL-559

Radio wave of GPS cannot
be received. (GPS marker on
the display does not become
green color.)

1. Is there anything obstructing the GPS antenna on the rear parcel finisher? (GPS

antenna located under the rear parcel finisher.)

2. Check GPS radio wave receive condition in “GPS Information SETTING”.

EL-565

3. Check GPS antenna in “Self Diagnosis”.

EL-554

Heading direction of position
marker does not match
vehicle direction.

1. Perform “Adjust Current Location” SETTING.

EL-566

2. Go to “WORK FLOW FOR NAVIGATION INSPECTION”.

EL-574

Stored location in the
address book and other
memory functions are lost
when battery is disconnected
or becomes discharged.

Stored location in the address book and other memory functions may be lost if the
battery is disconnected or becomes discharged. If this should occur, charge or
replace the battery as necessary and re-enter the information.

Map appears grey and can-
not be scrolled.

The current location in the memory is out of the map data area.
Perform “Initialize Location”.

EL-587

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

EL-573

WORK FLOW FOR NAVIGATION INSPECTION

CHECK IN

LISTEN TO CUSTOMER COMPLAINT

The system might be no malfunctioning. Refer to EL-578.

No

E

Yes

If necessary, calibrate the
system.

Perform Self-diagnosis. Refer to EL-554.
Does self-diagnostic result exist?

No

E

Yes

Repair/replace based on
“SELF-DIAGNOSIS
RESULTS”, EL-555.

Confirm history of errors in “Error history” MODE, EL-556.
Does self-diagnostic result exist?

No

E

Yes

Repair/replace following
“Error history” TABLE,
EL-558.

Check input signals to display and NAVI control unit in “Diagnosis for signals from
the car” MODE, EL-559.
Are signals input properly?

Yes

E

No

Check signal circuit.

Perform “DRIVING TEST”, EL-575.

END
