“Diagnostic Signals From the Car” MODE

Description

In “Diagnostic Signals From the Car” mode, following input signals
to the display & NAVI control unit can be checked on the display.

Item

Indication

Vehicle condition

Vehicle
Speed*

ON

Vehicle speed is greater than 0 km/h (0 MPH).

OFF

Vehicle speed is 0 km/h (0 MPH).

Light

ON

Lighting switch is in 1st or 2nd position.

OFF

Lighting switch is in “OFF” position.

IGN

ON

Ignition switch is in “ON” position.

OFF

Ignition switch is in “ACC” position.

REVERSE*

ON

Selector/shift lever is in “Reverse” position.

OFF

Selector/shift lever is in other than “Reverse” posi-
tion.

*: When ignition switch is in “ACC” position, indication will be changed to “-”.

SEL584X

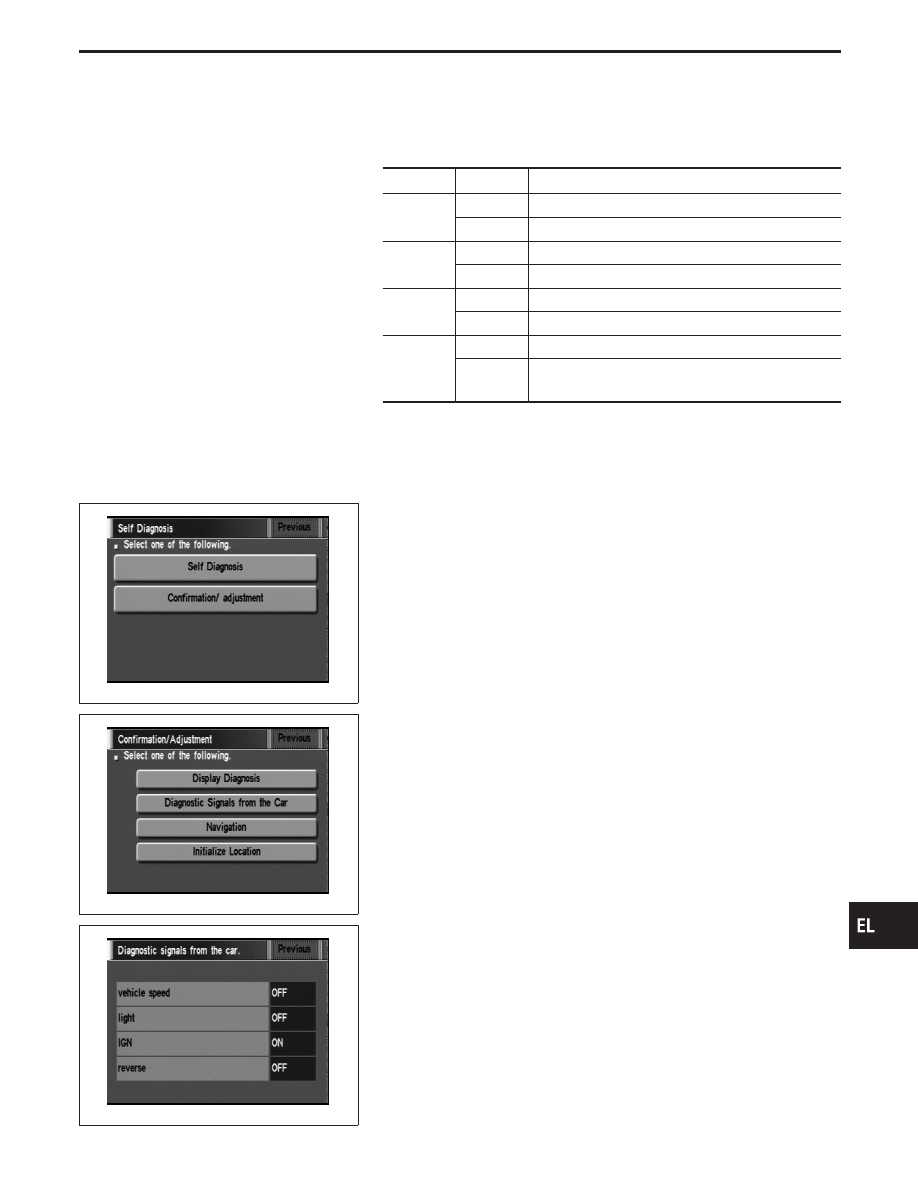

How to perform

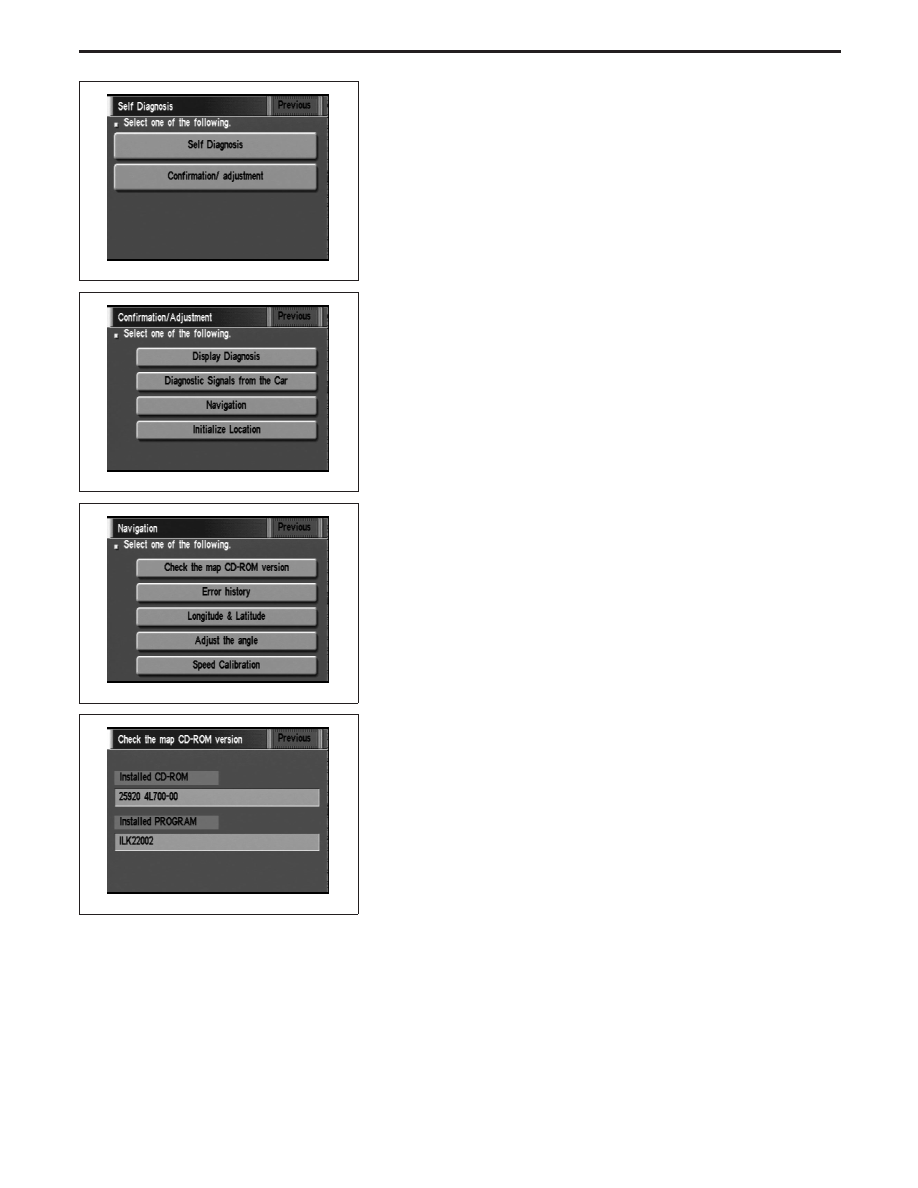

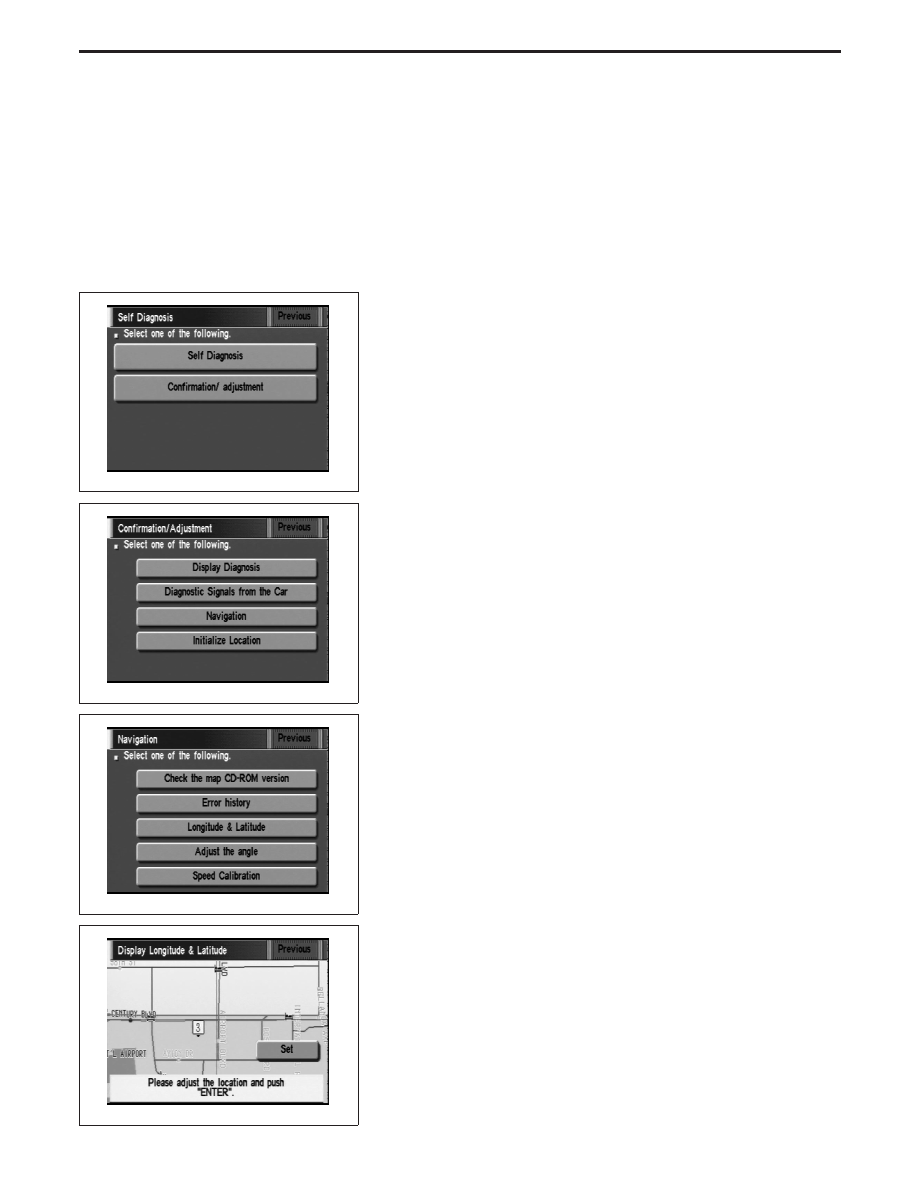

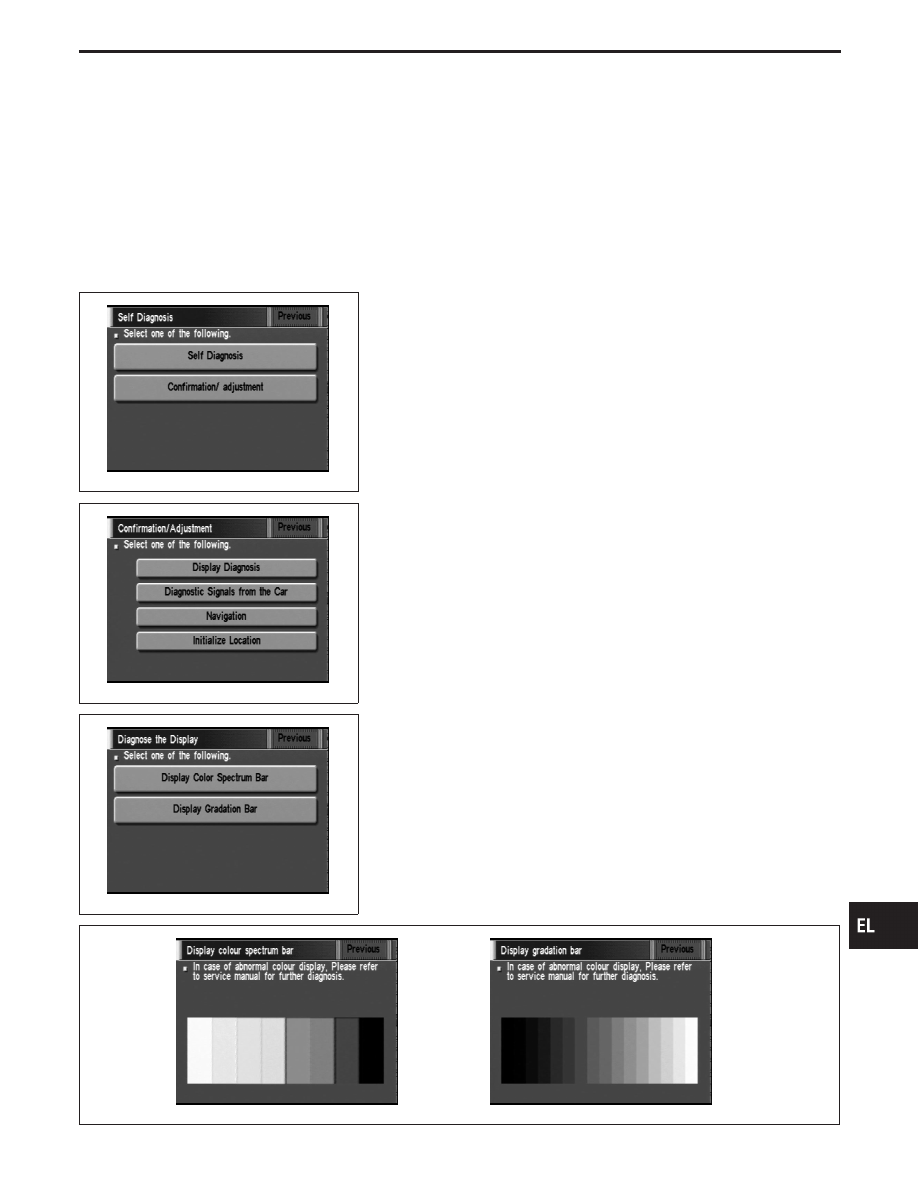

1.

Start the engine.

2.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

3.

Touch “Confirmation/ adjustment”.

SEL588X

4.

Touch “Diagnostic Signals from the Car”.

SEL591X

5.

Then “Diagnostic Signals from the Car” mode is performed.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

Self-diagnosis Mode (Cont’d)

EL-559

SEL584X

“Check the map CD-ROM version” MODE

How to perform

1.

Start the engine.

2.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

3.

Touch “Confirmation/ adjustment”.

SEL588X

4.

Touch “Navigation”.

SEL589X

5.

Touch “Check the map CD-ROM version”.

SEL592X

6.

The version (parts number) of CD-ROM loaded to the display
and NAVI control unit will be displayed.

NAVIGATION SYSTEM

Self-diagnosis Mode (Cont’d)

EL-560

“Display Diagnosis” MODE

Description

Use the “Diagnosis Display” mode to check the display color bright-
ness and shading. The display & NAVI control unit must be
replaced if the color brightness and shading are abnormal.

SEL584X

How to perform

1.

Start the engine.

2.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

3.

Touch “Confirmation/ adjustment”.

SEL588X

4.

Touch “Display Diagnosis”.

SEL593X

5.

Touch “Display color spectrum bar” or “Display gradation bar”.

6.

Then color bar/gray scale will be displayed.

SEL594X

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

NAVIGATION SYSTEM

Self-diagnosis Mode (Cont’d)

EL-561

“Longitude & Latitude” MODE

Description

The “Longitude & Latitude” is used to confirm the longitude and
latitude of some optional area point.

SEL584X

How to perform

1.

Start the engine.

2.

Push both “MAP” and “D/N” switches at the same time for more
than 5 seconds.

3.

Touch “Confirmation/ adjustment”.

SEL588X

4.

Touch “Navigation”.

SEL589X

5.

Touch “Longitude & Latitude”.

SEL595X

6.

Adjust the pointer with using the joystick and touch “Set”.

7.

The longitude and latitude are displayed.

NAVIGATION SYSTEM

Self-diagnosis Mode (Cont’d)

EL-562
