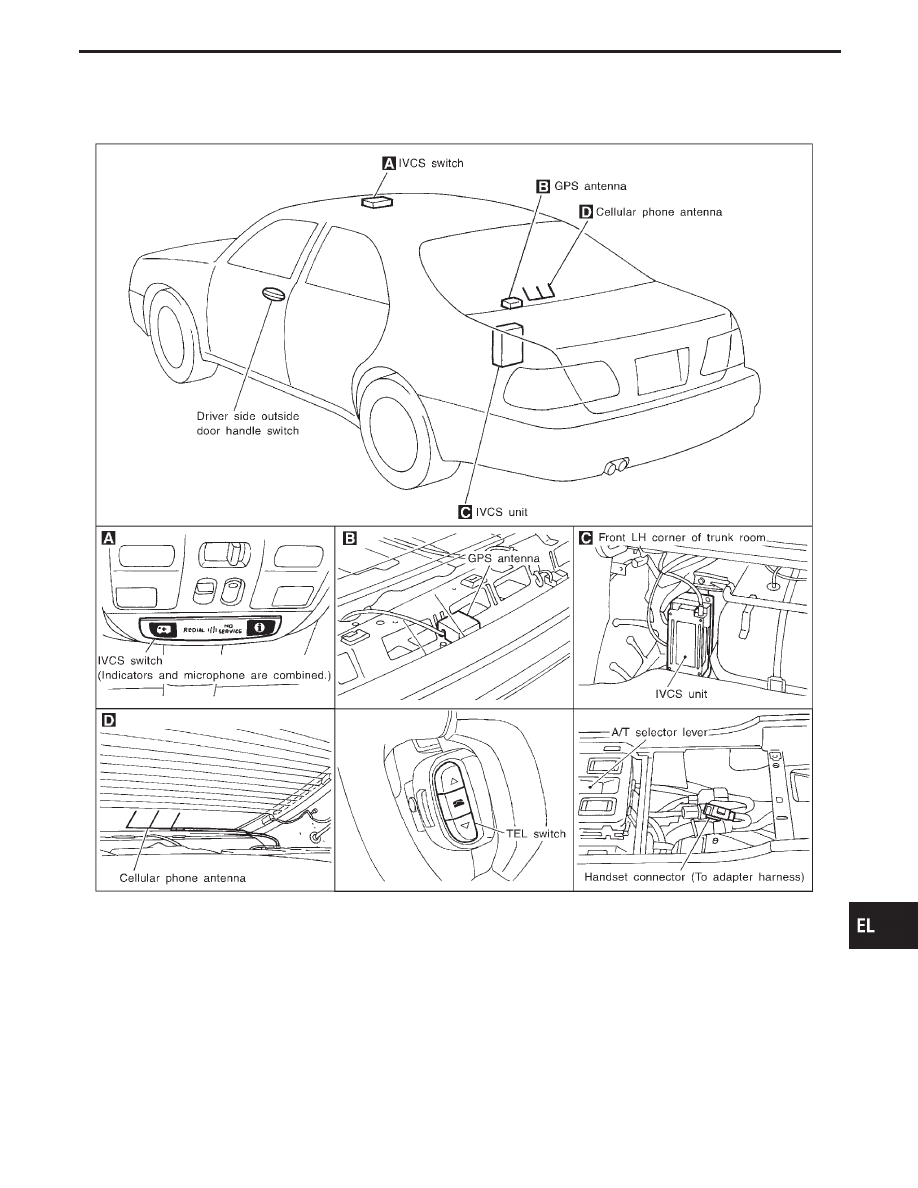

Component Parts and Harness Connector
Location

SEL647V

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

INFINITI COMMUNICATOR (IVCS)

EL-507

System Description

OUTLINE

INFINITI Communicator system uses the Global Positioning System (GPS), cellular phone technology and the
Communicator Response Center to provide the following functions.

I

One touch “Information” dialing

I

One touch “Mayday” emergency dialing

I

Automatic air bag inflation notification

I

Stolen vehicle tracking

I

Alarm notification

I

Remote door unlock

There are limitations to the INFINITI Communicator system. To understand the system, read SYSTEM LIMI-
TATIONS (EL-509) thoroughly.

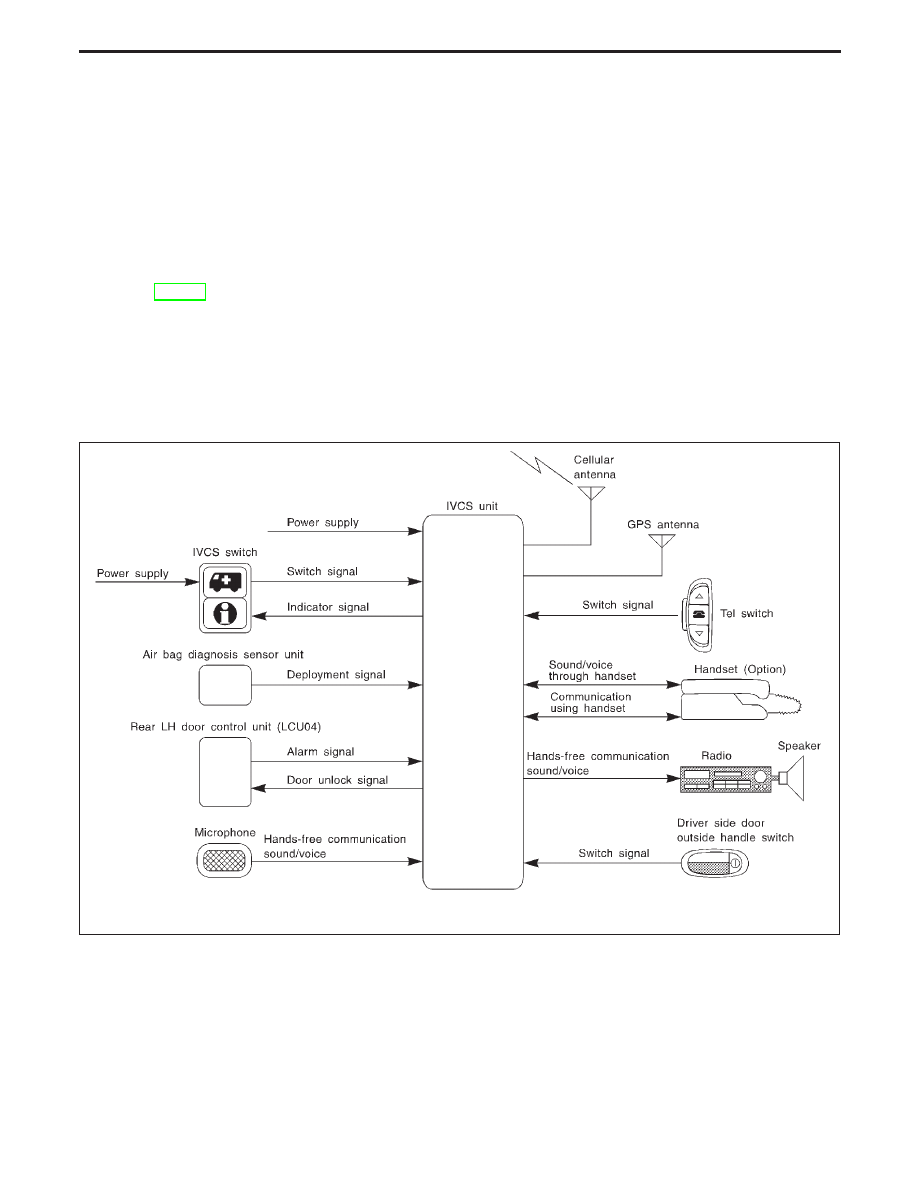

SYSTEM COMPOSITION

I

The INFINITI Communicator system is controlled by the IVCS (In Vehicle Communication System) unit.
System status (“Mayday”-emergency dialing, or re-dialing, etc.) is displayed by the indicators in the IVCS
switch.

I

The INFINITI Communicator system can only make calls to the Communicator Response Center and
receive calls from the center, unless the customer chooses to have the optional handset install.

SEL527V

INFINITI COMMUNICATOR (IVCS)

EL-508

SYSTEM LIMITATIONS

Service area

Depending on the cellular provider chosen, service is provided in the 48 contiguous states. Service is not
available in Alaska, Hawaii, Canada, or Mexico. The Communicator Response Center will not be able to locate
the customer’s vehicle outside of the continental United States.

Inoperative if cellular phone is inactive or inoperative

INFINITI Communicator will be inoperative if the customer does not have an active account with cellular
provider, since INFINITI Communicator relies on the cellular network. When the INFINITI Communicator sys-
tem is outside of cellular service, the “NO SERVICE” indicator will illuminate. If you try to activate INFINITI
Communicator, the REQUEST will be cancelled. Cellular phone transmission may become temporarily
disabled, or interrupted by environmental factors like tunnels, bridges, or tall buildings. In such cases, INFINITI
Communicator will re-dial up to four times. After several failed attempts, the system will quit dialing and return
to normal mode.

Inoperative if the system is in the demonstration mode

The INFINITI Communicator system remains in the demonstration mode until the setup procedures are com-
pleted. If the system is activated in this mode, the Communicator Response Center will recognize this opera-
tion as a demonstration and will not provide any service. The system can be changed to the demonstration
mode by using CONSULT-II to check the system operation. Do not forget to turn off the demonstration mode
after confirmation.

Battery

Since INFINITI Communicator is powered by the vehicle’s battery, if the battery is removed, damaged or
discharged, the system will not work.

Inoperative if cellular system is busy

When INFINITI Communicator tries to contact the Communicator Response Center, but the cellular network
is busy, the system attempts to re-dial for up to two hours. This time varies greatly depending on the cellular
network and cellular signal strength. The system resets to ready when the system completes the re-dialing
attempts.

Roaming

If the customer’s cellular provider does not have a roaming agreement with the provider where the vehicle
locates, it may not be possible to use the lines of a different cellular provider. Therefore, it is impossible that
INFINITI Communicator will contact the Communicator Response Center.

Special cellular features

Some cellular carriers offer custom phone numbers that are assigned a Personal Identification Number (PIN).
The cellular phone user is required to enter the PIN anytime a phone call is made. The INFINITI Communi-
cator system is not compatible with the PIN feature. A PIN requirement on the cellular phone will cause the
INFINITI Communicator system to be inoperative.
Other special features such as call waiting, voice mail, call forwarding, etc. can interfere with INFINITI Com-
municator system operation.

Cellular airwave interference

At times someone other than the Communicator Response Center operator may be heard. This is caused by
Cellular Airwave Interference and is not caused by an INFINITI Communicator system malfunction.

Possibility of positioning capability degraded

Vehicle positioning is accomplished using the GPS (Global Positioning System). If the signal from the GPS
satellite is obstructed by a tunnel or building, positioning capability may be degraded or lost. In this case, the
last valid position obtained before the obstruction is transmitted to the Communicator Response Center. The
precision is also influenced by the location of GPS satellites.
Once the battery cable is disconnected, it will take about 5 minutes to determine the vehicle location. This is
because the memory related to GPS is lost when the battery cable is disconnected.

OPERATION

One touch “Information” dialing

I

If the vehicle becomes disabled due to problems such as engine trouble, press the “Information” switch to
connect to the Communicator Response Center and receive the desired service.

I

When the indicator lamp on the switch lights up, it means that the system has started to contact the Com-
municator Response Center. (Voice communication with Communicator Response Center operator is not
available while DATA is being transmitted even if the indicator lamp is lit.)

I

When the indicator lamp blinks, it means that the system is preparing for cellular connection or attempt-
ing to re-dial.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

INFINITI COMMUNICATOR (IVCS)

System Description (Cont’d)

EL-509

One touch “Mayday” emergency dialing

I

When an emergency occurs, press the “Mayday” emergency switch to connect to the Communicator
Response Center. With this report, the Communicator Response Center recognizes that an emergency
has occurred and provides necessary service.

I

The operator will request a password (if the customer chooses to establish a password). If the wrong
password or if no password is provided, the Communicator Response Center will assume the customer
is in a duress situation and dispatch police.

I

When no voice reply is heard from the vehicle or the sound heard indicates an emergency situation, the
Communicator Response Center will have the police rush to the scene.

I

Other operations are the same as service dialing.

Automatic air bag inflation notification

I

When an air bag inflates, the air bag diagnosis sensor unit sends the air bag inflation signal to the IVCS
unit, and the system automatically dials the Communicator Response Center to report the occurrence of
an accident.

Stolen vehicle tracking

I

When a vehicle is stolen, the owner can contact the Communicator Response Center to attempt to locate
the stolen vehicle. The Communicator Response Center will activate the stolen vehicle tracking to locate
the vehicle. If the Communicator Response Center successfully locates the vehicle, they will contact the
police to provide the location.

I

The vehicle location data is calculated using GPS.

I

The vehicle ignition switch must be turned to the ON position to obtain the vehicle location. (This is because
the system is in the sleep mode when the ignition switch is OFF.)

I

Once this function starts up, regardless of the ignition switch position, the system keeps transmitting the
vehicle location until the cancel signal is transmitted from the Communicator Response Center.

I

While this function is operating, the operator can covertly monitor what is happening inside the vehicle
through the hands-free microphone.

Alarm notification

I

When vehicle security system sounds an alarm for more than 7 seconds because of improper access, the
alarm signal is transmitted from the rear LH passenger door control unit (LCU04) to the IVCS unit, and
the system executes automatic dialing to the Communicator Response Center.
If the alarm is reset before 7 seconds has elapsed, the INFINITI Communicator will not place a call to the
Communicator Response Center.

I

This function operates regardless of ignition switch position.

I

While this function is operating, the operator can covertly monitor what is happening inside the vehicle
through the hands-free microphone.

Remote door unlock

I

When the door is locked with the key inside the vehicle, the door can be unlocked by contacting the Com-
municator Response Center (Proof that the person calling is the owner must be received by the Commu-
nicator Response Center.)

I

When the ignition key is in the “OFF” position, the system is in the sleep mode. Therefore, driver’s outside
handle must be pulled to wake up the system.

I

To perform remote door unlock, call the Communicator Response Center and follow the operator’s instruc-
tions.

NOTE:

I

When the system contacts the Communicator Response Center, data including the vehicle loca-
tion is transmitted to the Communicator Response Center.

I

Communication with the Communicator Response Center is not completed until the completion
signal is transmitted from the Communicator Response Center. (Any calls to the Communicator
Response Center can only be terminated by Communicator Response Center.)

I

Functions other than alarm notification and remote door unlock operate while the ignition switch
is ON and only for three minutes after the switch is turned OFF.

I

Once a call to the Communicator Response Center is made, the communication continues regard-
less of the ignition key switch position.

I

All the voice communication with the Communicator Response Center is made through the hands-
free telephone.

I

When the INFINITI Communicator system is activated, the handset does not function.
