Trouble Diagnoses

WORK FLOW

CHECK IN

Listen to customer complaints or request. (Get symptoms)
NOTE:
If customer reports a “No Start” condition, request ALL
KEYS to be brought to the Dealer in case of a NATS mal-
function.

TROUBLE

KEY SERVICE REQUEST (Additional key ID registration)

H

Verify the security indicator.

INITIALIZATION

(Refer to CONSULT-II operation
manual IVIS/NVIS.)

E

Using the CONSULT-II program card for IVIS (NATS) check the
“SELF-DIAG RESULTS” with CONSULT-II.

F

Self-diagnostic results referring to IVIS (NATS), but no informa-
tion about engine self-diagnostic results is displayed on CON-
SULT-II.

Self-diagnostic results referring to IVIS (NATS) and “DON’T
ERASE BEFORE CHECKING ENG DIAG” are displayed on
CONSULT-II.
(This means that engine trouble data has been detected in
ECM.)

Turn ignition switch “OFF”.

Repair IVIS (NATS).
(If necessary, carry out “SELF-FUNCTION CHECK” or “C/U INI-
TIALIZATION” with CONSULT-II.)

Turn ignition switch “OFF”.

Turn ignition switch “ON”.

Repair IVIS (NATS) according to self-diagnostic results referring
to IVIS (NATS).
(If necessary, carry out “SELF-FUNCTION CHECK” or “C/U INI-
TIALIZATION” with CONSULT-II.)

Erase the IVIS (NATS) “SELF-DIAG RESULTS” by using CON-
SULT-II. (Touch “ERASE”)

Do not erase the IVIS (NATS) “SELF-DIAG RESULTS” by
using CONSULT-II.

Start the engine.

Check the engine “SELF-DIAG RESULTS” with CONSULT-II by
using the CONSULT-II generic program card.
(Engine diagnostic software included)

F

NG

Verify no lighting up of the security indicator.

OK

Repair engine control system (Refer to EC section.) when self-
diagnostic results except “NATS MALFUNCTION” are detected.
When only “NATS MALFUNCTION” is detected, erase the self-
diagnostic results and go to the next step.

CHECK OUT

Start the engine. Does the engine start properly?

OK

NG

Perform running test with CONSULT-II in engine “SELF-DIAG
RESULTS” mode.

Erase the IVIS (NATS) and engine “SELF-DIAG RESULTS” by
using the CONSULT-II program card for IVIS (NATS) and
generic program card.

NG Verify “NO DTC” displayed on the CONSULT-II screen.

OK

Start the engine.

CHECK OUT

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

IVIS (Infiniti Vehicle Immobilizer System — NATS)

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

EL-491

SYMPTOM MATRIX CHART 1
(Self-diagnosis related item)

SYMPTOM

Displayed “SELF-DIAG

RESULTS” on CONSULT-II

screen.

DIAGNOSTIC PROCE-

DURE

(Reference page)

SYSTEM

(Malfunctioning

part or mode)

REFERENCE PART NO.

OF ILLUSTRATION ON

NEXT PAGE

I

Security indicator lighting
up*

I

Engine will start.

IMMU

PROCEDURE 1

(EL-494)

IMMU

A

ECM

PROCEDURE 2

(EL-494)

ECM

B

I

Security indicator lighting
up*

I

Engine hard to start

CHAIN OF ECM-IMMU

PROCEDURE 3

(EL-495)

Open circuit in battery volt-
age line of IMMU circuit

C1

Open circuit in ignition line
of IMMU circuit

C2

Open circuit in ground line
of IMMU circuit

C3

Open circuit in communica-
tion line between IMMU and
ECM

C4

Short circuit between IMMU
and ECM communication
line and battery voltage line

C4

Short circuit between IMMU
and ECM communication
line and ground line

C4

Open circuit in power
source line of ANT/AMP cir-
cuit

E3

ECM

B

IMMU

A

DIFFERENCE OF KEY

PROCEDURE 4

(EL-497)

Unregistered key

D

IMMU

A

CHAIN OF IMMU-KEY

PROCEDURE 5

(EL-498)

Communication line
between ANT/AMP and
IMMU:
Open circuit or short circuit
of battery voltage line or
short circuit of ground line

E1

E2

Open circuit in power
source line of ANT/AMP cir-
cuit

E3

Open circuit in ground line
of ANT/AMP circuit

E4

Malfunction of key ID chip

E5

IMMU

A

Antenna amp.

E6

*: When IVIS (NATS) detects trouble, the security indicator lights up while ignition key is in the “ON” position.

IVIS (Infiniti Vehicle Immobilizer System — NATS)

Trouble Diagnoses (Cont’d)

EL-492

SYMPTOM

Displayed “SELF-DIAG

RESULTS” on CONSULT-II

screen.

DIAGNOSTIC PROCE-

DURE

(Reference page)

SYSTEM

(Malfunctioning

part or mode)

REFERENCE PART NO.

OF ILLUSTRATION ON

NEXT PAGE

I

Security indicator lighting
up*

I

Engine hard to start

ID DISCORD, IMM-ECM

PROCEDURE 6

(EL-499)

System initialisation has not
yet been completed.

F

ECM

F

ELECTRONIC/MINGLE
NOISE

PROCEDURE 7

(EL-500)

Noise interference in com-
munication line

LOCK MODE

PROCEDURE 9

(EL-502)

LOCK MODE

D

I

MIL staying ON

I

Security indicator lighting
up*

DON’T ERASE BEFORE
CHECKING ENG DIAG

WORK FLOW

(EL-491)

Engine trouble data and
IVIS (NATS) trouble data
have been detected in ECM

*: When IVIS (NATS) detects trouble, the security indicator lights up while ignition key is in the “ON” position.

SYMPTOM MATRIX CHART 2
(Non self-diagnosis related item)

SYMPTOM

DIAGNOSTIC PROCEDURE

(Reference page)

SYSTEM

(Malfunctioning part or mode)

Security ind. does not light up.

PROCEDURE 8

(EL-501)

Security ind.

Open circuit between Fuse and IVIS (NATS)
IMMU

Continuation of initialization mode

IVIS (NATS) IMMU

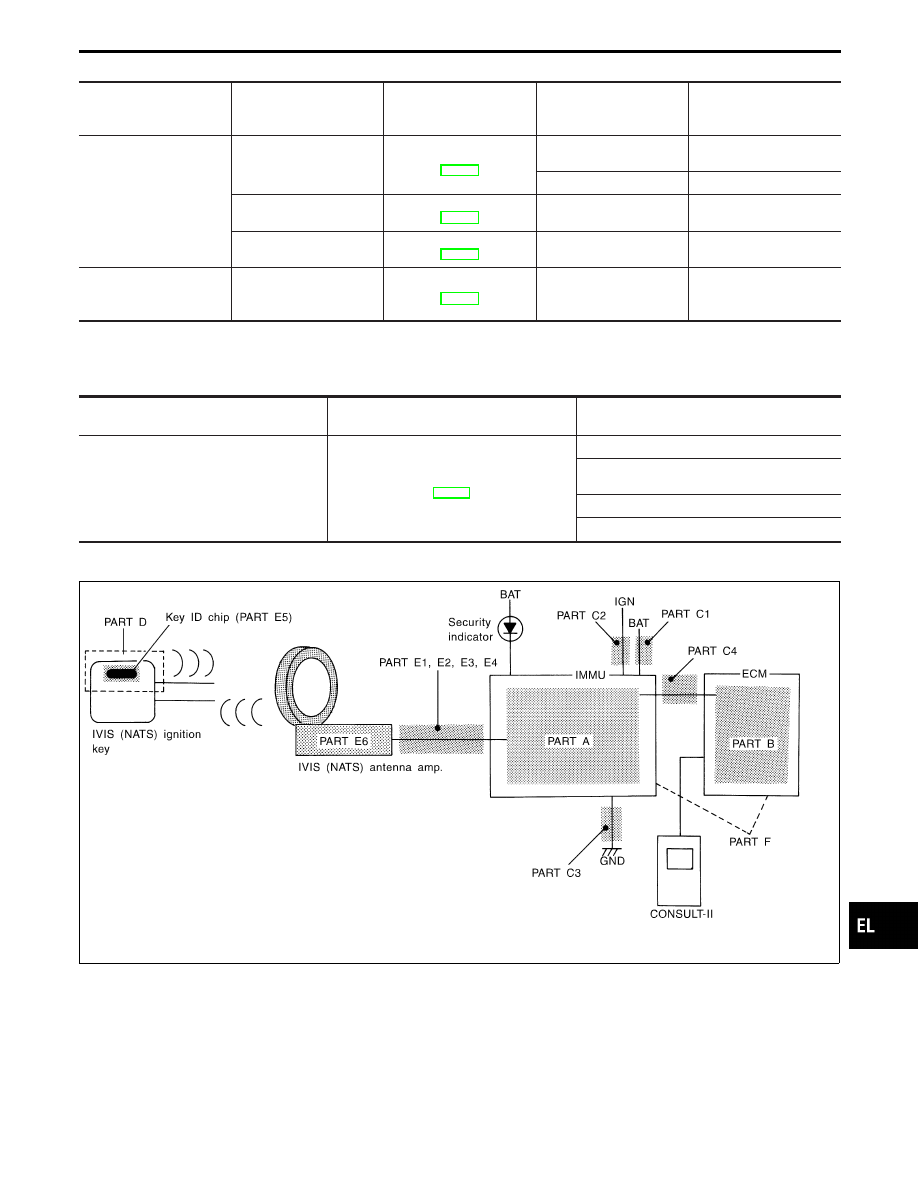

DIAGNOSTIC SYSTEM DIAGRAM

SEL033VA

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

RS

BT

HA

IDX

IVIS (Infiniti Vehicle Immobilizer System — NATS)

Trouble Diagnoses (Cont’d)

EL-493

SEL951W

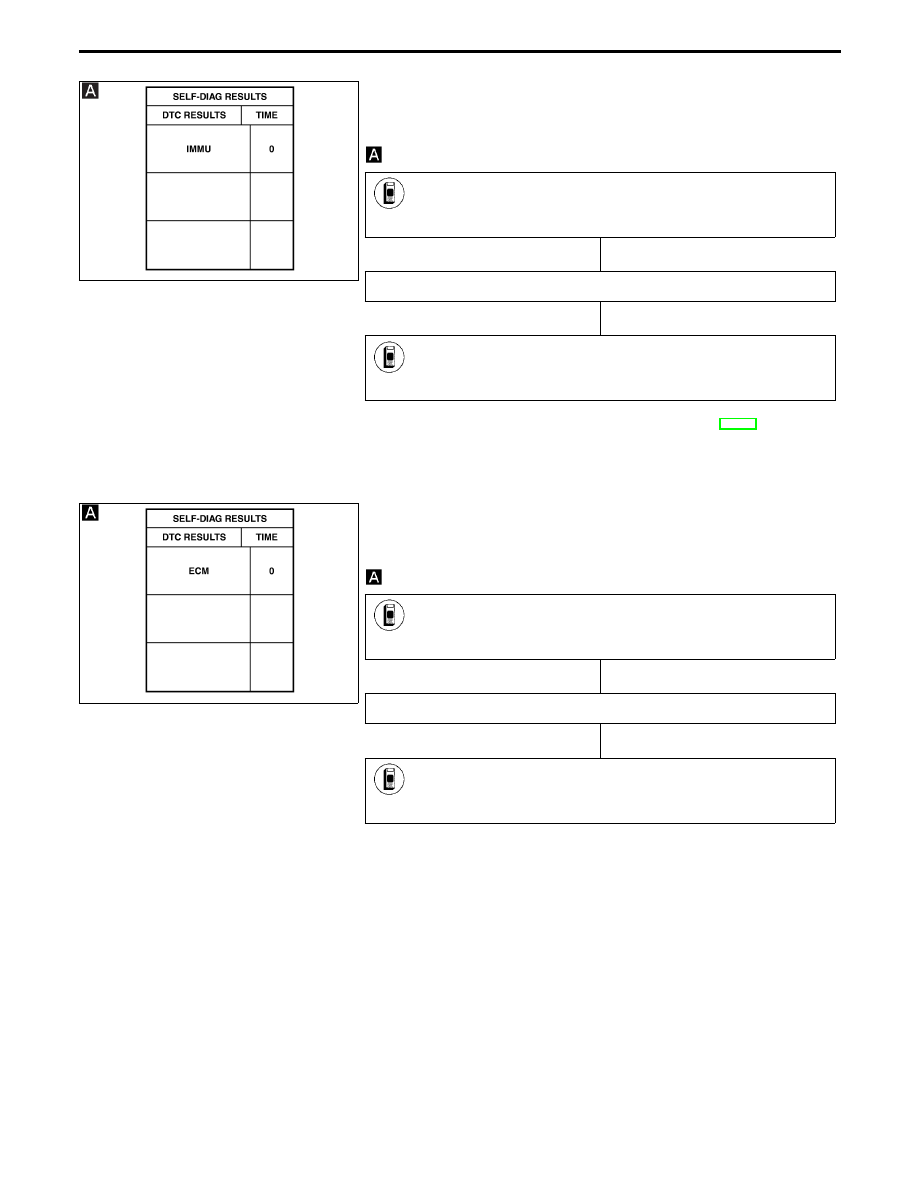

DIAGNOSTIC PROCEDURE 1

Self-diagnostic results:
“IMMU” displayed on CONSULT-II screen

Confirm SELF-DIAGNOSTIC RESULTS “IMMU” displayed on CON-
SULT-II screen.
Ref. part No.* A.

Yes

Replace IMMU.

Perform initialisation with CONSULT-II.
For the operation of initialization, refer to “CONSULT-II operation
manual IVIS/NVIS”.

* Ref. part No.: reference part No. of Diagnostic System Diagram on EL-493.

SEL952W

DIAGNOSTIC PROCEDURE 2

Self-diagnostic results:
“ECM” displayed on CONSULT-II screen

Confirm SELF-DIAGNOSTIC RESULTS “ECM” displayed on CON-
SULT-II screen.
Ref. part No. B.

Replace ECM.

Perform initialization with CONSULT-II.
For the operation of initialization, refer to “CONSULT-II operation
manual IVIS/NVIS”.

IVIS (Infiniti Vehicle Immobilizer System — NATS)

Trouble Diagnoses (Cont’d)

H

H

H

H

EL-494
